Heat Shields - Exhaust System (Lion Diesel 2.7 V6 (140KW)) ((V) TO9A999999) of Land Rover Land Rover Range Rover Sport (2005-2009) [2.7 Diesel V6]

View All

Land Rover Range Rover Sport (2005-2009) [2.7 Diesel V6] - Heat Shields - Exhaust System (Lion Diesel 2.7 V6 (140KW)) ((V) TO9A999999)

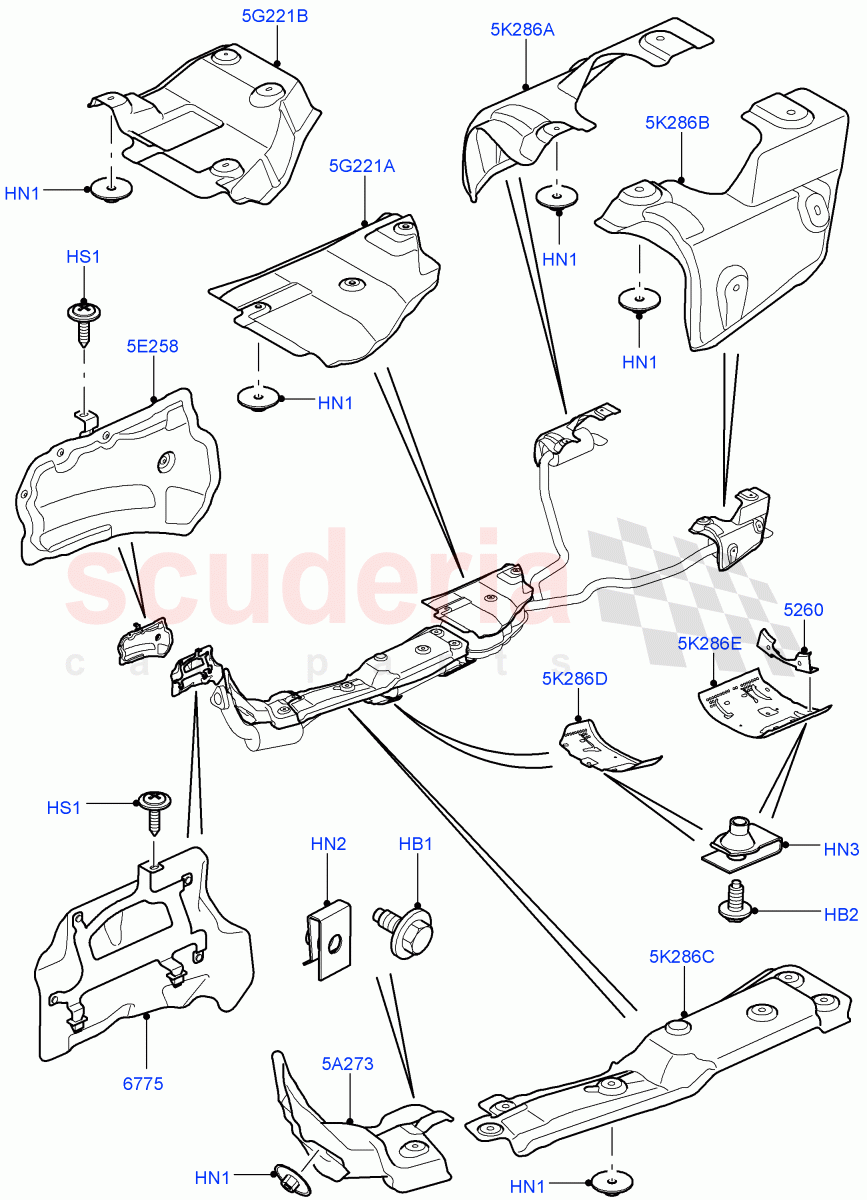

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	KYG500380	SCREW AND WASHER - HEX HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FS106126	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WYH500050	NUT - LOCKING	Enquire	To Order
	WYH500050	NUT - LOCKING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AYH100790	NUT - SPECIAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYH500690	Nut	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	DYP10022	SCREW AND WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR007466	BRACKET - FIRE SHIELD MOUNTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WEB500420	HEAT SHIELD	Enquire	To Order
	WEB500421	HEAT SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WEB500133	HEAT SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WEB500410	HEAT SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WEB500012	HEAT SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WEB500580	HEAT SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WEB500590	HEAT SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WEB500073	HEAT SHIELD	Enquire	To Order
	WEB500750	HEAT SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR007463	HEAT SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR007464	HEAT SHIELD	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	KYG500380	SCREW AND WASHER - HEX HEAD	KYG500380 SCREW AND WASHER - HEX HEAD M6 X 16MM	-	3	Enquire
HB2	FS106126	BOLT	FS106126 BOLT Hexagonal Head, M6 x 12MM / From: 8A000001	-	7	Enquire
HN1	WYH500050	NUT - LOCKING	WYH500050 NUT - LOCKING M5 / To: 6A999999	-	21	Enquire
HN1	WYH500050	NUT - LOCKING	WYH500050 NUT - LOCKING M5 / From: 7A000001	-	21	Enquire
HN2	AYH100790	NUT - SPECIAL	AYH100790 NUT - SPECIAL M6 X 0.5-4, Nut "U" Spring	-	3	Enquire
HN3	RYH500690	Nut	RYH500690 Nut U-Nut M6 X 0.8 - 4.0 / From: 8A000001	-	7	Enquire
HS1	DYP10022	SCREW AND WASHER	DYP10022 SCREW AND WASHER 5 x 20MM	-	2	Enquire
5A273	WEB500133	HEAT SHIELD	WEB500133 HEAT SHIELD LH	-	1	Enquire
5E258	WEB500410	HEAT SHIELD	WEB500410 HEAT SHIELD RH	-	1	Enquire
5G221B	WEB500012	HEAT SHIELD	WEB500012 HEAT SHIELD Rear	-	1	Enquire
5K286A	WEB500580	HEAT SHIELD	WEB500580 HEAT SHIELD Rear RH	-	1	Enquire
5K286B	WEB500590	HEAT SHIELD	WEB500590 HEAT SHIELD Rear LH	-	1	Enquire
5K286C	WEB500073	HEAT SHIELD	WEB500073 HEAT SHIELD Intermediate	-	1	Enquire
5K286C	WEB500750	HEAT SHIELD	WEB500750 HEAT SHIELD Intermediate / From: 8A000001	-	1	Enquire
5K286D	LR007463	HEAT SHIELD	LR007463 HEAT SHIELD Converter Shield, Front / From: 8A000001	-	1	Enquire
5K286E	LR007464	HEAT SHIELD	LR007464 HEAT SHIELD Converter Shield, Rear / From: 8A000001	-	1	Enquire
5260	LR007466	BRACKET - FIRE SHIELD MOUNTING	LR007466 BRACKET - FIRE SHIELD MOUNTING From: 8A000001	-	1	Enquire
6775	WEB500420	HEAT SHIELD	WEB500420 HEAT SHIELD LH / To: 5A915545	-	1	Enquire
6775	WEB500421	HEAT SHIELD	WEB500421 HEAT SHIELD LH / From: 5A915546	-	1	Enquire
