Exhaust System (Lion Diesel 2.7 V6 (140Kw), Stage Iv + Dpf Emissions, With Diesel Particulate...

Land Rover Range Rover Sport (2005-2009) [2.7 Diesel V6]

Find Your Part

Land Rover Range Rover Sport (2005-2009) [2.7 Diesel V6] - Exhaust System (Lion Diesel 2.7 V6 (140KW), Stage IV + DPF Emissions, With Diesel Particulate...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
RYG500440 BOLT $0.99 To Order
Photo Part No Description Price (each) Stock
FA108207 BOLT $2.59 To Order
Photo Part No Description Price (each) Stock
YYP500100 BOLT $2.01 To Order
Photo Part No Description Price (each) Stock
YYC500240 CLAMP - HOSE $1.99 To Order
Photo Part No Description Price (each) Stock
LR025680 M10 FLANGED HEX NUT $7.66 IN STOCK
Photo Part No Description Price (each) Stock
LR007462 PIPE - EXHAUST $924.90 To Order
Photo Part No Description Price (each) Stock
KVU500320 BRACKET - EXHAUST PIPE MOUNTING $19.88 To Order
Photo Part No Description Price (each) Stock
MHK501090 SENSOR $282.56 To Order
LR014310 SENSOR - EXHAUST GAS PRESSURE $199.48 To Order
Photo Part No Description Price (each) Stock
WAG501000 FILTER - DIESEL PARTICLE $3,265.78 To Order
Photo Part No Description Price (each) Stock
YQR000050 CLIP - WIRING $0.76 IN STOCK
Photo Part No Description Price (each) Stock
YQU500610 BRACKET - 3-WAY CONNECTOR $30.92 To Order
Photo Part No Description Price (each) Stock
WCL500020 CLAMP - EXHAUST $77.02 To Order
Photo Part No Description Price (each) Stock
LR007465 CLAMP $47.87 To Order
Photo Part No Description Price (each) Stock
WCD502160 CATALYTIC CONVERTER $2,717.01 To Order
Photo Part No Description Price (each) Stock
LR015414 FILTER - DIESEL PARTICLE $70.45 To Order
Photo Part No Description Price (each) Stock
LR016232 FILTER - DIESEL PARTICLE $59.69 To Order
Photo Part No Description Price (each) Stock
ESR3737 GASKET $16.28 To Order
Photo Part No Description Price (each) Stock
WCM500120 GASKET - EXHAUST PIPE $11.97 IN STOCK
Photo Part No Description Price (each) Stock
DBP7104 MOUNTING - RUBBER $8.12 To Order
Photo Part No Description Price (each) Stock
WCS000150 INSULATOR - RUBBER $22.76 To Order
Photo Part No Description Price (each) Stock
WCS000150 INSULATOR - RUBBER $22.76 To Order
Photo Part No Description Price (each) Stock
LR003975 INSULATOR - RUBBER $12.75 To Order
Photo Part No Description Price (each) Stock
WCI500180 MUFFLER - REAR $363.64 To Order
Photo Part No Description Price (each) Stock
WCI500190 MUFFLER - REAR $363.64 To Order
Photo Part No Description Price (each) Stock
WDN500130 SENSOR - EXHAUST GAS - TEMPERATURE $120.67 To Order
Photo Part No Description Price (each) Stock
WDN500110 SENSOR - EXHAUST GAS - TEMPERATURE $162.53 To Order
Photo Part No Description Price (each) Stock
WDN500050 SENSOR - EXHAUST GAS - TEMPERATURE $121.06 To Order
View All

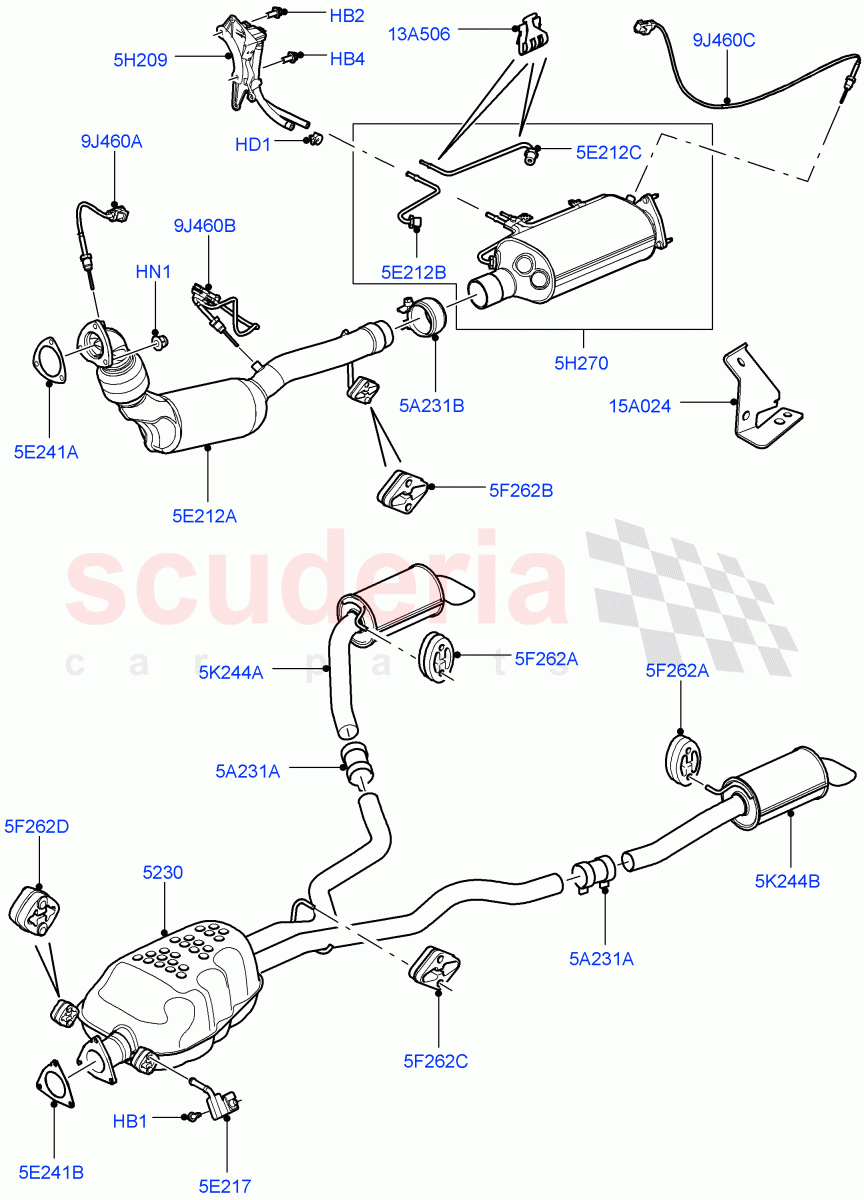

Exhaust System (Lion Diesel 2.7 V6 (140KW), Stage IV + DPF Emissions, With Diesel Particulate Filter) ((V) FROM8A000001, (V) TO9A999999) of Land Rover Land Rover Range Rover Sport (2005-2009) [2.7 Diesel V6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 RYG500440
BOLT
Hex Head, Hexagonal Head, M8 X 20MM / From: 8A000001 		$0.99 1
HB2 FA108207
BOLT
M8 X 20MM / From: 8A000001 		$2.59 2
HB4 YYP500100
BOLT
M8 X 16MM / From: 8A000001 		$2.01 1
HD1 YYC500240
CLAMP - HOSE
Exhaust Gas Pressure / From: 8A000001 		$1.99 2
HN1 LR025680
M10 FLANGED HEX NUT
M10 / From: 8A000001
IN STOCK 		$7.66 3
5A231A WCL500020
CLAMP - EXHAUST
50MM / From: 8A000001 		$77.02 2
5A231B LR007465
CLAMP
60MM / From: 8A000001 		$47.87 1
5E212A WCD502160
CATALYTIC CONVERTER
Stage IV + DPF Emissions / From: 8A000001 		$2,717.01 1
5E212B LR015414
FILTER - DIESEL PARTICLE
Pipe, Short / From: 8A000001 		$70.45 1
5E212C LR016232
FILTER - DIESEL PARTICLE
Long, Pipe / From: 8A000001 		$59.69 1
5E217 KVU500320
BRACKET - EXHAUST PIPE MOUNTING
From: 8A000001 		$19.88 1
5E241A ESR3737
GASKET
From: 8A000001 		$16.28 1
5E241B WCM500120
GASKET - EXHAUST PIPE
From: 8A000001
IN STOCK 		$11.97 1
5F262A DBP7104
MOUNTING - RUBBER
From: 8A000001 		$8.12 2
5F262B WCS000150
INSULATOR - RUBBER
From: 8A000001 		$22.76 2
5F262C WCS000150
INSULATOR - RUBBER
From: 8A000001 		$22.76 1
5F262D LR003975
INSULATOR - RUBBER
From: 8A000001 		$12.75 2
5H209 MHK501090
SENSOR
From: 8A000001 / To: 9A206019 		$282.56 1
5H209 LR014310
SENSOR - EXHAUST GAS PRESSURE
From: 9A206020 		$199.48 1
5H270 WAG501000
FILTER - DIESEL PARTICLE
From: 8A000001 		$3,265.78 1
5K244A WCI500180
MUFFLER - REAR
RH / From: 8A000001 		$363.64 1
5K244B WCI500190
MUFFLER - REAR
LH / From: 8A000001 		$363.64 1
9J460A WDN500130
SENSOR - EXHAUST GAS - TEMPERATURE
Exhaust Gas Temperature / From: 8A000001 		$120.67 1
9J460B WDN500110
SENSOR - EXHAUST GAS - TEMPERATURE
Exhaust Gas Temperature / From: 8A000001 		$162.53 1
9J460C WDN500050
SENSOR - EXHAUST GAS - TEMPERATURE
Exhaust Gas Temperature / From: 8A000001 		$121.06 1
13A506 YQR000050
CLIP - WIRING
From: 8A000001
IN STOCK 		$0.76 2
15A024 YQU500610
BRACKET - 3-WAY CONNECTOR
RH / From: 8A000001 		$30.92 1
5230 LR007462
PIPE - EXHAUST
Stage IV + DPF Emissions / From: 8A000001 		$924.90 1
