Vacuum Control And Air Injection (Lion Diesel 2.7 V6 (140KW)) ((V) TO9A999999)

Find Your Part

Land Rover Range Rover Sport (2005-2009) [2.7 Diesel V6] - Vacuum Control And Air Injection (Lion Diesel 2.7 V6 (140KW)) ((V) TO9A999999)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FB108131 Bolt Enquire To Order
LR000620 BOLT Enquire To Order
LR014364 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
6746838 BOLT - HEX.HEAD Enquire To Order
LR000300 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
4364422 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
SQB000222 TUBE - VACUUM Enquire To Order
LR018326 HOSE - VACUUM Enquire To Order
Photo Part No Description Price (each) Stock
SQB000233 TUBE - VACUUM Enquire To Order
Photo Part No Description Price (each) Stock
SQB000232 TUBE - VACUUM Enquire To Order
LR018327 HOSE - VACUUM Enquire To Order
Photo Part No Description Price (each) Stock
LR019757 HOSE - VACUUM Enquire To Order
Photo Part No Description Price (each) Stock
LR019756 HOSE - VACUUM Enquire To Order
LR019700 HOSE - VACUUM Enquire To Order
Photo Part No Description Price (each) Stock
LR019758 HOSE - VACUUM Enquire To Order
LR019701 HOSE - VACUUM Enquire To Order
Photo Part No Description Price (each) Stock
1337470 PUMP - VACUUM Enquire To Order
LR006649 PUMP - VACUUM Enquire To Order
LR019761 PUMP - VACUUM Enquire To Order
Photo Part No Description Price (each) Stock
LR019960 O-RING Enquire To Order
Photo Part No Description Price (each) Stock
LR096060 GASKET - VACUUM PUMP Enquire To Order
Photo Part No Description Price (each) Stock
1334813 CAP Enquire To Order
Photo Part No Description Price (each) Stock
TRU500020 BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
1331363 BRACKET Enquire To Order
View All

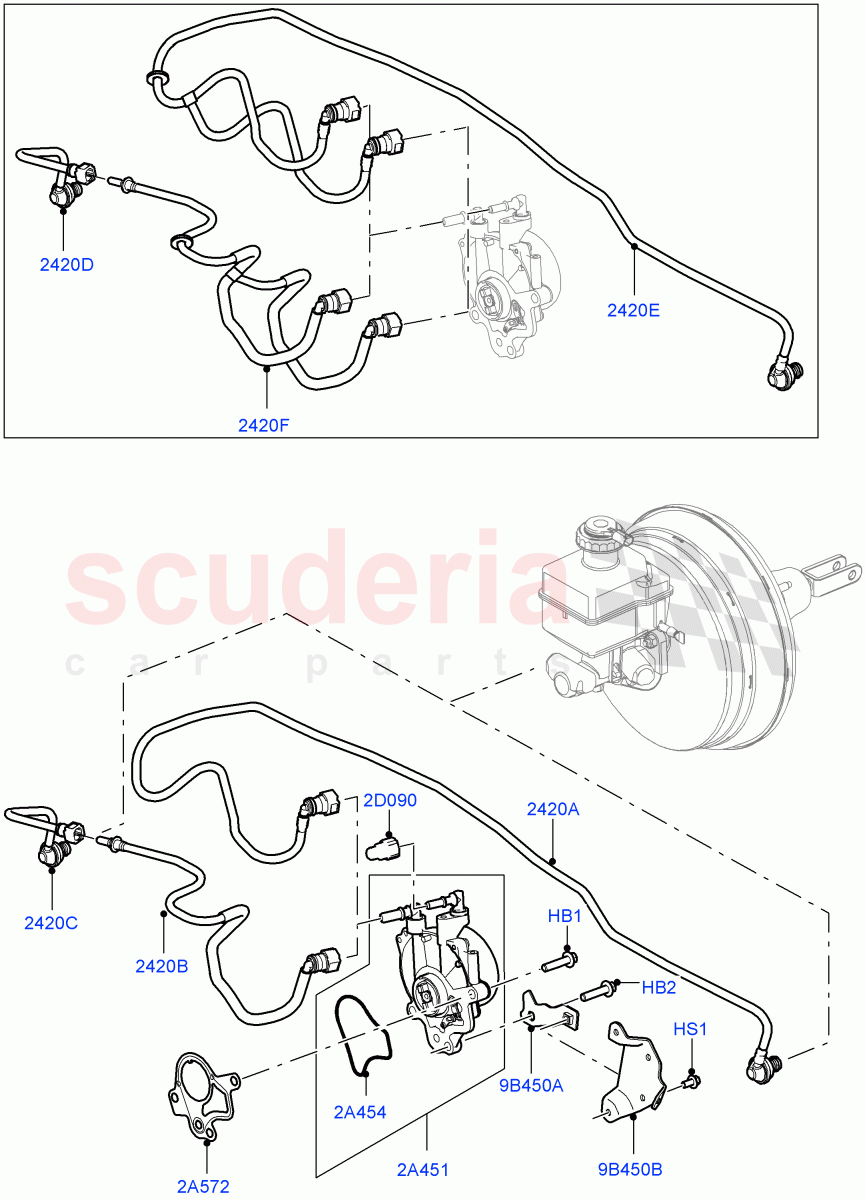

Vacuum Control And Air Injection (Lion Diesel 2.7 V6 (140KW)) ((V) TO9A999999) of Land Rover Land Rover Range Rover Sport (2005-2009) [2.7 Diesel V6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 FB108131
Bolt
M8 x 65MM / To: 6A999999 		- 2 Enquire
HB1 LR000620
BOLT
M8 x 65MM / From: 7A000001 / To: 8A999999 		- 2 Enquire
HB1 LR014364
BOLT
M8 x 65MM / From: 9A000001 		- 2 Enquire
HB2 6746838
BOLT - HEX.HEAD
M8 x 30MM / To: 7A999999 		- 1 Enquire
HB2 LR000300
BOLT
M8 X 30 / From: 8A000001 		- 1 Enquire
HS1 4364422
SCREW
M6 X 16MM 		- 2 Enquire
2A451 1337470
PUMP - VACUUM
To: 7A117727 		- 1 Enquire
2A451 LR006649
PUMP - VACUUM
From: 7A117728 / To: 9A888887 		- 1 Enquire
2A451 LR019761
PUMP - VACUUM
Service Kit / From: 9A888888 		- 1 Enquire
2A454 LR019960
O-RING
Pump - Vacuum 		- 1 Enquire
2A572 LR096060
GASKET - VACUUM PUMP 		- 1 Enquire
2D090 1334813
CAP 		- 1 Enquire
9B450A TRU500020
BRACKET 		- 1 Enquire
9B450B 1331363
BRACKET 		- 1 Enquire
2420A SQB000222
TUBE - VACUUM
LHD, Lion Diesel 2.7 V6 (140KW) / To: 6A916812 		- 1 Enquire
2420A LR018326
HOSE - VACUUM
LHD, Lion Diesel 2.7 V6 (140KW) / From: 6A916813 		- 1 Enquire
2420B SQB000233
TUBE - VACUUM
Lion Diesel 2.7 V6 (140KW), RHD 		- 1 Enquire
2420C SQB000232
TUBE - VACUUM
Lion Diesel 2.7 V6 (140KW), RHD / To: 6A916812 		- 1 Enquire
2420C LR018327
HOSE - VACUUM
Lion Diesel 2.7 V6 (140KW), RHD / From: 6A916813 		- 1 Enquire
2420D LR019757
HOSE - VACUUM
Lion Diesel 2.7 V6 (140KW), RHD / Before Ordering Please View Recall Action Bulletin P017 / From: 6A929086 		- 1 Enquire
2420E LR019756
HOSE - VACUUM
Euro Stage 4 Emissions, LHD, Lion Diesel 2.7 V6 (140KW) / Before Ordering Please View Recall Action Bulletin P017 / From: 6A929086 		- 1 Enquire
2420E LR019700
HOSE - VACUUM
LHD, Lion Diesel 2.7 V6 (140KW) / Before Ordering Please View Recall Action Bulletin P017 / From: 6A929086 		- 1 Enquire
2420F LR019758
HOSE - VACUUM
Euro Stage 4 Emissions, Lion Diesel 2.7 V6 (140KW), RHD / Before Ordering Please View Recall Action Bulletin P017 / From: 6A929086 		- 1 Enquire
2420F LR019701
HOSE - VACUUM
Lion Diesel 2.7 V6 (140KW), RHD / Before Ordering Please View Recall Action Bulletin P017 / From: 6A929086 		- 1 Enquire
