Find Your Part

View All

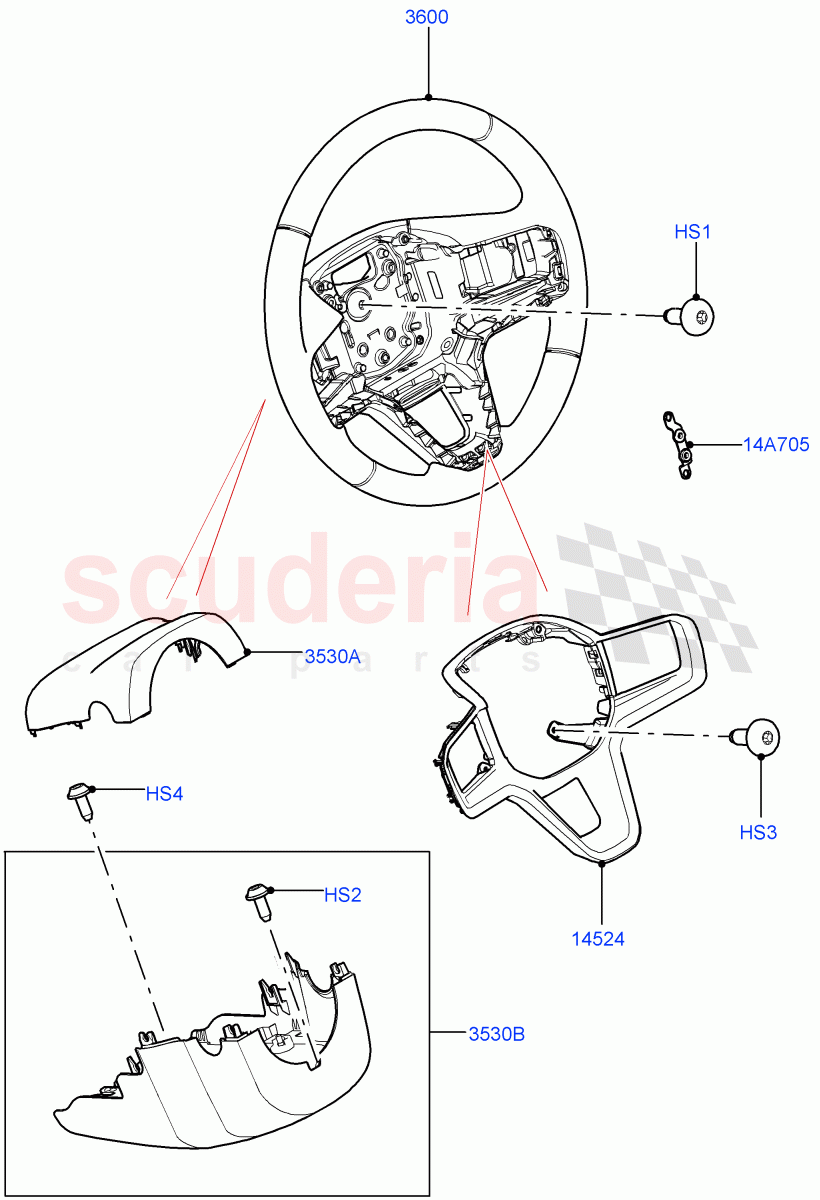

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR053817	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR132558	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR139758	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYP500730	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR139679	BEZEL - STEERING WHEEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR115577	SHROUD - STEERING COLUMN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR139778	BRACKET	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HS1	LR053817	SCREW	LR053817 SCREW M10 X 25MM, Torx / From: MG575835	-	1	Enquire
HS2	LR132558	SCREW	LR132558 SCREW 4 x 10MM, Torx / From: MG575835	-	1	Enquire
HS3	LR139758	SCREW	LR139758 SCREW Attaches Bezel / From: MG575835	-	4	Enquire
HS4	RYP500730	SCREW	RYP500730 SCREW 4 x 14MM, Torx / From: MG575835	-	1	Enquire
14A705	LR139778	BRACKET	LR139778 BRACKET Paddle Shift - Noble / From: MG575835	-	1	Enquire
3530A	LR115577	SHROUD - STEERING COLUMN	LR115577 SHROUD - STEERING COLUMN Upper / From: MG575835	-	1	Enquire
3530B	LR134454	SHROUD - STEERING COLUMN	LR134454 SHROUD - STEERING COLUMN Manual Steering Column / Lower / From: MG575835	-	1	Enquire
3530B	LR134455	SHROUD - STEERING COLUMN	LR134455 SHROUD - STEERING COLUMN Electric Steering Column / Lower / From: MG575835	-	1	Enquire
3600	LR141687	WHEEL - STEERING	LR141687 WHEEL - STEERING Less Heated Steering Wheel, Paddle Shift - Noble, S WHL-DUO TONE (LTH) W/PU DAB / From: MG575835	-	1	Enquire
3600	LR156789	WHEEL - STEERING	LR156789 WHEEL - STEERING Colour Keyed Steering Wheel, Paddle Shift - Noble, With Heated Steering Wheel / From: MG575835	-	1	Enquire
14524	LR139679	BEZEL - STEERING WHEEL	LR139679 BEZEL - STEERING WHEEL From: MG575835	-	1	Enquire
