Heater Hoses (1.5L Aj20P3 Petrol High, Changsu (China))

Land Rover Range Rover Evoque (2019+) [2.0 Turbo Petrol AJ200P]

Find Your Part

Land Rover Range Rover Evoque (2019+) [2.0 Turbo Petrol AJ200P] - Heater Hoses (1.5L AJ20P3 Petrol High, Changsu (China))

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
RYG500190 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR001925 SCREW AND WASHER Enquire To Order
Photo Part No Description Price (each) Stock
LR115997 PUMP - WATER - FFH Enquire To Order
Photo Part No Description Price (each) Stock
LR114601 HOSE - HEATER WATER Enquire To Order
Photo Part No Description Price (each) Stock
LR125563 HOSE - HEATER WATER Enquire To Order
Photo Part No Description Price (each) Stock
LR125554 HOSE - COOLING SYSTEM Enquire To Order
Photo Part No Description Price (each) Stock
LR084529 BRACKET - PUMP SUPPORT Enquire To Order
Photo Part No Description Price (each) Stock
LR095332 PUMP - WATER - FFH Enquire To Order
Photo Part No Description Price (each) Stock
LR125544 HOSE - HEATER WATER Enquire To Order
Photo Part No Description Price (each) Stock
LR004547 SEAL - HEATER Enquire To Order
View All

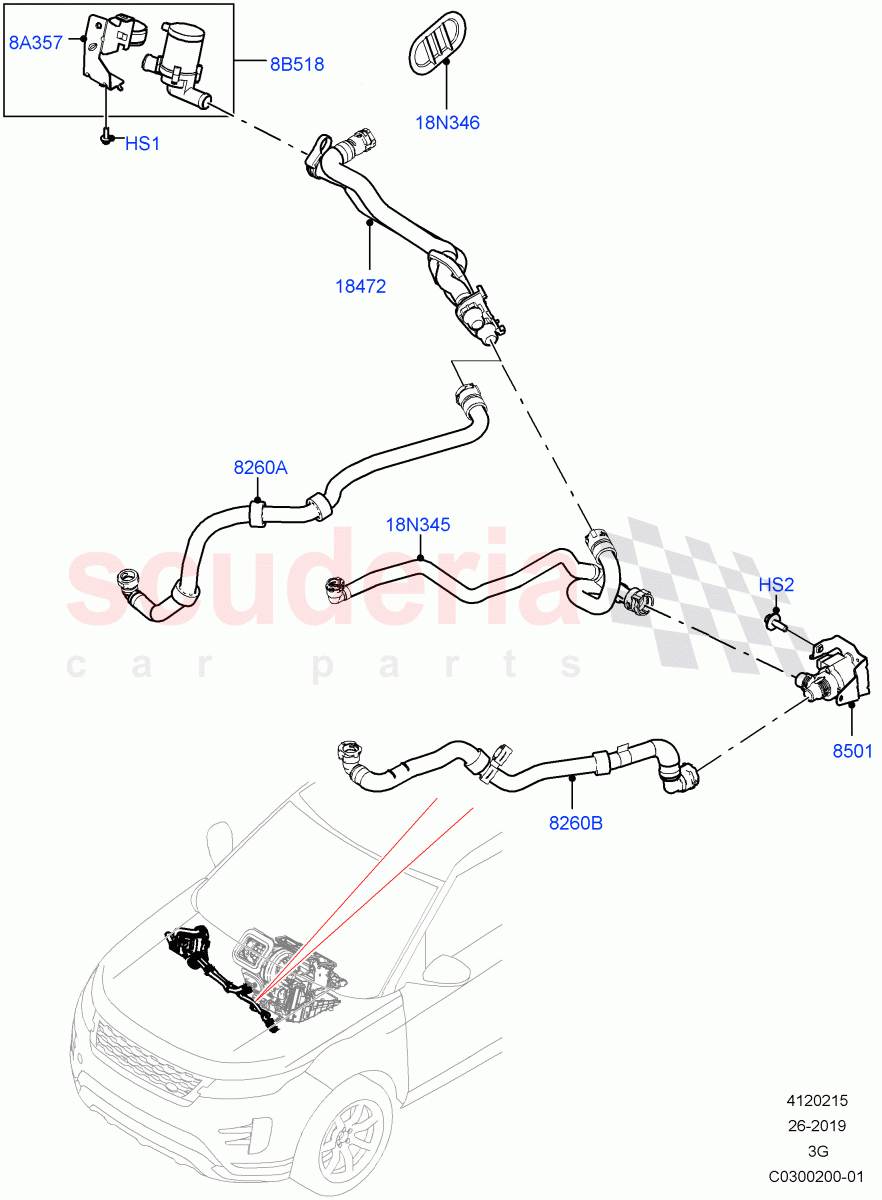

Heater Hoses (1.5L AJ20P3 Petrol High, Changsu (China)) of Land Rover Land Rover Range Rover Evoque (2019+) [2.0 Turbo Petrol AJ200P] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HS1 RYG500190
SCREW
Hexagonal Head, M6 X 16MM 		- 1 Enquire
HS2 LR001925
SCREW AND WASHER
M6 X 20MM 		- 2 Enquire
8A357 LR084529
BRACKET - PUMP SUPPORT 		- 1 Enquire
8B518 LR095332
PUMP - WATER - FFH
Main Unit 		- 1 Enquire
18N345 LR125544
HOSE - HEATER WATER
Pump To Heater 		- 1 Enquire
18N346 LR004547
SEAL - HEATER 		- 1 Enquire
8260A LR125563
HOSE - HEATER WATER
Inlet 		- 1 Enquire
8260B LR125554
HOSE - COOLING SYSTEM
Auxiliary Unit, Water Pump 		- 1 Enquire
8501 LR115997
PUMP - WATER - FFH
Auxiliary Unit 		- 1 Enquire
18472 LR114601
HOSE - HEATER WATER
To HVAC Unit, To Pump 		- 1 Enquire
