Anti-Theft Alarm Systems (Changsu (China))

Land Rover Range Rover Evoque (2019+) [2.0 Turbo Petrol AJ200P]

Find Your Part

Land Rover Range Rover Evoque (2019+) [2.0 Turbo Petrol AJ200P] - Anti-Theft Alarm Systems (Changsu (China))

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
AYG500030 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
RYQ500040 FASTENER Enquire To Order
Photo Part No Description Price (each) Stock
FN106042 NUT Enquire To Order
Photo Part No Description Price (each) Stock
RYH500950 NUT - ADJUSTING Enquire To Order
Photo Part No Description Price (each) Stock
VYP500060 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR026428 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR066957 SCREW AND WASHER Enquire To Order
Photo Part No Description Price (each) Stock
LR068413 HORN Enquire To Order
LR158548 HORN Enquire To Order
Photo Part No Description Price (each) Stock
LR033377 WIRE - SCANNING MODULE Enquire To Order
Photo Part No Description Price (each) Stock
LR094021 FOAM PAD - ENERGY ABSORBING Enquire To Order
Photo Part No Description Price (each) Stock
LR031729 HEAT SHIELD - EXHAUST Enquire To Order
Photo Part No Description Price (each) Stock
LR117362 BRACKET - HORN Enquire To Order
Photo Part No Description Price (each) Stock
LR128870 MOUNTING - ANTENNA Enquire To Order
Photo Part No Description Price (each) Stock
LR110282 BRACKET - SUPPORT Enquire To Order
Photo Part No Description Price (each) Stock
LR115229 TRANSCEIVER - ANTI THEFT Enquire To Order
Photo Part No Description Price (each) Stock
LR115231 TRANSCEIVER - ANTI THEFT Enquire To Order
Photo Part No Description Price (each) Stock
LR117928 MODULE - PASSIVE START Enquire To Order
LR117932 MODULE Enquire To Order
Photo Part No Description Price (each) Stock
LR117933 RECEIVER - RADIO REMOTE CONTROL Enquire To Order
LR117934 RECEIVER - RADIO REMOTE CONTROL Enquire To Order
LR149754 RECEIVER - RADIO REMOTE CONTROL Enquire To Order
Photo Part No Description Price (each) Stock
LR106725 SENSOR AND BRACKET - INTERIOR SCAN Enquire To Order
Photo Part No Description Price (each) Stock
LR099137 ANTENNA - LF Enquire To Order
Photo Part No Description Price (each) Stock
LR067841 SIREN - ANTI-THEFT ALARM SYSTEM Enquire To Order
Photo Part No Description Price (each) Stock
LR133253 TRANSCEIVER Enquire To Order
Photo Part No Description Price (each) Stock
LR138727 TRANSCEIVER Enquire To Order
View All

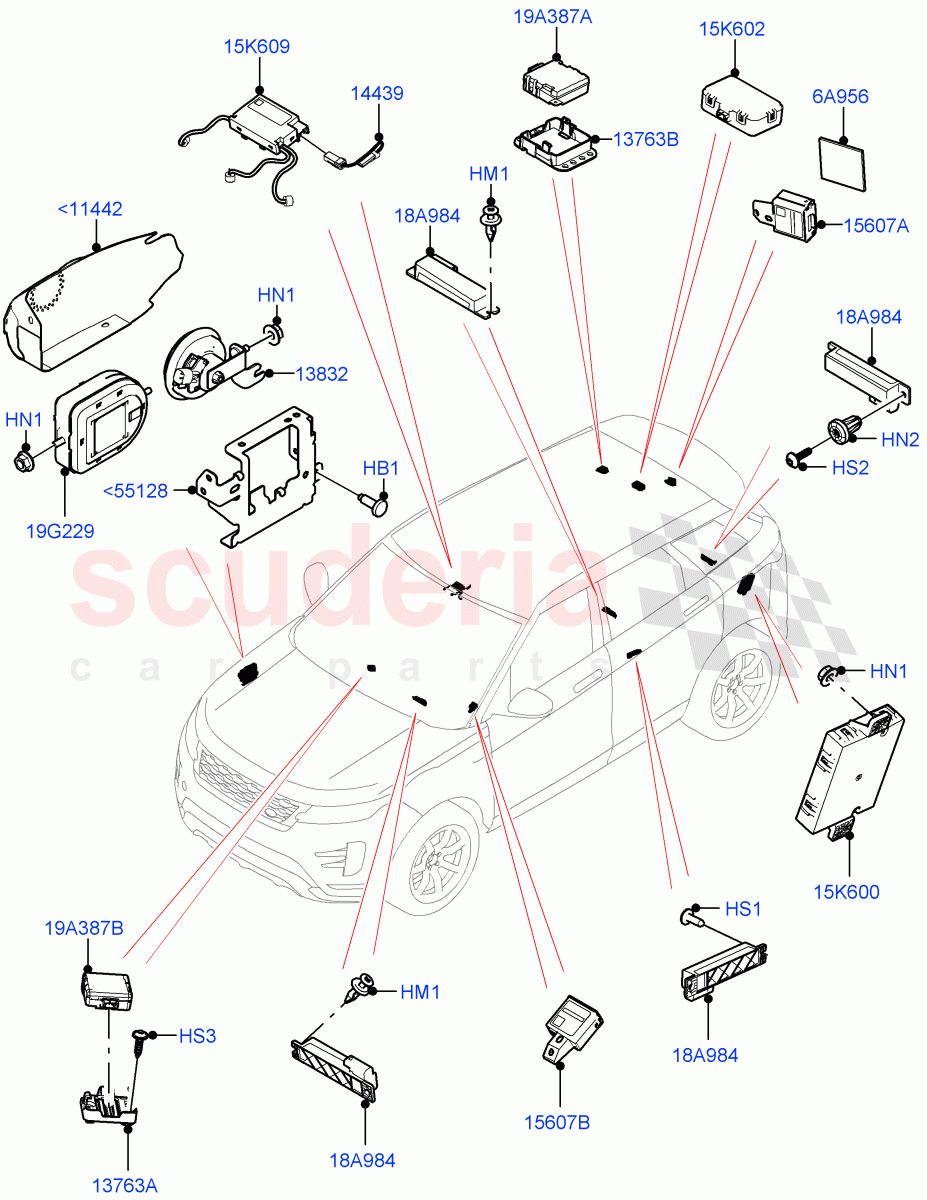

Anti-Theft Alarm Systems (Changsu (China)) of Land Rover Land Rover Range Rover Evoque (2019+) [2.0 Turbo Petrol AJ200P] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<11442 LR031729
HEAT SHIELD - EXHAUST 		- 1 Enquire
<55128 LR117362
BRACKET - HORN 		- 1 Enquire
HB1 AYG500030
BOLT
M6 x 15 		- 2 Enquire
HM1 RYQ500040
FASTENER
6.25 x 1.6/6MM 		- 4 Enquire
HN1 FN106042
NUT
Hexagonal Head, M6 		- 6 Enquire
HN2 RYH500950
NUT - ADJUSTING
4.8 X 8 X 8 X 0.7, Expanding Rivet, Includes Seal 		- 4 Enquire
HS1 VYP500060
SCREW
Keyless Entry/Start - Passive / 4.8 X 16MM, Torx 		- 4 Enquire
HS2 LR026428
SCREW
Keyless Entry/Start - Passive / M4 x 16MM 		- 2 Enquire
HS3 LR066957
SCREW AND WASHER
Keyless Entry/Start - Passive / 4.2 x 16MM, Mounting Bracket 		- 2 Enquire
6A956 LR094021
FOAM PAD - ENERGY ABSORBING
Vehicle Access-Leisure Activity Key 		- 1 Enquire
15K600 LR117928
MODULE - PASSIVE START
With Keyless Start 		- 1 Enquire
15K600 LR117932
MODULE
Keyless Entry/Start - Passive 		- 1 Enquire
15K602 LR117933
RECEIVER - RADIO REMOTE CONTROL
315 MHZ Door Lock Frequency 		- 1 Enquire
15K602 LR117934
RECEIVER - RADIO REMOTE CONTROL
433 MHZ Door Lock Frequency / To: MG575834 		- 1 Enquire
15K602 LR149754
RECEIVER - RADIO REMOTE CONTROL
433 MHZ Door Lock Frequency / From: MG575835 		- 1 Enquire
15K609 LR106725
SENSOR AND BRACKET - INTERIOR SCAN
Perimeter / Volume Theft System / Front, Located In The Headliner 		- 1 Enquire
18A984 LR099137
ANTENNA - LF
Remote Keyless Antenna 		- 1 Enquire
19A387A LR133253
TRANSCEIVER
Keyless Entry/Start - Passive / Rear 		- 1 Enquire
19A387B LR138727
TRANSCEIVER
Keyless Entry/Start - Passive / Front 		- 1 Enquire
19G229 LR067841
SIREN - ANTI-THEFT ALARM SYSTEM
BBU With Tilt Sensor 		- 1 Enquire
13763A LR128870
MOUNTING - ANTENNA
Keyless Entry/Start - Passive / Attaches Antenna, Front 		- 1 Enquire
13763B LR110282
BRACKET - SUPPORT
Keyless Entry/Start - Passive / Attaches Antenna, Rear 		- 1 Enquire
13832 LR068413
HORN
Securty Siren - Less Battery Backup / To: MG575834 		- 1 Enquire
13832 LR158548
HORN
Securty Siren - Less Battery Backup / From: MG575835 		- 1 Enquire
14439 LR033377
WIRE - SCANNING MODULE
Perimeter / Volume Theft System 		- 1 Enquire
15607A LR115229
TRANSCEIVER - ANTI THEFT
Vehicle Access-Leisure Activity Key / Rear 		- 1 Enquire
15607B LR115231
TRANSCEIVER - ANTI THEFT
Front, With Engine Immobiliser 		- 1 Enquire
