Name: Transmission External Components (1.5L AJ20P3 Petrol High, 8 Speed Automatic Trans 8G30, Changsu (China), 1.5L AJ20P3 Petrol High PHEV)
Rating: 4.6 (1 reviews)

Transmission External Components (1.5L AJ20P3 Petrol High, 8 Speed Automatic Trans 8G30, Changsu (China), 1.5L AJ20P3 Petrol High PHEV) of Land Rover Land Rover Range Rover Evoque (2019+) [2.0 Turbo Petrol AJ200P]

View All

Land Rover Range Rover Evoque (2019+) [2.0 Turbo Petrol AJ200P] - Transmission External Components (1.5L AJ20P3 Petrol High, 8 Speed Automatic Trans 8G30, Changsu...

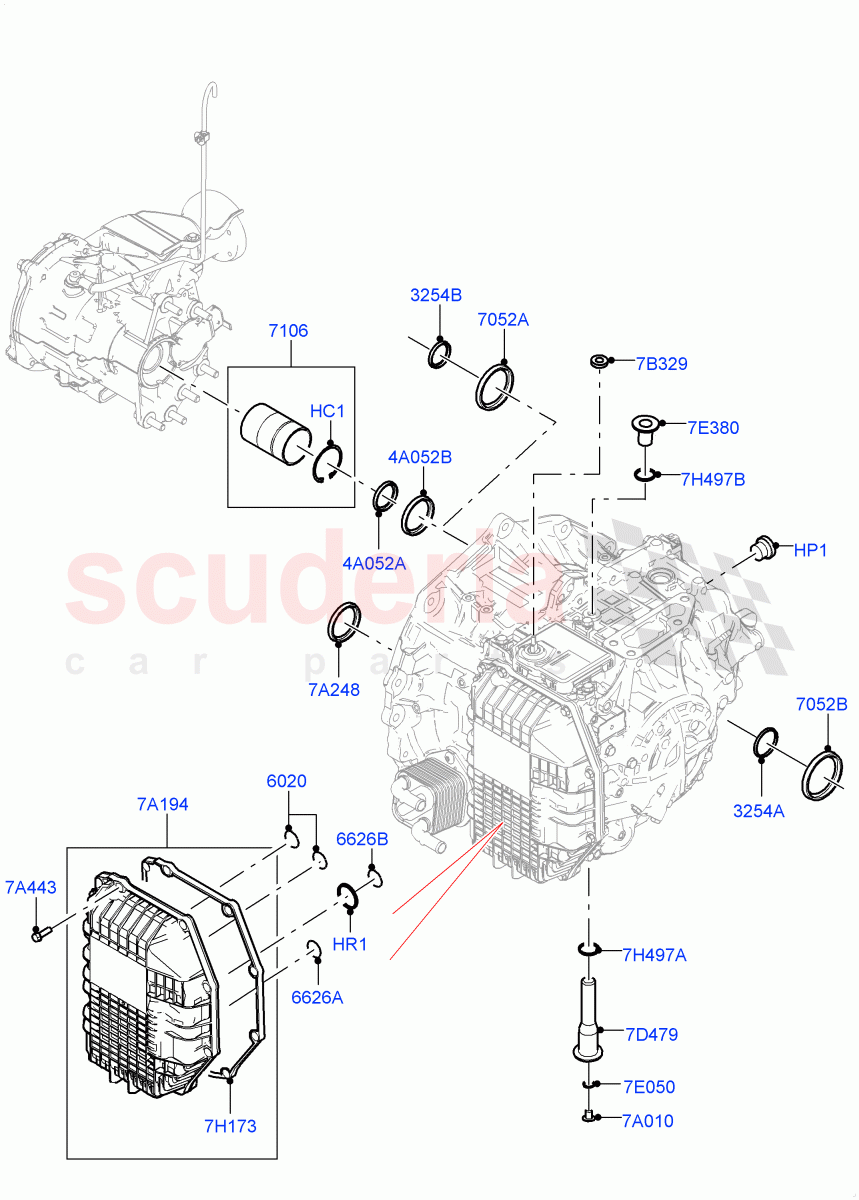

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR002915	CIRCLIP	$5.52	To Order

Photo	Part No	Description	Price (each)	Stock
	LR127829	PLUG - TRANSMISSION	$2.34	To Order

Photo	Part No	Description	Price (each)	Stock
	LR127814	RING - SEALING	$22.87	To Order

Photo	Part No	Description	Price (each)	Stock
	LR127866	GASKET - ACTUATOR	$3.73	To Order

Photo	Part No	Description	Price (each)	Stock
	LR127823	SHAFT - OUTPUT	$516.39	To Order

Photo	Part No	Description	Price (each)	Stock
	LR127815	SEAL - OIL	$18.86	To Order

Photo	Part No	Description	Price (each)	Stock
	LR127816	SEAL - OIL	$20.34	To Order

Photo	Part No	Description	Price (each)	Stock
	LR127820	RING - SEALING	$17.68	To Order

Photo	Part No	Description	Price (each)	Stock
	LR127821	RING - SEALING	$17.68	To Order

Photo	Part No	Description	Price (each)	Stock
	LR127854	RING - SEALING	$8.89	To Order

Photo	Part No	Description	Price (each)	Stock
	LR127853	RING - SEALING	$10.09	To Order

Photo	Part No	Description	Price (each)	Stock
	LR127969	PLUG - OIL DRAIN	$15.57	To Order

Photo	Part No	Description	Price (each)	Stock
	LR127830	PAN - TRANSMISSION OIL	$421.90	To Order

Photo	Part No	Description	Price (each)	Stock
	LR127864	SEAL - CONVERTER	$83.58	To Order

Photo	Part No	Description	Price (each)	Stock
	LR127857	BOLT	$0.86	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000866	RING - SEALING	$3.05	To Order

Photo	Part No	Description	Price (each)	Stock
	LR127845	PLUG - DRAIN	$8.77	To Order

Photo	Part No	Description	Price (each)	Stock
	LR127846	GASKET - DRAIN PLUG - OIL	$1.74	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000876	PLUG - THREADED	$7.27	To Order

Photo	Part No	Description	Price (each)	Stock
	LR127851	GASKET - VALVE	$26.68	To Order

Photo	Part No	Description	Price (each)	Stock
	LR127835	SEAL - OUTPUT SHAFT OIL	$112.82	To Order

Photo	Part No	Description	Price (each)	Stock
	LR127840	SEAL - OUTPUT SHAFT OIL	$112.82	To Order

Photo	Part No	Description	Price (each)	Stock
	LR127855	RING - SEALING	$2.38	To Order

Photo	Part No	Description	Price (each)	Stock
	LR127852	SEAL - OIL FILLER TUBE	$1.32	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HC1	LR002915	CIRCLIP	LR002915 CIRCLIP All Wheel Drive / Sleeve, Snap Ring	$5.52	1
HP1	LR127829	PLUG - TRANSMISSION	LR127829 PLUG - TRANSMISSION Transmission	$2.34	1
HR1	LR127814	RING - SEALING	LR127814 RING - SEALING Oil Pump	$22.87	1
4A052A	LR127835	SEAL - OUTPUT SHAFT OIL	LR127835 SEAL - OUTPUT SHAFT OIL All Wheel Drive / Differential, Inner, OUTPUT SHAFT	$112.82	1
4A052B	LR127840	SEAL - OUTPUT SHAFT OIL	LR127840 SEAL - OUTPUT SHAFT OIL All Wheel Drive / Differential, Outer, OUTPUT SHAFT	$112.82	1
7A010	LR127969	PLUG - OIL DRAIN	LR127969 PLUG - OIL DRAIN Over Flow	$15.57	1
7A194	LR127830	PAN - TRANSMISSION OIL	LR127830 PAN - TRANSMISSION OIL	$421.90	1
7A248	LR127864	SEAL - CONVERTER	LR127864 SEAL - CONVERTER Converter	$83.58	1
7A443	LR127857	BOLT	LR127857 BOLT Oil Pan	$0.86	10
7B329	LR000866	RING - SEALING	LR000866 RING - SEALING 1.5L AJ20P3 Petrol High / Parking Lock Shaft	$3.05	1
7D479	LR127845	PLUG - DRAIN	LR127845 PLUG - DRAIN	$8.77	1
7E050	LR127846	GASKET - DRAIN PLUG - OIL	LR127846 GASKET - DRAIN PLUG - OIL Drain Plug	$1.74	1
7E380	LR000876	PLUG - THREADED	LR000876 PLUG - THREADED	$7.27	1
7H173	LR127851	GASKET - VALVE	LR127851 GASKET - VALVE Oil Pan	$26.68	1
7H497A	LR127855	RING - SEALING	LR127855 RING - SEALING Drain Plug	$2.38	1
7H497B	LR127852	SEAL - OIL FILLER TUBE	LR127852 SEAL - OIL FILLER TUBE Filler Plug	$1.32	1
3254A	LR127815	SEAL - OIL	LR127815 SEAL - OIL LH, O Ring	$18.86	1
3254B	LR127816	SEAL - OIL	LR127816 SEAL - OIL Front Wheel Drive / RH, O Ring	$20.34	1
6020	LR127866	GASKET - ACTUATOR	LR127866 GASKET - ACTUATOR	$3.73	1
6626A	LR127820	RING - SEALING	LR127820 RING - SEALING Lower, Oil Pump	$17.68	1
6626B	LR127821	RING - SEALING	LR127821 RING - SEALING Oil Pump, Upper	$17.68	1
7052A	LR127854	RING - SEALING	LR127854 RING - SEALING Front Wheel Drive / RH	$8.89	1
7052B	LR127853	RING - SEALING	LR127853 RING - SEALING LH	$10.09	1
7106	LR127823	SHAFT - OUTPUT	LR127823 SHAFT - OUTPUT All Wheel Drive / Differential	$516.39	1
