Timing Gear (2.0L Aj20P4 Petrol Mid Pta, Changsu (China))

Land Rover Range Rover Evoque (2019+) [2.0 Turbo Petrol AJ200P]

Find Your Part

Land Rover Range Rover Evoque (2019+) [2.0 Turbo Petrol AJ200P] - Timing Gear (2.0L AJ20P4 Petrol Mid PTA, Changsu (China))

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR088515 BOLT $2.49 To Order
Photo Part No Description Price (each) Stock
LR127722 BOLT - SPECIAL $48.65 To Order
Photo Part No Description Price (each) Stock
LR095784 O-RING $3.90 To Order
LR154974 O-RING $6.87 To Order
Photo Part No Description Price (each) Stock
LR073655 SCREW $1.54 IN STOCK
Photo Part No Description Price (each) Stock
LR071842 SCREW AND WASHER - HEX HEAD $1.28 To Order
Photo Part No Description Price (each) Stock
LR073648 SCREW $2.55 IN STOCK
Photo Part No Description Price (each) Stock
LR073762 PIN - SPECIAL $2.89 To Order
Photo Part No Description Price (each) Stock
LR120542 NUT - SPECIAL $2.92 To Order
Photo Part No Description Price (each) Stock
LR142280 SPROCKET - CAMSHAFT $224.37 To Order
Photo Part No Description Price (each) Stock
LR091740 CHAIN - TIMING $132.65 To Order
Photo Part No Description Price (each) Stock
LR091742 CHAIN - TIMING $132.62 To Order
LR139321 CHAIN - DRIVE $115.50 To Order
Photo Part No Description Price (each) Stock
LR091743 TENSIONER - TIMING BELT $118.55 To Order
Photo Part No Description Price (each) Stock
LR123811 TENSIONER - TIMING BELT $112.85 To Order
Photo Part No Description Price (each) Stock
LR124261 IDLER - DRIVE CHAIN $68.43 To Order
Photo Part No Description Price (each) Stock
LR177463 SOLENOID - ENGINE VARIABLE TIMING $38.90 ARRIVING SOON
LR177463 SOLENOID - ENGINE VARIABLE TIMING $38.90 ARRIVING SOON
Photo Part No Description Price (each) Stock
LR124262 ARM - TIMING CHAIN TENSIONER $40.64 IN STOCK
Photo Part No Description Price (each) Stock
LR125215 GUIDE - TIMING CHAIN $35.27 To Order
Photo Part No Description Price (each) Stock
LR091745 GUIDE - TIMING CHAIN $46.57 To Order
Photo Part No Description Price (each) Stock
LR091747 ARM - TIMING CHAIN TENSIONER $43.25 To Order
Photo Part No Description Price (each) Stock
LR091746 GUIDE - TIMING CHAIN $46.25 To Order
Photo Part No Description Price (each) Stock
LR091574 JET - CHAIN LUBRICATING $19.83 To Order
Photo Part No Description Price (each) Stock
LR091575 JET - CHAIN LUBRICATING $20.69 To Order
View All

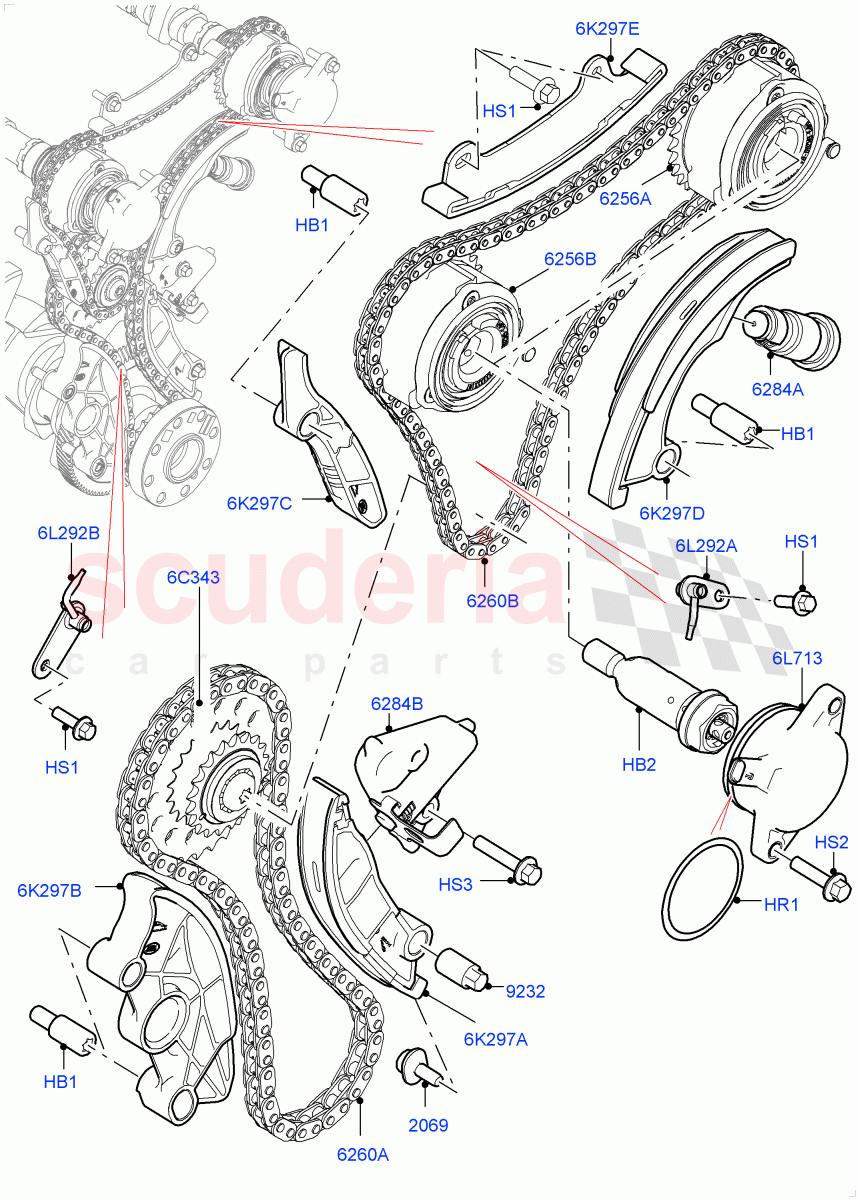

Timing Gear (2.0L AJ20P4 Petrol Mid PTA, Changsu (China)) of Land Rover Land Rover Range Rover Evoque (2019+) [2.0 Turbo Petrol AJ200P] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR088515
BOLT
Chain Guide, M8 X 17MM 		$2.49 4
HB2 LR127722
BOLT - SPECIAL
Variable Valve Timing Unit 		$48.65 2
HR1 LR095784
O-RING 		$3.90 2
HR1 LR154974
O-RING 		$6.87 2
HS1 LR073655
SCREW
Chain Guide, Hexagonal Head, M6 X 20MM
IN STOCK 		$1.54 2
HS2 LR071842
SCREW AND WASHER - HEX HEAD
Hexagonal Head, M6 X 25MM 		$1.28 4
HS3 LR073648
SCREW
Hexagonal Head, M6 x 30MM, Tensioner
IN STOCK 		$2.55 2
6C343 LR124261
IDLER - DRIVE CHAIN
Intermediate 		$68.43 1
6K297A LR124262
ARM - TIMING CHAIN TENSIONER
Primary, Rear
IN STOCK 		$40.64 1
6K297B LR125215
GUIDE - TIMING CHAIN
Front, Primary 		$35.27 1
6K297C LR091745
GUIDE - TIMING CHAIN
Front, Secondary 		$46.57 1
6K297D LR091747
ARM - TIMING CHAIN TENSIONER
Rear, Secondary 		$43.25 1
6K297E LR091746
GUIDE - TIMING CHAIN
Secondary, Upper 		$46.25 1
6L292A LR091574
JET - CHAIN LUBRICATING
Upper 		$19.83 1
6L292B LR091575
JET - CHAIN LUBRICATING
Lower 		$20.69 1
6L713 LR177463
SOLENOID - ENGINE VARIABLE TIMING
To: MG575834
ARRIVING SOON 		$38.90 2
6L713 LR177463
SOLENOID - ENGINE VARIABLE TIMING
From: MG575835
ARRIVING SOON 		$38.90 2
2069 LR073762
PIN - SPECIAL
PIVOT 		$2.89 1
6256 LR142278
SPROCKET - CAMSHAFT
Inlet, Variable Valve Timing Unit 		$224.37 1
6256A LR142280
SPROCKET - CAMSHAFT
Exhaust, Variable Valve Timing Unit 		$224.37 1
6260A LR091740
CHAIN - TIMING
Lower, Primary 		$132.65 1
6260B LR091742
CHAIN - TIMING
Secondary, Upper / To: LG560024 		$132.62 1
6260B LR139321
CHAIN - DRIVE
Secondary, Upper / From: LG560025 		$115.50 1
6284A LR091743
TENSIONER - TIMING BELT
Secondary 		$118.55 1
6284B LR123811
TENSIONER - TIMING BELT
Primary 		$112.85 1
9232 LR120542
NUT - SPECIAL 		$2.92 1
