Name: Cylinder Block And Plugs (2.0L AJ20P4 Petrol E100 PTA, Halewood (UK), 2.0L AJ20P4 Petrol High PTA, 2.0L AJ20P4 Petrol Mid PTA) ((V) TONH999999)
Rating: 4.1 (1 reviews)

Cylinder Block And Plugs (2.0L AJ20P4 Petrol E100 PTA, Halewood (UK), 2.0L AJ20P4 Petrol High PTA, 2.0L AJ20P4 Petrol Mid PTA) ((V) TONH999999) of Land Rover Land Rover Range Rover Evoque (2019+) [2.0 Turbo Petrol AJ200P]

View All

Land Rover Range Rover Evoque (2019+) [2.0 Turbo Petrol AJ200P] - Cylinder Block And Plugs (2.0L AJ20P4 Petrol E100 PTA, Halewood (UK), 2.0L AJ20P4 Petrol High PTA,...

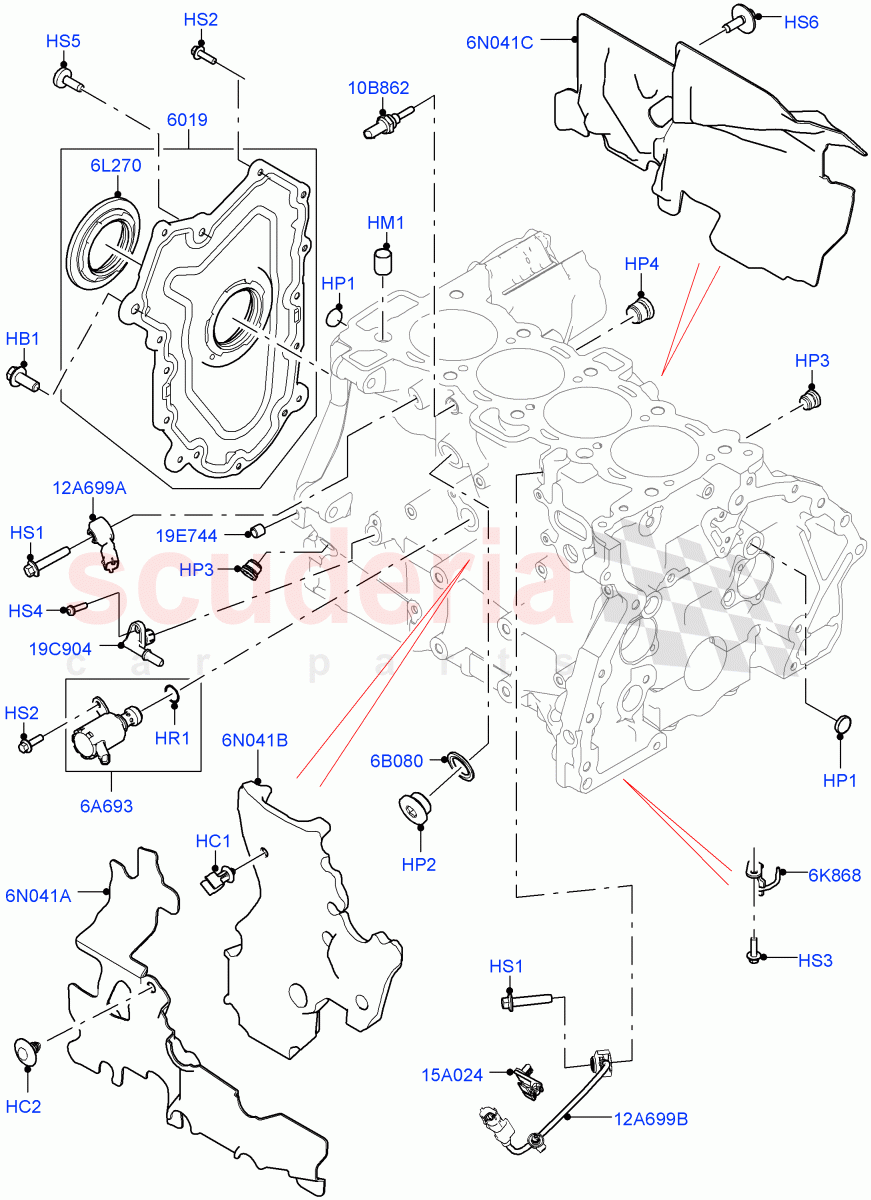

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR101794	BOLT	$1.62	To Order

Photo	Part No	Description	Price (each)	Stock
	LR137653	CLIP - HOSE	$2.15	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125667	CLIP - TRIM	$1.61	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073637	DOWEL - PIN	$2.36	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073636	PLUG - BLANKING	$4.24	To Order

Photo	Part No	Description	Price (each)	Stock
	LR163193	PLUG - ENGINE	$4.08	To Order

Photo	Part No	Description	Price (each)	Stock
	LR163194	PLUG - ENGINE	$10.79	To Order

Photo	Part No	Description	Price (each)	Stock
	LR163195	PLUG - ENGINE	$10.79	To Order

Photo	Part No	Description	Price (each)	Stock
	LR095786	O-RING	$4.47	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR073649	SCREW	$2.40	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073655	SCREW	$1.54	IN STOCK
	LR073655	SCREW	$1.54	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR073720	SCREW	$1.53	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073666	SCREW	$1.36	To Order

Photo	Part No	Description	Price (each)	Stock
	LR101795	SCREW	$1.16	To Order

Photo	Part No	Description	Price (each)	Stock
	LR132379	SCREW	$0.73	To Order

Photo	Part No	Description	Price (each)	Stock
	LR115700	COVER - CYLINDER FRONT	$126.45	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073684	VALVE - PISTON OIL COOLNG	$188.42	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR107013	KIT - "O" RING	$13.79	To Order

Photo	Part No	Description	Price (each)	Stock
	LR109352	NOZZLE - PISTON COOLING	$32.16	To Order

Photo	Part No	Description	Price (each)	Stock
	LR118109	SEAL - CRANKSHAFT OIL - FRONT	$34.52	To Order

Photo	Part No	Description	Price (each)	Stock
	LR074067	SENSOR - ENGINE TEMPERATURE	$41.83	To Order

Photo	Part No	Description	Price (each)	Stock
	LR107548	CLIP - CABLE	$5.29	To Order

Photo	Part No	Description	Price (each)	Stock
	LR100574	CONNECTOR - VACUUM TUBE	$27.47	To Order
	LR148201	CONNECTOR - VACUUM TUBE	$51.53	To Order

Photo	Part No	Description	Price (each)	Stock
	LR057802	DOWEL - PIN	$3.36	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR092083	INSULATOR PAD - CYLINDER BLOCK	$72.31	To Order

Photo	Part No	Description	Price (each)	Stock
	LR113872	INSULATOR - ENGINE COMPARTMENT	$42.74	To Order

Photo	Part No	Description	Price (each)	Stock
	LR094425	INSULATOR - FOAM PAD	$48.83	To Order

Photo	Part No	Description	Price (each)	Stock
	LR155116	SENSOR - ENGINE KNOCK	$110.58	To Order
	LR155116	SENSOR - ENGINE KNOCK	$110.58	To Order

Photo	Part No	Description	Price (each)	Stock
	LR155117	SENSOR - ENGINE KNOCK	$136.16	To Order
	LR155117	SENSOR - ENGINE KNOCK	$136.16	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	LR101794	BOLT	LR101794 BOLT M10 X 25MM, Torx	$1.62	1
HC1	LR137653	CLIP - HOSE	LR137653 CLIP - HOSE	$2.15	1
HC2	LR125667	CLIP - TRIM	LR125667 CLIP - TRIM 5.8 X 4.5-8, Insulator	$1.61	1
HM1	LR073637	DOWEL - PIN	LR073637 DOWEL - PIN 16.5 x 20, Pin - Dowell	$2.36	2
HP1	LR073636	PLUG - BLANKING	LR073636 PLUG - BLANKING 18MM, Blanking	$4.24	4
HP2	LR163193	PLUG - ENGINE	LR163193 PLUG - ENGINE M22 X 1.5MM	$4.08	1
HP3	LR163194	PLUG - ENGINE	LR163194 PLUG - ENGINE M14 x 9 mm	$10.79	2
HP4	LR163195	PLUG - ENGINE	LR163195 PLUG - ENGINE M18 x 1.5	$10.79	1
HR1	LR095786	O-RING IN STOCK	LR095786 O-RING 15.3MM, Valve - piston oil cooling IN STOCK	$4.47	1
HS1	LR073649	SCREW	LR073649 SCREW Anti-Knock Sensor, M8 x 40MM	$2.40	2
HS2	LR073655	SCREW IN STOCK	LR073655 SCREW Cover, Hexagonal Head, M6 X 20MM IN STOCK	$1.54	12
HS2	LR073655	SCREW IN STOCK	LR073655 SCREW Hexagonal Head, M6 X 20MM, Valve - piston oil cooling IN STOCK	$1.54	1
HS3	LR073720	SCREW	LR073720 SCREW M6 X 20MM, Oil Lubrication Jet	$1.53	4
HS4	LR073666	SCREW	LR073666 SCREW M5 x 20MM, Vacuum Connector	$1.36	1
HS5	LR101795	SCREW	LR101795 SCREW Electric Engine Battery-MHEV / M8X25, Torx	$1.16	1
HS6	LR132379	SCREW	LR132379 SCREW M6 X 20MM	$0.73	1
6A693	LR073684	VALVE - PISTON OIL COOLNG IN STOCK	LR073684 VALVE - PISTON OIL COOLNG IN STOCK	$188.42	1
6B080	LR107013	KIT - "O" RING	LR107013 KIT - "O" RING	$13.79	1
6K868	LR109352	NOZZLE - PISTON COOLING	LR109352 NOZZLE - PISTON COOLING	$32.16	4
6L270	LR118109	SEAL - CRANKSHAFT OIL - FRONT	LR118109 SEAL - CRANKSHAFT OIL - FRONT	$34.52	1
6N041A	LR092083	INSULATOR PAD - CYLINDER BLOCK	LR092083 INSULATOR PAD - CYLINDER BLOCK Front, Lower	$72.31	1
6N041B	LR113872	INSULATOR - ENGINE COMPARTMENT	LR113872 INSULATOR - ENGINE COMPARTMENT Front, Upper	$42.74	1
6N041C	LR094425	INSULATOR - FOAM PAD	LR094425 INSULATOR - FOAM PAD Rear	$48.83	1
10B862	LR074067	SENSOR - ENGINE TEMPERATURE	LR074067 SENSOR - ENGINE TEMPERATURE	$41.83	1
12A699A	LR155116	SENSOR - ENGINE KNOCK	LR155116 SENSOR - ENGINE KNOCK RH / To: MH133079	$110.58	1
12A699A	LR155116	SENSOR - ENGINE KNOCK	LR155116 SENSOR - ENGINE KNOCK RH / From: MH133080	$110.58	1
12A699B	LR155117	SENSOR - ENGINE KNOCK	LR155117 SENSOR - ENGINE KNOCK LH / To: MH133079	$136.16	1
12A699B	LR155117	SENSOR - ENGINE KNOCK	LR155117 SENSOR - ENGINE KNOCK LH / From: MH133080	$136.16	1
15A024	LR107548	CLIP - CABLE	LR107548 CLIP - CABLE Clip	$5.29	1
19C904	LR100574	CONNECTOR - VACUUM TUBE	LR100574 CONNECTOR - VACUUM TUBE To: LH116377	$27.47	1
19C904	LR148201	CONNECTOR - VACUUM TUBE	LR148201 CONNECTOR - VACUUM TUBE From: LH116378	$51.53	1
19E744	LR057802	DOWEL - PIN IN STOCK	LR057802 DOWEL - PIN Air Conditioning Compressor Bracket, IN STOCK	$3.36	1
6019	LR115700	COVER - CYLINDER FRONT	LR115700 COVER - CYLINDER FRONT Engine Front, Includes Seal	$126.45	1
