Balance Shafts And Drive (2.0L AJ20P4 Petrol Mid PTA, Changsu (China)) of Land Rover Land Rover Range Rover Evoque (2019+) [2.0 Turbo Petrol AJ200P]

View All

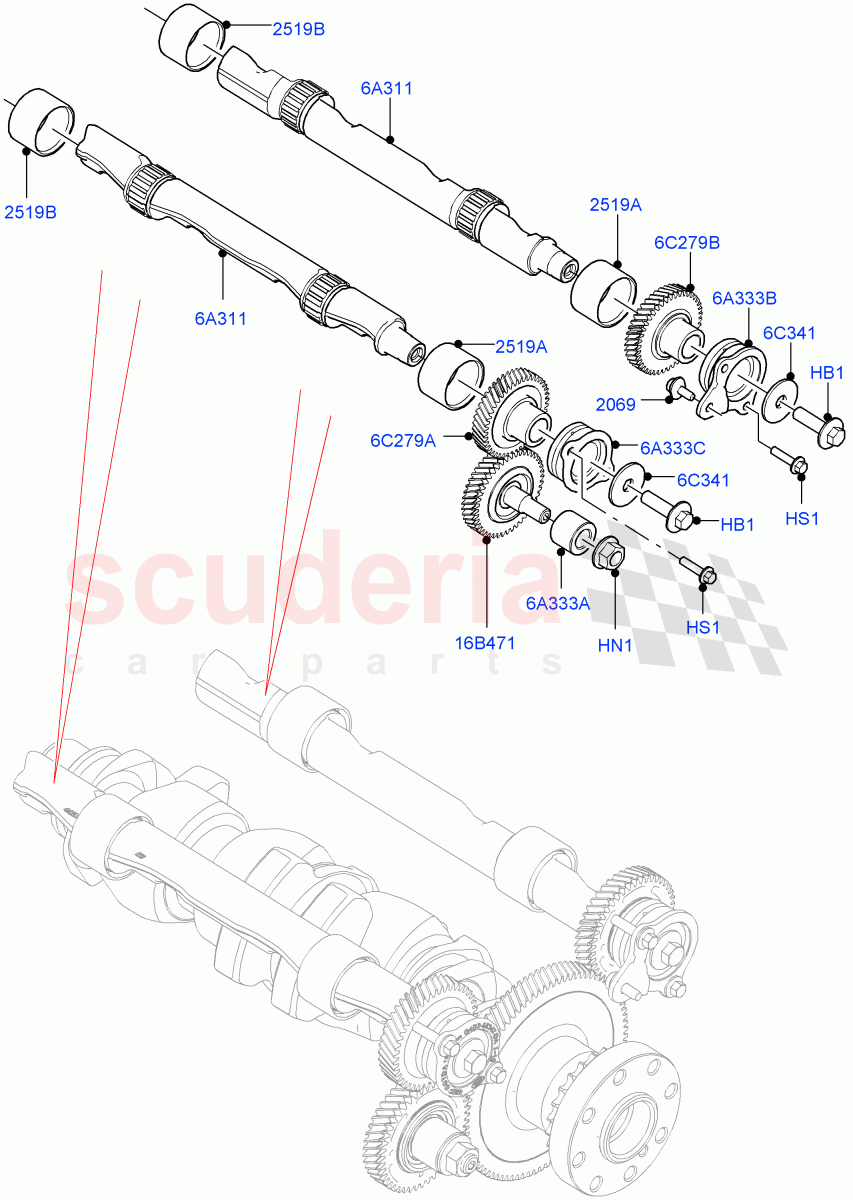

Land Rover Range Rover Evoque (2019+) [2.0 Turbo Petrol AJ200P] - Balance Shafts And Drive (2.0L AJ20P4 Petrol Mid PTA, Changsu (China))

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR074130	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR074132	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR071842	SCREW AND WASHER - HEX HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073762	PIN - SPECIAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR074083	CUP - BEARING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR074084	CUP - BEARING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR092982	SHAFT - BALANCE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125268	WASHER - THRUST	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR139687	GEAR - IDLER	Enquire	To Order
	LR139687	GEAR - IDLER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR074080	BUSHING - INTERMEDIATE BEARING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR154600	COLLAR - THRUST	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR074082	COLLAR - THRUST	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR139692	GEAR - BALANCE SHAFT	Enquire	To Order
	LR139692	GEAR - BALANCE SHAFT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR139694	GEAR - BALANCE SHAFT	Enquire	To Order
	LR139694	GEAR - BALANCE SHAFT	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	LR074130	BOLT	LR074130 BOLT Gear To Balance Shaft, M10 x 35MM	-	2	Enquire
HN1	LR074132	NUT	LR074132 NUT Balancer Idler Gear, M12	-	1	Enquire
HS1	LR071842	SCREW AND WASHER - HEX HEAD	LR071842 SCREW AND WASHER - HEX HEAD Hexagonal Head, M6 X 25MM	-	4	Enquire
6A311	LR092982	SHAFT - BALANCE	LR092982 SHAFT - BALANCE This Is The Balance Shaft on Bottom of Engine	-	2	Enquire
6A333A	LR074080	BUSHING - INTERMEDIATE BEARING	LR074080 BUSHING - INTERMEDIATE BEARING Bushing - Balancer Idler Gear	-	2	Enquire
6A333B	LR154600	COLLAR - THRUST	LR154600 COLLAR - THRUST EXHAUST SIDE, With Collar Thrust	-	1	Enquire
6A333C	LR074082	COLLAR - THRUST	LR074082 COLLAR - THRUST Intake Side, With Collar Thrust	-	1	Enquire
6C279A	LR139692	GEAR - BALANCE SHAFT	LR139692 GEAR - BALANCE SHAFT Intake Side / To: MG575834	-	1	Enquire
6C279A	LR139692	GEAR - BALANCE SHAFT	LR139692 GEAR - BALANCE SHAFT Intake Side / From: MG575835	-	1	Enquire
6C279B	LR139694	GEAR - BALANCE SHAFT	LR139694 GEAR - BALANCE SHAFT EXHAUST SIDE / To: MG575834	-	1	Enquire
6C279B	LR139694	GEAR - BALANCE SHAFT	LR139694 GEAR - BALANCE SHAFT EXHAUST SIDE / From: MG575835	-	1	Enquire
6C341	LR125268	WASHER - THRUST	LR125268 WASHER - THRUST Balancer Drive, Thrust Washer	-	2	Enquire
16B471	LR139687	GEAR - IDLER	LR139687 GEAR - IDLER Balancer Drive / To: MG575834	-	1	Enquire
16B471	LR139687	GEAR - IDLER	LR139687 GEAR - IDLER Balancer Drive / From: MG575835	-	1	Enquire
2069	LR073762	PIN - SPECIAL	LR073762 PIN - SPECIAL PIVOT	-	1	Enquire
2519A	LR074083	CUP - BEARING	LR074083 CUP - BEARING Engine Rear, Needle Bearing	-	2	Enquire
2519B	LR074084	CUP - BEARING	LR074084 CUP - BEARING Engine Front, Needle Bearing	-	2	Enquire
