Side Trim (Luggage Compartment) (Changsu (China)) of Land Rover Land Rover Range Rover Evoque (2019+) [2.0 Turbo Diesel AJ21D4]

View All

Land Rover Range Rover Evoque (2019+) [2.0 Turbo Diesel AJ21D4] - Side Trim (Luggage Compartment) (Changsu (China))

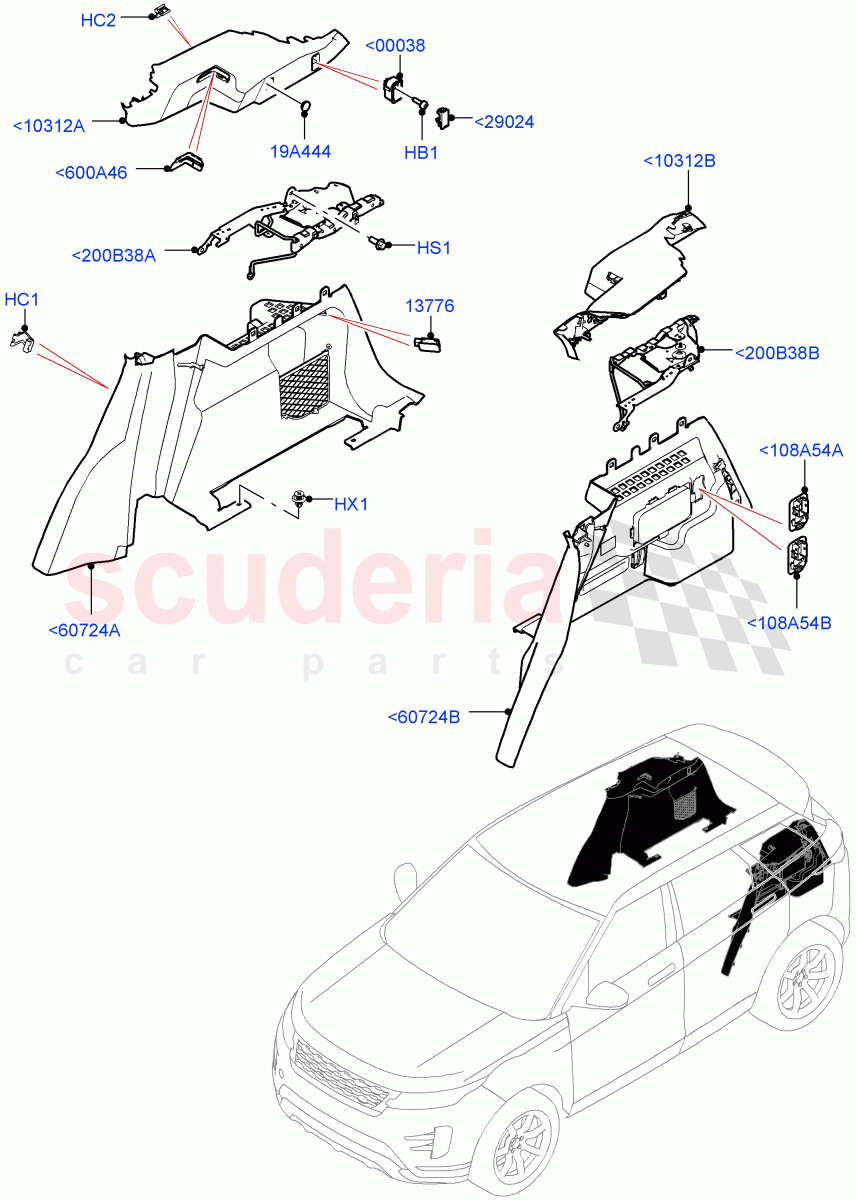

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR033002	BOLT AND WASHER - TORX HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR031782	CLIP - TRIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR036129	CLIP - TRIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR063976	SCREW	Enquire	To Order
	LR063976	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR005896	RETAINER - RIVET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR034050	LAMP - INTERIOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR114739	POCKET - LOAD COMPARTMENT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR081968	HOOK - LOADING COMPARTMENT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR114737	CAP - PILLAR TRIM AIR BAG	Enquire	To Order
	LR114738	CAP - PILLAR TRIM AIR BAG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR114740	PANEL - BODY SIDE REAR - INNER	Enquire	To Order
	LR133158	PANEL - BODY SIDE REAR - INNER	Enquire	To Order
	LR133159	PANEL - BODY SIDE REAR - INNER	Enquire	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR114742	PANEL - BODY SIDE REAR - INNER	Enquire	To Order
	LR133161	PANEL - BODY SIDE REAR - INNER	Enquire	To Order
	LR133160	PANEL - BODY SIDE REAR - INNER	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR114744	COVER - SEAT BELT MOUNTING	Enquire	To Order
	LR114745	COVER - SEAT BELT MOUNTING	Enquire	To Order
	LR155518	COVER - SEAT BELT MOUNTING	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR135124	TRIM - LOAD COMPARTMENT - SIDE	Enquire	To Order
	LR155488	TRIM - LOAD COMPARTMENT - SIDE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR135125	TRIM - LOAD COMPARTMENT - SIDE	Enquire	To Order
	LR155492	TRIM - LOAD COMPARTMENT - SIDE	Enquire	To Order
	LR155498	TRIM - LOAD COMPARTMENT - SIDE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR127429	BEZEL - LUGGAGE COMPARTMENT SWITCH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR114736	BEZEL - LUGGAGE COMPARTMENT SWITCH	Enquire	To Order
	LR127428	BEZEL - LUGGAGE COMPARTMENT SWITCH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR114733	SUPPORT - LOAD COMPARTMENT PANELS	Enquire	To Order
	LR155526	SUPPORT - LOAD COMPARTMENT PANELS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR114734	SUPPORT - LOAD COMPARTMENT PANELS	Enquire	To Order
	LR155525	SUPPORT - LOAD COMPARTMENT PANELS	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
<108A54A	LR127429	BEZEL - LUGGAGE COMPARTMENT SWITCH	LR127429 BEZEL - LUGGAGE COMPARTMENT SWITCH Less Trailer Towing Hitch	-	1	Enquire
<108A54B	LR114736	BEZEL - LUGGAGE COMPARTMENT SWITCH	LR114736 BEZEL - LUGGAGE COMPARTMENT SWITCH Tow Hitch Elec Deployable Swan Neck / To: MG575834	-	1	Enquire
<108A54B	LR127428	BEZEL - LUGGAGE COMPARTMENT SWITCH	LR127428 BEZEL - LUGGAGE COMPARTMENT SWITCH Standard Wheelbase, Tow Hitch Elec Deployable Swan Neck / From: MG575835	-	1	Enquire
<200B38A	LR114733	SUPPORT - LOAD COMPARTMENT PANELS	LR114733 SUPPORT - LOAD COMPARTMENT PANELS Standard Wheelbase / RH	-	1	Enquire
<200B38A	LR155526	SUPPORT - LOAD COMPARTMENT PANELS	LR155526 SUPPORT - LOAD COMPARTMENT PANELS Long Wheelbase / RH / From: MG575835	-	1	Enquire
<200B38B	LR114734	SUPPORT - LOAD COMPARTMENT PANELS	LR114734 SUPPORT - LOAD COMPARTMENT PANELS Standard Wheelbase / LH	-	1	Enquire
<200B38B	LR155525	SUPPORT - LOAD COMPARTMENT PANELS	LR155525 SUPPORT - LOAD COMPARTMENT PANELS Long Wheelbase / LH / From: MG575835	-	1	Enquire
<600A46	LR114744	COVER - SEAT BELT MOUNTING	LR114744 COVER - SEAT BELT MOUNTING Standard Wheelbase / RH	-	1	Enquire
<600A46	LR114745	COVER - SEAT BELT MOUNTING	LR114745 COVER - SEAT BELT MOUNTING Standard Wheelbase / LH	-	1	Enquire
<600A46	LR155518	COVER - SEAT BELT MOUNTING	LR155518 COVER - SEAT BELT MOUNTING Long Wheelbase / RH / From: MG575835	-	1	Enquire
<600A46	LR155517	COVER - SEAT BELT MOUNTING	LR155517 COVER - SEAT BELT MOUNTING Long Wheelbase / LH / From: MG575835	-	1	Enquire
<00038	LR114739	POCKET - LOAD COMPARTMENT	LR114739 POCKET - LOAD COMPARTMENT RH/LH	-	2	Enquire
<10312A	LR114740	PANEL - BODY SIDE REAR - INNER	LR114740 PANEL - BODY SIDE REAR - INNER Hi Line Audio System - 600 W / RH / To: LG562715	-	1	Enquire
<10312A	LR133158	PANEL - BODY SIDE REAR - INNER	LR133158 PANEL - BODY SIDE REAR - INNER Premium Audio 1280 W / RH / To: MG575834	-	1	Enquire
<10312A	LR133159	PANEL - BODY SIDE REAR - INNER	LR133159 PANEL - BODY SIDE REAR - INNER Standard Audio (Base) / RH / From: LG562716 / To: MG575834	-	1	Enquire
<10312A	LR155469	PANEL - BODY SIDE REAR - INNER	LR155469 PANEL - BODY SIDE REAR - INNER Hi Line Audio System - 600 W / RH / From: MG575835	-	1	Enquire
<10312A	LR155472	PANEL - BODY SIDE REAR - INNER	LR155472 PANEL - BODY SIDE REAR - INNER Premium Audio 1280 W / RH / From: MG575835	-	1	Enquire
<10312B	LR114742	PANEL - BODY SIDE REAR - INNER	LR114742 PANEL - BODY SIDE REAR - INNER Standard Audio (Base) / LH / To: LG562710	-	1	Enquire
<10312B	LR133161	PANEL - BODY SIDE REAR - INNER	LR133161 PANEL - BODY SIDE REAR - INNER Premium Audio 1280 W / LH / To: MG575834	-	1	Enquire
<10312B	LR133160	PANEL - BODY SIDE REAR - INNER	LR133160 PANEL - BODY SIDE REAR - INNER Hi Line Audio System - 600 W / LH / From: LG562711 / To: MG575834	-	1	Enquire
<10312B	LR155484	PANEL - BODY SIDE REAR - INNER	LR155484 PANEL - BODY SIDE REAR - INNER Hi Line Audio System - 600 W / LH / From: MG575835	-	1	Enquire
<29024	LR081968	HOOK - LOADING COMPARTMENT	LR081968 HOOK - LOADING COMPARTMENT RH/LH	-	2	Enquire
<60724A	LR135124	TRIM - LOAD COMPARTMENT - SIDE	LR135124 TRIM - LOAD COMPARTMENT - SIDE Less Load Retainer Luggage, Standard Wheelbase / RH	-	1	Enquire
<60724A	LR155488	TRIM - LOAD COMPARTMENT - SIDE	LR155488 TRIM - LOAD COMPARTMENT - SIDE Long Wheelbase / RH / From: MG575835	-	1	Enquire
<60724B	LR135125	TRIM - LOAD COMPARTMENT - SIDE	LR135125 TRIM - LOAD COMPARTMENT - SIDE Less Load Retainer Luggage, Standard Wheelbase / LH	-	1	Enquire
<60724B	LR155492	TRIM - LOAD COMPARTMENT - SIDE	LR155492 TRIM - LOAD COMPARTMENT - SIDE Less Electric Engine Battery, Long Wheelbase / LH / From: MG575835	-	1	Enquire
<60724B	LR155498	TRIM - LOAD COMPARTMENT - SIDE	LR155498 TRIM - LOAD COMPARTMENT - SIDE Electric Engine Battery-PHEV, Long Wheelbase / LH / From: MG575835	-	1	Enquire
HB1	LR033002	BOLT AND WASHER - TORX HEAD	LR033002 BOLT AND WASHER - TORX HEAD M6 X 20.5, Torx	-	4	Enquire
HC1	LR031782	CLIP - TRIM	LR031782 CLIP - TRIM 0.8-1.4	-	10	Enquire
HC2	LR036129	CLIP - TRIM	LR036129 CLIP - TRIM Clip 0.8 + 18.4 X 4.5 X 1.25 Push In Steel	-	2	Enquire
HS1	LR063976	SCREW	LR063976 SCREW Standard Wheelbase / M10 X 25MM	-	8	Enquire
HS1	LR063976	SCREW	LR063976 SCREW Long Wheelbase / M10 X 25MM / From: MG575835	-	6	Enquire
HX1	LR005896	RETAINER - RIVET	LR005896 RETAINER - RIVET 10 X 4 - 5	-	10	Enquire
19A444	LR114737	CAP - PILLAR TRIM AIR BAG	LR114737 CAP - PILLAR TRIM AIR BAG Light Oyster Headliner / RH/LH	-	2	Enquire
19A444	LR114738	CAP - PILLAR TRIM AIR BAG	LR114738 CAP - PILLAR TRIM AIR BAG Ebony Headliner / RH/LH	-	2	Enquire
13776	LR034050	LAMP - INTERIOR	LR034050 LAMP - INTERIOR RH/LH	-	2	Enquire
