Name: Air Conditioning System (Itatiaia (Brazil), Air Conditioning Refrigerant-R134A)
Rating: 4.0 (1 reviews)

Air Conditioning System (Itatiaia (Brazil), Air Conditioning Refrigerant-R134A) of Land Rover Land Rover Range Rover Evoque (2019+) [2.0 Turbo Diesel AJ21D4]

View All

Land Rover Range Rover Evoque (2019+) [2.0 Turbo Diesel AJ21D4] - Air Conditioning System (Itatiaia (Brazil), Air Conditioning Refrigerant-R134A)

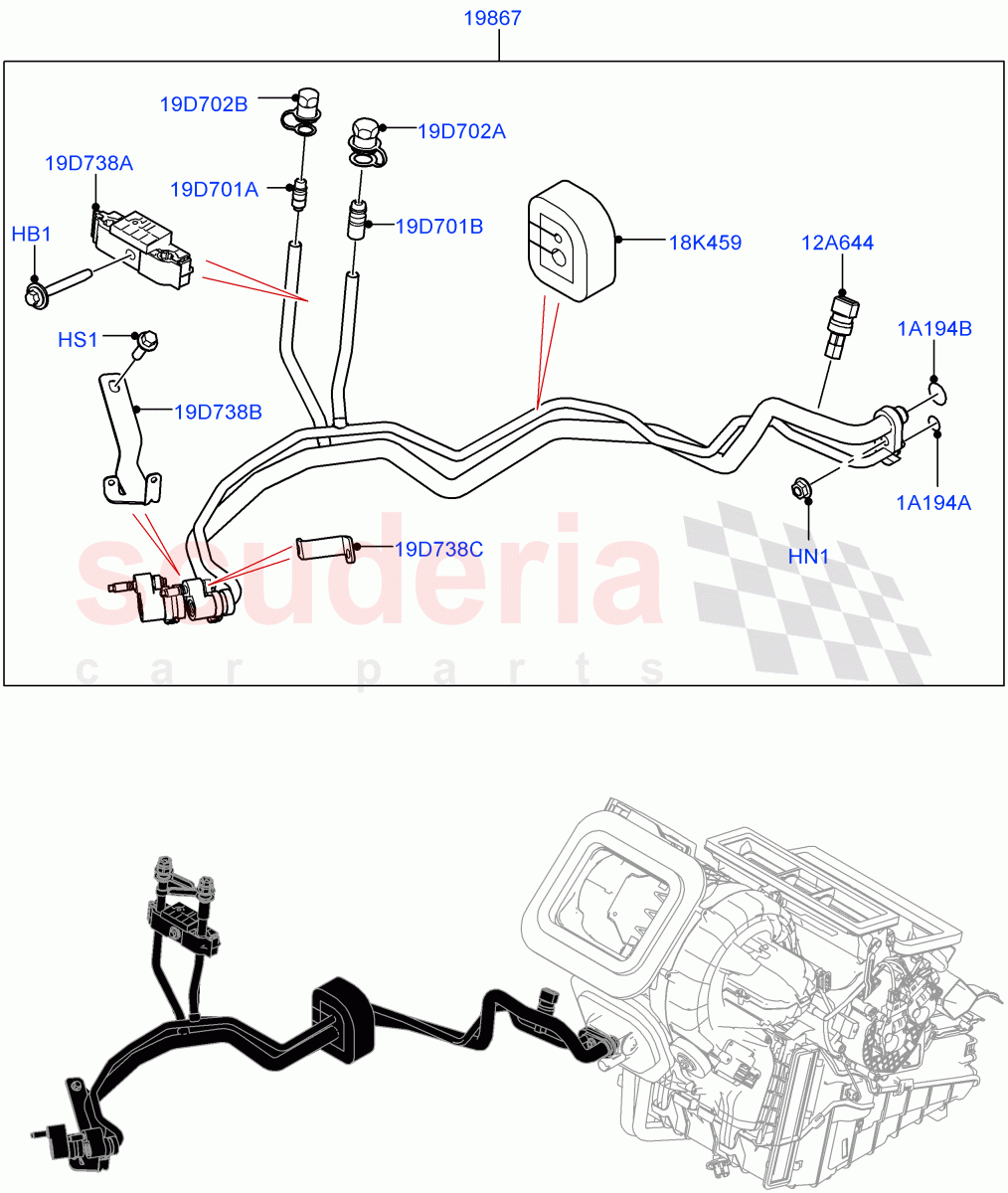

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR010925	BOLT	$2.86	To Order

Photo	Part No	Description	Price (each)	Stock
	FN106046	NUT - HEX.	$1.45	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	VYP500080	BOLT AND WASHER - HEX.HEAD	$0.69	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR140026	TUBE- A/C EVAPORATOR INLET & OUTLET	$304.00	To Order
	LR140634	TUBE- A/C EVAPORATOR INLET & OUTLET	$298.23	To Order

Photo	Part No	Description	Price (each)	Stock
	LR086926	SENSOR - REFRIGERANT PRESSURE	$229.94	To Order

Photo	Part No	Description	Price (each)	Stock
	LR167745	SLEEVE - INSULATING	$18.15	To Order

Photo	Part No	Description	Price (each)	Stock
	LR117493	O-RING	$3.35	To Order

Photo	Part No	Description	Price (each)	Stock
	LR117495	O-RING	$2.69	To Order

Photo	Part No	Description	Price (each)	Stock
	LR167737	VALVE - AIR CONDITIONING	$28.22	To Order

Photo	Part No	Description	Price (each)	Stock
	LR167738	VALVE - AIR CONDITIONING	$28.22	To Order

Photo	Part No	Description	Price (each)	Stock
	LR167742	CAP	$28.03	To Order

Photo	Part No	Description	Price (each)	Stock
	LR167743	CAP	$26.57	To Order

Photo	Part No	Description	Price (each)	Stock
	LR117475	BRACKET - A/C PIPE	$12.60	To Order

Photo	Part No	Description	Price (each)	Stock
	LR117474	BRACKET - A/C PIPE	$16.79	To Order

Photo	Part No	Description	Price (each)	Stock
	LR145221	BRACKET - A/C PIPE	$12.32	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	LR010925	BOLT	LR010925 BOLT Hexagonal Head, M6 x 50MM	$2.86	1
HN1	FN106046	NUT - HEX. IN STOCK	FN106046 NUT - HEX. Hexagonal Head, M6 IN STOCK	$1.45	1
HS1	VYP500080	BOLT AND WASHER - HEX.HEAD IN STOCK	VYP500080 BOLT AND WASHER - HEX.HEAD Hexagonal Head, M6 X 20MM IN STOCK	$0.69	1
1A194A	LR117493	O-RING	LR117493 O-RING 15.88 X 8.0	$3.35	1
1A194B	LR117495	O-RING	LR117495 O-RING 25.12 X 17.03	$2.69	1
12A644	LR086926	SENSOR - REFRIGERANT PRESSURE	LR086926 SENSOR - REFRIGERANT PRESSURE Electric Engine Battery-MHEV	$229.94	1
18K459	LR167745	SLEEVE - INSULATING	LR167745 SLEEVE - INSULATING	$18.15	1
19D701A	LR167737	VALVE - AIR CONDITIONING	LR167737 VALVE - AIR CONDITIONING Low Pressure Charge Port	$28.22	1
19D701B	LR167738	VALVE - AIR CONDITIONING	LR167738 VALVE - AIR CONDITIONING High Pressure Charge Port	$28.22	1
19D702A	LR167742	CAP	LR167742 CAP High Pressure Servicing Connection	$28.03	1
19D702B	LR167743	CAP	LR167743 CAP Low Pressure Servicing Connection	$26.57	1
19D738A	LR117475	BRACKET - A/C PIPE	LR117475 BRACKET - A/C PIPE Charge Port Bracket	$12.60	1
19D738B	LR117474	BRACKET - A/C PIPE	LR117474 BRACKET - A/C PIPE Sidemember	$16.79	1
19D738C	LR145221	BRACKET - A/C PIPE	LR145221 BRACKET - A/C PIPE Ports Bracket	$12.32	1
19867	LR140026	TUBE- A/C EVAPORATOR INLET & OUTLET	LR140026 TUBE- A/C EVAPORATOR INLET & OUTLET Less Electric Engine Battery / Evaporator Inlet/Outlet	$304.00	1
19867	LR140634	TUBE- A/C EVAPORATOR INLET & OUTLET	LR140634 TUBE- A/C EVAPORATOR INLET & OUTLET Electric Engine Battery-PHEV / Evaporator Inlet/Outlet	$298.23	1
