Brake And Abs Pump (1.5L Aj20P3 Petrol High Phev, Halewood (Uk)) ((V) Fromlh000001, (V) Tolh999999)

Land Rover Range Rover Evoque (2019+) [2.0 Turbo Diesel AJ21D4]

Find Your Part

Land Rover Range Rover Evoque (2019+) [2.0 Turbo Diesel AJ21D4] - Brake And ABS Pump (1.5L AJ20P3 Petrol High PHEV, Halewood (UK)) ((V) FROMLH000001, (V) TOLH999999)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR154513 RESERVOIR - BRAKE FLUID $112.74 To Order
Photo Part No Description Price (each) Stock
LR138970 MODULATOR - ABS $2,593.10 To Order
LR142438 MODULATOR - ABS $2,593.10 To Order
LR143923 Modulator $3,236.21 To Order
...and 5 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR134994 CAP - FILLER $32.90 To Order
LR144866 CAP - FILLER $38.53 To Order
Photo Part No Description Price (each) Stock
LR134991 SWITCH - BRAKE FLUID LOW LEVEL WARN $27.24 To Order
Photo Part No Description Price (each) Stock
LR134995 KIT - GASKET $22.35 To Order
View All

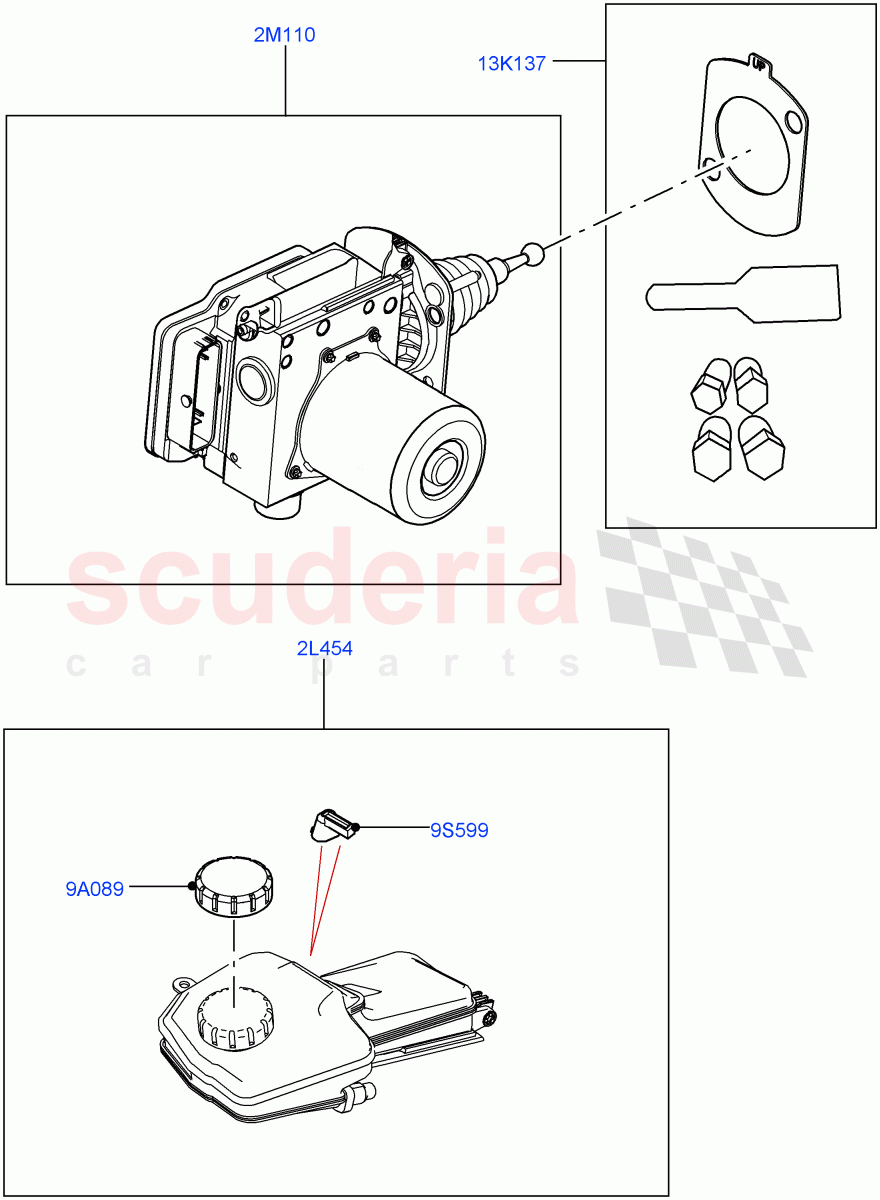

Brake And ABS Pump (1.5L AJ20P3 Petrol High PHEV, Halewood (UK)) ((V) FROMLH000001, (V) TOLH999999) of Land Rover Land Rover Range Rover Evoque (2019+) [2.0 Turbo Diesel AJ21D4] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
2L454 LR154513
RESERVOIR - BRAKE FLUID
With Screws And Grommets / From: LH000001 		$112.74 1
2M110 LR138970
MODULATOR - ABS
From: LH000001 / To: LH080979 		$2,593.10 1
2M110 LR142438
MODULATOR - ABS
From: LH080980 / To: LH089911 		$2,593.10 1
2M110 LR143923
Modulator
From: LH089912 / To: LH102463 		$3,236.21 1
2M110 LR146153
MODULATOR - ABS
From: LH102464 / To: LH109137 		$2,593.10 1
2M110 LR149363
MODULATOR - ABS
From: LH109138 / To: LH117559 		$2,590.25 1
2M110 LR153484
MODULATOR - ABS
From: LH117560 / To: LH119361 		$2,593.10 1
2M110 LR155596
MODULATOR - ABS
From: LH119362 / To: LH119485 		$2,452.44 1
2M110 LR156843
MODULATOR - ABS
From: LH119486 		$2,271.86 1
9A089 LR134994
CAP - FILLER
Brake RSVR Cap - Pictorial / (+) ROW / From: LH000001 		$32.90 1
9A089 LR144866
CAP - FILLER
Brake Reservoir Cap-Text / (+)"NAS" / From: LH000001 		$38.53 1
9S599 LR134991
SWITCH - BRAKE FLUID LOW LEVEL WARN
From: LH000001 		$27.24 1
13K137 LR134995
KIT - GASKET
Includes Gasket, Scraper And Port Plugs / From: LH000001 		$22.35 1
