Find Your Part

Rear Springs And Shock Absorbers (Changsu (China)) of Land Rover Land Rover Range Rover Evoque (2019+) [2.0 Turbo Diesel AJ21D4]

View All

Land Rover Range Rover Evoque (2019+) [2.0 Turbo Diesel AJ21D4] - Rear Springs And Shock Absorbers (Changsu (China))

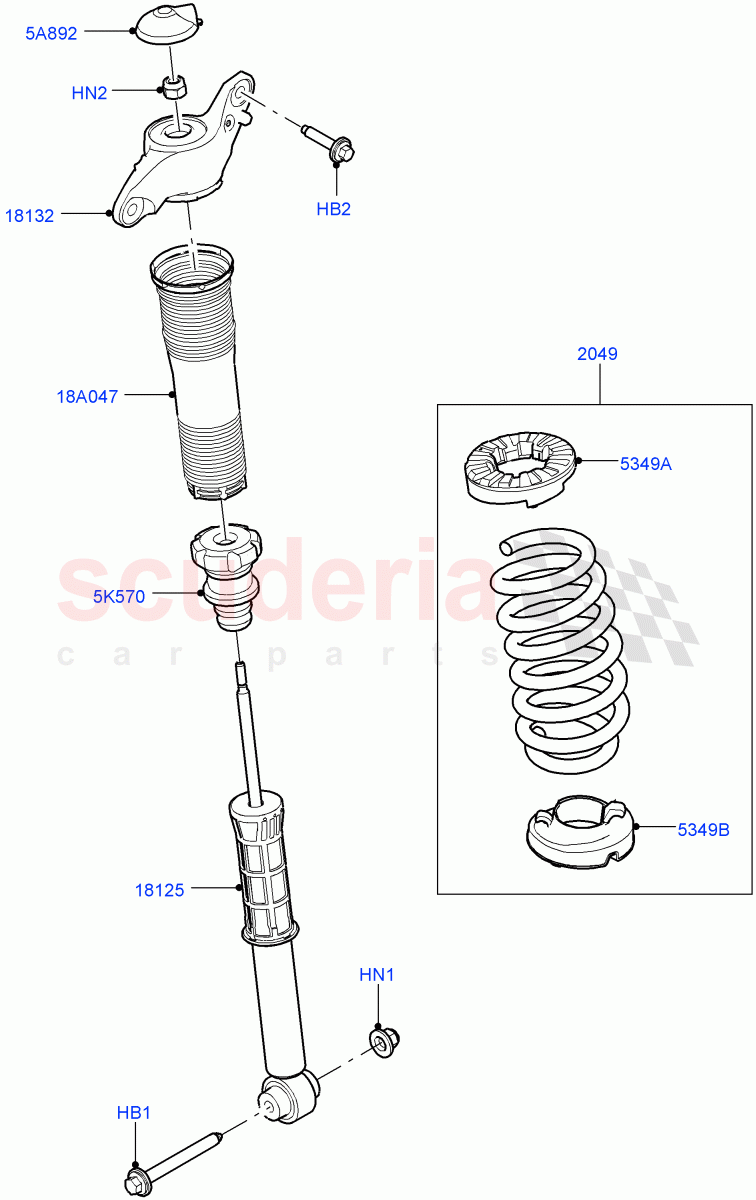

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR038196	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR114980	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR034277	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR061358	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR114317	KIT - SUSPENSION SPRING AND PAD	Enquire	To Order
	LR114318	KIT - SUSPENSION SPRING AND PAD	Enquire	To Order
	LR114447	KIT - SUSPENSION SPRING AND PAD	Enquire	To Order

...and 15 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR114040	SHOCK ABSORBER	Enquire	To Order
	LR114043	SHOCK ABSORBER	Enquire	To Order
	LR114052	SHOCK ABSORBER	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR126629	BRACKET - SHOCK ABSORBER	Enquire	To Order
	LR128644	BRACKET - SHOCK ABSORBER	Enquire	To Order
	LR140209	BRACKET - SHOCK ABSORBER	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR115138	INSULATOR - SHOCK ABSORBER	Enquire	To Order
	LR115139	INSULATOR - SHOCK ABSORBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR115137	PAD - ANTI-SQUEAK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR079582	CAP - SHOCK ABSORBER SECURING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR114478	BUMPER - SHOCK ABSORBER	Enquire	To Order
	LR114479	BUMPER - SHOCK ABSORBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR061354	BOOT - SHOCK ABSORBER	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	LR038196	BOLT	LR038196 BOLT Hexagonal Head, M14 X 125	-	2	Enquire
HB2	LR114980	BOLT	LR114980 BOLT Bolt And Washer, Hexagonal Head, M12 x 55MM	-	4	Enquire
HN1	LR034277	NUT	LR034277 NUT M14, Nut And Washer	-	2	Enquire
HN2	LR061358	NUT	LR061358 NUT M10 x 1.0	-	2	Enquire
5A892	LR079582	CAP - SHOCK ABSORBER SECURING	LR079582 CAP - SHOCK ABSORBER SECURING	-	2	Enquire
5K570	LR114478	BUMPER - SHOCK ABSORBER	LR114478 BUMPER - SHOCK ABSORBER Less Adaptive Damping	-	2	Enquire
5K570	LR114479	BUMPER - SHOCK ABSORBER	LR114479 BUMPER - SHOCK ABSORBER Active Damping	-	2	Enquire
18A047	LR061354	BOOT - SHOCK ABSORBER	LR061354 BOOT - SHOCK ABSORBER	-	2	Enquire
2049	LR114317	KIT - SUSPENSION SPRING AND PAD	LR114317 KIT - SUSPENSION SPRING AND PAD Rear Spring Load Class-A / Blue / Blue / Yellow	-	2	Enquire
2049	LR114318	KIT - SUSPENSION SPRING AND PAD	LR114318 KIT - SUSPENSION SPRING AND PAD Rear Spring Load Class-B / Blue / Blue / Orange	-	2	Enquire
2049	LR114447	KIT - SUSPENSION SPRING AND PAD	LR114447 KIT - SUSPENSION SPRING AND PAD Rear Spring Load Class-C / Blue / Blue / Red	-	2	Enquire
2049	LR114448	KIT - SUSPENSION SPRING AND PAD	LR114448 KIT - SUSPENSION SPRING AND PAD Rear Spring Load Class-D / Blue / Blue / Green	-	2	Enquire
2049	LR114450	KIT - SUSPENSION SPRING AND PAD	LR114450 KIT - SUSPENSION SPRING AND PAD Rear Spring Load Class-F / Blue / Blue / Pink	-	2	Enquire
2049	LR114453	KIT - SUSPENSION SPRING AND PAD	LR114453 KIT - SUSPENSION SPRING AND PAD Rear Spring Load Class-G / Blue / Blue / Grey	-	2	Enquire
2049	LR114454	KIT - SUSPENSION SPRING AND PAD	LR114454 KIT - SUSPENSION SPRING AND PAD Rear Spring Load Class-H / Blue / Yellow / Orange	-	2	Enquire
2049	LR121277	KIT - SUSPENSION SPRING AND PAD	LR121277 KIT - SUSPENSION SPRING AND PAD Rear Spring Load Class-I / Blue / Yellow / Red	-	2	Enquire
2049	LR121283	KIT - SUSPENSION SPRING AND PAD	LR121283 KIT - SUSPENSION SPRING AND PAD Rear Spring Load Class-M / Blue / Yellow / Grey	-	2	Enquire
2049	LR121285	KIT - SUSPENSION SPRING AND PAD	LR121285 KIT - SUSPENSION SPRING AND PAD Rear Spring Load Class-N / Blue / Yellow / Blue	-	2	Enquire
2049	LR121286	KIT - SUSPENSION SPRING AND PAD	LR121286 KIT - SUSPENSION SPRING AND PAD Rear Spring Load Class-O / Blue / Orange / Red	-	2	Enquire
2049	LR121288	KIT - SUSPENSION SPRING AND PAD	LR121288 KIT - SUSPENSION SPRING AND PAD Rear Spring Load Class-P / Blue / Orange / Green	-	2	Enquire
2049	LR121289	KIT - SUSPENSION SPRING AND PAD	LR121289 KIT - SUSPENSION SPRING AND PAD Rear Spring Load Class-Q / Blue / Orange / Brown	-	2	Enquire
2049	LR121290	KIT - SUSPENSION SPRING AND PAD	LR121290 KIT - SUSPENSION SPRING AND PAD Rear Spring Load Class-R / Blue / Orange / Pink	-	2	Enquire
2049	LR121279	KIT - SUSPENSION SPRING AND PAD	LR121279 KIT - SUSPENSION SPRING AND PAD Rear Spring Load Class-J / Blue / Yellow / Green	-	2	Enquire
2049	LR121280	KIT - SUSPENSION SPRING AND PAD	LR121280 KIT - SUSPENSION SPRING AND PAD Rear Spring Load Class-K / Blue / Yellow / Brown	-	2	Enquire
2049	LR121281	KIT - SUSPENSION SPRING AND PAD	LR121281 KIT - SUSPENSION SPRING AND PAD Rear Spring Load Class-L / Blue / Yellow / Pink	-	2	Enquire
2049	LR114449	KIT - SUSPENSION SPRING AND PAD	LR114449 KIT - SUSPENSION SPRING AND PAD Rear Spring Load Class-E / Blue / Blue / Brown	-	2	Enquire
5349A	LR115138	INSULATOR - SHOCK ABSORBER	LR115138 INSULATOR - SHOCK ABSORBER Thin, Upper	-	2	Enquire
5349A	LR115139	INSULATOR - SHOCK ABSORBER	LR115139 INSULATOR - SHOCK ABSORBER Thick, Upper	-	2	Enquire
5349B	LR115137	PAD - ANTI-SQUEAK	LR115137 PAD - ANTI-SQUEAK Lower	-	2	Enquire
18125	LR114040	SHOCK ABSORBER	LR114040 SHOCK ABSORBER 2.0L AJ20P4 Petrol E100 PTA, Less Adaptive Damping / RH/LH / To: MG575834	-	2	Enquire
18125	LR114043	SHOCK ABSORBER	LR114043 SHOCK ABSORBER Active Damping / RH / To: MG575834	-	1	Enquire
18125	LR114052	SHOCK ABSORBER	LR114052 SHOCK ABSORBER Active Damping / LH / To: MG575834	-	1	Enquire
18125	LR124878	SHOCK ABSORBER	LR124878 SHOCK ABSORBER 1.5L AJ20P3 Petrol Mid, Less Adaptive Damping / RH/LH / To: MG575834	-	2	Enquire
18125	LR159750	SHOCK ABSORBER	LR159750 SHOCK ABSORBER Electric Engine Battery-MHEV / RH/LH / From: MG575835	-	2	Enquire
18125	LR159751	SHOCK ABSORBER	LR159751 SHOCK ABSORBER Electric Engine Battery-PHEV / RH/LH / From: MG575835	-	2	Enquire
18132	LR126629	BRACKET - SHOCK ABSORBER	LR126629 BRACKET - SHOCK ABSORBER LH / To: LG562955	-	1	Enquire
18132	LR128644	BRACKET - SHOCK ABSORBER	LR128644 BRACKET - SHOCK ABSORBER RH / To: LG562955	-	1	Enquire
18132	LR140209	BRACKET - SHOCK ABSORBER	LR140209 BRACKET - SHOCK ABSORBER LH / From: LG562956	-	1	Enquire
18132	LR140208	BRACKET - SHOCK ABSORBER	LR140208 BRACKET - SHOCK ABSORBER RH / From: LG562956	-	1	Enquire
