Name: Timing Gear (2.0L AJ21D4 Diesel Mid, Itatiaia (Brazil))
Rating: 5.0 (1 reviews)

Timing Gear (2.0L AJ21D4 Diesel Mid, Itatiaia (Brazil)) of Land Rover Land Rover Range Rover Evoque (2019+) [2.0 Turbo Diesel AJ21D4]

View All

Land Rover Range Rover Evoque (2019+) [2.0 Turbo Diesel AJ21D4] - Timing Gear (2.0L AJ21D4 Diesel Mid, Itatiaia (Brazil))

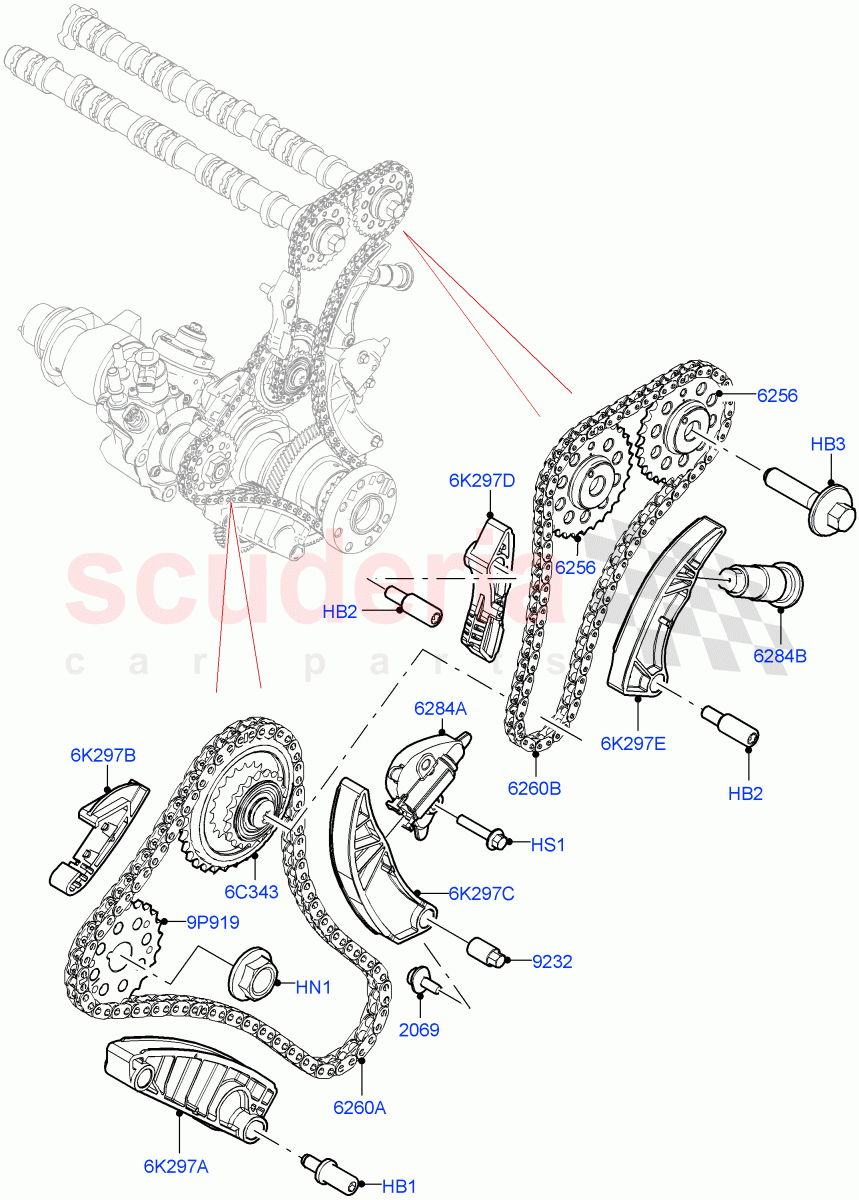

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR140531	BOLT	$1.70	To Order

Photo	Part No	Description	Price (each)	Stock
	LR088515	BOLT	$2.49	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125589	BOLT	$3.59	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR073768	NUT	$1.96	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073648	SCREW	$2.55	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR073762	PIN - SPECIAL	$2.89	To Order

Photo	Part No	Description	Price (each)	Stock
	LR159411	SPROCKET - CAMSHAFT	$40.18	To Order

Photo	Part No	Description	Price (each)	Stock
	LR120542	NUT - SPECIAL	$2.92	To Order

Photo	Part No	Description	Price (each)	Stock
	LR139715	CHAIN - TIMING	$113.17	To Order

Photo	Part No	Description	Price (each)	Stock
	LR139717	CHAIN - TIMING	$88.04	To Order

Photo	Part No	Description	Price (each)	Stock
	LR139775	TENSIONER - TIMING CHAIN	$105.58	To Order

Photo	Part No	Description	Price (each)	Stock
	LR139776	TENSIONER - TIMING CHAIN	$113.94	To Order

Photo	Part No	Description	Price (each)	Stock
	LR139667	IDLER - DRIVE CHAIN	$66.20	To Order

Photo	Part No	Description	Price (each)	Stock
	LR139794	SPROCKET - FUEL PUMP DRIVE	$35.41	To Order

Photo	Part No	Description	Price (each)	Stock
	LR139781	GUIDE - TIMING CHAIN	$27.12	To Order

Photo	Part No	Description	Price (each)	Stock
	LR139784	GUIDE - TIMING CHAIN	$25.18	To Order

Photo	Part No	Description	Price (each)	Stock
	LR139793	GUIDE - TIMING CHAIN	$25.85	To Order

Photo	Part No	Description	Price (each)	Stock
	LR139782	GUIDE - TIMING CHAIN	$24.19	To Order

Photo	Part No	Description	Price (each)	Stock
	LR139795	GUIDE - TIMING CHAIN	$26.37	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	LR140531	BOLT	LR140531 BOLT M8 X 17MM	$1.70	2
HB2	LR088515	BOLT	LR088515 BOLT M8 X 17MM	$2.49	2
HB3	LR125589	BOLT IN STOCK	LR125589 BOLT Camshaft, M12 x 1.5 x 55 IN STOCK	$3.59	2
HN1	LR073768	NUT	LR073768 NUT M18	$1.96	1
HS1	LR073648	SCREW IN STOCK	LR073648 SCREW Hexagonal Head, M6 x 30MM, Tensioner IN STOCK	$2.55	2
6C343	LR139667	IDLER - DRIVE CHAIN	LR139667 IDLER - DRIVE CHAIN Intermediate	$66.20	1
6K297A	LR139781	GUIDE - TIMING CHAIN	LR139781 GUIDE - TIMING CHAIN Front, Lower, Primary	$27.12	1
6K297B	LR139784	GUIDE - TIMING CHAIN	LR139784 GUIDE - TIMING CHAIN Front, Primary, Upper	$25.18	1
6K297C	LR139793	GUIDE - TIMING CHAIN	LR139793 GUIDE - TIMING CHAIN Primary, Rear	$25.85	1
6K297D	LR139782	GUIDE - TIMING CHAIN	LR139782 GUIDE - TIMING CHAIN Front, Secondary	$24.19	1
6K297E	LR139795	GUIDE - TIMING CHAIN	LR139795 GUIDE - TIMING CHAIN Rear, Secondary	$26.37	1
9P919	LR139794	SPROCKET - FUEL PUMP DRIVE	LR139794 SPROCKET - FUEL PUMP DRIVE For Fuel Pump	$35.41	1
2069	LR073762	PIN - SPECIAL	LR073762 PIN - SPECIAL PIVOT	$2.89	1
6256	LR159411	SPROCKET - CAMSHAFT	LR159411 SPROCKET - CAMSHAFT Intake And Exhaust	$40.18	2
6260A	LR139715	CHAIN - TIMING	LR139715 CHAIN - TIMING Lower, Primary	$113.17	1
6260B	LR139717	CHAIN - TIMING	LR139717 CHAIN - TIMING Secondary, Upper	$88.04	1
6284A	LR139775	TENSIONER - TIMING CHAIN	LR139775 TENSIONER - TIMING CHAIN Primary	$105.58	1
6284B	LR139776	TENSIONER - TIMING CHAIN	LR139776 TENSIONER - TIMING CHAIN Secondary	$113.94	1
9232	LR120542	NUT - SPECIAL	LR120542 NUT - SPECIAL	$2.92	1

Timing Gear (2.0L Aj21D4 Diesel Mid, Itatiaia (Brazil))

Land Rover Range Rover Evoque (2019+) [2.0 Turbo Diesel AJ21D4]

Land Rover Range Rover Evoque (2019+) [2.0 Turbo Diesel AJ21D4] - Timing Gear (2.0L AJ21D4 Diesel Mid, Itatiaia (Brazil))
