Timing Gear Covers (2.0L Aj21D4 Diesel Mid, Itatiaia (Brazil))

Land Rover Range Rover Evoque (2019+) [2.0 Turbo Diesel AJ21D4]

Find Your Part

Land Rover Range Rover Evoque (2019+) [2.0 Turbo Diesel AJ21D4] - Timing Gear Covers (2.0L AJ21D4 Diesel Mid, Itatiaia (Brazil))

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR183648 PLUG - BLANKING $10.66 To Order
Photo Part No Description Price (each) Stock
LR073787 PIN - CENTERING $3.89 To Order
Photo Part No Description Price (each) Stock
LR073794 RING - SEALING $26.03 To Order
Photo Part No Description Price (each) Stock
LR095782 O-RING $4.61 IN STOCK
Photo Part No Description Price (each) Stock
LR071842 SCREW AND WASHER - HEX HEAD $1.28 To Order
LR071842 SCREW AND WASHER - HEX HEAD $1.28 To Order
Photo Part No Description Price (each) Stock
LR082346 BOLT $1.49 To Order
Photo Part No Description Price (each) Stock
LR073676 SCREW $2.26 To Order
Photo Part No Description Price (each) Stock
LR073786 SCREW $2.15 To Order
Photo Part No Description Price (each) Stock
LR073648 SCREW $2.55 IN STOCK
Photo Part No Description Price (each) Stock
LR139798 GASKET - COVER $29.24 To Order
Photo Part No Description Price (each) Stock
LR000335 DOWEL - PIN $11.72 To Order
Photo Part No Description Price (each) Stock
LR073795 PLATE - BLANKING $16.51 To Order
Photo Part No Description Price (each) Stock
LR122697 SEAL - CRANKSHAFT OIL - REAR $49.35 To Order
Photo Part No Description Price (each) Stock
LR144573 COVER - CYLINDER BLOCK REAR $363.99 To Order
LR145258 COVER - CYLINDER BLOCK REAR $418.60 To Order
Photo Part No Description Price (each) Stock
LR139799 COVER - CYLINDER HEAD $262.26 To Order
Photo Part No Description Price (each) Stock
LR163611 RETAINER - CRANKSHAFT OIL SEAL $171.10 To Order
LR163612 RETAINER - CRANKSHAFT OIL SEAL $171.10 To Order
Photo Part No Description Price (each) Stock
LR126181 SENSOR - CRANKSHAFT POSITION - CPS $143.40 To Order
Photo Part No Description Price (each) Stock
LR057802 DOWEL - PIN $3.36 IN STOCK
View All

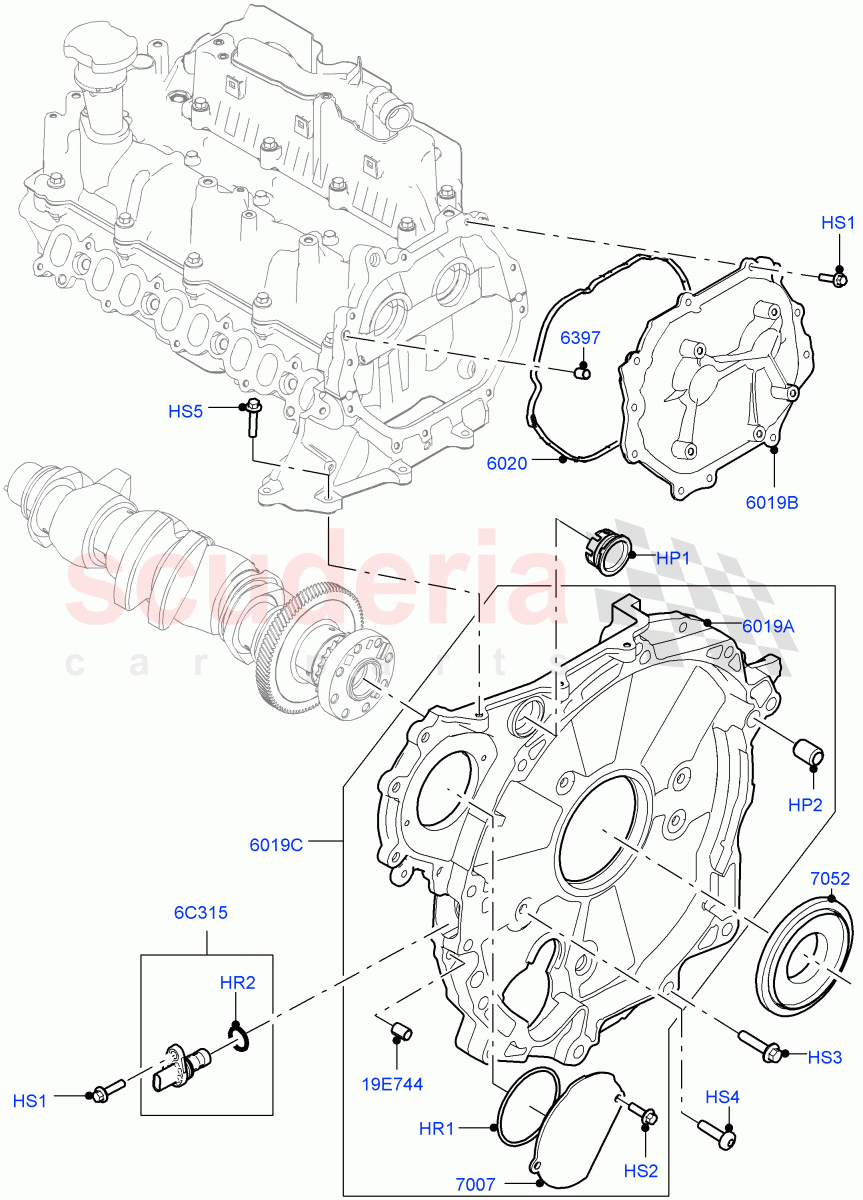

Timing Gear Covers (2.0L AJ21D4 Diesel Mid, Itatiaia (Brazil)) of Land Rover Land Rover Range Rover Evoque (2019+) [2.0 Turbo Diesel AJ21D4] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HP1 LR183648
PLUG - BLANKING
Blanking, Chain Drive, Includes O'Ring 		$10.66 1
HP2 LR073787
PIN - CENTERING
15.7MM, Pin - Dowell 		$3.89 2
HR1 LR073794
RING - SEALING 		$26.03 1
HR2 LR095782
O-RING
17.0MM, Crankshaft Position Sensor(CKP)
IN STOCK 		$4.61 1
HS1 LR071842
SCREW AND WASHER - HEX HEAD
Hexagonal Head, M6 X 25MM, Timing Chain Cover, Upper 		$1.28 10
HS1 LR071842
SCREW AND WASHER - HEX HEAD
Crankshaft Position Sensor(CKP), Hexagonal Head, M6 X 25MM 		$1.28 1
HS2 LR082346
BOLT
M6 X 20MM, Plate - Blanking 		$1.49 2
HS3 LR073676
SCREW
M8 x 35mm 		$2.26 10
HS4 LR073786
SCREW
M8 X 30MM 		$2.15 4
HS5 LR073648
SCREW
Hexagonal Head, M6 x 30MM
IN STOCK 		$2.55 3
6C315 LR126181
SENSOR - CRANKSHAFT POSITION - CPS 		$143.40 1
19E744 LR057802
DOWEL - PIN
IN STOCK 		$3.36 2
6019A LR144573
COVER - CYLINDER BLOCK REAR
9 Speed Auto Trans 9HP50 / Lower, Timing Chain 		$363.99 1
6019A LR145258
COVER - CYLINDER BLOCK REAR
6 Speed Manual Trans BG6 / Lower, Timing Chain 		$418.60 1
6019B LR139799
COVER - CYLINDER HEAD
6 Speed Manual Trans BG6 / Timing Chain, Upper 		$262.26 1
6019C LR163611
RETAINER - CRANKSHAFT OIL SEAL
9 Speed Auto Trans 9HP50 / Assembly, Lower, Timing Chain 		$171.10 1
6019C LR163612
RETAINER - CRANKSHAFT OIL SEAL
6 Speed Manual Trans BG6 / Assembly, Lower, Timing Chain 		$171.10 1
6020 LR139798
GASKET - COVER
Timing Chain Cover, Upper 		$29.24 1
6397 LR000335
DOWEL - PIN 		$11.72 2
7007 LR073795
PLATE - BLANKING
Access Hole Cover 		$16.51 1
7052 LR122697
SEAL - CRANKSHAFT OIL - REAR
Crankshaft Oil Seal, Rear 		$49.35 1
