Name: Cooling System Pipes And Hoses (2.0L AJ21D4 Diesel Mid, 9 Speed Auto Trans 9HP50, Halewood (UK)) ((V) FROMMH000001)
Rating: 5.0 (1 reviews)

Cooling System Pipes And Hoses (2.0L AJ21D4 Diesel Mid, 9 Speed Auto Trans 9HP50, Halewood (UK)) ((V) FROMMH000001) of Land Rover Land Rover Range Rover Evoque (2019+) [2.0 Turbo Diesel AJ21D4]

View All

Land Rover Range Rover Evoque (2019+) [2.0 Turbo Diesel AJ21D4] - Cooling System Pipes And Hoses (2.0L AJ21D4 Diesel Mid, 9 Speed Auto Trans 9HP50, Halewood (UK))...

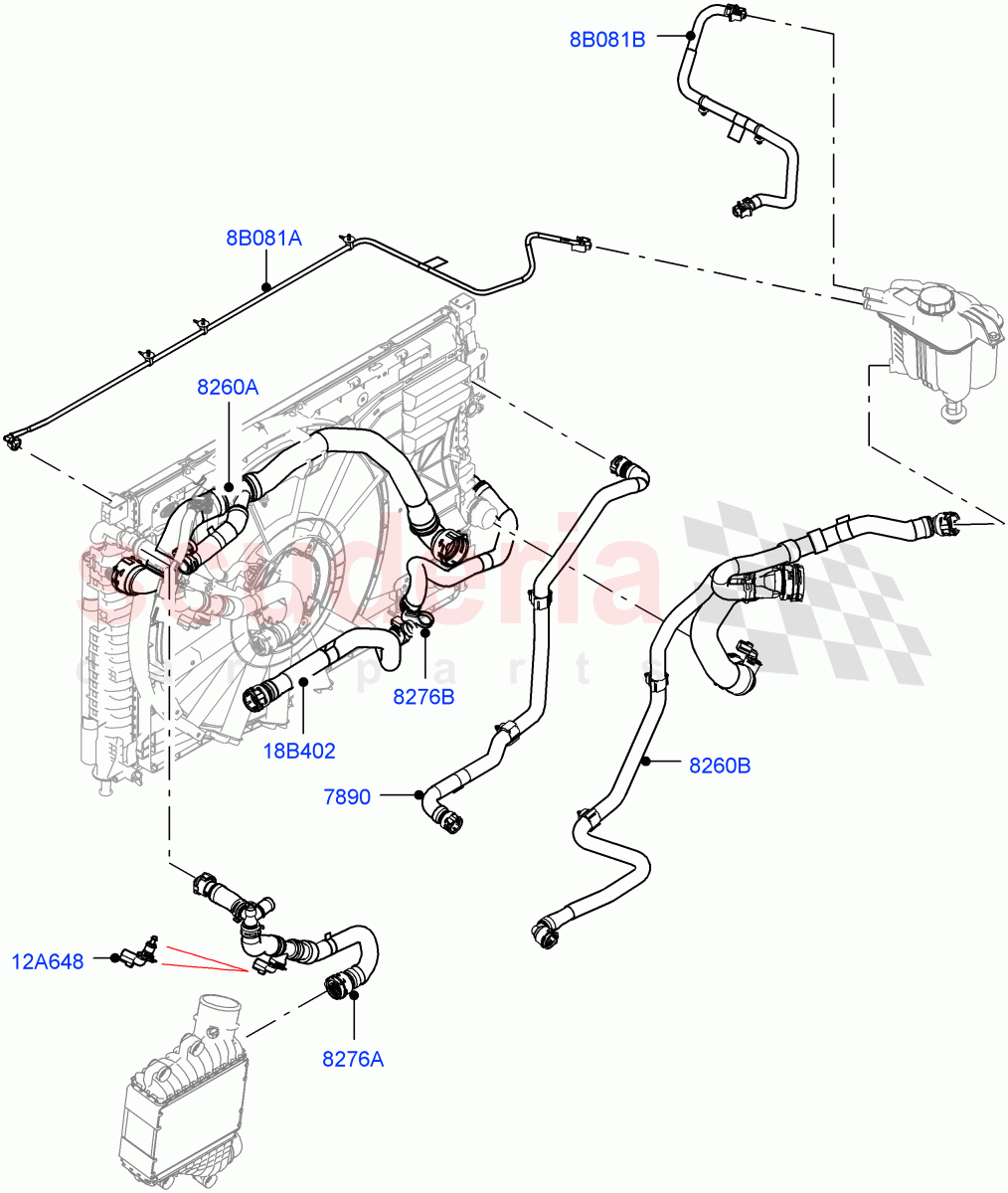

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR114664	HOSE - OIL COOLER	$77.08	To Order

Photo	Part No	Description	Price (each)	Stock
	LR139815	HOSE - RADIATOR	$93.66	To Order

Photo	Part No	Description	Price (each)	Stock
	LR140113	HOSE - RADIATOR	$134.22	To Order
	LR148840	HOSE - RADIATOR	$137.24	To Order
	LR159568	HOSE - RADIATOR	$123.41	To Order

Photo	Part No	Description	Price (each)	Stock
	LR139856	HOSE - WATER	$170.09	To Order

Photo	Part No	Description	Price (each)	Stock
	LR115221	HOSE - WATER	$52.46	To Order

Photo	Part No	Description	Price (each)	Stock
	LR041442	SENSOR - ENGINE COOLANT TEMPERATURE	$47.02	To Order

Photo	Part No	Description	Price (each)	Stock
	LR120559	HOSE - TURBOCHARGER TO INTERCOOLER	$57.44	To Order

Photo	Part No	Description	Price (each)	Stock
	LR128178	HOSE	$55.76	To Order
	LR163783	HOSE	$58.55	To Order

Photo	Part No	Description	Price (each)	Stock
	LR142042	HOSE - OVERFLOW CONTAINER	$44.03	To Order
	LR163784	HOSE - OVERFLOW CONTAINER	$52.46	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
8B081A	LR128178	HOSE	LR128178 HOSE Radiator To Expansion Tank Bleed / From: MH000001 / To: NH169081	$55.76	1
8B081A	LR163783	HOSE	LR163783 HOSE Radiator To Expansion Tank Bleed / From: NH169082	$58.55	1
8B081B	LR142042	HOSE - OVERFLOW CONTAINER	LR142042 HOSE - OVERFLOW CONTAINER Expansion Reservoir To Thermostat / From: MH000001 / To: NH169081	$44.03	1
8B081B	LR163784	HOSE - OVERFLOW CONTAINER	LR163784 HOSE - OVERFLOW CONTAINER Expansion Reservoir To Thermostat / From: NH169082	$52.46	1
12A648	LR041442	SENSOR - ENGINE COOLANT TEMPERATURE	LR041442 SENSOR - ENGINE COOLANT TEMPERATURE From: MH000001	$47.02	1
18B402	LR120559	HOSE - TURBOCHARGER TO INTERCOOLER	LR120559 HOSE - TURBOCHARGER TO INTERCOOLER From Water Pump To Intercooler / From: MH000001	$57.44	1
7890	LR114664	HOSE - OIL COOLER	LR114664 HOSE - OIL COOLER Transmission Cooler Line / From: MH000001	$77.08	1
8260A	LR139815	HOSE - RADIATOR	LR139815 HOSE - RADIATOR Top / From: MH000001	$93.66	1
8260B	LR140113	HOSE - RADIATOR	LR140113 HOSE - RADIATOR Radiator To Expansion Tank Bleed / From: MH000001 / To: MH128027	$134.22	1
8260B	LR148840	HOSE - RADIATOR	LR148840 HOSE - RADIATOR Radiator To Expansion Tank Bleed / From: MH128028 / To: MH150518	$137.24	1
8260B	LR159568	HOSE - RADIATOR	LR159568 HOSE - RADIATOR Radiator To Expansion Tank Bleed / From: MH150519	$123.41	1
8276A	LR139856	HOSE - WATER	LR139856 HOSE - WATER Intercooler To Radiator / From: MH000001	$170.09	1
8276B	LR115221	HOSE - WATER	LR115221 HOSE - WATER From Radiator To Water Pump / From: MH000001	$52.46	1
