Air Cleaner (2.0L Aj21D4 Diesel Mid, Halewood (Uk)) ((V) Frommh000001)

Land Rover Range Rover Evoque (2019+) [2.0 Turbo Diesel AJ21D4]

Find Your Part

Land Rover Range Rover Evoque (2019+) [2.0 Turbo Diesel AJ21D4] - Air Cleaner (2.0L AJ21D4 Diesel Mid, Halewood (UK)) ((V) FROMMH000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR030371 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
LR114603 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
RYG500470 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
VYP500080 BOLT AND WASHER - HEX.HEAD Enquire To Order
Photo Part No Description Price (each) Stock
LR139639 CLEANER - AIR Enquire To Order
Photo Part No Description Price (each) Stock
LR071942 ELEMENT - AIR CLEANER Enquire To Order
Photo Part No Description Price (each) Stock
LR139649 RESONATOR Enquire To Order
Photo Part No Description Price (each) Stock
LR125597 GUIDE - DIRTY AIR DUCT Enquire To Order
Photo Part No Description Price (each) Stock
LR115769 TUBE - AIR CLEANER INTAKE Enquire To Order
Photo Part No Description Price (each) Stock
LR139650 DUCT - AIR INTAKE Enquire To Order
LR167497 DUCT - AIR INTAKE Enquire To Order
Photo Part No Description Price (each) Stock
LR000753 INSULATOR - AIR CLEANER HOUSING Enquire To Order
Photo Part No Description Price (each) Stock
LR093998 SENSOR - MASS AIR FLOW Enquire To Order
Photo Part No Description Price (each) Stock
LR060069 INSULATOR - AIR CLEANER HOUSING Enquire To Order
Photo Part No Description Price (each) Stock
LR167496 BRACKET - AIR DUCT SUPPORT Enquire To Order
View All

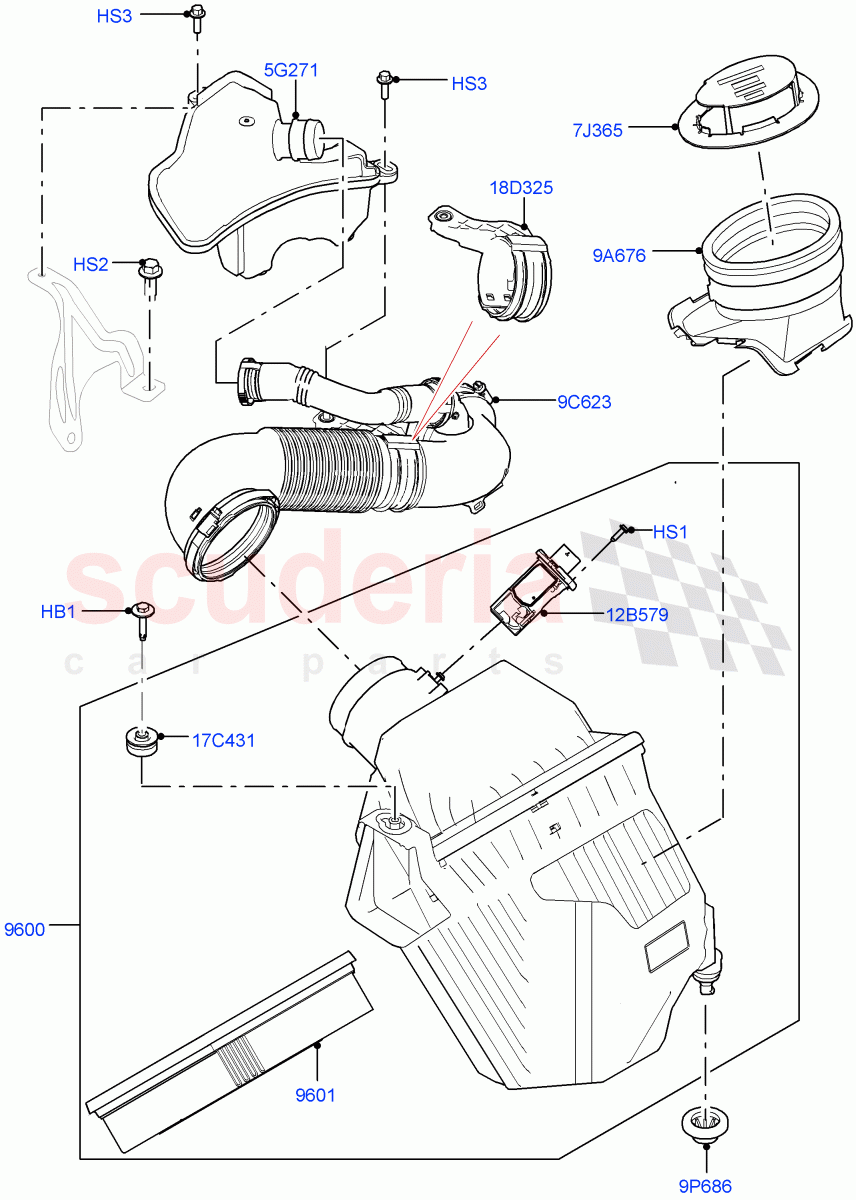

Air Cleaner (2.0L AJ21D4 Diesel Mid, Halewood (UK)) ((V) FROMMH000001) of Land Rover Land Rover Range Rover Evoque (2019+) [2.0 Turbo Diesel AJ21D4] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR030371
BOLT
Bolt And Washer, Hexagonal Head, M6 x 25MM, To Air Cleaner Box / From: MH000001 		- 1 Enquire
HS1 LR114603
SCREW
Mass Air Flow Sensor, Screw 4 X 14 / From: MH000001 		- 2 Enquire
HS2 RYG500470
SCREW
Bracket, Hexagonal Head, M10 X 25MM / From: MH000001 		- 2 Enquire
HS3 VYP500080
BOLT AND WASHER - HEX.HEAD
Air Intake, Hexagonal Head, M6 X 20MM / From: MH000001 		- 2 Enquire
5G271 LR139649
RESONATOR
Air Intake / From: MH000001 		- 1 Enquire
7J365 LR125597
GUIDE - DIRTY AIR DUCT
Dirty Air Duct / From: MH000001 		- 1 Enquire
9A676 LR115769
TUBE - AIR CLEANER INTAKE
From: MH000001 		- 1 Enquire
9C623 LR139650
DUCT - AIR INTAKE
Air Cleaner Outlet, Low Pressure EGR / From: MH000001 / To: MH999999 		- 1 Enquire
9C623 LR167497
DUCT - AIR INTAKE
Air Cleaner Outlet, Low Pressure EGR / From: NH000001 		- 1 Enquire
9P686 LR000753
INSULATOR - AIR CLEANER HOUSING
Air Cleaner Box Holdown / From: MH000001 		- 2 Enquire
12B579 LR093998
SENSOR - MASS AIR FLOW
Air Flow / From: MH000001 		- 1 Enquire
17C431 LR060069
INSULATOR - AIR CLEANER HOUSING
Air Cleaner Box Holdown / From: MH000001 		- 1 Enquire
18D325 LR167496
BRACKET - AIR DUCT SUPPORT
Outlet pipe / From: NH000001 		- 1 Enquire
9600 LR139639
CLEANER - AIR
From: MH000001 		- 1 Enquire
9601 LR071942
ELEMENT - AIR CLEANER
From: MH000001 		- 1 Enquire
