Heater Hoses (2.0L Aj21D4 Diesel Mid, Itatiaia (Brazil))

Land Rover Range Rover Evoque (2019+) [2.0 Turbo Diesel]

Find Your Part

Land Rover Range Rover Evoque (2019+) [2.0 Turbo Diesel] - Heater Hoses (2.0L AJ21D4 Diesel Mid, Itatiaia (Brazil))

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
RYG500190 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR001925 SCREW AND WASHER Enquire To Order
Photo Part No Description Price (each) Stock
LR140031 PUMP - WATER - FFH Enquire To Order
LR140032 PUMP - WATER - FFH Enquire To Order
Photo Part No Description Price (each) Stock
LR139853 HOSE - OUTLET Enquire To Order
LR139854 HOSE - OUTLET Enquire To Order
LR139855 HOSE - OUTLET Enquire To Order
Photo Part No Description Price (each) Stock
LR139851 HOSE - HEATER WATER Enquire To Order
LR139852 HOSE - HEATER WATER Enquire To Order
Photo Part No Description Price (each) Stock
LR084529 BRACKET - PUMP SUPPORT Enquire To Order
Photo Part No Description Price (each) Stock
LR095332 PUMP - WATER - FFH Enquire To Order
Photo Part No Description Price (each) Stock
LR140064 RETAINER - PISTON PIN Enquire To Order
Photo Part No Description Price (each) Stock
LR139865 HOSE - HEATER WATER Enquire To Order
Photo Part No Description Price (each) Stock
LR139864 HOSE - HEATER WATER Enquire To Order
Photo Part No Description Price (each) Stock
LR139868 HOSE - HEATER WATER Enquire To Order
LR139869 HOSE - HEATER WATER Enquire To Order
LR139871 HOSE - HEATER WATER Enquire To Order
Photo Part No Description Price (each) Stock
LR156125 SEAL - HEATER Enquire To Order
View All

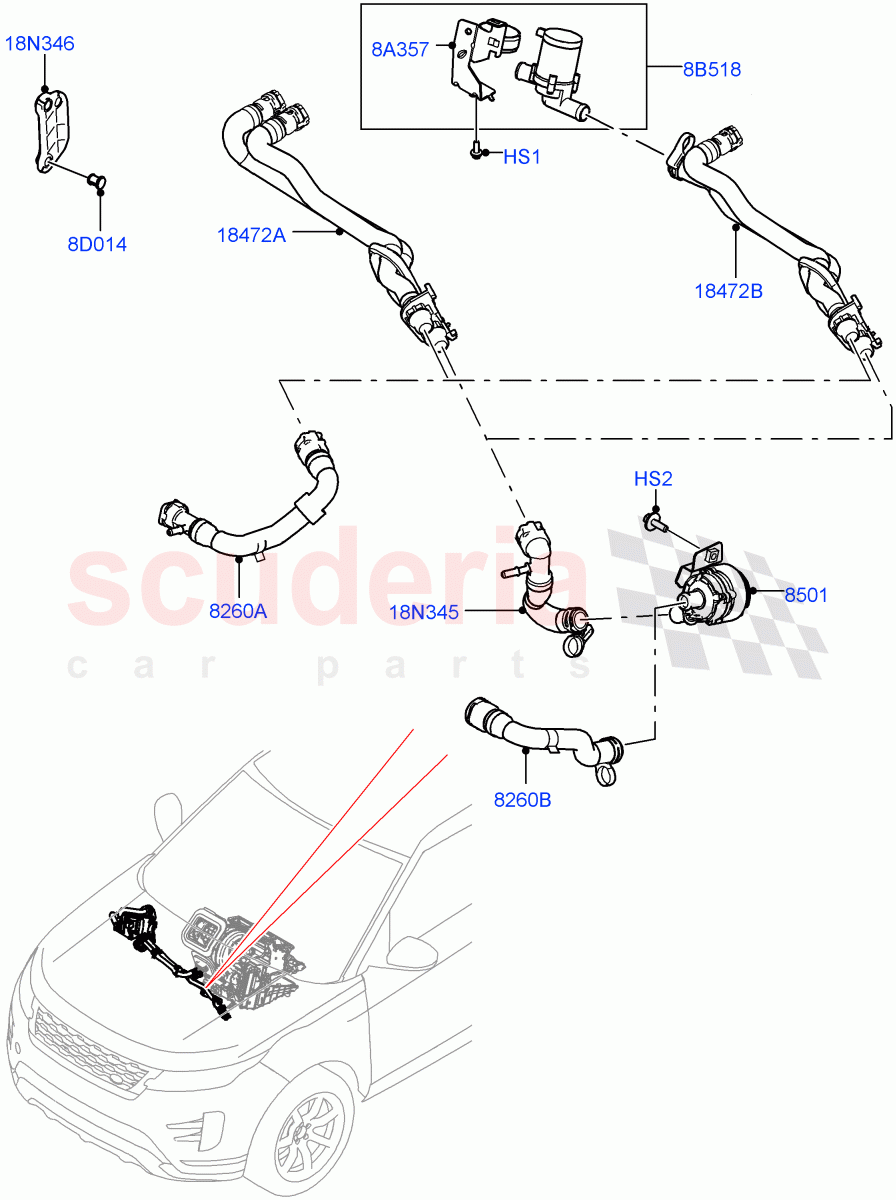

Heater Hoses (2.0L AJ21D4 Diesel Mid, Itatiaia (Brazil)) of Land Rover Land Rover Range Rover Evoque (2019+) [2.0 Turbo Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HS1 RYG500190
SCREW
With Fuel Fired Heater / Hexagonal Head, M6 X 16MM 		- 1 Enquire
HS2 LR001925
SCREW AND WASHER
M6 X 20MM 		- 2 Enquire
8A357 LR084529
BRACKET - PUMP SUPPORT
With Fuel Fired Heater 		- 1 Enquire
8B518 LR095332
PUMP - WATER - FFH
With Fuel Fired Heater / Main Unit 		- 1 Enquire
8D014 LR140064
RETAINER - PISTON PIN
Pre-Condition w/oFuel Operated Heat 		- - Enquire
18N345 LR139868
HOSE - HEATER WATER
9 Speed Auto Trans 9HP50, With Diesel Exh Fluid Emission Tank / Pump To Heater 		- 1 Enquire
18N345 LR139869
HOSE - HEATER WATER
9 Speed Auto Trans 9HP50, Less Emission Tank / Pump To Heater 		- 1 Enquire
18N345 LR139871
HOSE - HEATER WATER
6 Speed Manual Trans BG6 / Pump To Heater 		- 1 Enquire
18N346 LR156125
SEAL - HEATER
Less Heater 		- 1 Enquire
8260A LR139853
HOSE - OUTLET
9 Speed Auto Trans 9HP50, With Diesel Exh Fluid Emission Tank / Engine To Heater 		- 1 Enquire
8260A LR139854
HOSE - OUTLET
9 Speed Auto Trans 9HP50, Less Emission Tank / Engine To Heater 		- 1 Enquire
8260A LR139855
HOSE - OUTLET
6 Speed Manual Trans BG6 / Engine To Heater 		- 1 Enquire
8260B LR139851
HOSE - HEATER WATER
9 Speed Auto Trans 9HP50 / Auxiliary Unit, Water Pump 		- 1 Enquire
8260B LR139852
HOSE - HEATER WATER
6 Speed Manual Trans BG6 / Auxiliary Unit, Water Pump 		- 1 Enquire
8501 LR140031
PUMP - WATER - FFH
9 Speed Auto Trans 9HP50 / Auxiliary Unit 		- 1 Enquire
8501 LR140032
PUMP - WATER - FFH
6 Speed Manual Trans BG6 / Auxiliary Unit 		- 1 Enquire
18472A LR139865
HOSE - HEATER WATER
Less Heater / To HVAC Unit 		- 1 Enquire
18472B LR139864
HOSE - HEATER WATER
Fuel Heater W/Pk Heat With Remote / To HVAC Unit, To Pump 		- 1 Enquire
