Name: Engine Harness (2.0L AJ20D4 Diesel LF PTA, 9 Speed Auto Trans 9HP50, Halewood (UK), 2.0L AJ20D4 Diesel High PTA, 2.0L AJ20D4 Diesel Mid PTA)
Rating: 5.0 (1 reviews)

Engine Harness (2.0L AJ20D4 Diesel LF PTA, 9 Speed Auto Trans 9HP50, Halewood (UK), 2.0L AJ20D4 Diesel High PTA, 2.0L AJ20D4 Diesel Mid PTA) of Land Rover Land Rover Range Rover Evoque (2019+) [2.0 Turbo Diesel]

View All

Land Rover Range Rover Evoque (2019+) [2.0 Turbo Diesel] - Engine Harness (2.0L AJ20D4 Diesel LF PTA, 9 Speed Auto Trans 9HP50, Halewood (UK), 2.0L AJ20D4...

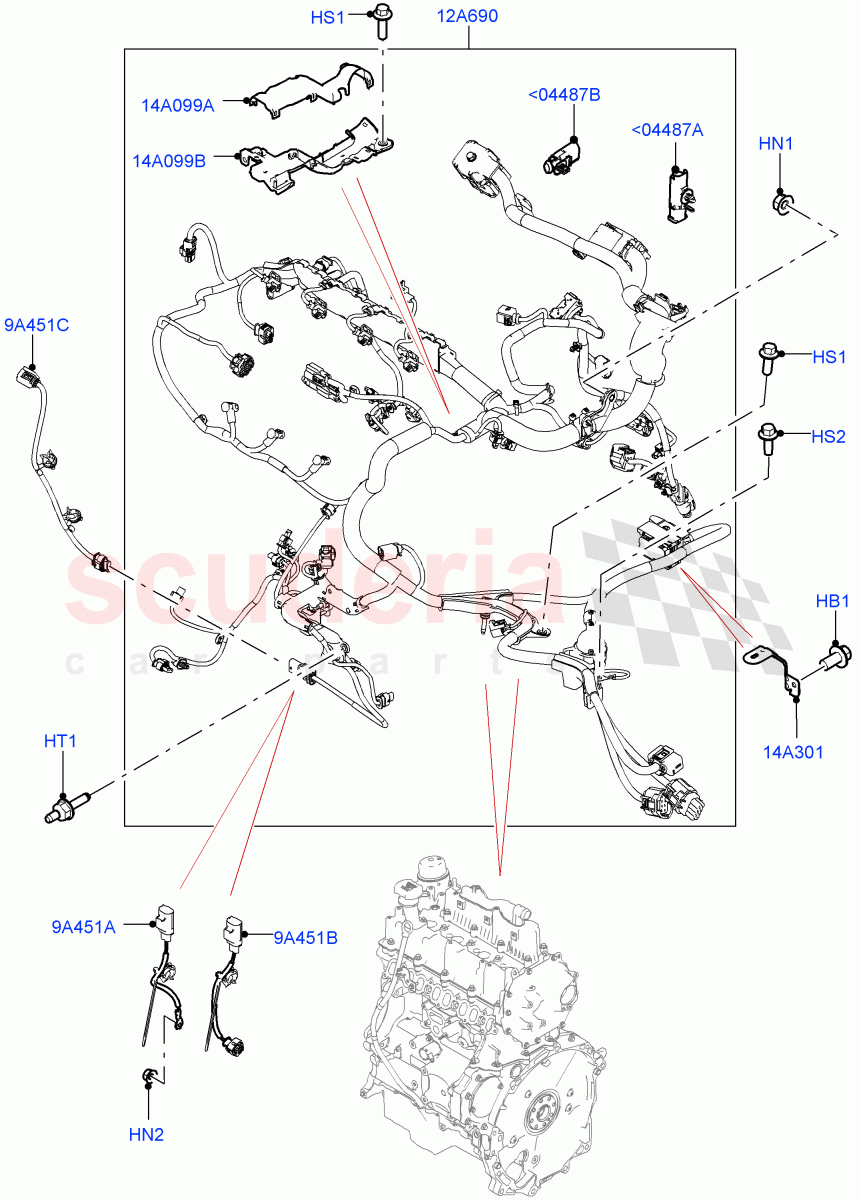

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FS108166	BOLT	$0.63	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	RYH500570	NUT - ADJUSTING	$2.73	To Order

Photo	Part No	Description	Price (each)	Stock
	RYH500300	NUT - HEX.	$0.58	To Order

Photo	Part No	Description	Price (each)	Stock
	FS106166	SCREW	$1.19	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR003450	SCREW	$0.51	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR089197	STUD	$3.82	To Order

Photo	Part No	Description	Price (each)	Stock
	LR118097	WIRING - ENGINE	$1,067.68	To Order
	LR118096	WIRE	$1,121.04	To Order
	LR128801	WIRE	$2,218.42	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR123052	CLIP - WIRING	$87.44	To Order

Photo	Part No	Description	Price (each)	Stock
	LR124794	CABLE - BATTERY TO STARTER MOTOR	$59.34	To Order

Photo	Part No	Description	Price (each)	Stock
	LR124795	CABLE - BATTERY TO STARTER MOTOR	$56.53	To Order

Photo	Part No	Description	Price (each)	Stock
	LR115641	LINK - CAN	$131.62	To Order
	LR115200	LINK LEAD	$64.31	To Order

Photo	Part No	Description	Price (each)	Stock
	LR123784	PLUG - BLANKING	$5.98	To Order

Photo	Part No	Description	Price (each)	Stock
	LR135261	PLUG - BLANKING	$4.51	To Order

Photo	Part No	Description	Price (each)	Stock
	LR118100	SHIELD	$11.16	To Order

Photo	Part No	Description	Price (each)	Stock
	LR118099	SHIELD	$11.16	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
<04487A	LR123784	PLUG - BLANKING	LR123784 PLUG - BLANKING Euro Stage 4 Emissions / DPF Inlet	$5.98	1
<04487B	LR135261	PLUG - BLANKING	LR135261 PLUG - BLANKING Euro Stage 4 Emissions / To DPF	$4.51	1
HB1	FS108166	BOLT IN STOCK	FS108166 BOLT Hexagonal Head, M8 X 16MM IN STOCK	$0.63	1
HN1	RYH500570	NUT - ADJUSTING	RYH500570 NUT - ADJUSTING M6	$2.73	1
HN2	RYH500300	NUT - HEX.	RYH500300 NUT - HEX. Electric Engine Battery-MHEV / Hexagonal Head, M6	$0.58	1
HS1	FS106166	SCREW IN STOCK	FS106166 SCREW Hexagonal Head, M6 X 16MM IN STOCK	$1.19	2
HS2	LR003450	SCREW IN STOCK	LR003450 SCREW M6 X 16MM IN STOCK	$0.51	1
HT1	LR089197	STUD	LR089197 STUD M6 x 22 mm + M6 x 12 mm	$3.82	2
9A451A	LR124794	CABLE - BATTERY TO STARTER MOTOR	LR124794 CABLE - BATTERY TO STARTER MOTOR Electric Engine Battery-MHEV / Link, Starter Motor	$59.34	1
9A451B	LR124795	CABLE - BATTERY TO STARTER MOTOR	LR124795 CABLE - BATTERY TO STARTER MOTOR Less Electric Engine Battery / Link, Starter Motor	$56.53	1
9A451C	LR115641	LINK - CAN	LR115641 LINK - CAN Electric Engine Battery-MHEV / Belt Integrated Starter Generator, Link	$131.62	1
9A451C	LR115200	LINK LEAD	LR115200 LINK LEAD Less Electric Engine Battery / Alternator, Link	$64.31	1
12A690	LR118097	WIRING - ENGINE	LR118097 WIRING - ENGINE 2.0L AJ20D4 Diesel LF PTA / Engine Harness / To: LH000850	$1,067.68	1
12A690	LR118096	WIRE	LR118096 WIRE 2.0L AJ20D4 Diesel High PTA / Engine Harness / To: LH000850	$1,121.04	1
12A690	LR128801	WIRE	LR128801 WIRE 2.0L AJ20D4 Diesel High PTA / Engine Harness / From: LH000851	$2,218.42	1
12A690	LR128695	WIRING - ENGINE	LR128695 WIRING - ENGINE 2.0L AJ20D4 Diesel Mid PTA / Engine Harness / From: LH000851	$1,523.79	1
14A099A	LR118100	SHIELD	LR118100 SHIELD Upper	$11.16	1
14A099B	LR118099	SHIELD	LR118099 SHIELD Lower	$11.16	1
14A301	LR123052	CLIP - WIRING	LR123052 CLIP - WIRING	$87.44	1
