Find Your Part

Front Suspension Struts And Springs (Halewood (UK)) of Land Rover Land Rover Range Rover Evoque (2019+) [2.0 Turbo Diesel]

View All

Land Rover Range Rover Evoque (2019+) [2.0 Turbo Diesel] - Front Suspension Struts And Springs (Halewood (UK))

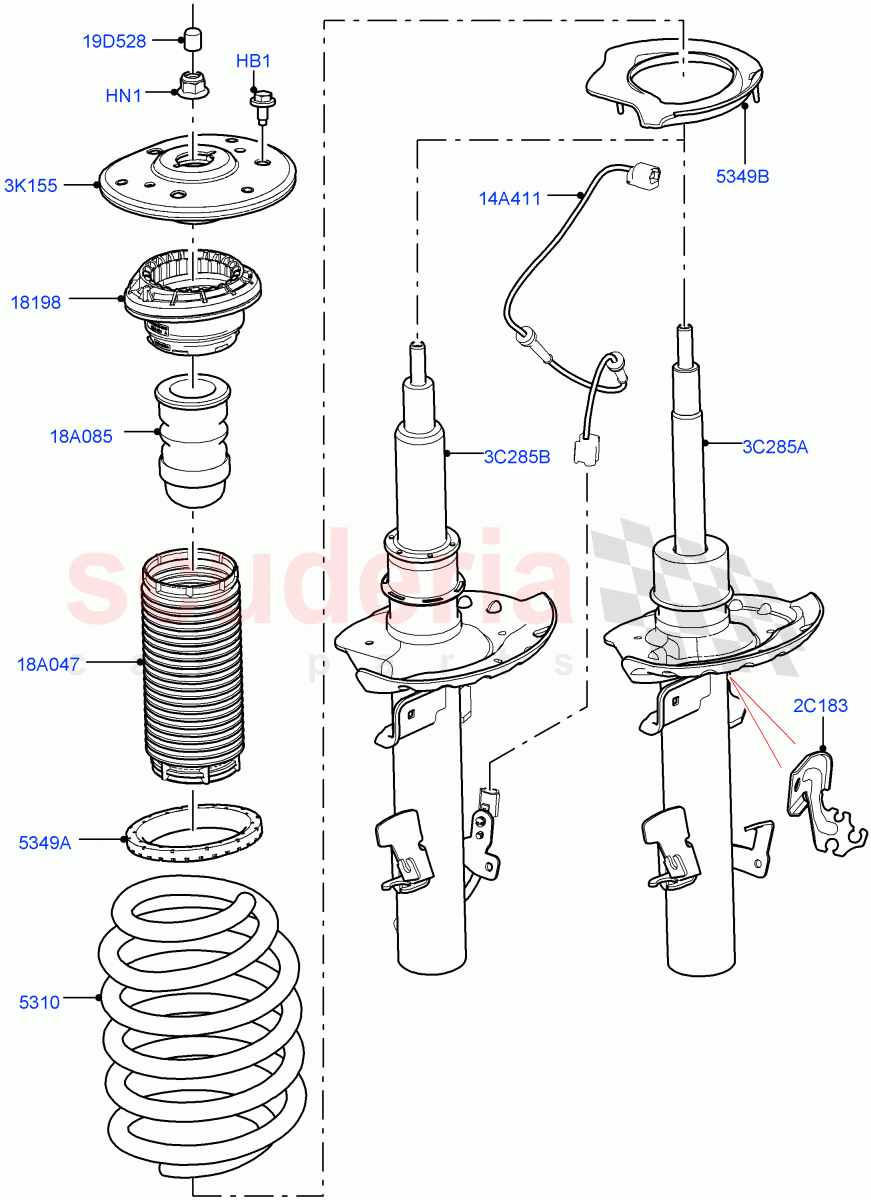

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR106658	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000055	NUT - HEX.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR114305	SPRING - SUSPENSION - FRONT	Enquire	To Order
	LR114306	SPRING - SUSPENSION - FRONT	Enquire	To Order
	LR114307	SPRING - SUSPENSION - FRONT	Enquire	To Order

...and 19 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR121039	INSULATOR - SHOCK ABSORBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR118030	BRACKET - SENSOR MOUNTING	Enquire	To Order
	LR118031	BRACKET - SENSOR MOUNTING	Enquire	To Order
	LR127605	BRACKET - SENSOR MOUNTING	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR115224	MOUNTING - SHOCK ABSORBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR009664	PAD - SUSPENSION SPRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR028618	PAD - ANTI-SQUEAK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR115216	JUMPER WIRING	Enquire	To Order
	LR143642	JUMPER WIRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073344	BOOT - SHOCK ABSORBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR121033	BUMPER - SHOCK ABSORBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR126480	CAP - SHOCK ABSORBER SECURING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR114037	SHOCK ABSORBER	Enquire	To Order
	LR114048	MACPHERSON STRUT	Enquire	To Order
	LR114048	MACPHERSON STRUT	Enquire	To Order

...and 5 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR114039	SHOCK ABSORBER	Enquire	To Order
	LR114051	MACPHERSON STRUT	Enquire	To Order
	LR137697	SHOCK ABSORBER	Enquire	To Order

...and 1 more part variants. See table on right for more details.

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	LR106658	BOLT	LR106658 BOLT Bolt And Washer, Hexagonal Head, M8 X 25MM	-	6	Enquire
HN1	LR000055	NUT - HEX.	LR000055 NUT - HEX. M12 x 1.25MM	-	2	Enquire
2C183	LR118030	BRACKET - SENSOR MOUNTING	LR118030 BRACKET - SENSOR MOUNTING Active Damping / LH / To: LH000268	-	1	Enquire
2C183	LR118031	BRACKET - SENSOR MOUNTING	LR118031 BRACKET - SENSOR MOUNTING Active Damping / RH / To: LH000268	-	1	Enquire
2C183	LR127605	BRACKET - SENSOR MOUNTING	LR127605 BRACKET - SENSOR MOUNTING Active Damping / LH / From: LH000269 / To: LH066788	-	1	Enquire
2C183	LR127610	BRACKET - SENSOR MOUNTING	LR127610 BRACKET - SENSOR MOUNTING Active Damping / RH / From: LH000269 / To: LH066788	-	1	Enquire
2C183	LR136802	BRACKET - SENSOR MOUNTING	LR136802 BRACKET - SENSOR MOUNTING Active Damping / LH / From: LH066789	-	1	Enquire
2C183	LR136803	BRACKET - SENSOR MOUNTING	LR136803 BRACKET - SENSOR MOUNTING Active Damping / RH / From: LH066789	-	1	Enquire
3C285A	LR114037	SHOCK ABSORBER	LR114037 SHOCK ABSORBER Less Adaptive Damping / RH / To: MH134359	-	1	Enquire
3C285A	LR114048	MACPHERSON STRUT	LR114048 MACPHERSON STRUT Less Adaptive Damping / LH / To: MH134359	-	1	Enquire
3C285A	LR114048	MACPHERSON STRUT	LR114048 MACPHERSON STRUT 1.5L AJ20P3 Petrol High PHEV, Less Adaptive Damping / LH / From: MH134360	-	1	Enquire
3C285A	LR114037	SHOCK ABSORBER	LR114037 SHOCK ABSORBER 2.0L AJ21D4 Diesel Mid, Less Adaptive Damping / RH / From: MH134360	-	1	Enquire
3C285A	LR157957	MACPHERSON STRUT	LR157957 MACPHERSON STRUT 1.5L AJ20P3 Petrol High, Less Adaptive Damping / LH / From: MH134360 / To: NH177689	-	1	Enquire
3C285A	LR157955	SHOCK ABSORBER	LR157955 SHOCK ABSORBER 1.5L AJ20P3 Petrol High, Less Adaptive Damping / RH / From: MH134360 / To: NH177398	-	1	Enquire
3C285A	LR172307	Shock Absorber	LR172307 Shock Absorber 1.5L AJ20P3 Petrol High, Less Adaptive Damping / RH / From: NH177399	-	1	Enquire
3C285A	LR172305	Shock Absorber	LR172305 Shock Absorber 1.5L AJ20P3 Petrol High, Less Adaptive Damping / LH / From: NH177690	-	1	Enquire
3C285B	LR114039	SHOCK ABSORBER	LR114039 SHOCK ABSORBER Active Damping / RH / To: LH067861	-	1	Enquire
3C285B	LR114051	MACPHERSON STRUT	LR114051 MACPHERSON STRUT Active Damping / LH / To: LH067861	-	1	Enquire
3C285B	LR137697	SHOCK ABSORBER	LR137697 SHOCK ABSORBER Active Damping / RH / From: LH067862	-	1	Enquire
3C285B	LR137698	MACPHERSON STRUT	LR137698 MACPHERSON STRUT Active Damping / LH / From: LH067862	-	1	Enquire
3K155	LR115224	MOUNTING - SHOCK ABSORBER	LR115224 MOUNTING - SHOCK ABSORBER	-	2	Enquire
14A411	LR115216	JUMPER WIRING	LR115216 JUMPER WIRING Active Damping / To: LH999999	-	2	Enquire
14A411	LR143642	JUMPER WIRING	LR143642 JUMPER WIRING Active Damping / From: MH000001	-	2	Enquire
18A047	LR073344	BOOT - SHOCK ABSORBER	LR073344 BOOT - SHOCK ABSORBER	-	2	Enquire
18A085	LR121033	BUMPER - SHOCK ABSORBER	LR121033 BUMPER - SHOCK ABSORBER	-	2	Enquire
19D528	LR126480	CAP - SHOCK ABSORBER SECURING	LR126480 CAP - SHOCK ABSORBER SECURING	-	2	Enquire
5310	LR114305	SPRING - SUSPENSION - FRONT	LR114305 SPRING - SUSPENSION - FRONT Front Spring Load Class-A / STD - SUPPLIED ONLY IN KIT / To: MH134927	-	2	Enquire
5310	LR114306	SPRING - SUSPENSION - FRONT	LR114306 SPRING - SUSPENSION - FRONT Front Spring Load Class-B / Yellow / Grey / Yellow / To: MH134927	-	2	Enquire
5310	LR114307	SPRING - SUSPENSION - FRONT	LR114307 SPRING - SUSPENSION - FRONT Front Spring Load Class-C / Yellow / Grey / Orange / To: MH136792	-	2	Enquire
5310	LR114308	SPRING - SUSPENSION - FRONT	LR114308 SPRING - SUSPENSION - FRONT Front Spring Load Class-D / Yellow / Grey / Red / To: MH136226	-	2	Enquire
5310	LR114309	SPRING - SUSPENSION - FRONT	LR114309 SPRING - SUSPENSION - FRONT Front Spring Load Class-E / Yellow / Grey / Green / To: MH136792	-	2	Enquire
5310	LR114311	SPRING - SUSPENSION - FRONT	LR114311 SPRING - SUSPENSION - FRONT Front Spring Load Class-F / Yellow / Grey / Brown / To: MH136226	-	2	Enquire
5310	LR114313	SPRING - SUSPENSION - FRONT	LR114313 SPRING - SUSPENSION - FRONT Front Spring Load Class-G / Yellow / Grey / Pink / To: MH136226	-	2	Enquire
5310	LR114314	SPRING - SUSPENSION - FRONT	LR114314 SPRING - SUSPENSION - FRONT Front Spring Load Class-H / Yellow / Brown / Pink / To: MH146738	-	2	Enquire
5310	LR121268	SPRING - SUSPENSION - FRONT	LR121268 SPRING - SUSPENSION - FRONT Front Spring Load Class-I / Yellow / Brown / Red / To: MH134927	-	2	Enquire
5310	LR121269	SPRING - SUSPENSION - FRONT	LR121269 SPRING - SUSPENSION - FRONT Front Spring Load Class-J / Yellow / Brown / Blue / To: MH134927	-	2	Enquire
5310	LR121270	SPRING - SUSPENSION - FRONT	LR121270 SPRING - SUSPENSION - FRONT Front Spring Load Class-K / Yellow / Brown / Yellow / To: MH134927	-	2	Enquire
5310	LR157142	SPRING - SUSPENSION - FRONT	LR157142 SPRING - SUSPENSION - FRONT Front Spring Load Class-A / STD - SUPPLIED ONLY IN KIT / From: MH134928	-	2	Enquire
5310	LR157147	SPRING - SUSPENSION - FRONT	LR157147 SPRING - SUSPENSION - FRONT Front Spring Load Class-B / STD - SUPPLIED ONLY IN KIT / From: MH134928	-	2	Enquire
5310	LR157159	SPRING - SUSPENSION - FRONT	LR157159 SPRING - SUSPENSION - FRONT Front Spring Load Class-I / Yellow / Brown / Red / From: MH134928	-	2	Enquire
5310	LR157160	SPRING - SUSPENSION - FRONT	LR157160 SPRING - SUSPENSION - FRONT Front Spring Load Class-J / Yellow / Brown / Blue / From: MH134928	-	2	Enquire
5310	LR157163	SPRING - SUSPENSION - FRONT	LR157163 SPRING - SUSPENSION - FRONT Front Spring Load Class-K / Yellow / Brown / Yellow / From: MH134928	-	2	Enquire
5310	LR157150	SPRING - SUSPENSION - FRONT	LR157150 SPRING - SUSPENSION - FRONT Front Spring Load Class-C / Yellow / Grey / Orange / From: MH136793	-	2	Enquire
5310	LR157152	SPRING - SUSPENSION - FRONT	LR157152 SPRING - SUSPENSION - FRONT Front Spring Load Class-E / Yellow / Grey / Green / From: MH136793	-	2	Enquire
5310	LR157859	SPRING - SUSPENSION - FRONT	LR157859 SPRING - SUSPENSION - FRONT Front Spring Load Class-D / Yellow / Grey / Red / From: MH136227	-	2	Enquire
5310	LR157155	SPRING - SUSPENSION - FRONT	LR157155 SPRING - SUSPENSION - FRONT Front Spring Load Class-F / Yellow / Grey / Brown / From: MH136227	-	2	Enquire
5310	LR157157	SPRING - SUSPENSION - FRONT	LR157157 SPRING - SUSPENSION - FRONT Front Spring Load Class-G / Yellow / Grey / Pink / From: MH136227	-	2	Enquire
5310	LR157158	SPRING - SUSPENSION - FRONT	LR157158 SPRING - SUSPENSION - FRONT Front Spring Load Class-H / Yellow / Brown / Pink / From: MH146739	-	2	Enquire
5349A	LR009664	PAD - SUSPENSION SPRING	LR009664 PAD - SUSPENSION SPRING Upper	-	2	Enquire
5349B	LR028618	PAD - ANTI-SQUEAK	LR028618 PAD - ANTI-SQUEAK Lower	-	2	Enquire
18198	LR121039	INSULATOR - SHOCK ABSORBER	LR121039 INSULATOR - SHOCK ABSORBER	-	2	Enquire
