Name: Oil Pan/Oil Level Indicator (2.0L AJ20D4 Diesel Mid PTA, Halewood (UK), 2.0L AJ20D4 Diesel LF PTA, 2.0L AJ20D4 Diesel High PTA)
Rating: 5.0 (1 reviews)

Oil Pan/Oil Level Indicator (2.0L AJ20D4 Diesel Mid PTA, Halewood (UK), 2.0L AJ20D4 Diesel LF PTA, 2.0L AJ20D4 Diesel High PTA) of Land Rover Land Rover Range Rover Evoque (2019+) [2.0 Turbo Diesel]

View All

Land Rover Range Rover Evoque (2019+) [2.0 Turbo Diesel] - Oil Pan/Oil Level Indicator (2.0L AJ20D4 Diesel Mid PTA, Halewood (UK), 2.0L AJ20D4 Diesel LF PTA,...

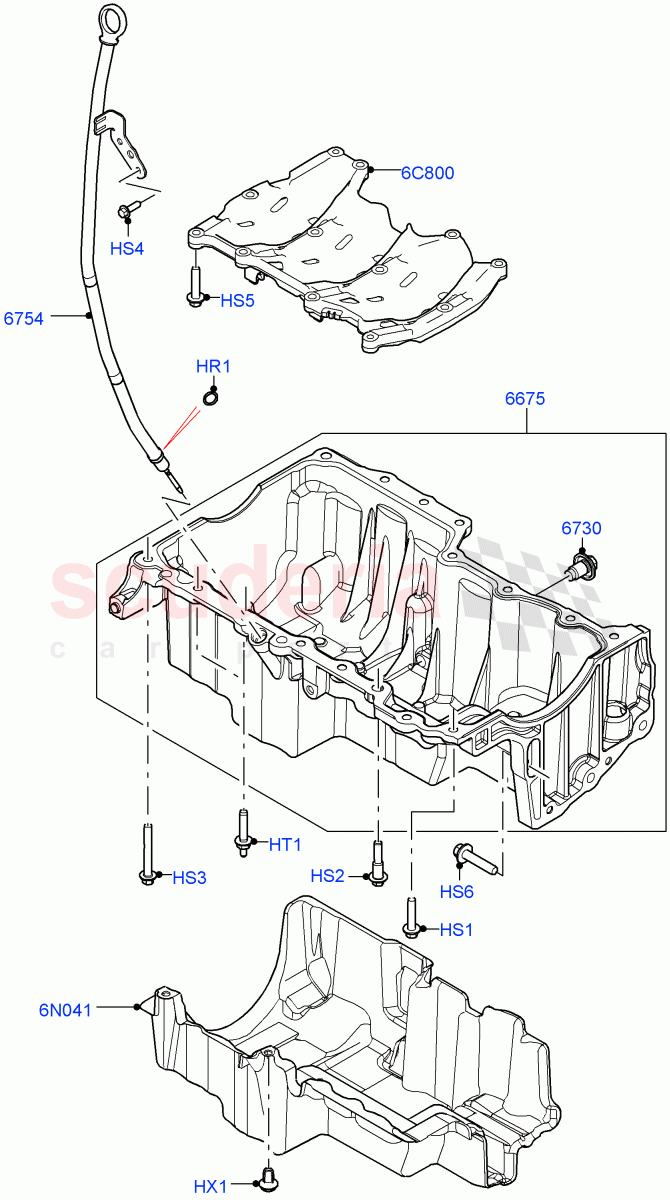

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR074127	O-RING	$4.96	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073676	SCREW	$2.26	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073677	SCREW	$3.30	To Order

Photo	Part No	Description	Price (each)	Stock
	LR074137	SCREW	$1.86	To Order

Photo	Part No	Description	Price (each)	Stock
	LR071774	SCREW	$2.23	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073635	SCREW	$2.20	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073724	SCREW	$1.96	To Order

Photo	Part No	Description	Price (each)	Stock
	LR089234	STUD	$4.86	To Order

Photo	Part No	Description	Price (each)	Stock
	LR071767	RIVET - PLASTIC	$2.92	To Order

Photo	Part No	Description	Price (each)	Stock
	LR087669	PAN - ENGINE OIL	$529.09	To Order
	LR140954	PAN - ENGINE OIL	$581.96	To Order
	LR154106	PAN - ENGINE OIL	$726.95	To Order

Photo	Part No	Description	Price (each)	Stock
	LR154091	PLUG - OIL DRAIN	$13.95	To Order

Photo	Part No	Description	Price (each)	Stock
	LR117522	TUBE - OIL LEVEL INDICATOR	$50.20	To Order
	LR117523	TUBE - OIL LEVEL INDICATOR	$41.80	To Order
	LR140666	TUBE - OIL LEVEL INDICATOR	$47.26	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR073634	TRAY - WINDAGE	$469.99	To Order
	LR137476	TRAY - WINDAGE	$374.15	To Order

Photo	Part No	Description	Price (each)	Stock
	LR124586	INSULATOR - OIL SUMP	$108.66	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HR1	LR074127	O-RING	LR074127 O-RING 11.5 x 2 mm, Tube Indicator	$4.96	1
HS1	LR073676	SCREW	LR073676 SCREW M8 x 35mm	$2.26	11
HS2	LR073677	SCREW	LR073677 SCREW M8 x 42mm	$3.30	2
HS3	LR074137	SCREW	LR074137 SCREW M8 x 60mm	$1.86	1
HS4	LR071774	SCREW	LR071774 SCREW Hexagonal Head, M6 X 20MM	$2.23	1
HS5	LR073635	SCREW	LR073635 SCREW M6 x 35MM, Windage Tray	$2.20	12
HS6	LR073724	SCREW	LR073724 SCREW M8 X 25MM, Timing Chain Lower Cover	$1.96	1
HT1	LR089234	STUD	LR089234 STUD M8 X 35 + M6 X 12	$4.86	2
HX1	LR071767	RIVET - PLASTIC	LR071767 RIVET - PLASTIC 7.8-9.1 x 4.5-10.5, Insulator	$2.92	3
6C800	LR073634	TRAY - WINDAGE	LR073634 TRAY - WINDAGE To: LH050590	$469.99	1
6C800	LR137476	TRAY - WINDAGE	LR137476 TRAY - WINDAGE From: LH050591	$374.15	1
6N041	LR124586	INSULATOR - OIL SUMP	LR124586 INSULATOR - OIL SUMP Oil Pan	$108.66	1
6675	LR087669	PAN - ENGINE OIL	LR087669 PAN - ENGINE OIL To: LH099607	$529.09	1
6675	LR140954	PAN - ENGINE OIL	LR140954 PAN - ENGINE OIL From: LH099608 / To: MH122658	$581.96	1
6675	LR154106	PAN - ENGINE OIL	LR154106 PAN - ENGINE OIL From: MH122659	$726.95	1
6730	LR154091	PLUG - OIL DRAIN	LR154091 PLUG - OIL DRAIN	$13.95	1
6754	LR117522	TUBE - OIL LEVEL INDICATOR	LR117522 TUBE - OIL LEVEL INDICATOR 2.0L AJ20D4 Diesel Mid PTA / To: LH096230	$50.20	1
6754	LR117523	TUBE - OIL LEVEL INDICATOR	LR117523 TUBE - OIL LEVEL INDICATOR 2.0L AJ20D4 Diesel High PTA / To: LH096230	$41.80	1
6754	LR140666	TUBE - OIL LEVEL INDICATOR	LR140666 TUBE - OIL LEVEL INDICATOR 2.0L AJ20D4 Diesel High PTA / From: LH096231	$47.26	1
6754	LR140665	TUBE - OIL LEVEL INDICATOR	LR140665 TUBE - OIL LEVEL INDICATOR 2.0L AJ20D4 Diesel LF PTA / From: LH096231	$47.81	1
