Name: Exhaust Fluid Injection System (Tank And Filler) (2.0L AJ20D4 Diesel LF PTA, Halewood (UK), With Diesel Exh Fluid Emission Tank, 2.0L AJ20D4 Diesel High PTA, 2.0L AJ20D4 Diesel Mid PTA)
Rating: 5.0 (1 reviews)

Exhaust Fluid Injection System (Tank And Filler) (2.0L AJ20D4 Diesel LF PTA, Halewood (UK), With Diesel Exh Fluid Emission Tank, 2.0L AJ20D4 Diesel High PTA, 2.0L AJ20D4 Diesel Mid PTA) of Land Rover Land Rover Range Rover Evoque (2019+) [2.0 Turbo Diesel]

View All

Land Rover Range Rover Evoque (2019+) [2.0 Turbo Diesel] - Exhaust Fluid Injection System (Tank And Filler) (2.0L AJ20D4 Diesel LF PTA, Halewood (UK), With...

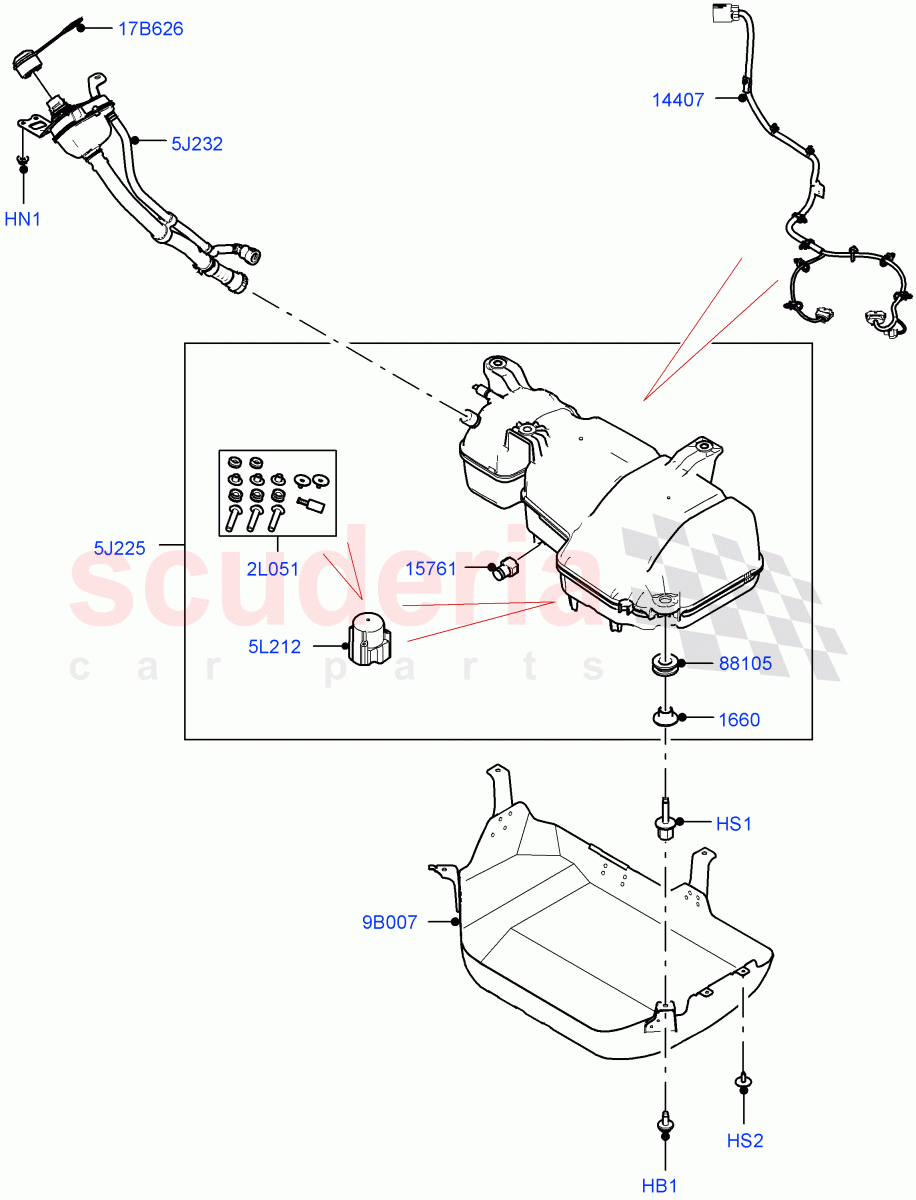

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR008026	BOLT	$1.12	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	FN106046	NUT - HEX.	$1.45	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR117836	SCREW	$4.30	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000890	SCREW AND WASHER	$0.63	To Order

Photo	Part No	Description	Price (each)	Stock
	LR115628	SPACER - STRIKER	$7.33	To Order

Photo	Part No	Description	Price (each)	Stock
	LR115183	WIRE - FUEL SENDER	$87.35	To Order

Photo	Part No	Description	Price (each)	Stock
	LR115627	PLUG - BLANKING	$6.05	To Order

Photo	Part No	Description	Price (each)	Stock
	LR085287	KIT - FIXING PARTS	$45.18	To Order

Photo	Part No	Description	Price (each)	Stock
	LR115631	TANK - DIESEL EXHAUST FLUID	$829.12	To Order
	LR117680	TANK&SENDER - DIESEL EXHAUST FLUID	$829.12	To Order

Photo	Part No	Description	Price (each)	Stock
	LR115636	FILLER	$114.02	To Order
	LR128322	FILLER	$114.02	To Order
	LR134942	FILLER	$114.02	To Order

Photo	Part No	Description	Price (each)	Stock
	LR084743	PUMP - DIESEL EXHAUST FLUID	$533.72	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125664	BUSH - INSULATING	$3.48	To Order

Photo	Part No	Description	Price (each)	Stock
	LR117823	SHIELD - TANK	$109.90	To Order

Photo	Part No	Description	Price (each)	Stock
	LR115637	CAP - FILLER	$13.99	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	LR008026	BOLT IN STOCK	LR008026 BOLT Bolt And Washer, M8 X 17MM IN STOCK	$1.12	4
HN1	FN106046	NUT - HEX. IN STOCK	FN106046 NUT - HEX. Hexagonal Head, M6 IN STOCK	$1.45	3
HS1	LR117836	SCREW	LR117836 SCREW M8 X 35MM	$4.30	4
HS2	LR000890	SCREW AND WASHER	LR000890 SCREW AND WASHER 4.8 X 19MM	$0.63	2
2L051	LR085287	KIT - FIXING PARTS	LR085287 KIT - FIXING PARTS	$45.18	1
5J225	LR115631	TANK - DIESEL EXHAUST FLUID	LR115631 TANK - DIESEL EXHAUST FLUID Standard Diesel Exhst Fld Tank Size	$829.12	1
5J225	LR117680	TANK&SENDER - DIESEL EXHAUST FLUID	LR117680 TANK&SENDER - DIESEL EXHAUST FLUID Eco Diesel Exhaust Fluid Tank Size	$829.12	1
5J232	LR115636	FILLER	LR115636 FILLER To: LH000850	$114.02	1
5J232	LR128322	FILLER	LR128322 FILLER From: LH000851 / To: LH032477	$114.02	1
5J232	LR134942	FILLER	LR134942 FILLER From: LH032478	$114.02	1
5L212	LR084743	PUMP - DIESEL EXHAUST FLUID	LR084743 PUMP - DIESEL EXHAUST FLUID Kit Includes Fitting Parts, Service Kit	$533.72	1
9B007	LR117823	SHIELD - TANK	LR117823 SHIELD - TANK	$109.90	1
17B626	LR115637	CAP - FILLER	LR115637 CAP - FILLER	$13.99	1
1660	LR115628	SPACER - STRIKER	LR115628 SPACER - STRIKER	$7.33	4
14407	LR115183	WIRE - FUEL SENDER	LR115183 WIRE - FUEL SENDER Diesel Exhaust Fluid Pump	$87.35	1
15761	LR115627	PLUG - BLANKING	LR115627 PLUG - BLANKING	$6.05	1
88105	LR125664	BUSH - INSULATING	LR125664 BUSH - INSULATING	$3.48	4
