Name: Cylinder Head Cover (2.0L AJ20D4 Diesel Mid PTA, Halewood (UK), 2.0L AJ20D4 Diesel LF PTA, 2.0L AJ20D4 Diesel High PTA)
Rating: 4.7 (1 reviews)

Cylinder Head Cover (2.0L AJ20D4 Diesel Mid PTA, Halewood (UK), 2.0L AJ20D4 Diesel LF PTA, 2.0L AJ20D4 Diesel High PTA) of Land Rover Land Rover Range Rover Evoque (2019+) [2.0 Turbo Diesel]

View All

Land Rover Range Rover Evoque (2019+) [2.0 Turbo Diesel] - Cylinder Head Cover (2.0L AJ20D4 Diesel Mid PTA, Halewood (UK), 2.0L AJ20D4 Diesel LF PTA, 2.0L...

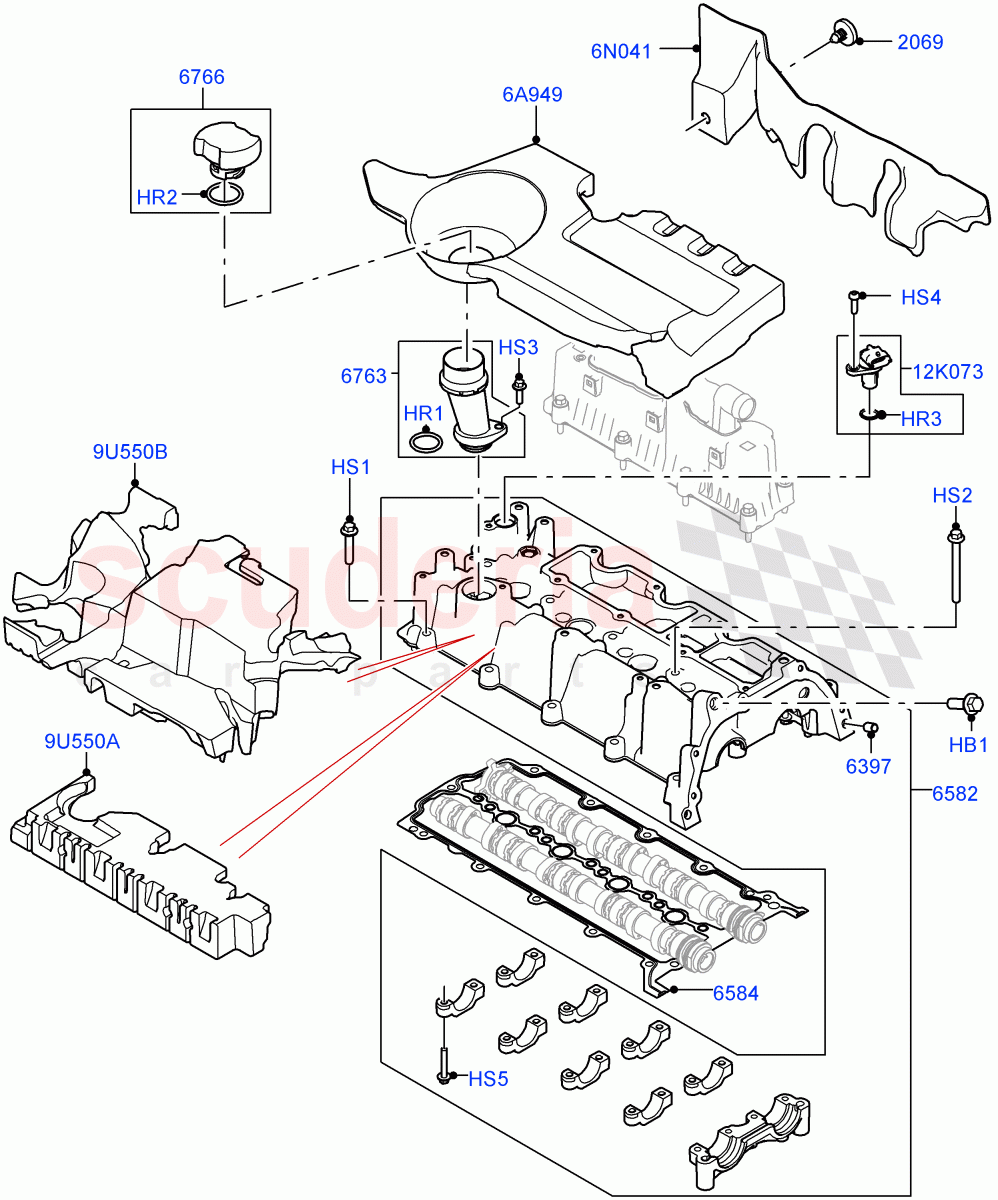

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR074133	BOLT	$2.17	To Order

Photo	Part No	Description	Price (each)	Stock
	LR075631	O-RING	$4.63	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073781	O-RING	$4.88	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR095781	O-RING	$9.39	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR073649	SCREW	$2.40	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073650	SCREW	$3.15	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073655	SCREW	$1.54	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR073720	SCREW	$1.53	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073635	SCREW	$2.20	To Order

Photo	Part No	Description	Price (each)	Stock
	LR117675	PIN - TRIM	$1.63	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000335	DOWEL - PIN	$11.72	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073646	COVER - CYLINDER HEAD	$259.49	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073784	GASKET - CAMSHAFT COVER	$56.55	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073644	PIPE - OIL INLET	$37.40	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073782	CAP - OIL FILLER	$37.22	To Order

Photo	Part No	Description	Price (each)	Stock
	LR109351	COVER - ENGINE TOP	$236.99	To Order

Photo	Part No	Description	Price (each)	Stock
	LR126166	INSULATOR - CYLINDER HEAD	$67.37	To Order

Photo	Part No	Description	Price (each)	Stock
	LR074065	SENSOR - CAMSHAFT POSITION	$196.51	To Order

Photo	Part No	Description	Price (each)	Stock
	LR082280	COVER - INSULATOR	$50.02	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125432	COVER - INSULATOR	$514.25	To Order
	LR128804	COVER - INSULATOR	$230.55	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	LR074133	BOLT	LR074133 BOLT M10 X 30MM	$2.17	3
HR1	LR075631	O-RING	LR075631 O-RING FILLER,	$4.63	1
HR2	LR073781	O-RING IN STOCK	LR073781 O-RING Filler Cap, IN STOCK	$4.88	1
HR3	LR095781	O-RING IN STOCK	LR095781 O-RING 17.0MM, Camshaft Position Sensor IN STOCK	$9.39	1
HS1	LR073649	SCREW	LR073649 SCREW M8 x 40MM	$2.40	11
HS2	LR073650	SCREW	LR073650 SCREW M8 x 80MM	$3.15	5
HS3	LR073655	SCREW IN STOCK	LR073655 SCREW Hexagonal Head, M6 X 20MM IN STOCK	$1.54	1
HS4	LR073720	SCREW	LR073720 SCREW M6 X 20MM	$1.53	1
HS5	LR073635	SCREW	LR073635 SCREW M6 x 35MM	$2.20	20
6A949	LR109351	COVER - ENGINE TOP	LR109351 COVER - ENGINE TOP Engine Cover	$236.99	1
6N041	LR126166	INSULATOR - CYLINDER HEAD	LR126166 INSULATOR - CYLINDER HEAD Rear	$67.37	1
9U550A	LR082280	COVER - INSULATOR	LR082280 COVER - INSULATOR Camshaft Cover	$50.02	1
9U550B	LR125432	COVER - INSULATOR	LR125432 COVER - INSULATOR 2.0L AJ20D4 Diesel High PTA / Fuel Injectors / To: LH006380	$514.25	1
9U550B	LR128804	COVER - INSULATOR	LR128804 COVER - INSULATOR 2.0L AJ20D4 Diesel LF PTA / Fuel Injectors / From: LH006381	$230.55	1
12K073	LR074065	SENSOR - CAMSHAFT POSITION	LR074065 SENSOR - CAMSHAFT POSITION Camshaft Position Sensor	$196.51	1
2069	LR117675	PIN - TRIM	LR117675 PIN - TRIM Insulator	$1.63	1
6397	LR000335	DOWEL - PIN	LR000335 DOWEL - PIN	$11.72	2
6582	LR073646	COVER - CYLINDER HEAD	LR073646 COVER - CYLINDER HEAD	$259.49	1
6584	LR073784	GASKET - CAMSHAFT COVER	LR073784 GASKET - CAMSHAFT COVER Camshaft Cover	$56.55	1
6763	LR073644	PIPE - OIL INLET	LR073644 PIPE - OIL INLET	$37.40	1
6766	LR073782	CAP - OIL FILLER	LR073782 CAP - OIL FILLER	$37.22	1
