Accelerator/Injection Pump Controls (Halewood (Uk))

Land Rover Range Rover Evoque (2019+) [2.0 Turbo Diesel]

Find Your Part

Land Rover Range Rover Evoque (2019+) [2.0 Turbo Diesel] - Accelerator/Injection Pump Controls (Halewood (UK))

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FN106046 NUT - HEX. Enquire To Order
Photo Part No Description Price (each) Stock
LR113937 PEDAL AND BRACKET - ACCELERATOR Enquire To Order
LR113939 PEDAL AND BRACKET - ACCELERATOR Enquire To Order
LR113867 PEDAL AND BRACKET - ACCELERATOR Enquire To Order
...and 5 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR113940 PEDAL AND BRACKET - ACCELERATOR Enquire To Order
LR113941 PEDAL AND BRACKET - ACCELERATOR Enquire To Order
LR113876 PEDAL AND BRACKET - ACCELERATOR Enquire To Order
...and 5 more part variants. See table on right for more details.
View All

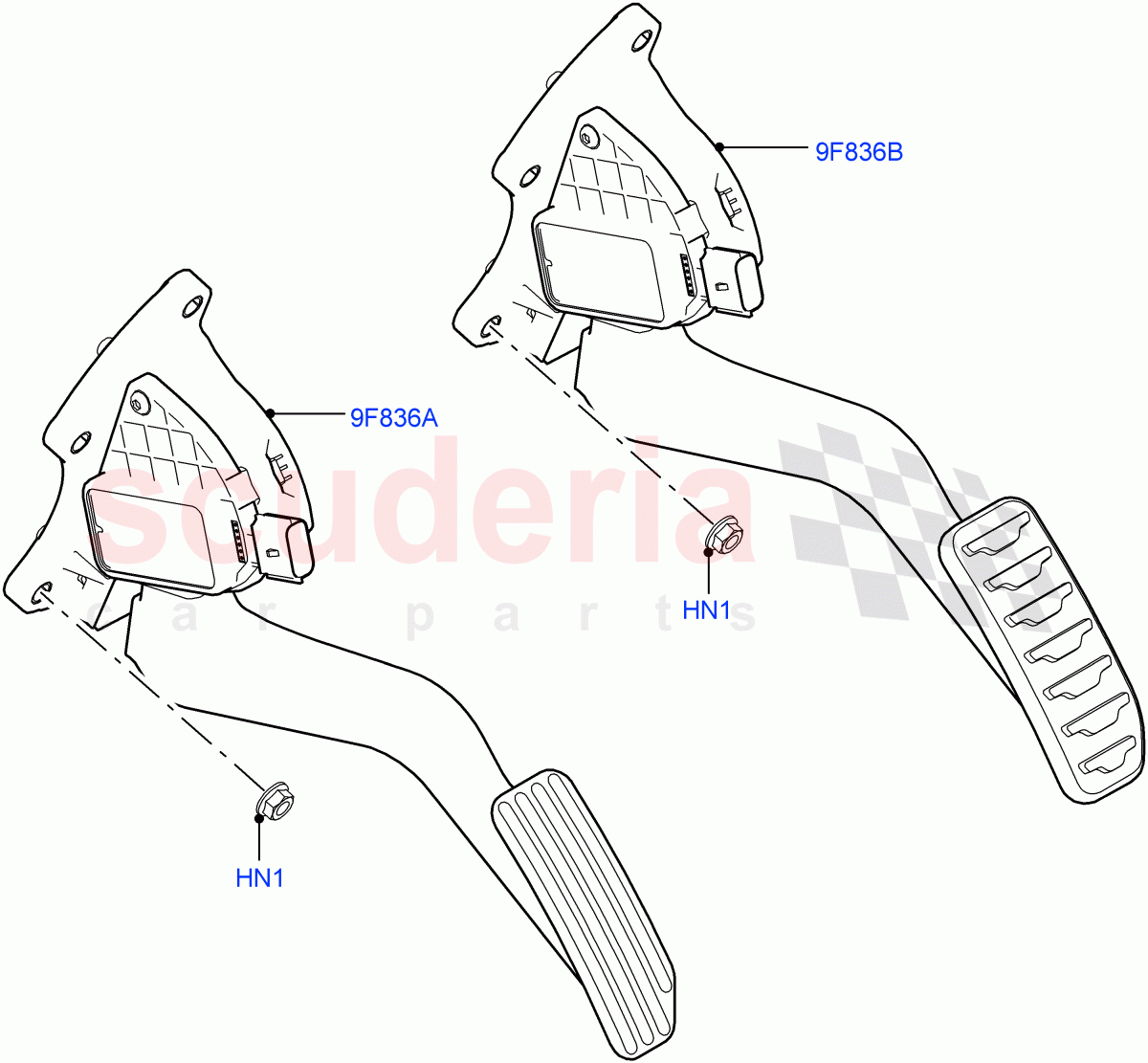

Accelerator/Injection Pump Controls (Halewood (UK)) of Land Rover Land Rover Range Rover Evoque (2019+) [2.0 Turbo Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HN1 FN106046
NUT - HEX.
Hexagonal Head, M6 		- 3 Enquire
9F836A LR113937
PEDAL AND BRACKET - ACCELERATOR
9 Speed Auto Trans 9HP50, LHD, Standard Foot Pedal Pad Design / To: MH152703 		- 1 Enquire
9F836A LR113939
PEDAL AND BRACKET - ACCELERATOR
9 Speed Auto Trans 9HP50, RHD, Standard Foot Pedal Pad Design / To: MH153379 		- 1 Enquire
9F836A LR113867
PEDAL AND BRACKET - ACCELERATOR
6 Speed Manual Trans BG6, LHD, Standard Foot Pedal Pad Design / To: MH155237 		- 1 Enquire
9F836A LR113874
PEDAL AND BRACKET - ACCELERATOR
6 Speed Manual Trans BG6, RHD, Standard Foot Pedal Pad Design / To: MH151373 		- 1 Enquire
9F836A LR159557
PEDAL AND BRACKET - ACCELERATOR
6 Speed Manual Trans BG6, RHD, Standard Foot Pedal Pad Design / From: MH151374 		- 1 Enquire
9F836A LR159565
PEDAL AND BRACKET - ACCELERATOR
9 Speed Auto Trans 9HP50, LHD, Standard Foot Pedal Pad Design / From: MH152704 		- 1 Enquire
9F836A LR159564
PEDAL AND BRACKET - ACCELERATOR
9 Speed Auto Trans 9HP50, RHD, Standard Foot Pedal Pad Design / From: MH153380 		- 1 Enquire
9F836A LR159563
PEDAL AND BRACKET - ACCELERATOR
6 Speed Manual Trans BG6, LHD, Standard Foot Pedal Pad Design / From: MH155238 		- 1 Enquire
9F836B LR113940
PEDAL AND BRACKET - ACCELERATOR
9 Speed Auto Trans 9HP50, LHD, Unique Met Finish Foot Pedals Pads / To: MH152703 		- 1 Enquire
9F836B LR113941
PEDAL AND BRACKET - ACCELERATOR
9 Speed Auto Trans 9HP50, RHD, Unique Met Finish Foot Pedals Pads / To: MH152703 		- 1 Enquire
9F836B LR113876
PEDAL AND BRACKET - ACCELERATOR
6 Speed Manual Trans BG6, LHD, Unique Met Finish Foot Pedals Pads / To: NH162939 		- 1 Enquire
9F836B LR113877
PEDAL AND BRACKET - ACCELERATOR
6 Speed Manual Trans BG6, RHD, Unique Met Finish Foot Pedals Pads / To: MH150868 		- 1 Enquire
9F836B LR159486
PEDAL AND BRACKET - ACCELERATOR
6 Speed Manual Trans BG6, RHD, Unique Met Finish Foot Pedals Pads / From: MH150869 		- 1 Enquire
9F836B LR159548
PEDAL AND BRACKET - ACCELERATOR
9 Speed Auto Trans 9HP50, LHD, Unique Met Finish Foot Pedals Pads / From: MH152704 		- 1 Enquire
9F836B LR159546
PEDAL AND BRACKET - ACCELERATOR
9 Speed Auto Trans 9HP50, RHD, Unique Met Finish Foot Pedals Pads / From: MH152704 		- 1 Enquire
9F836B LR159535
PEDAL AND BRACKET - ACCELERATOR
6 Speed Manual Trans BG6, LHD, Unique Met Finish Foot Pedals Pads / From: NH162940 		- 1 Enquire
