Heater/Air Cond.internal Components (Changsu (China))

Land Rover Range Rover Evoque (2019+) [1.5 I3 Turbo Petrol AJ20P3]

Find Your Part

Land Rover Range Rover Evoque (2019+) [1.5 I3 Turbo Petrol AJ20P3] - Heater/Air Cond.Internal Components (Changsu (China))

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR003485 NUT $4.09 To Order
Photo Part No Description Price (each) Stock
RYP500770 SCREW $0.59 To Order
Photo Part No Description Price (each) Stock
LR117107 SCREW $1.66 To Order
Photo Part No Description Price (each) Stock
LR134557 BRACKET - SUPPORT $18.34 To Order
LR140183 BRACKET - SUPPORT $42.82 To Order
Photo Part No Description Price (each) Stock
LR134583 CORE - HEATER $391.83 To Order
Photo Part No Description Price (each) Stock
LR134559 RETAINER $13.80 To Order
Photo Part No Description Price (each) Stock
LR134567 RETAINER - AIR CLEANER $204.22 To Order
Photo Part No Description Price (each) Stock
LR134569 EVAPORATOR $570.75 To Order
LR140184 EVAPORATOR $570.31 To Order
Photo Part No Description Price (each) Stock
LR039615 SENSOR - AIR POLUTION $125.71 To Order
Photo Part No Description Price (each) Stock
LR134577 DUCT - FOOT ROOM AIR $70.48 To Order
Photo Part No Description Price (each) Stock
LR115120 PTC HEATER $334.85 To Order
LR136597 PTC HEATER $366.19 To Order
Photo Part No Description Price (each) Stock
LR134585 COVER - HEATER $14.72 To Order
Photo Part No Description Price (each) Stock
LR134587 BRACKET - HEATER MOUNTING $9.81 To Order
Photo Part No Description Price (each) Stock
LR017314 TUBE - WATER DRAIN $13.07 To Order
Photo Part No Description Price (each) Stock
LR134591 WIRE - AIR CONDITIONER $35.90 To Order
LR134592 WIRE - AIR CONDITIONER $49.91 To Order
Photo Part No Description Price (each) Stock
LR003200 SENSOR - HEATER TEMPERATURE CONTROL $9.02 To Order
Photo Part No Description Price (each) Stock
LR134593 STEPPER MOTOR - HEATER $170.60 To Order
Photo Part No Description Price (each) Stock
LR115835 FILTER - POLLEN $77.74 To Order
LR138397 FILTER - ODOUR AND PARTICLES $60.33 To Order
Photo Part No Description Price (each) Stock
LR134561 ACTUATOR - HEATER CONTROL $69.82 To Order
LR134563 ACTUATOR - HEATER CONTROL $68.79 To Order
Photo Part No Description Price (each) Stock
LR134564 ACTUATOR - HEATER CONTROL $68.79 To Order
LR134562 ACTUATOR - HEATER CONTROL $70.83 To Order
Photo Part No Description Price (each) Stock
LR002633 CLIP $4.15 To Order
Photo Part No Description Price (each) Stock
LR003174 CLIP $0.55 To Order
Photo Part No Description Price (each) Stock
LR134594 O-RING $1.86 To Order
Photo Part No Description Price (each) Stock
LR134595 O-RING $1.86 To Order
View All

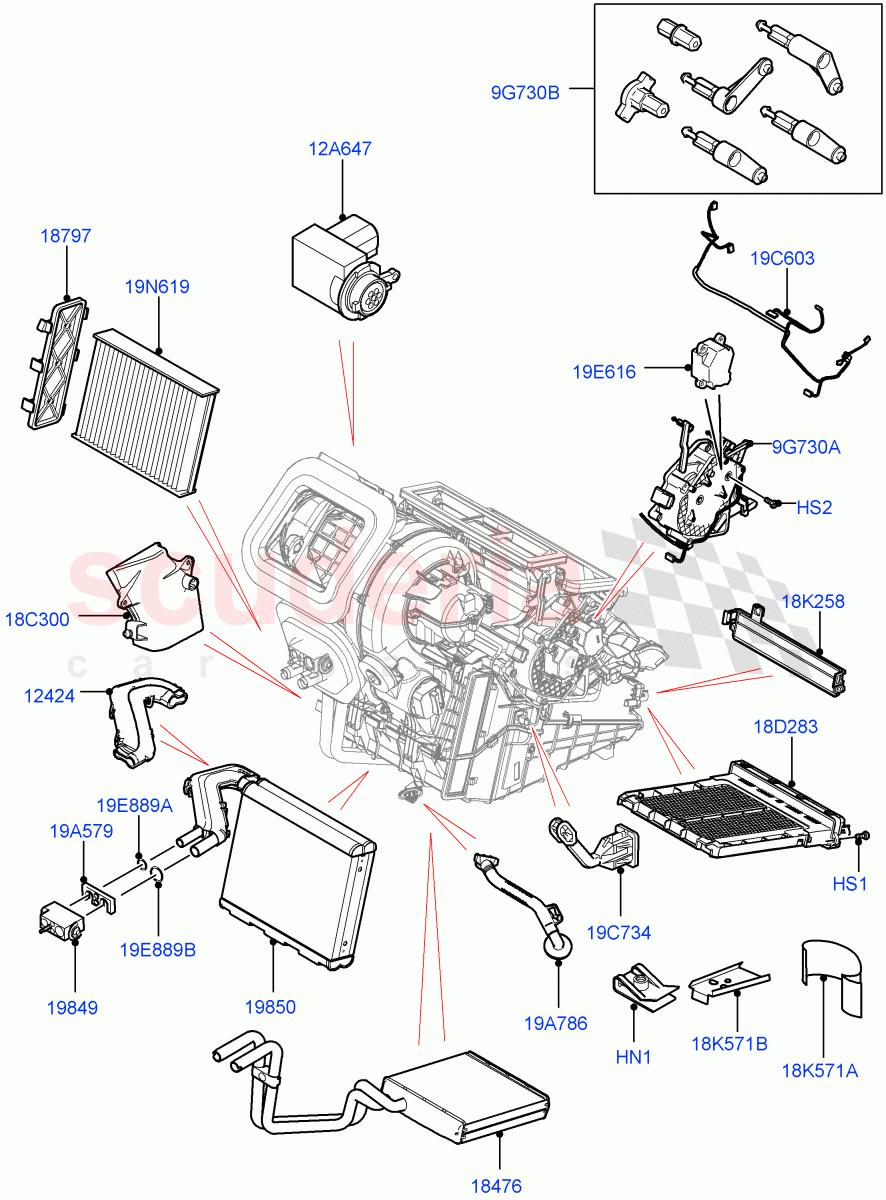

Heater/Air Cond.Internal Components (Changsu (China)) of Land Rover Land Rover Range Rover Evoque (2019+) [1.5 I3 Turbo Petrol AJ20P3] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HN1 LR003485
NUT
M6 X 0.5-4 		$4.09 4
HS1 RYP500770
SCREW
5 X 16MM, Torx 		$0.59 2
HS2 LR117107
SCREW
4 X 16 mm, Torx 		$1.66 -
9G730A LR134561
ACTUATOR - HEATER CONTROL
With Front Comfort Air Con (IHKA) / Heater Air Control 		$69.82 1
9G730A LR134563
ACTUATOR - HEATER CONTROL
2-Zone Climate Cntl w/Row2 Tmp Cntl / Heater Air Control 		$68.79 1
9G730B LR134564
ACTUATOR - HEATER CONTROL
2-Zone Climate Cntl w/Row2 Tmp Cntl / Cams, Service Kit 		$68.79 1
9G730B LR134562
ACTUATOR - HEATER CONTROL
With Front Comfort Air Con (IHKA) / Cams, Service Kit 		$70.83 1
12A647 LR039615
SENSOR - AIR POLUTION 		$125.71 1
18C300 LR134577
DUCT - FOOT ROOM AIR 		$70.48 1
18D283 LR115120
PTC HEATER
With Ptc Heater / Not Supplied With The Unit / To: MG575834 		$334.85 1
18D283 LR136597
PTC HEATER
With Ptc Heater / Not Supplied With The Unit / From: MG575835 		$366.19 1
18K258 LR134585
COVER - HEATER 		$14.72 1
18K571A LR002633
CLIP
Heater 		$4.15 2
18K571B LR003174
CLIP
Heater 		$0.55 2
19A579 LR134587
BRACKET - HEATER MOUNTING 		$9.81 1
19A786 LR017314
TUBE - WATER DRAIN 		$13.07 1
19C603 LR134591
WIRE - AIR CONDITIONER
With Front Comfort Air Con (IHKA) 		$35.90 1
19C603 LR134592
WIRE - AIR CONDITIONER
2-Zone Climate Cntl w/Row2 Tmp Cntl 		$49.91 1
19C734 LR003200
SENSOR - HEATER TEMPERATURE CONTROL
Attaches To Evaporator 		$9.02 1
19E616 LR134593
STEPPER MOTOR - HEATER
Flap Actuator 		$170.60 5
19E889A LR134594
O-RING
10.82MM X 1.78MM 		$1.86 1
19E889B LR134595
O-RING
14.0 X 1.78MM 		$1.86 1
19N619 LR115835
FILTER - POLLEN
272mm x 195mm x 43mm, Filter - Odour And Particles / To: MG575834 		$77.74 1
19N619 LR138397
FILTER - ODOUR AND PARTICLES
From: MG575835 		$60.33 1
12424 LR134557
BRACKET - SUPPORT
Heater Pipes / To: MG575834 		$18.34 1
12424 LR140183
BRACKET - SUPPORT
Heater Pipes / From: MG575835 		$42.82 1
18476 LR134583
CORE - HEATER 		$391.83 1
18797 LR134559
RETAINER
Cover, Filter 		$13.80 1
19849 LR134567
RETAINER - AIR CLEANER 		$204.22 1
19850 LR134569
EVAPORATOR
Service Kit / To: MG575834 		$570.75 1
19850 LR140184
EVAPORATOR
Service Kit / From: MG575835 		$570.31 1
