Front Brake Discs And Calipers (Itatiaia (Brazil), Disc And Caliper Size-Frt 18/RR 17, Disc And Caliper Size-Frt 18/RR 16) of Land Rover Land Rover Range Rover Evoque (2019+) [1.5 I3 Turbo Petrol AJ20P3]

View All

Land Rover Range Rover Evoque (2019+) [1.5 I3 Turbo Petrol AJ20P3] - Front Brake Discs And Calipers (Itatiaia (Brazil), Disc And Caliper Size-Frt 18/RR 17, Disc And...

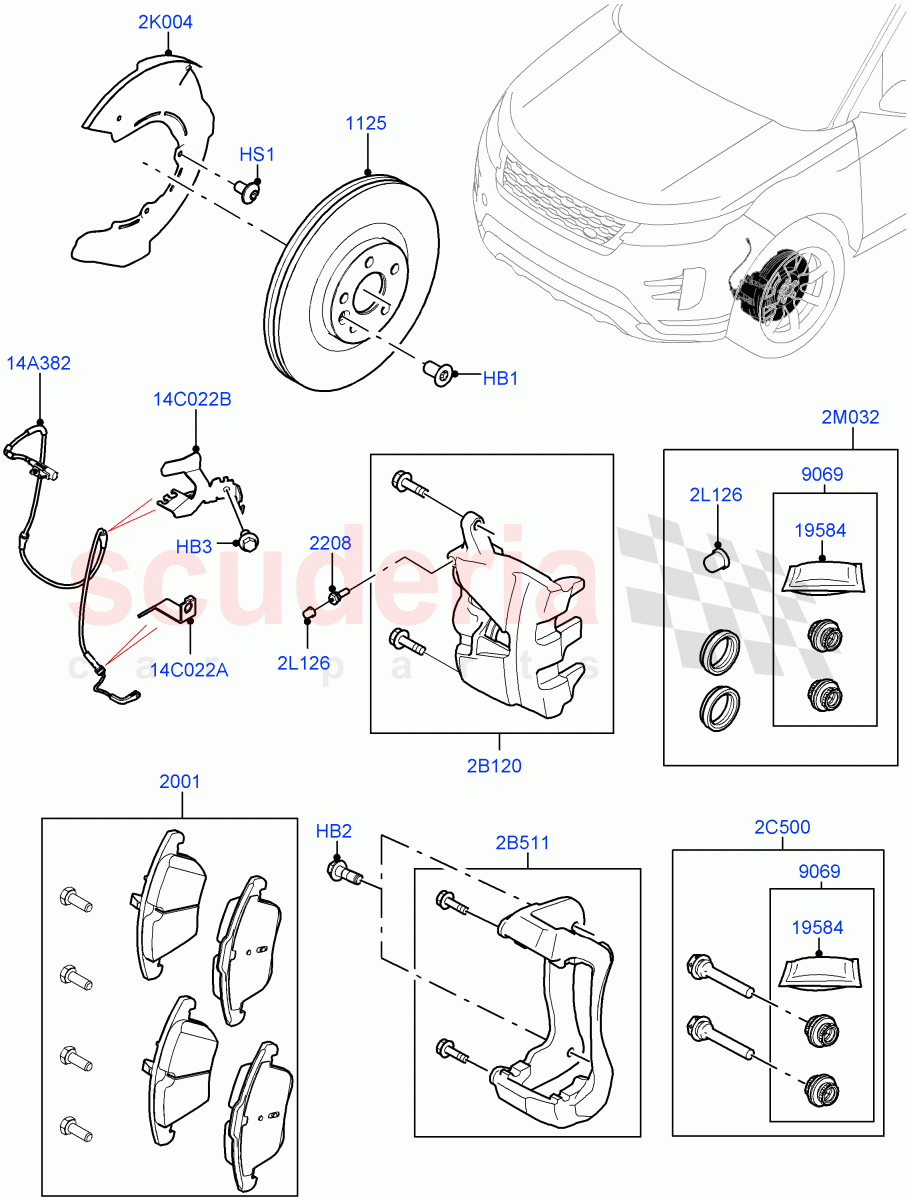

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR139520	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR090697	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FS108166	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR018509	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR161912	DISC - BRAKE - VENTED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR140696	BRAKE PADS - WITH SPRINGS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR140694	SCREW - BLEED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR140733	COVER - DUST	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR090821	GREASE - CHASSIS LUBRICATION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR140645	CALIPER - BRAKE	Enquire	To Order
	LR140646	CALIPER - BRAKE	Enquire	To Order
	LR140647	CALIPER - BRAKE	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR140643	BRACKET - BRAKE CALIPER	Enquire	To Order
	LR140644	BRACKET - BRAKE CALIPER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR140649	KIT - LOCATING PIN BOLTS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR118812	SHIELD - SPLASH	Enquire	To Order
	LR118811	SHIELD - SPLASH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR140731	CAP - BLEED SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR140732	KIT - CALIPER BRAKE PAD MTG PARTS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR115018	WIRE - BRAKE PAD WEAR WARNING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091307	BRACKET - WIRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR115016	BRACKET - WIRING	Enquire	To Order
	LR115017	BRACKET - WIRING	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	LR139520	BOLT	LR139520 BOLT M8 X 12, Torx	-	2	Enquire
HB2	LR090697	BOLT	LR090697 BOLT Hexagonal Head, M14 X 43mm	-	4	Enquire
HB3	FS108166	BOLT	FS108166 BOLT Hexagonal Head, M8 X 16MM	-	2	Enquire
HS1	LR018509	SCREW	LR018509 SCREW M6 X 10MM, Torx	-	6	Enquire
2B120	LR140645	CALIPER - BRAKE	LR140645 CALIPER - BRAKE With Non Painted Brake Calipers / RH, For 18" Brakes	-	1	Enquire
2B120	LR140646	CALIPER - BRAKE	LR140646 CALIPER - BRAKE Brake Calipers - Red / RH, For 18" Brakes	-	1	Enquire
2B120	LR140647	CALIPER - BRAKE	LR140647 CALIPER - BRAKE With Non Painted Brake Calipers / LH, For 18" Brakes	-	1	Enquire
2B120	LR140648	CALIPER - BRAKE	LR140648 CALIPER - BRAKE Brake Calipers - Red / LH, For 18" Brakes	-	1	Enquire
2B511	LR140643	BRACKET - BRAKE CALIPER	LR140643 BRACKET - BRAKE CALIPER With Non Painted Brake Calipers / RH/LH	-	2	Enquire
2B511	LR140644	BRACKET - BRAKE CALIPER	LR140644 BRACKET - BRAKE CALIPER Brake Calipers - Red / RH/LH	-	2	Enquire
2C500	LR140649	KIT - LOCATING PIN BOLTS	LR140649 KIT - LOCATING PIN BOLTS Caliper Set, Pin And Boot	-	2	Enquire
2K004	LR118812	SHIELD - SPLASH	LR118812 SHIELD - SPLASH RH	-	1	Enquire
2K004	LR118811	SHIELD - SPLASH	LR118811 SHIELD - SPLASH LH	-	1	Enquire
2L126	LR140731	CAP - BLEED SCREW	LR140731 CAP - BLEED SCREW	-	2	Enquire
2M032	LR140732	KIT - CALIPER BRAKE PAD MTG PARTS	LR140732 KIT - CALIPER BRAKE PAD MTG PARTS Caliper Set	-	2	Enquire
14A382	LR115018	WIRE - BRAKE PAD WEAR WARNING	LR115018 WIRE - BRAKE PAD WEAR WARNING	-	1	Enquire
14C022A	LR091307	BRACKET - WIRING	LR091307 BRACKET - WIRING Mounted To Caliper	-	1	Enquire
14C022B	LR115016	BRACKET - WIRING	LR115016 BRACKET - WIRING RH, Front, Mounted To Damper	-	1	Enquire
14C022B	LR115017	BRACKET - WIRING	LR115017 BRACKET - WIRING LH, Front, Mounted To Damper	-	1	Enquire
1125	LR161912	DISC - BRAKE - VENTED	LR161912 DISC - BRAKE - VENTED 349MM, For 18" Brakes, RH/LH	-	2	Enquire
2001	LR140696	BRAKE PADS - WITH SPRINGS	LR140696 BRAKE PADS - WITH SPRINGS Axle Set, For 18" Brakes, Less Clips, Standard Performance	-	1	Enquire
2208	LR140694	SCREW - BLEED	LR140694 SCREW - BLEED	-	2	Enquire
9069	LR140733	COVER - DUST	LR140733 COVER - DUST Boot	-	2	Enquire
19584	LR090821	GREASE - CHASSIS LUBRICATION	LR090821 GREASE - CHASSIS LUBRICATION	-	1	Enquire
