Hybrid Electrical Modules (Mhev Battery, Converter, Harness And Mountings) (Itatiaia (Brazil),...

Land Rover Range Rover Evoque (2019+) [1.5 I3 Turbo Petrol AJ20P3]

Find Your Part

Land Rover Range Rover Evoque (2019+) [1.5 I3 Turbo Petrol AJ20P3] - Hybrid Electrical Modules (MHEV Battery, Converter, Harness and Mountings) (Itatiaia (Brazil),...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FN106046 NUT - HEX. Enquire To Order
Photo Part No Description Price (each) Stock
LR137929 LITHIUM ION BATTERY Enquire To Order
Photo Part No Description Price (each) Stock
LR115643 LINK LEAD - COOLING Enquire To Order
Photo Part No Description Price (each) Stock
LR118014 CABLE - TRUNK Enquire To Order
Photo Part No Description Price (each) Stock
LR128988 CONNECTOR - CABLE Enquire To Order
Photo Part No Description Price (each) Stock
LR128992 CONNECTOR - CABLE Enquire To Order
Photo Part No Description Price (each) Stock
LR131043 CONVERTER - VOLTAGE Enquire To Order
Photo Part No Description Price (each) Stock
LR115506 CLAMP - BATTERY Enquire To Order
Photo Part No Description Price (each) Stock
LR115507 CLAMP - BATTERY Enquire To Order
Photo Part No Description Price (each) Stock
LR117838 COVER - WIRING Enquire To Order
Photo Part No Description Price (each) Stock
LR118777 COVER - PWR SUPPLY DISTRIBUTION BOX Enquire To Order
View All

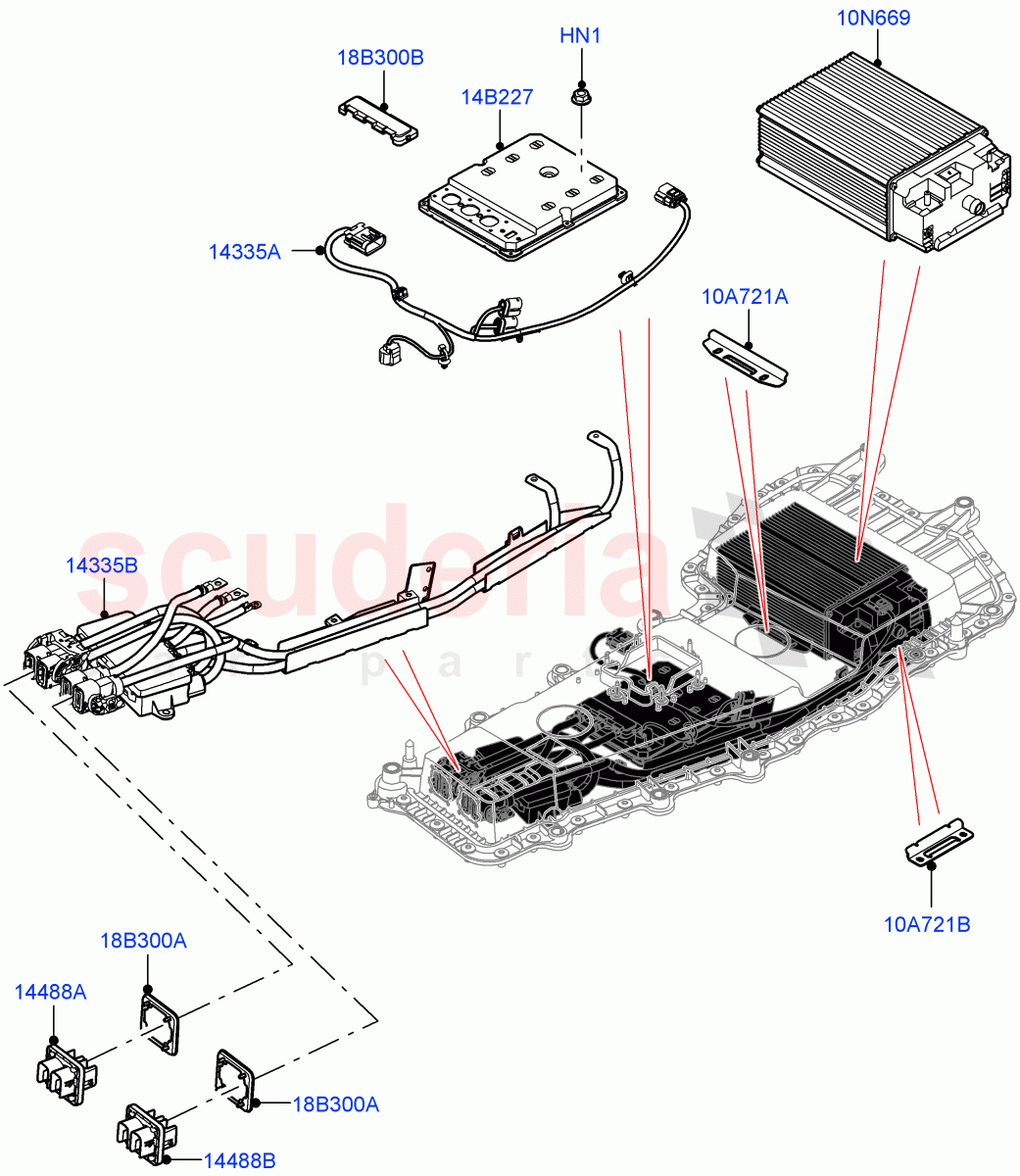

Hybrid Electrical Modules (MHEV Battery, Converter, Harness and Mountings) (Itatiaia (Brazil), Electric Engine Battery-MHEV) of Land Rover Land Rover Range Rover Evoque (2019+) [1.5 I3 Turbo Petrol AJ20P3] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HN1 FN106046
NUT - HEX.
Hexagonal Head, M6 		- 3 Enquire
10A721A LR115506
CLAMP - BATTERY
Front 		- 1 Enquire
10A721B LR115507
CLAMP - BATTERY
Side 		- 1 Enquire
10N669 LR137929
LITHIUM ION BATTERY 		- 1 Enquire
14B227 LR131043
CONVERTER - VOLTAGE 		- 1 Enquire
18B300A LR117838
COVER - WIRING
Inner, Outer 		- 2 Enquire
18B300B LR118777
COVER - PWR SUPPLY DISTRIBUTION BOX
Terminal Cover 		- 1 Enquire
14335A LR115643
LINK LEAD - COOLING
Cooling Fan Link Lead 		- 1 Enquire
14335B LR118014
CABLE - TRUNK
Harnes - Battery to Converter 		- 1 Enquire
14488A LR128988
CONNECTOR - CABLE
Code A 		- 1 Enquire
14488B LR128992
CONNECTOR - CABLE
Code B 		- 1 Enquire
