Manual Transmission External Cmpnts (6 Speed Manual Trans BG6, Halewood (UK)) of Land Rover Land Rover Range Rover Evoque (2019+) [1.5 I3 Turbo Petrol AJ20P3]

View All

Land Rover Range Rover Evoque (2019+) [1.5 I3 Turbo Petrol AJ20P3] - Manual Transmission External Cmpnts (6 Speed Manual Trans BG6, Halewood (UK))

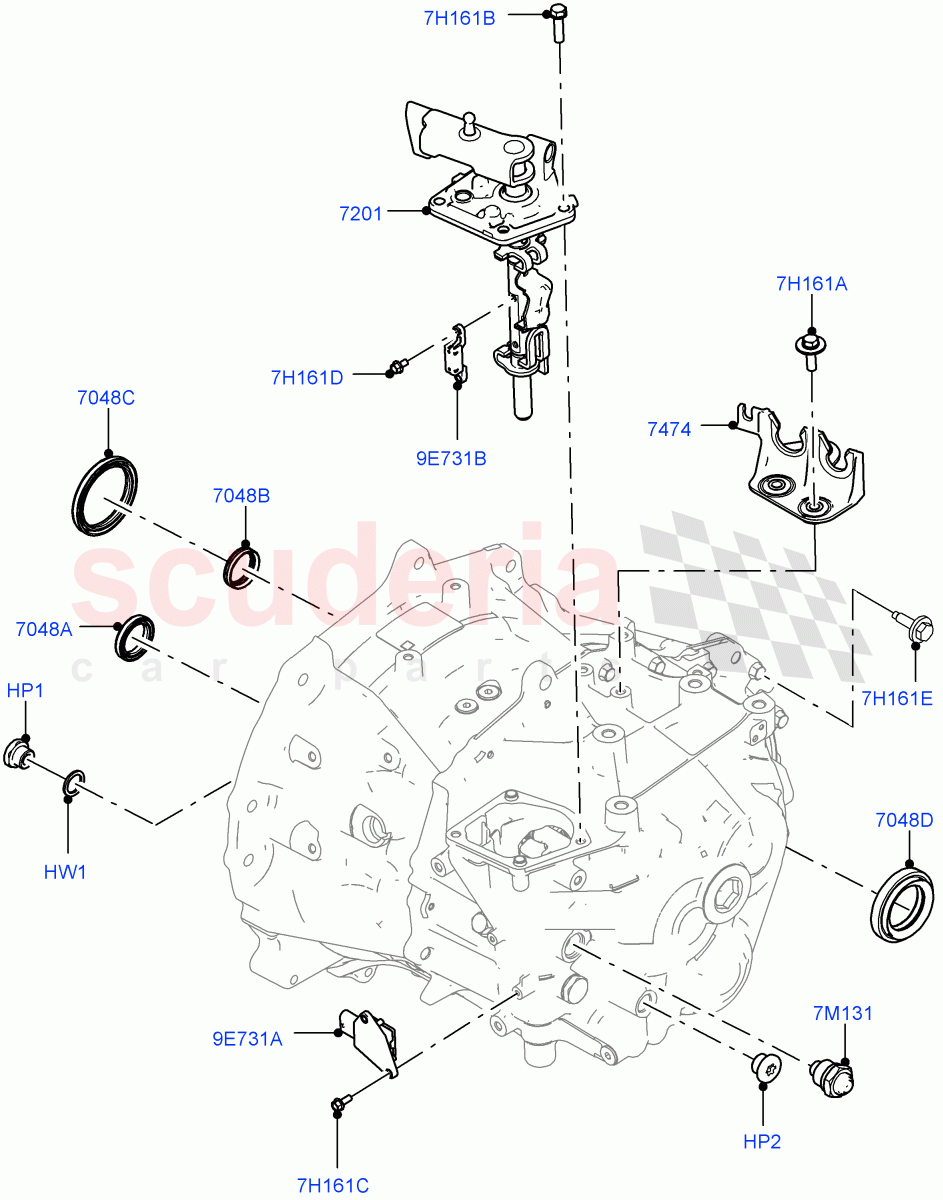

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR113582	PLUG - ENGINE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR113838	PLUG - OIL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR113567	WASHER - DRAIN PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR113564	HOUSING - TRANSMISSION GEAR SHIFT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR113565	BRACKET - CONTROL CABLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR113562	SEAL - OIL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR113569	SEAL - OUTPUT SHAFT OIL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR113568	SEAL - OUTPUT SHAFT OIL	Enquire	To Order
	LR113570	SEAL - OUTPUT SHAFT OIL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR113571	SEAL - OUTPUT SHAFT OIL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR113581	RETAINER - INTERLOCK SPRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR113574	BOLT - HEX.HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR113575	BOLT - HEX.HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR113576	BOLT - HEX.HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR113577	BOLT - HEX.HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR113573	BOLT - HEX.HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR113578	SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR113579	SENSOR	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HP1	LR113582	PLUG - ENGINE	LR113582 PLUG - ENGINE Drain	-	1	Enquire
HP2	LR113838	PLUG - OIL	LR113838 PLUG - OIL FILLER	-	1	Enquire
HW1	LR113567	WASHER - DRAIN PLUG	LR113567 WASHER - DRAIN PLUG Inner	-	1	Enquire
7H161A	LR113574	BOLT - HEX.HEAD	LR113574 BOLT - HEX.HEAD Bracket	-	3	Enquire
7H161B	LR113575	BOLT - HEX.HEAD	LR113575 BOLT - HEX.HEAD Gearshift Lever	-	4	Enquire
7H161C	LR113576	BOLT - HEX.HEAD	LR113576 BOLT - HEX.HEAD Gear Position Sensor	-	2	Enquire
7H161D	LR113577	BOLT - HEX.HEAD	LR113577 BOLT - HEX.HEAD Magnetic Shift Position Sensor	-	2	Enquire
7H161E	LR113573	BOLT - HEX.HEAD	LR113573 BOLT - HEX.HEAD	-	18	Enquire
7M131	LR113581	RETAINER - INTERLOCK SPRING	LR113581 RETAINER - INTERLOCK SPRING	-	1	Enquire
9E731A	LR113578	SENSOR	LR113578 SENSOR Gear Position Sensor	-	1	Enquire
9E731B	LR113579	SENSOR	LR113579 SENSOR Magnetic Shift Position Sensor	-	1	Enquire
7048A	LR113562	SEAL - OIL	LR113562 SEAL - OIL Input Shaft	-	1	Enquire
7048B	LR113569	SEAL - OUTPUT SHAFT OIL	LR113569 SEAL - OUTPUT SHAFT OIL All Wheel Drive / RH, Inner, Output Shaft	-	1	Enquire
7048C	LR113568	SEAL - OUTPUT SHAFT OIL	LR113568 SEAL - OUTPUT SHAFT OIL All Wheel Drive / RH, Outer, Output Shaft	-	1	Enquire
7048C	LR113570	SEAL - OUTPUT SHAFT OIL	LR113570 SEAL - OUTPUT SHAFT OIL Front Wheel Drive / RH, Output Shaft	-	1	Enquire
7048D	LR113571	SEAL - OUTPUT SHAFT OIL	LR113571 SEAL - OUTPUT SHAFT OIL LH, Output Shaft	-	1	Enquire
7201	LR113564	HOUSING - TRANSMISSION GEAR SHIFT	LR113564 HOUSING - TRANSMISSION GEAR SHIFT	-	1	Enquire
7474	LR113565	BRACKET - CONTROL CABLE	LR113565 BRACKET - CONTROL CABLE	-	1	Enquire
