Timing Gear (1.5L Aj20P3 Petrol High Phev, Halewood (Uk), 1.5L Aj20P3 Petrol High) ((V)...

Land Rover Range Rover Evoque (2019+) [1.5 I3 Turbo Petrol AJ20P3]

Find Your Part

Land Rover Range Rover Evoque (2019+) [1.5 I3 Turbo Petrol AJ20P3] - Timing Gear (1.5L AJ20P3 Petrol High PHEV, Halewood (UK), 1.5L AJ20P3 Petrol High) ((V)...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR088515 BOLT $2.49 To Order
Photo Part No Description Price (each) Stock
LR127722 BOLT - SPECIAL $48.65 To Order
LR125428 BOLT $33.77 To Order
LR157749 BOLT $43.06 To Order
Photo Part No Description Price (each) Stock
LR095784 O-RING $3.90 To Order
LR154974 O-RING $6.87 To Order
Photo Part No Description Price (each) Stock
LR073720 SCREW $1.53 To Order
Photo Part No Description Price (each) Stock
LR073655 SCREW $1.54 IN STOCK
Photo Part No Description Price (each) Stock
LR073648 SCREW $2.55 IN STOCK
Photo Part No Description Price (each) Stock
LR126057 SCREW $0.76 To Order
Photo Part No Description Price (each) Stock
110123464 SPROCKET - CAMSHAFT $267.50 To Order
Photo Part No Description Price (each) Stock
LR141282 SPROCKET - CAMSHAFT $177.15 To Order
Photo Part No Description Price (each) Stock
LR125412 CHAIN - TIMING $95.64 To Order
Photo Part No Description Price (each) Stock
LR125413 CHAIN - TIMING $92.58 To Order
Photo Part No Description Price (each) Stock
LR125414 TENSIONER - TIMING BELT $106.84 To Order
Photo Part No Description Price (each) Stock
LR125425 TENSIONER - TIMING BELT $106.12 To Order
Photo Part No Description Price (each) Stock
LR177463 SOLENOID - ENGINE VARIABLE TIMING $38.90 ARRIVING SOON
LR177463 SOLENOID - ENGINE VARIABLE TIMING $38.90 ARRIVING SOON
LR177463 SOLENOID - ENGINE VARIABLE TIMING $38.90 ARRIVING SOON
Photo Part No Description Price (each) Stock
LR125424 IDLER - DRIVE CHAIN $64.70 To Order
Photo Part No Description Price (each) Stock
LR125629 IDLER - DRIVE CHAIN $71.19 To Order
Photo Part No Description Price (each) Stock
LR073756 GUIDE - TIMING CHAIN $39.84 To Order
Photo Part No Description Price (each) Stock
LR125422 BLADE - TENSIONER $33.56 To Order
Photo Part No Description Price (each) Stock
LR125417 GUIDE - TIMING CHAIN $45.14 To Order
Photo Part No Description Price (each) Stock
LR125420 GUIDE - TIMING CHAIN $48.23 To Order
Photo Part No Description Price (each) Stock
LR125419 GUIDE - TIMING CHAIN $26.89 To Order
Photo Part No Description Price (each) Stock
LR125421 BLADE - TENSIONER $30.58 To Order
Photo Part No Description Price (each) Stock
LR125380 JET - CHAIN LUBRICATING $19.60 To Order
Photo Part No Description Price (each) Stock
LR125379 JET - CHAIN LUBRICATING $17.52 To Order
View All

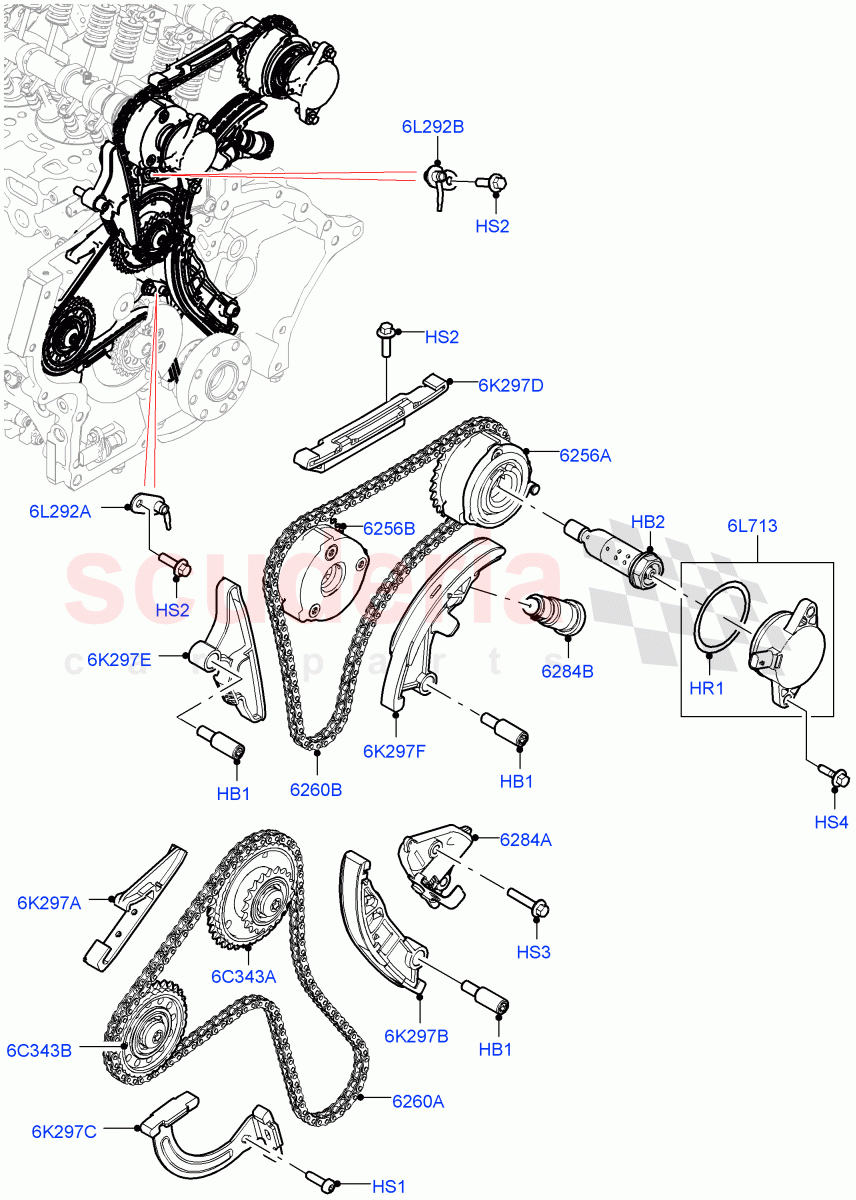

Timing Gear (1.5L AJ20P3 Petrol High PHEV, Halewood (UK), 1.5L AJ20P3 Petrol High) ((V) FROMLH000001) of Land Rover Land Rover Range Rover Evoque (2019+) [1.5 I3 Turbo Petrol AJ20P3] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR088515
BOLT
Chain Guide, M8 X 17MM / From: LH000001 		$2.49 3
HB2 LR127722
BOLT - SPECIAL
Exhaust, Variable Valve Timing Unit / From: LH000001 		$48.65 1
HB2 LR125428
BOLT
Inlet, Variable Valve Timing Unit / From: LH000001 / To: MH143515 		$33.77 1
HB2 LR157749
BOLT
Inlet, Variable Valve Timing Unit / From: MH143516 		$43.06 1
HR1 LR095784
O-RING 		$3.90 2
HR1 LR154974
O-RING 		$6.87 2
HS1 LR073720
SCREW
Chain Guide, Front, Lower, M6 X 20MM, Primary / From: LH000001 		$1.53 2
HS2 LR073655
SCREW
Hexagonal Head, M6 X 20MM / From: LH000001
IN STOCK 		$1.54 4
HS3 LR073648
SCREW
Hexagonal Head, M6 x 30MM / From: LH000001
IN STOCK 		$2.55 2
HS4 LR126057
SCREW
M5 x 20MM, Solenoid - Engine Variable Timing / From: LH000001 		$0.76 4
6C343A LR125424
IDLER - DRIVE CHAIN
Intermediate / From: LH000001 		$64.70 1
6C343B LR125629
IDLER - DRIVE CHAIN
Auxiliary, Primary / From: LH000001 		$71.19 1
6K297A LR073756
GUIDE - TIMING CHAIN
Front, Primary, Upper / From: LH000001 		$39.84 1
6K297B LR125422
BLADE - TENSIONER
Primary, Rear / From: LH000001 		$33.56 1
6K297C LR125417
GUIDE - TIMING CHAIN
Front, Lower, Primary / From: LH000001 		$45.14 1
6K297D LR125420
GUIDE - TIMING CHAIN
Secondary, Upper / From: LH000001 		$48.23 1
6K297E LR125419
GUIDE - TIMING CHAIN
Front, Secondary / From: LH000001 		$26.89 1
6K297F LR125421
BLADE - TENSIONER
Rear, Secondary / From: LH000001 		$30.58 1
6L292A LR125380
JET - CHAIN LUBRICATING
Chain Drive, Primary / From: LH000001 		$19.60 1
6L292B LR125379
JET - CHAIN LUBRICATING
Chain Drive, Secondary / From: LH000001 		$17.52 1
6L713 LR177463
SOLENOID - ENGINE VARIABLE TIMING
From: LH000001 / To: MH155375
ARRIVING SOON 		$38.90 2
6L713 LR177463
SOLENOID - ENGINE VARIABLE TIMING
From: MH155376 / To: MH156584
ARRIVING SOON 		$38.90 2
6L713 LR177463
SOLENOID - ENGINE VARIABLE TIMING
From: MH156585
ARRIVING SOON 		$38.90 2
6256A 110123464
SPROCKET - CAMSHAFT
Exhaust, Variable Valve Timing Unit / From: LH000001 		$267.50 1
6256B LR141282
SPROCKET - CAMSHAFT
Inlet, Variable Valve Timing Unit / From: LH000001 		$177.15 1
6260A LR125412
CHAIN - TIMING
Primary / From: LH000001 		$95.64 1
6260B LR125413
CHAIN - TIMING
Secondary / From: LH000001 		$92.58 1
6284A LR125414
TENSIONER - TIMING BELT
Primary / From: LH000001 		$106.84 1
6284B LR125425
TENSIONER - TIMING BELT
Secondary / From: LH000001 		$106.12 1
