Name: Fuel Injection Pump-Engine Mounted (1.5L AJ20P3 Petrol High PHEV, Halewood (UK), 1.5L AJ20P3 Petrol High) ((V) FROMLH000001)
Rating: 5.0 (1 reviews)

Fuel Injection Pump-Engine Mounted (1.5L AJ20P3 Petrol High PHEV, Halewood (UK), 1.5L AJ20P3 Petrol High) ((V) FROMLH000001) of Land Rover Land Rover Range Rover Evoque (2019+) [1.5 I3 Turbo Petrol AJ20P3]

View All

Land Rover Range Rover Evoque (2019+) [1.5 I3 Turbo Petrol AJ20P3] - Fuel Injection Pump-Engine Mounted (1.5L AJ20P3 Petrol High PHEV, Halewood (UK), 1.5L AJ20P3 Petrol...

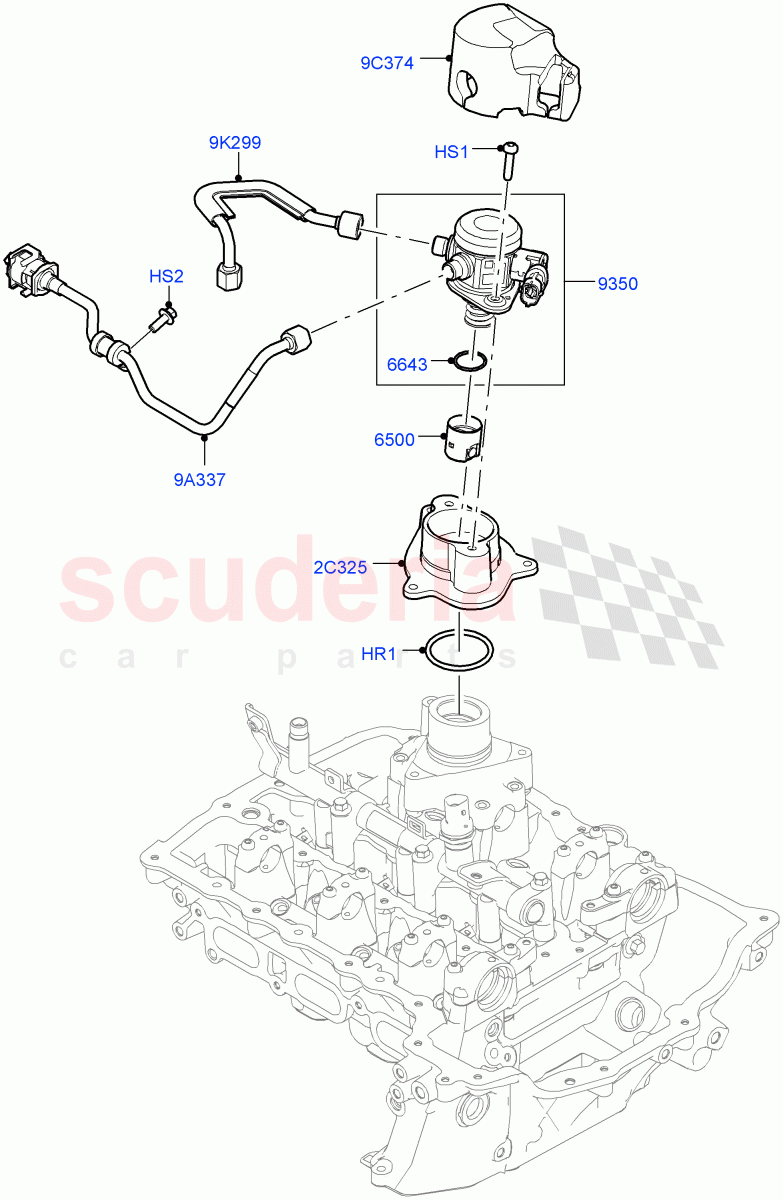

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR125441	RING - SEALING	$8.31	To Order

Photo	Part No	Description	Price (each)	Stock
	LR092106	SCREW	$0.95	To Order

Photo	Part No	Description	Price (each)	Stock
	LR108591	BOLT	$1.01	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091758	TAPPET	$23.83	To Order

Photo	Part No	Description	Price (each)	Stock
	LR010861	O-RING	$11.16	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR125397	PUMP - FUEL	$487.11	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125367	BRACKET - FUEL PUMP	$8.19	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125401	PIPE - FUEL	$48.99	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125396	ACOUSTIC COVER - FUEL PUMP	$76.08	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125400	PIPE - FUEL	$40.59	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HR1	LR125441	RING - SEALING	LR125441 RING - SEALING For Fuel Pump Bracket / From: LH000001	$8.31	1
HS1	LR092106	SCREW	LR092106 SCREW Fuel Pump, M6 x 25MM / From: LH000001	$0.95	2
HS2	LR108591	BOLT	LR108591 BOLT M6 X 16MM / From: LH000001	$1.01	1
2C325	LR125367	BRACKET - FUEL PUMP	LR125367 BRACKET - FUEL PUMP Fuel Pump To Cylinder Head / From: LH000001	$8.19	1
9A337	LR125401	PIPE - FUEL	LR125401 PIPE - FUEL Low Pressure / From: LH000001	$48.99	1
9C374	LR125396	ACOUSTIC COVER - FUEL PUMP	LR125396 ACOUSTIC COVER - FUEL PUMP From: LH000001	$76.08	1
9K299	LR125400	PIPE - FUEL	LR125400 PIPE - FUEL High Pressure, To Fuel Rail / From: LH000001	$40.59	1
6500	LR091758	TAPPET	LR091758 TAPPET For Fuel Pump / From: LH000001	$23.83	1
6643	LR010861	O-RING IN STOCK	LR010861 O-RING 31MM X 2MM, Fuel Pump / From: LH000001 IN STOCK	$11.16	1
9350	LR125397	PUMP - FUEL	LR125397 PUMP - FUEL From: LH000001	$487.11	1
