Name: Emission Control - Crankcase (1.5L AJ20P3 Petrol High PHEV, Halewood (UK), 1.5L AJ20P3 Petrol High) ((V) FROMLH000001)
Rating: 4.3 (1 reviews)

Emission Control - Crankcase (1.5L AJ20P3 Petrol High PHEV, Halewood (UK), 1.5L AJ20P3 Petrol High) ((V) FROMLH000001) of Land Rover Land Rover Range Rover Evoque (2019+) [1.5 I3 Turbo Petrol AJ20P3]

View All

Land Rover Range Rover Evoque (2019+) [1.5 I3 Turbo Petrol AJ20P3] - Emission Control - Crankcase (1.5L AJ20P3 Petrol High PHEV, Halewood (UK), 1.5L AJ20P3 Petrol High)...

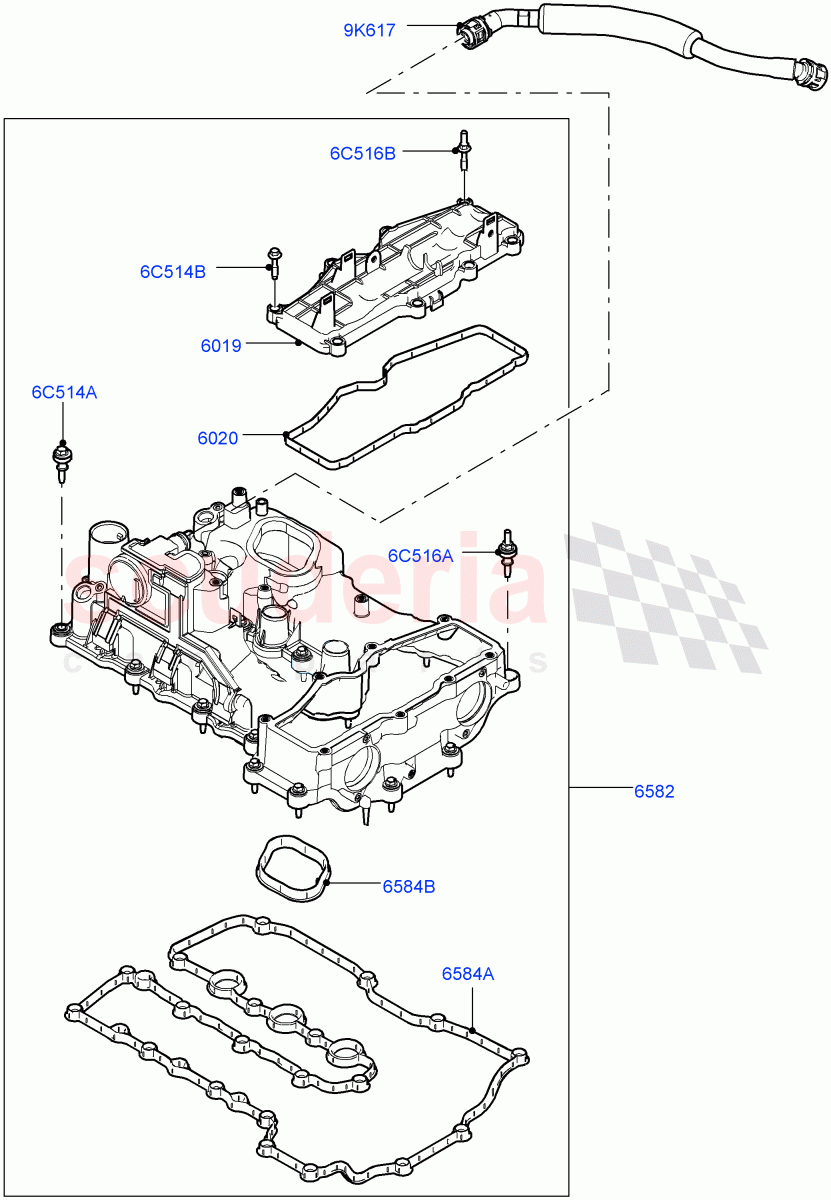

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR140253	COVER - CYLINDER HEAD	$369.41	To Order

Photo	Part No	Description	Price (each)	Stock
	LR140254	GASKET - COVER	$20.15	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125453	COVER - CAMSHAFT	$315.35	To Order

Photo	Part No	Description	Price (each)	Stock
	LR140255	GASKET - COVER	$48.14	To Order

Photo	Part No	Description	Price (each)	Stock
	LR140289	GASKET - COVER	$48.14	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125409	HOSE - CRANKCASE VENTILATION	$33.71	To Order

Photo	Part No	Description	Price (each)	Stock
	LR140285	SCREW AND SLEEVE - VALVE COVER	$17.29	To Order

Photo	Part No	Description	Price (each)	Stock
	LR140287	SCREW AND SLEEVE - VALVE COVER	$14.07	To Order

Photo	Part No	Description	Price (each)	Stock
	LR140286	STUD AND SLEEVE - VALVE COVER	$21.72	To Order

Photo	Part No	Description	Price (each)	Stock
	LR140288	STUD AND SLEEVE - VALVE COVER	$14.67	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
6C514A	LR140285	SCREW AND SLEEVE - VALVE COVER	LR140285 SCREW AND SLEEVE - VALVE COVER Grommet Included, M6 x 35MM / From: LH000001	$17.29	18
6C514B	LR140287	SCREW AND SLEEVE - VALVE COVER	LR140287 SCREW AND SLEEVE - VALVE COVER Grommet Included, M6 X 28.5MM / From: LH000001	$14.07	4
6C516A	LR140286	STUD AND SLEEVE - VALVE COVER	LR140286 STUD AND SLEEVE - VALVE COVER Grommet Included, M6 x 15MM, M6 x 35MM / From: LH000001	$21.72	2
6C516B	LR140288	STUD AND SLEEVE - VALVE COVER	LR140288 STUD AND SLEEVE - VALVE COVER Stud & Grommet Assy / From: LH000001	$14.67	4
9K617	LR125409	HOSE - CRANKCASE VENTILATION	LR125409 HOSE - CRANKCASE VENTILATION From: LH000001	$33.71	1
6019	LR140253	COVER - CYLINDER HEAD	LR140253 COVER - CYLINDER HEAD Timing Chain, Upper / From: LH000001	$369.41	1
6020	LR140254	GASKET - COVER	LR140254 GASKET - COVER Cover, Upper / From: LH000001	$20.15	1
6582	LR125453	COVER - CAMSHAFT	LR125453 COVER - CAMSHAFT Includes Oil Separator / From: LH000001	$315.35	1
6584A	LR140255	GASKET - COVER	LR140255 GASKET - COVER Camshaft Cover / From: LH000001	$48.14	1
6584B	LR140289	GASKET - COVER	LR140289 GASKET - COVER For Fuel Pump Bracket / From: LH000001	$48.14	1
