Name: Cylinder Head Cover (1.5L AJ20P3 Petrol High, Changsu (China), 1.5L AJ20P3 Petrol High PHEV)
Rating: 5.0 (1 reviews)

Cylinder Head Cover (1.5L AJ20P3 Petrol High, Changsu (China), 1.5L AJ20P3 Petrol High PHEV) of Land Rover Land Rover Range Rover Evoque (2019+) [1.5 I3 Turbo Petrol AJ20P3]

View All

Land Rover Range Rover Evoque (2019+) [1.5 I3 Turbo Petrol AJ20P3] - Cylinder Head Cover (1.5L AJ20P3 Petrol High, Changsu (China), 1.5L AJ20P3 Petrol High PHEV)

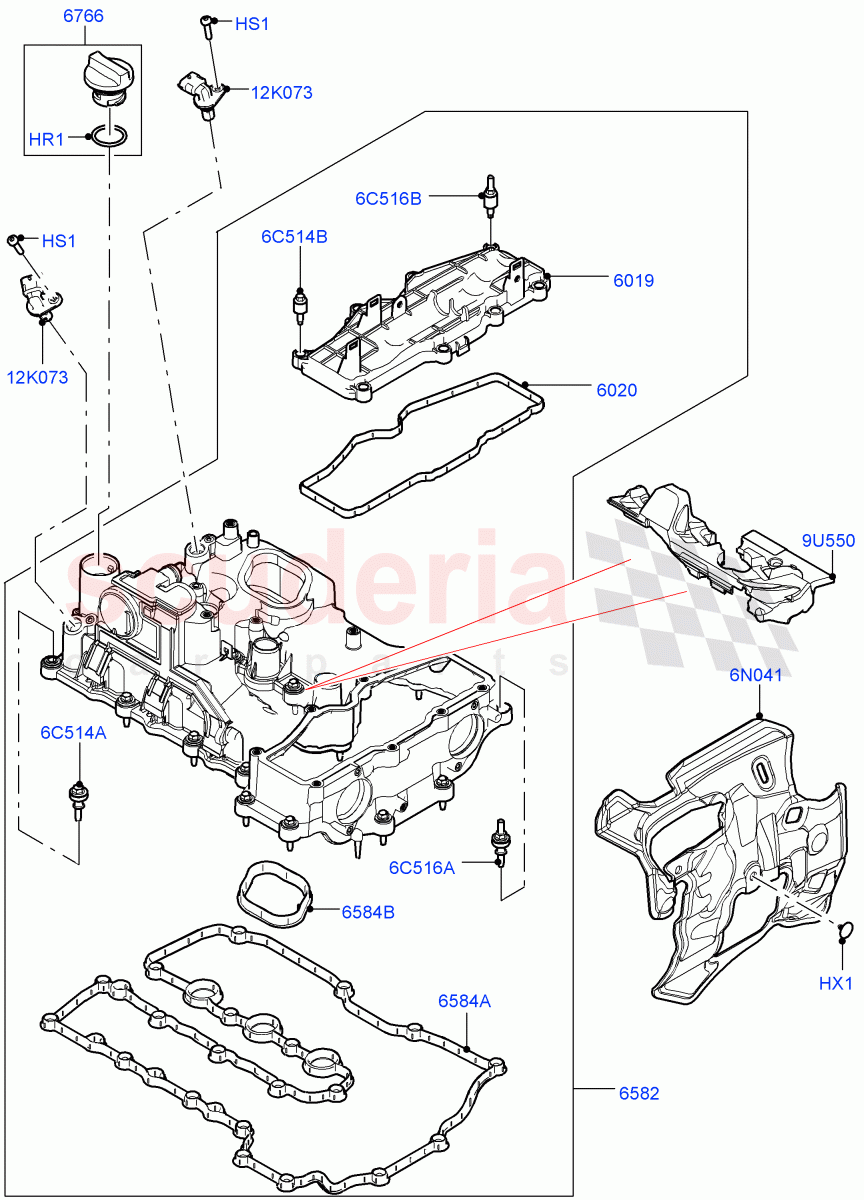

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR073781	O-RING	$4.88	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR073666	SCREW	$1.36	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125568	PIN - FIXING	$1.12	To Order

Photo	Part No	Description	Price (each)	Stock
	LR140253	COVER - CYLINDER HEAD	$369.41	To Order

Photo	Part No	Description	Price (each)	Stock
	LR140254	GASKET - COVER	$20.15	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125453	COVER - CAMSHAFT	$315.35	To Order

Photo	Part No	Description	Price (each)	Stock
	LR094641	CAP - OIL FILLER	$34.08	To Order

Photo	Part No	Description	Price (each)	Stock
	LR140255	GASKET - COVER	$48.14	To Order

Photo	Part No	Description	Price (each)	Stock
	LR140289	GASKET - COVER	$48.14	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125567	INSULATOR - CYLINDER HEAD	$78.10	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125402	COVER - INSULATOR	$33.04	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125465	SENSOR - CAMSHAFT POSITION	$130.50	To Order

Photo	Part No	Description	Price (each)	Stock
	LR140285	SCREW AND SLEEVE - VALVE COVER	$17.29	To Order

Photo	Part No	Description	Price (each)	Stock
	LR140287	SCREW AND SLEEVE - VALVE COVER	$14.07	To Order

Photo	Part No	Description	Price (each)	Stock
	LR140286	STUD AND SLEEVE - VALVE COVER	$21.72	To Order

Photo	Part No	Description	Price (each)	Stock
	LR140288	STUD AND SLEEVE - VALVE COVER	$14.67	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HR1	LR073781	O-RING IN STOCK	LR073781 O-RING Filler Cap, IN STOCK	$4.88	1
HS1	LR073666	SCREW	LR073666 SCREW Camshaft Position Sensor, M5 x 20MM	$1.36	2
HX1	LR125568	PIN - FIXING	LR125568 PIN - FIXING 4.75 X 0.79-7,9, Pin	$1.12	2
6C514A	LR140285	SCREW AND SLEEVE - VALVE COVER	LR140285 SCREW AND SLEEVE - VALVE COVER Grommet Included, M6 x 35MM	$17.29	18
6C514B	LR140287	SCREW AND SLEEVE - VALVE COVER	LR140287 SCREW AND SLEEVE - VALVE COVER Grommet Included, M6 X 28.5MM	$14.07	4
6C516A	LR140286	STUD AND SLEEVE - VALVE COVER	LR140286 STUD AND SLEEVE - VALVE COVER Grommet Included, M6 x 15MM, M6 x 35MM	$21.72	2
6C516B	LR140288	STUD AND SLEEVE - VALVE COVER	LR140288 STUD AND SLEEVE - VALVE COVER Stud & Grommet Assy	$14.67	4
6N041	LR125567	INSULATOR - CYLINDER HEAD	LR125567 INSULATOR - CYLINDER HEAD	$78.10	1
9U550	LR125402	COVER - INSULATOR	LR125402 COVER - INSULATOR	$33.04	1
12K073	LR125465	SENSOR - CAMSHAFT POSITION	LR125465 SENSOR - CAMSHAFT POSITION Camshaft Position Sensor, RH And LH	$130.50	2
6019	LR140253	COVER - CYLINDER HEAD	LR140253 COVER - CYLINDER HEAD Timing Chain, Upper	$369.41	1
6020	LR140254	GASKET - COVER	LR140254 GASKET - COVER Cover, Upper	$20.15	1
6582	LR125453	COVER - CAMSHAFT	LR125453 COVER - CAMSHAFT Includes Oil Separator	$315.35	1
6584A	LR140255	GASKET - COVER	LR140255 GASKET - COVER Camshaft Cover	$48.14	1
6584B	LR140289	GASKET - COVER	LR140289 GASKET - COVER For Fuel Pump Bracket	$48.14	1
6766	LR094641	CAP - OIL FILLER	LR094641 CAP - OIL FILLER	$34.08	1

Cylinder Head Cover (1.5L Aj20P3 Petrol High, Changsu (China), 1.5L Aj20P3 Petrol High Phev)

Land Rover Range Rover Evoque (2019+) [1.5 I3 Turbo Petrol AJ20P3]

Land Rover Range Rover Evoque (2019+) [1.5 I3 Turbo Petrol AJ20P3] - Cylinder Head Cover (1.5L AJ20P3 Petrol High, Changsu (China), 1.5L AJ20P3 Petrol High PHEV)
