Steering Gear (Changsu (China)) ((V) Fromeg000001)

Land Rover Range Rover Evoque (2012-2018) [2.2 Single Turbo Diesel]

Find Your Part

Land Rover Range Rover Evoque (2012-2018) [2.2 Single Turbo Diesel] - Steering Gear (Changsu (China)) ((V) FROMEG000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR026277 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
LR002577 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
FS108166 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
LR026275 NUT - FLANGED Enquire To Order
Photo Part No Description Price (each) Stock
LR026267 JOINT - BALL Enquire To Order
LR027570 JOINT - BALL Enquire To Order
Photo Part No Description Price (each) Stock
LR026273 KIT - CONNECTING ROD BOOT Enquire To Order
Photo Part No Description Price (each) Stock
LR049354 GEAR - STEERING Enquire To Order
LR080310 GEAR - STEERING Enquire To Order
LR095441 GEAR - STEERING Enquire To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR026262 SHIELD - STEERING GEAR Enquire To Order
Photo Part No Description Price (each) Stock
LR090888 CLAMP - BOOT Enquire To Order
Photo Part No Description Price (each) Stock
LR026271 ROD - SPINDLE CONNECTING Enquire To Order
LR097993 ROD - SPINDLE CONNECTING Enquire To Order
Photo Part No Description Price (each) Stock
LR032717 NUT - ADJUSTING Enquire To Order
LR097994 NUT - ADJUSTING Enquire To Order
Photo Part No Description Price (each) Stock
LR047512 WIRING - POWER STEERING Enquire To Order
LR096961 WIRING - POWER STEERING Enquire To Order
LR096969 WIRING - POWER STEERING Enquire To Order
View All

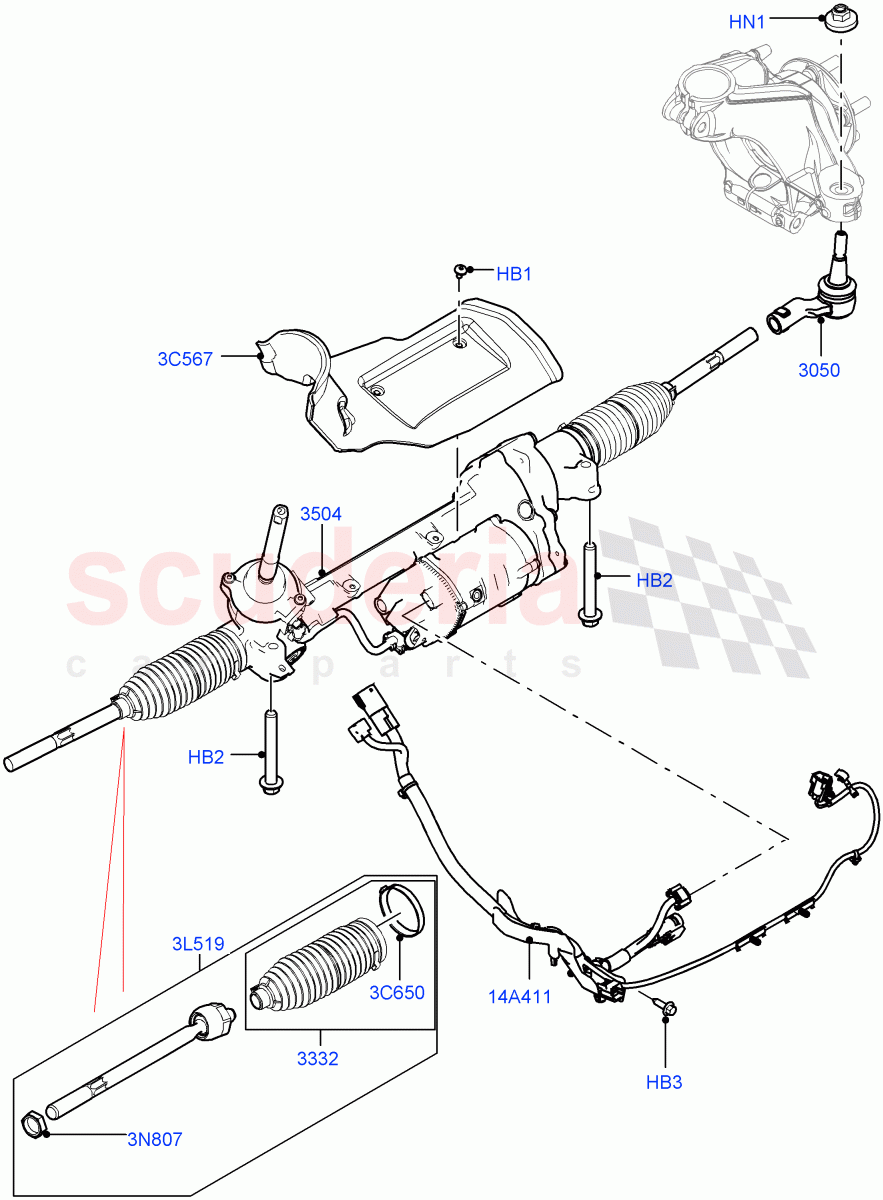

Steering Gear (Changsu (China)) ((V) FROMEG000001) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.2 Single Turbo Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR026277
BOLT
M6 x 12MM, Torx / From: EG000001 		- 3 Enquire
HB2 LR002577
BOLT
M14 X 105MM / From: EG000001 		- 2 Enquire
HB3 FS108166
BOLT
Hexagonal Head, M8 X 16MM / From: EG000001 		- 1 Enquire
HN1 LR026275
NUT - FLANGED
M14, RH/LH / From: EG000001 		- 2 Enquire
3C567 LR026262
SHIELD - STEERING GEAR
Heat Shield / From: EG000001 		- 1 Enquire
3C650 LR090888
CLAMP - BOOT
RH/LH / From: EG000001 		- 1 Enquire
3L519 LR026271
ROD - SPINDLE CONNECTING
RH/LH / From: EG000001 / To: HG161787 		- 1 Enquire
3L519 LR097993
ROD - SPINDLE CONNECTING
RH/LH / From: HG161788 		- 1 Enquire
3N807 LR032717
NUT - ADJUSTING
Locking, M18 x 1.5, RH/LH, Torx / From: EG000001 / To: HG161787 		- 2 Enquire
3N807 LR097994
NUT - ADJUSTING
From: HG161788 		- 2 Enquire
14A411 LR047512
WIRING - POWER STEERING
From: EG000001 / To: HG161787 		- 1 Enquire
14A411 LR096961
WIRING - POWER STEERING
Beijing 6 Petrol Emission / From: HG161788 		- 1 Enquire
14A411 LR096969
WIRING - POWER STEERING
Stage V European Emissions / From: HG161788 		- 1 Enquire
3050 LR026267
JOINT - BALL
RH / From: EG000001 		- 1 Enquire
3050 LR027570
JOINT - BALL
LH / From: EG000001 		- 1 Enquire
3332 LR026273
KIT - CONNECTING ROD BOOT
RH/LH, With Clamps / From: EG000001 		- 2 Enquire
3504 LR049354
GEAR - STEERING
From: EG000001 / To: GG134737 		- 1 Enquire
3504 LR080310
GEAR - STEERING
From: GG134738 / To: HG149558 		- 1 Enquire
3504 LR095441
GEAR - STEERING
From: HG149559 / To: HG161478 		- 1 Enquire
3504 LR112921
GEAR - STEERING
From: HG161479 / To: JG177775 		- 1 Enquire
3504 LR128495
GEAR - STEERING
From: JG177776 		- 1 Enquire
