Rear Cross Member & Stabilizer Bar (Halewood (Uk))

Land Rover Range Rover Evoque (2012-2018) [2.2 Single Turbo Diesel]

Find Your Part

Land Rover Range Rover Evoque (2012-2018) [2.2 Single Turbo Diesel] - Rear Cross Member & Stabilizer Bar (Halewood (UK))

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR021644 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
LR023457 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
LR001188 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
FB108076 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
FY110056 NUT Enquire To Order
Photo Part No Description Price (each) Stock
LR000053 NUT - FLANGED Enquire To Order
Photo Part No Description Price (each) Stock
RYG500470 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
FS110306 BOLT - HEX.HEAD Enquire To Order
Photo Part No Description Price (each) Stock
LR000095 SCREW AND WASHER Enquire To Order
Photo Part No Description Price (each) Stock
PYG500050 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR071767 RIVET - PLASTIC Enquire To Order
Photo Part No Description Price (each) Stock
LR005648 INSULATOR - STABILIZER BAR Enquire To Order
LR034392 INSULATOR - STABILIZER BAR Enquire To Order
LR034392 INSULATOR - STABILIZER BAR Enquire To Order
...and 4 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR025941 STIFFENER - XMEMBER Enquire To Order
Photo Part No Description Price (each) Stock
LR049444 DAMPER - VIBRATION Enquire To Order
LR077467 DAMPER - VIBRATION Enquire To Order
LR049444 DAMPER - VIBRATION Enquire To Order
Photo Part No Description Price (each) Stock
LR005647 INSULATOR - CROSS MEMBER Enquire To Order
Photo Part No Description Price (each) Stock
LR005646 INSULATOR - CROSS MEMBER Enquire To Order
Photo Part No Description Price (each) Stock
LR024277 BAR - REAR STABILIZER Enquire To Order
LR031964 BAR - REAR STABILIZER Enquire To Order
LR034326 BAR - REAR STABILIZER Enquire To Order
...and 5 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR005746 CLAMP - RUBBER BUSH Enquire To Order
Photo Part No Description Price (each) Stock
LR028449 CROSS MEMBER - REAR Enquire To Order
LR028229 CROSSMEMBER - REAR Enquire To Order
LR048532 CROSS MEMBER - REAR Enquire To Order
...and 5 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR002876 LINK - STABILIZER BAR Enquire To Order
Photo Part No Description Price (each) Stock
LR001118 INSULATOR - CROSS MEMBER Enquire To Order
Photo Part No Description Price (each) Stock
LR001119 INSULATOR - CROSS MEMBER Enquire To Order
Photo Part No Description Price (each) Stock
LR092323 HEAT SHIELD - DIFFERENTIAL Enquire To Order
Photo Part No Description Price (each) Stock
LR092324 HEAT SHIELD - DIFFERENTIAL Enquire To Order
Photo Part No Description Price (each) Stock
LR092326 HEAT SHIELD - DIFFERENTIAL Enquire To Order
View All

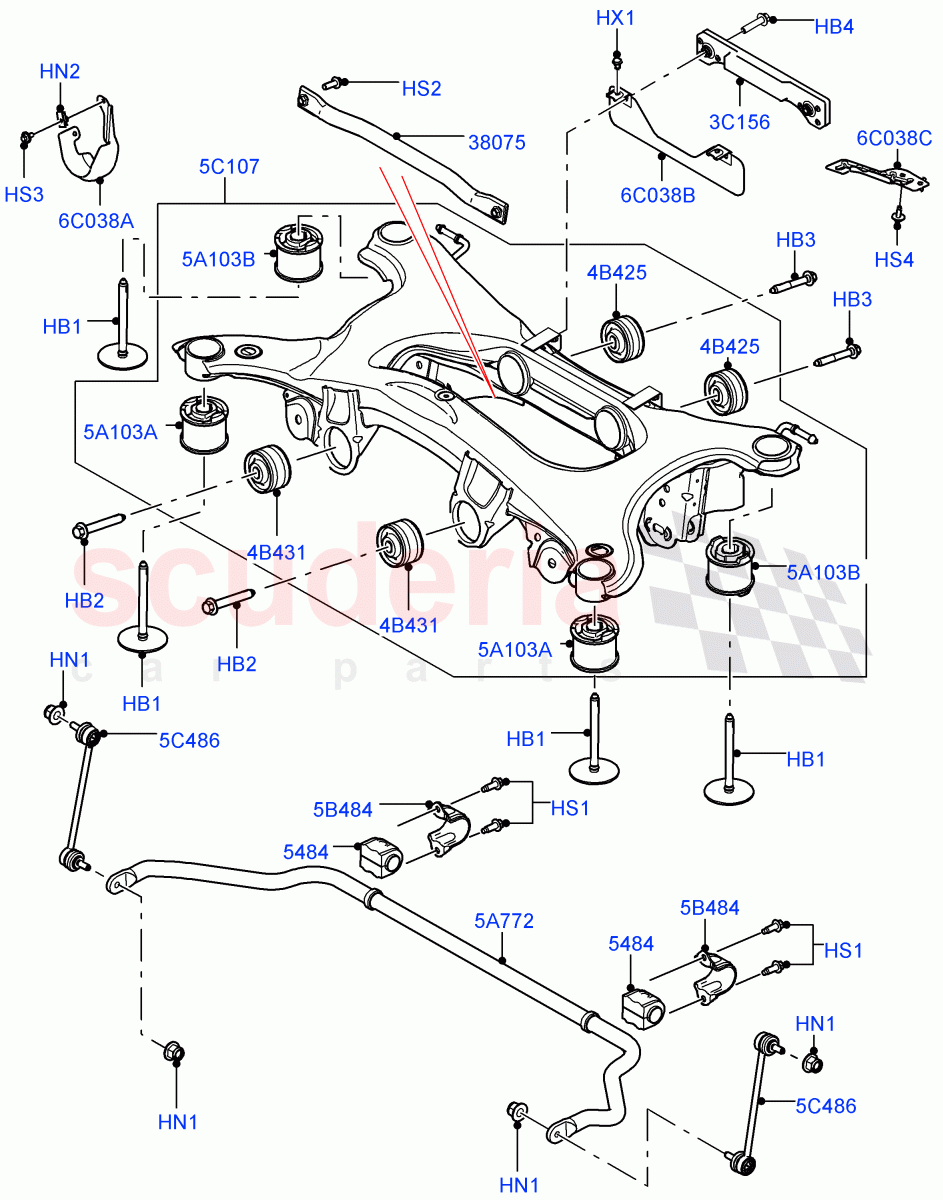

Rear Cross Member & Stabilizer Bar (Halewood (UK)) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.2 Single Turbo Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR021644
BOLT
Bolt And Washer, Hex Head, M14 X 148MM 		- 4 Enquire
HB2 LR023457
BOLT
9 Speed Auto AWD / Hex Head, M14 X 90 		- 2 Enquire
HB3 LR001188
BOLT
9 Speed Auto AWD / Hex Head, Hexagonal Head, M12 x 80MM 		- 2 Enquire
HB4 FB108076
BOLT
9 Speed Auto AWD / M8 X 35MM / From: EH000001 		- 2 Enquire
HN1 FY110056
NUT
M10 		- 4 Enquire
HN2 LR000053
NUT - FLANGED
2.0L I4 High DOHC AJ200 Petrol / M6 / From: JH000001 		- 2 Enquire
HS1 RYG500470
SCREW
Hexagonal Head, M10 X 25MM 		- 4 Enquire
HS2 FS110306
BOLT - HEX.HEAD
Hexagonal Head, M10 X 30MM 		- 2 Enquire
HS3 LR000095
SCREW AND WASHER
2.0L I4 High DOHC AJ200 Petrol / M6 X 16 HEX / From: JH000001 		- 2 Enquire
HS4 PYG500050
SCREW
2.0L I4 High DOHC AJ200 Petrol / M8 X 20MM / From: JH000001 		- 2 Enquire
HX1 LR071767
RIVET - PLASTIC
2.0L I4 Mid DOHC AJ200 Petrol, All Wheel Drive / 7.8-9.1 x 4.5-10.5 / From: JH000001 		- 2 Enquire
3C156 LR049444
DAMPER - VIBRATION
9 Speed Auto AWD / Crossmember / From: EH000001 / To: FH999999 		- 1 Enquire
3C156 LR077467
DAMPER - VIBRATION
2.0L I4 DSL HIGH DOHC AJ200 / Crossmember / From: GH000001 		- 1 Enquire
3C156 LR049444
DAMPER - VIBRATION
2.0L 16V TIVCT T/C 240PS Petrol, 9 Speed Auto AWD / Crossmember / From: GH000001 		- 1 Enquire
4B425 LR005647
INSULATOR - CROSS MEMBER
9 Speed Auto AWD / Differential, Rear 		- 2 Enquire
4B431 LR005646
INSULATOR - CROSS MEMBER
9 Speed Auto AWD / Differential, Front 		- 2 Enquire
5A103A LR001118
INSULATOR - CROSS MEMBER
Frame To Body, Front 		- 2 Enquire
5A103B LR001119
INSULATOR - CROSS MEMBER
Frame To Body, Rear 		- 2 Enquire
5A772 LR024277
BAR - REAR STABILIZER
2.0L 16V TIVCT T/C 240PS Petrol / To: CH631089 		- 1 Enquire
5A772 LR031964
BAR - REAR STABILIZER
3 Door, Stabilizer Bar Rear - Class C / From: DH000001 		- 1 Enquire
5A772 LR034326
BAR - REAR STABILIZER
2.0L 16V TIVCT T/C Gen2 Petrol / From: CH631090 / To: CH999999 		- 1 Enquire
5A772 LR034326
BAR - REAR STABILIZER
2 Door Convertible, Front Spring Load Class-F / From: GH000001 		- 1 Enquire
5A772 LR034326
BAR - REAR STABILIZER
3 Door, Stabilizer Bar Rear - Class A / From: DH000001 		- 1 Enquire
5A772 LR028266
BAR - REAR STABILIZER
2 Door Convertible, Front Spring Load Class-G / From: GH000001 		- 1 Enquire
5A772 LR028266
BAR - REAR STABILIZER
3 Door, Stabilizer Bar Rear - Class B / From: DH000001 		- 1 Enquire
5A772 LR028266
BAR - REAR STABILIZER
2.2L CR DI 16V Diesel / To: CH999999 		- 1 Enquire
5B484 LR005746
CLAMP - RUBBER BUSH
Stabilizer Bar 		- 2 Enquire
5C107 LR028449
CROSS MEMBER - REAR
6 Speed Auto AWF21 AWD / To: DH999999 		- 1 Enquire
5C107 LR028229
CROSSMEMBER - REAR
6 Speed Manual Trans-JLR M66 2WD / To: DH999999 		- 1 Enquire
5C107 LR048532
CROSS MEMBER - REAR
9 Speed Auto AWD / From: EH000001 / To: FH999999 		- 1 Enquire
5C107 LR051506
CROSSMEMBER - REAR
6 Speed Manual Trans-JLR M66 2WD / From: EH000001 / To: FH999999 		- 1 Enquire
5C107 LR068155
CROSS MEMBER - REAR
6 Speed Manual Trans-JLR M66 2WD / From: GH000001 / To: HH999999 		- 1 Enquire
5C107 LR072077
CROSS MEMBER - REAR
6 Speed Manual Trans M66 - AWD / From: GH000001 / To: HH999999 		- 1 Enquire
5C107 LR096550
CROSS MEMBER - REAR
6 Speed Manual Trans M66 - AWD / From: JH000001 		- 1 Enquire
5C107 LR096549
CROSS MEMBER - REAR
6 Speed Manual Trans-JLR M66 2WD / From: JH000001 		- 1 Enquire
5C486 LR002876
LINK - STABILIZER BAR 		- 2 Enquire
6C038A LR092323
HEAT SHIELD - DIFFERENTIAL
2.0L I4 High DOHC AJ200 Petrol / Crossmember, Front / From: JH000001 		- 1 Enquire
6C038B LR092324
HEAT SHIELD - DIFFERENTIAL
2.0L I4 Mid DOHC AJ200 Petrol, All Wheel Drive / Crossmember, Rear, Upper / From: JH000001 		- 1 Enquire
6C038C LR092326
HEAT SHIELD - DIFFERENTIAL
2.0L I4 High DOHC AJ200 Petrol / Crossmember, Lower, Rear / From: JH000001 		- 1 Enquire
5484 LR005648
INSULATOR - STABILIZER BAR
2.0L 16V TIVCT T/C 240PS Petrol / Stabilizer Bar / To: CH631089 		- 2 Enquire
5484 LR034392
INSULATOR - STABILIZER BAR
2.0L 16V TIVCT T/C Gen2 Petrol / Stabilizer Bar / From: CH631090 / To: CH999999 		- 2 Enquire
5484 LR034392
INSULATOR - STABILIZER BAR
5 Door, Stabilizer Bar Rear - Class A / Stabilizer Bar / From: DH000001 		- 2 Enquire
5484 LR034392
INSULATOR - STABILIZER BAR
2 Door Convertible, Front Spring Load Class-F / Stabilizer Bar / From: GH000001 		- 2 Enquire
5484 LR113771
INSULATOR - STABILIZER BAR
5 Door, Stabilizer Bar Rear - Class B / In Case Of Availability Problems Please Use LR031310, Stabilizer Bar / From: DH000001 		- 2 Enquire
5484 LR113771
INSULATOR - STABILIZER BAR
2 Door Convertible, Front Spring Load Class-G / In Case Of Availability Problems Please Use LR031310, Stabilizer Bar / From: GH000001 		- 2 Enquire
5484 LR113771
INSULATOR - STABILIZER BAR
2.2L CR DI 16V Diesel / In Case Of Availability Problems Please Use LR031310, Stabilizer Bar / To: CH999999 		- 2 Enquire
38075 LR025941
STIFFENER - XMEMBER
Crossmember / To: GH125983 		- 1 Enquire
