Name: Valve Body - Main Control & Servo's (6 Speed Auto AWF21 AWD)
Rating: 4.5 (1 reviews)

View All

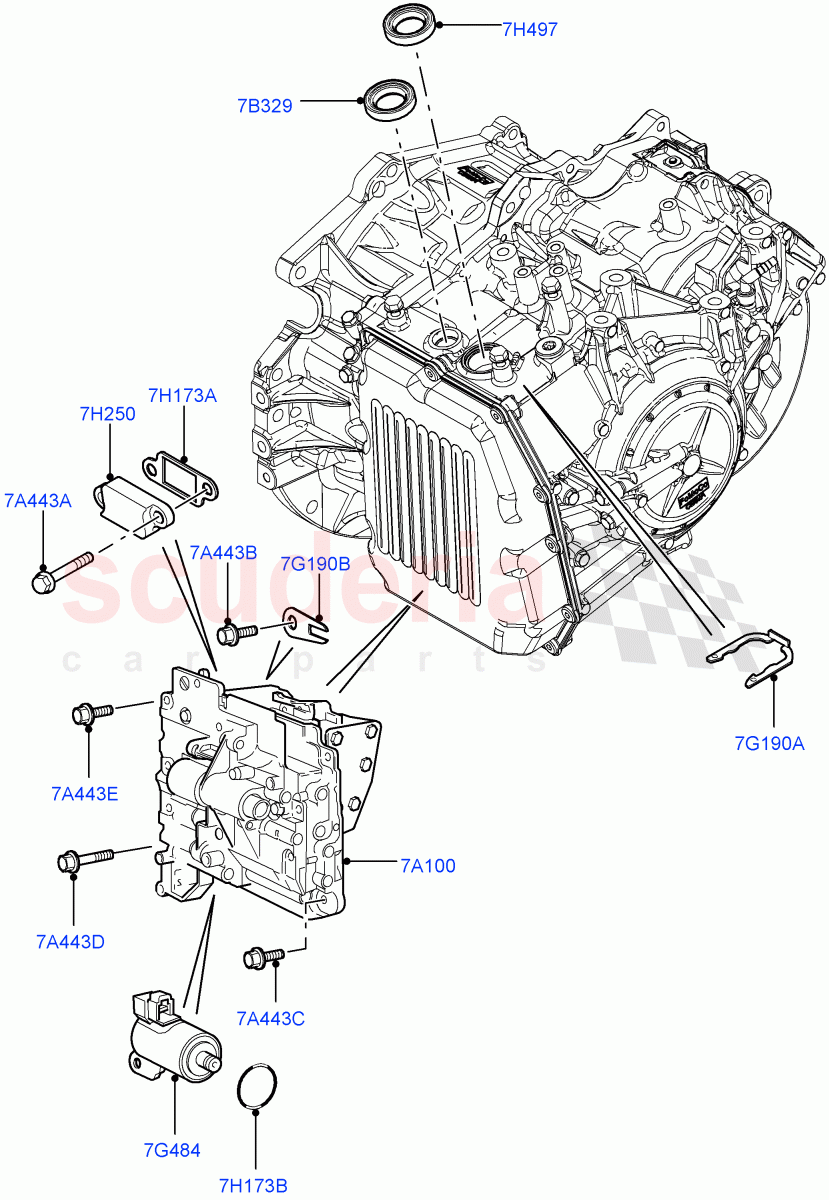

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR023467	CONTROL - TRANSMISSION	$1,340.02	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000866	RING - SEALING	$3.05	To Order

Photo	Part No	Description	Price (each)	Stock
	LR023461	SOLENOID - TRANSMISSION CONTROL	$662.17	To Order
	LR023462	SOLENOID - TRANSMISSION CONTROL	$57.86	To Order

Photo	Part No	Description	Price (each)	Stock
	LR003465	PLATE	$20.21	To Order

Photo	Part No	Description	Price (each)	Stock
	LR002904	O-RING	$2.73	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000870	BOLT	$0.76	To Order

Photo	Part No	Description	Price (each)	Stock
	LR023464	BOLT	$0.54	To Order

Photo	Part No	Description	Price (each)	Stock
	LR023465	BOLT	$0.54	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000873	BOLT	$1.51	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000874	BOLT	$1.51	To Order

Photo	Part No	Description	Price (each)	Stock
	LR002901	PLATE - MOUNTING	$2.92	To Order

Photo	Part No	Description	Price (each)	Stock
	LR023463	PLATE - MOUNTING	$2.38	To Order

Photo	Part No	Description	Price (each)	Stock
	LR002909	GASKET - VALVE	$4.27	To Order

Photo	Part No	Description	Price (each)	Stock
	LR002910	GASKET - VALVE	$8.86	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
7A100	LR023467	CONTROL - TRANSMISSION	LR023467 CONTROL - TRANSMISSION Valve Block	$1,340.02	1
7A443A	LR000870	BOLT	LR000870 BOLT M6 x 41MM	$0.76	2
7A443B	LR023464	BOLT	LR023464 BOLT	$0.54	1
7A443C	LR023465	BOLT	LR023465 BOLT Hexagonal Head, M6 X 14MM	$0.54	1
7A443D	LR000873	BOLT	LR000873 BOLT 31MM	$1.51	1
7A443E	LR000874	BOLT	LR000874 BOLT M6 X 21MM	$1.51	2
7B329	LR000866	RING - SEALING	LR000866 RING - SEALING	$3.05	1
7G190A	LR002901	PLATE - MOUNTING	LR002901 PLATE - MOUNTING	$2.92	1
7G190B	LR023463	PLATE - MOUNTING	LR023463 PLATE - MOUNTING	$2.38	1
7G484	LR023461	SOLENOID - TRANSMISSION CONTROL	LR023461 SOLENOID - TRANSMISSION CONTROL 3 Way Solenoid S1, Centre	$662.17	1
7G484	LR023462	SOLENOID - TRANSMISSION CONTROL	LR023462 SOLENOID - TRANSMISSION CONTROL 3 Way Solenoid S2, Front	$57.86	1
7H173A	LR002909	GASKET - VALVE	LR002909 GASKET - VALVE	$4.27	1
7H173B	LR002910	GASKET - VALVE	LR002910 GASKET - VALVE O Ring	$8.86	1
7H250	LR003465	PLATE	LR003465 PLATE	$20.21	1
7H497	LR002904	O-RING	LR002904 O-RING	$2.73	1

Valve Body - Main Control & Servo's (6 Speed Auto Awf21 Awd)

Land Rover Range Rover Evoque (2012-2018) [2.2 Single Turbo Diesel]
