Camshaft Drive (2.2L Dohc Efi Tc Dw12, 2.2L Cr Di 16V Diesel)

Land Rover Range Rover Evoque (2012-2018) [2.2 Single Turbo Diesel]

Find Your Part

Land Rover Range Rover Evoque (2012-2018) [2.2 Single Turbo Diesel] - Camshaft Drive (2.2L DOHC EFI TC DW12, 2.2L CR DI 16V Diesel)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR000653 BOLT $2.03 To Order
LR076010 BOLT $4.65 To Order
Photo Part No Description Price (each) Stock
LR005486 BOLT $2.93 To Order
Photo Part No Description Price (each) Stock
LR002965 DOWEL - PIN $6.71 To Order
Photo Part No Description Price (each) Stock
LR032908 NUT $7.47 To Order
Photo Part No Description Price (each) Stock
LR021622 STUD - SPECIAL $13.60 To Order
Photo Part No Description Price (each) Stock
LR001251 GEAR - CAMSHAFT DRIVE $118.78 To Order
Photo Part No Description Price (each) Stock
LR000664 SPACER - CAMSHAFT $11.89 To Order
Photo Part No Description Price (each) Stock
LR000665 GEAR - CRANKSHAFT $142.68 To Order
Photo Part No Description Price (each) Stock
LR011694 PUMP - WATER $215.46 IN STOCK
Photo Part No Description Price (each) Stock
LR009395 PULLEY - TENSION $167.38 To Order
Photo Part No Description Price (each) Stock
LR004257 BELT - TIMING $106.24 To Order
Photo Part No Description Price (each) Stock
LR000660 IDLER - TIMING BELT $82.42 To Order
Photo Part No Description Price (each) Stock
LR032526 KIT - TIMING BELT $250.16 To Order
Photo Part No Description Price (each) Stock
LR032527 KIT - TIMING BELT & WATER PUMP $468.47 To Order
View All

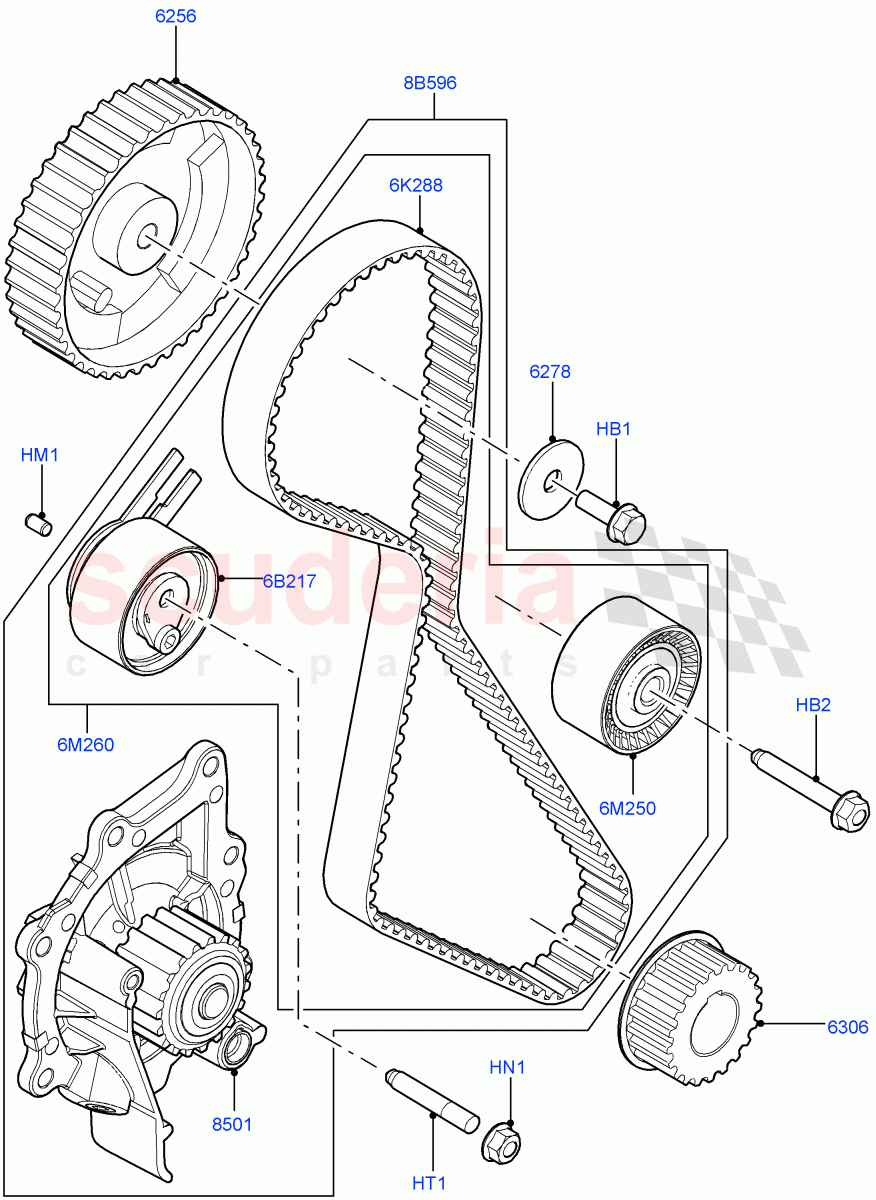

Camshaft Drive (2.2L DOHC EFI TC DW12, 2.2L CR DI 16V Diesel) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.2 Single Turbo Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR000653
BOLT
M10 x 40MM / To: CH630565 		$2.03 1
HB1 LR076010
BOLT
M10 x 40MM / From: CH630566 		$4.65 1
HB2 LR005486
BOLT
Hexagonal Head, M10 x 82mm 		$2.93 1
HM1 LR002965
DOWEL - PIN
Pin - Dowell 		$6.71 1
HN1 LR032908
NUT
M8 Hex, Tensioner 		$7.47 1
HT1 LR021622
STUD - SPECIAL
M8 X 56MM, Tensioner 		$13.60 1
6B217 LR009395
PULLEY - TENSION 		$167.38 1
6K288 LR004257
BELT - TIMING 		$106.24 1
6M250 LR000660
IDLER - TIMING BELT 		$82.42 1
6M260 LR032526
KIT - TIMING BELT
Less Pump 		$250.16 1
8B596 LR032527
KIT - TIMING BELT & WATER PUMP
With Pump 		$468.47 1
6256 LR001251
GEAR - CAMSHAFT DRIVE 		$118.78 1
6278 LR000664
SPACER - CAMSHAFT 		$11.89 1
6306 LR000665
GEAR - CRANKSHAFT 		$142.68 1
8501 LR011694
PUMP - WATER
IN STOCK 		$215.46 1
