Fuel Tank & Related Parts (2.2L Cr Di 16V Diesel)

Land Rover Range Rover Evoque (2012-2018) [2.2 Single Turbo Diesel]

Find Your Part

Land Rover Range Rover Evoque (2012-2018) [2.2 Single Turbo Diesel] - Fuel Tank & Related Parts (2.2L CR DI 16V Diesel)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
RYG501020 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
LR006655 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
LR001736 CLAMP - FUEL SUPPLY TUBE Enquire To Order
Photo Part No Description Price (each) Stock
LR023697 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
RYQ500170 RETAINER - RIVET Enquire To Order
LR115125 RETAINER - RIVET Enquire To Order
Photo Part No Description Price (each) Stock
LR026183 TANK - FUEL Enquire To Order
LR072634 TANK - FUEL Enquire To Order
Photo Part No Description Price (each) Stock
LR021560 CAP - FUEL TANK FILLER Enquire To Order
LR021560 CAP - FUEL TANK FILLER Enquire To Order
LR107022 CAP - FUEL TANK FILLER Enquire To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR029122 Pipe - Fuel Filler Enquire To Order
LR029133 PIPE - FUEL FILLER Enquire To Order
LR036342 PIPE - FUEL FILLER Enquire To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR028399 HOSE - FILLER PIPE Enquire To Order
Photo Part No Description Price (each) Stock
LR025817 STRAP - FUEL TANK Enquire To Order
Photo Part No Description Price (each) Stock
LR027873 HOSE - VENT Enquire To Order
LR052183 HOSE - VENT Enquire To Order
Photo Part No Description Price (each) Stock
LR117476 GASKET Enquire To Order
Photo Part No Description Price (each) Stock
LR049426 BRACKET - WIRE HARNESS MOUNTING Enquire To Order
Photo Part No Description Price (each) Stock
LR026196 COVER - FUEL SENDER Enquire To Order
Photo Part No Description Price (each) Stock
LR041435 SHIELD - FUEL TANK Enquire To Order
LR041435 SHIELD - FUEL TANK Enquire To Order
Photo Part No Description Price (each) Stock
LR003778 RING - RETAINING Enquire To Order
Photo Part No Description Price (each) Stock
LR071751 FUEL FILLER - INHIBITOR Enquire To Order
Photo Part No Description Price (each) Stock
LR014047 RESTRICTOR - FUEL Enquire To Order
Photo Part No Description Price (each) Stock
LR025816 FOAM PAD - ENERGY ABSORBING Enquire To Order
Photo Part No Description Price (each) Stock
LR025789 FOAM PAD - ENERGY ABSORBING Enquire To Order
View All

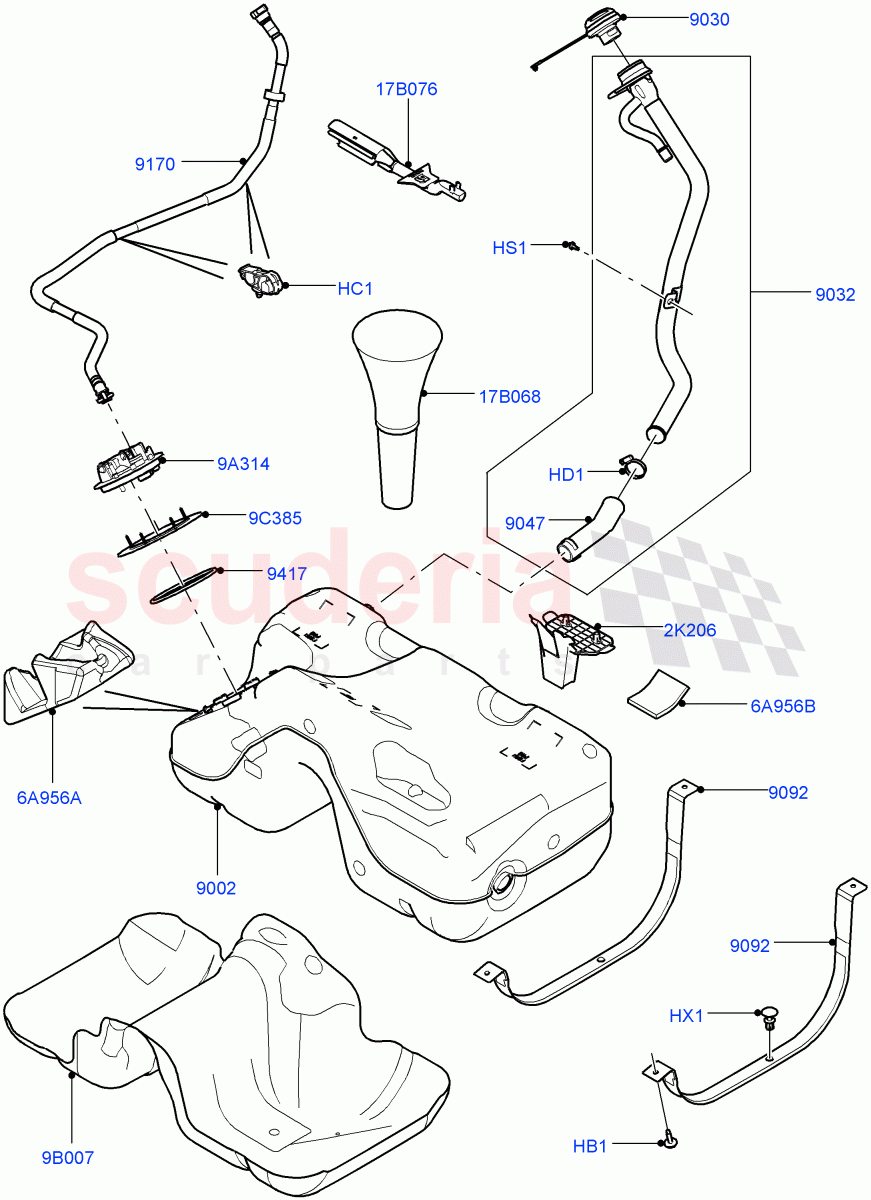

Fuel Tank & Related Parts (2.2L CR DI 16V Diesel) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.2 Single Turbo Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 RYG501020
BOLT
M8 X 30MM 		- 4 Enquire
HC1 LR006655
CLIP
14+12-20.5 X 7.5 X 1-3 		- 2 Enquire
HD1 LR001736
CLAMP - FUEL SUPPLY TUBE
25 x 40MM 		- 1 Enquire
HS1 LR023697
SCREW
M6 X 16MM 		- 2 Enquire
HX1 RYQ500170
RETAINER - RIVET
Rivet Push Pin 7.8 - 8.8 X 0.8 - 9.5 Nylon / To: JH309714 		- 2 Enquire
HX1 LR115125
RETAINER - RIVET
Fuel Tank Strap, Rivet Push Pin 7.8 - 8.8 X 0.8 - 9.5 Nylon / From: JH309715 		- 2 Enquire
2K206 LR049426
BRACKET - WIRE HARNESS MOUNTING
Support, Wiring Harness 		- 1 Enquire
6A956A LR025816
FOAM PAD - ENERGY ABSORBING
RH, Side 		- 1 Enquire
6A956B LR025789
FOAM PAD - ENERGY ABSORBING
Rear 		- 3 Enquire
9A314 LR026196
COVER - FUEL SENDER 		- 1 Enquire
9B007 LR041435
SHIELD - FUEL TANK
Bottom, Fuel Tank / To: DH772934 		- 1 Enquire
9B007 LR041435
SHIELD - FUEL TANK
Bottom, Fuel Tank / From: DH772935 		- 1 Enquire
9C385 LR003778
RING - RETAINING 		- 1 Enquire
17B068 LR071751
FUEL FILLER - INHIBITOR
Fuel Tank Filler Neck With Inhibit 		- 1 Enquire
17B076 LR014047
RESTRICTOR - FUEL 		- 1 Enquire
9002 LR026183
TANK - FUEL
To: CH599999 		- 1 Enquire
9002 LR072634
TANK - FUEL
From: CH600000 		- 1 Enquire
9030 LR021560
CAP - FUEL TANK FILLER
To: HH999999 		- 1 Enquire
9030 LR021560
CAP - FUEL TANK FILLER
Fuel Tank Filler Neck With Inhibit / From: JH000001 / To: KH333321 		- 1 Enquire
9030 LR107022
CAP - FUEL TANK FILLER
Fuel Tank Filler Neck - Japan / From: JH000001 / To: KH353558 		- 1 Enquire
9030 LR053666
CAP - FUEL TANK FILLER
Fuel Tank Filler Neck With Inhibit / From: KH333322 / To: KH342276 		- 1 Enquire
9030 LR112190
CAP - FUEL TANK FILLER
Fuel Tank Filler Neck - Japan / From: KH353559 		- 1 Enquire
9030 LR138861
CAP - FUEL TANK FILLER
Fuel Tank Filler Neck With Inhibit / From: KH342277 		- 1 Enquire
9032 LR029122
Pipe - Fuel Filler
+ Russia / To: CH666312 		- 1 Enquire
9032 LR029133
PIPE - FUEL FILLER
Fuel Tank Filler Neck - Diesel / - Russia, Wide Filler Neck - Diesel 		- 1 Enquire
9032 LR036342
PIPE - FUEL FILLER
+ Russia / From: CH666313 / To: DH783390 		- 1 Enquire
9032 LR045111
PIPE - FUEL FILLER
Fuel Tank Filler Neck - Japan / + Russia / From: DH783391 		- 1 Enquire
9032 LR073382
PIPE - FUEL FILLER
Fuel Tank Filler Neck With Inhibit / - Russia, Filler Neck With Inhibit / From: FH000001 / To: FH999999 		- 1 Enquire
9032 LR079222
PIPE - FUEL FILLER
Fuel Tank Filler Neck With Inhibit / - Russia, Filler Neck With Inhibit / From: GH000001 		- 1 Enquire
9047 LR028399
HOSE - FILLER PIPE
(-)"CDN/MEX/USA" 		- 1 Enquire
9092 LR025817
STRAP - FUEL TANK 		- 2 Enquire
9170 LR027873
HOSE - VENT
To: DH804638 		- 1 Enquire
9170 LR052183
HOSE - VENT
From: DH804639 		- 1 Enquire
9417 LR117476
GASKET
O-Ring 		- 1 Enquire
