Exhaust System (2.2L Cr Di 16V Diesel, Stage V Plus Dpf, Proconve L6 Emissions)

Land Rover Range Rover Evoque (2012-2018) [2.2 Single Turbo Diesel]

Find Your Part

Land Rover Range Rover Evoque (2012-2018) [2.2 Single Turbo Diesel] - Exhaust System (2.2L CR DI 16V Diesel, Stage V Plus DPF, Proconve L6 Emissions)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
RYG500440 BOLT $0.99 To Order
Photo Part No Description Price (each) Stock
RYG500230 BOLT - HEX.HEAD $1.36 IN STOCK
Photo Part No Description Price (each) Stock
PYC108170 CLIP $1.24 To Order
Photo Part No Description Price (each) Stock
LR016628 CLAMP - TUBE $2.65 To Order
Photo Part No Description Price (each) Stock
FX108046 NUT - LOCKING $0.41 IN STOCK
Photo Part No Description Price (each) Stock
FN105042 NUT - HEX. - FLANGED $0.50 IN STOCK
Photo Part No Description Price (each) Stock
FN106046 NUT - HEX. $1.45 IN STOCK
Photo Part No Description Price (each) Stock
CYP500030 SCREW $0.77 To Order
Photo Part No Description Price (each) Stock
LR067425 BRACKET - SENSOR MOUNTING $9.75 To Order
Photo Part No Description Price (each) Stock
LR000593 INSULATOR - RUBBER $11.29 To Order
Photo Part No Description Price (each) Stock
LR001115 CLAMP - EXHAUST $5.63 To Order
Photo Part No Description Price (each) Stock
LR000954 GASKET - EXHAUST PIPE $18.29 To Order
Photo Part No Description Price (each) Stock
LR025109 BRACKET - EXHAUST PIPE MOUNTING $35.43 To Order
Photo Part No Description Price (each) Stock
WCM500120 GASKET - EXHAUST PIPE $11.97 IN STOCK
Photo Part No Description Price (each) Stock
LR024242 PIPE - EXHAUST $1,738.54 To Order
LR032111 PIPE - EXHAUST $1,673.63 To Order
LR041437 PIPE - EXHAUST $1,549.61 To Order
...and 9 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR028861 SENSOR - EXHAUST GAS PRESSURE $256.47 To Order
LR080117 SENSOR - EXHAUST GAS PRESSURE $288.61 To Order
Photo Part No Description Price (each) Stock
LR024246 FILTER - DIESEL PARTICLE $3,412.19 To Order
LR039642 FILTER - DIESEL PARTICLE $3,345.26 To Order
LR049885 FILTER - DIESEL PARTICLE $2,444.45 To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR034196 HEAT SHIELD - SENSOR $30.21 To Order
LR034196 HEAT SHIELD - SENSOR $30.21 To Order
Photo Part No Description Price (each) Stock
LR024227 BRACKET - EXHAUST PIPE MOUNTING $38.10 To Order
LR077874 BRACKET - EXHAUST PIPE MOUNTING $24.95 To Order
Photo Part No Description Price (each) Stock
LR133910 SENSOR $161.34 To Order
Photo Part No Description Price (each) Stock
LR001370 SENSOR - EXHAUST GAS - OXYGEN $335.39 To Order
Photo Part No Description Price (each) Stock
YQR000050 CLIP - WIRING $0.76 IN STOCK
Photo Part No Description Price (each) Stock
LR015455 SENSOR - EXHAUST GAS - TEMPERATURE $160.46 To Order
Photo Part No Description Price (each) Stock
LR005499 SENSOR - EXHAUST GAS - TEMPERATURE $152.14 To Order
View All

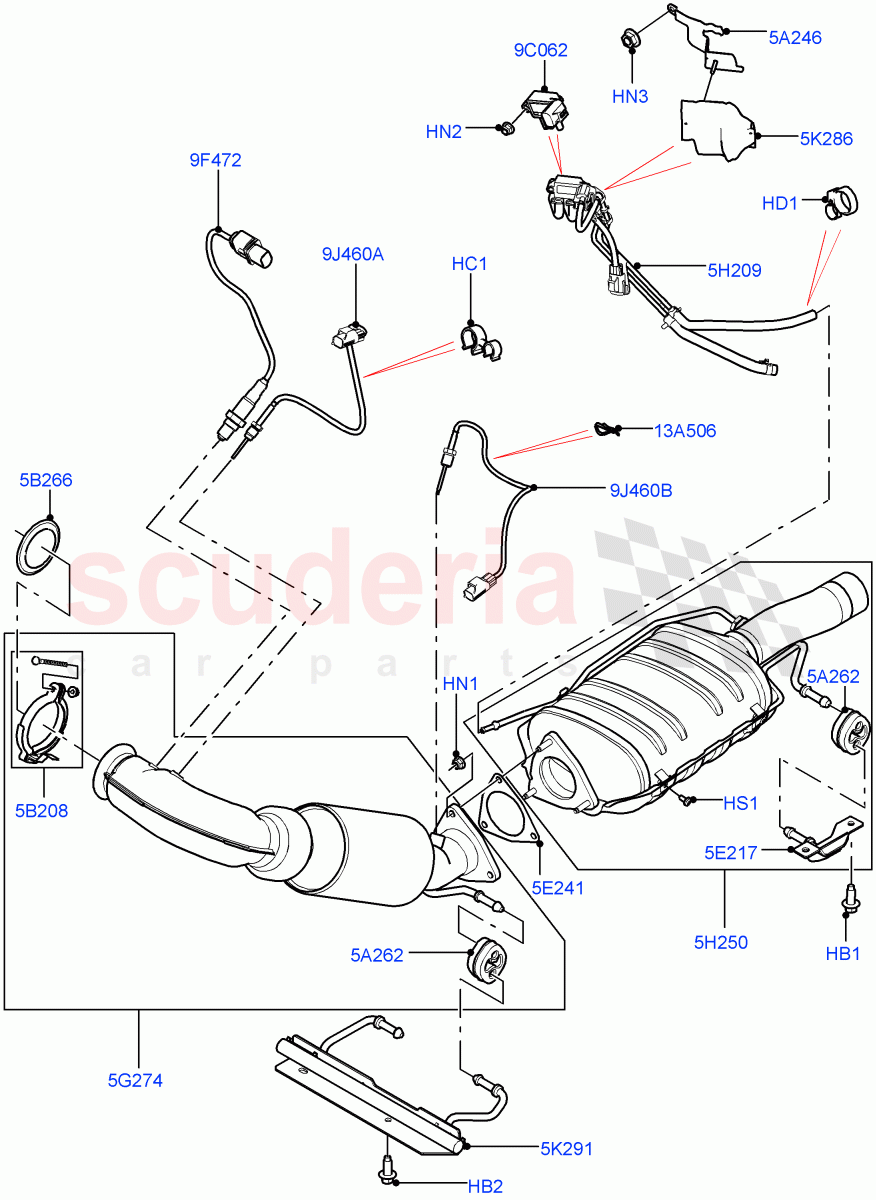

Exhaust System (2.2L CR DI 16V Diesel, Stage V Plus DPF, Proconve L6 Emissions) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.2 Single Turbo Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 RYG500440
BOLT
Hexagonal Head, M8 X 20MM 		$0.99 2
HB2 RYG500230
BOLT - HEX.HEAD
Hexagonal Head, M8 X 20MM
IN STOCK 		$1.36 2
HC1 PYC108170
CLIP
Double, Oxygen Sensor 		$1.24 1
HD1 LR016628
CLAMP - TUBE
Hose Clamp 		$2.65 1
HN1 FX108046
NUT - LOCKING
M8
IN STOCK 		$0.41 3
HN2 FN105042
NUT - HEX. - FLANGED
M5
IN STOCK 		$0.50 1
HN3 FN106046
NUT - HEX.
Hexagonal Head, M6
IN STOCK 		$1.45 1
HS1 CYP500030
SCREW
Heat Shield, M6 x 12MM, Torx 		$0.77 4
5A246 LR067425
BRACKET - SENSOR MOUNTING
For Sensor 		$9.75 1
5A262 LR000593
INSULATOR - RUBBER 		$11.29 3
5B208 LR001115
CLAMP - EXHAUST 		$5.63 1
5B266 LR000954
GASKET - EXHAUST PIPE
Front 		$18.29 1
5E217 LR025109
BRACKET - EXHAUST PIPE MOUNTING
Middle, Single 		$35.43 1
5E241 WCM500120
GASKET - EXHAUST PIPE
Middle
IN STOCK 		$11.97 1
5G274 LR024242
PIPE - EXHAUST
6 Speed Auto AWF21 AWD / Catalyst Assy / To: CH680787 		$1,738.54 1
5G274 LR032111
PIPE - EXHAUST
6 Speed Manual Trans-JLR M66 2WD / Catalyst Assy / From: CH631090 / To: CH681628 		$1,673.63 1
5G274 LR041437
PIPE - EXHAUST
6 Speed Manual Trans-JLR M66 2WD / Catalyst Assy / From: CH681629 / To: CH699078 		$1,549.61 1
5G274 LR044104
PIPE - EXHAUST
6 Speed Manual Trans-JLR M66 2WD / Catalyst Assy / From: CH699079 / To: DH844723 		$1,727.37 1
5G274 LR041438
PIPE - EXHAUST
6 Speed Auto AWF21 AWD / Catalyst Assy / From: CH680788 / To: CH702197 		$1,609.66 1
5G274 LR044103
PIPE - EXHAUST
6 Speed Manual Trans M66 - AWD / Catalyst Assy / From: CH702198 / To: CH999999 		$1,609.66 1
5G274 LR049953
PIPE - EXHAUST
6 Speed Manual Trans-JLR M66 2WD / Catalyst Assy / From: EH000001 / To: FH982866 		$1,431.98 1
5G274 LR049951
PIPE - EXHAUST
6 Speed Manual Trans M66 - AWD / Catalyst Assy / From: EH000001 / To: FH982866 		$1,974.70 1
5G274 LR056995
PIPE - EXHAUST
6 Speed Manual Trans-JLR M66 2WD / Catalyst Assy / From: DH844724 / To: DH999999 		$1,983.98 1
5G274 LR056996
PIPE - EXHAUST
6 Speed Auto AWF21 AWD / Catalyst Assy / From: DH000001 / To: DH999999 		$1,332.51 1
5G274 LR067414
PIPE - EXHAUST
9 Speed Auto AWD / Catalyst Assy / From: FH982867 		$1,086.76 1
5G274 LR067416
PIPE - EXHAUST
6 Speed Manual Trans-JLR M66 2WD / Catalyst Assy / From: FH982867 		$1,793.90 1
5H209 LR028861
SENSOR - EXHAUST GAS PRESSURE
Pressure / To: FH999999 		$256.47 1
5H209 LR080117
SENSOR - EXHAUST GAS PRESSURE
Pressure / From: GH000001 		$288.61 1
5H250 LR024246
FILTER - DIESEL PARTICLE
To: CH651948 		$3,412.19 1
5H250 LR039642
FILTER - DIESEL PARTICLE
From: CH651949 / To: DH999999 		$3,345.26 1
5H250 LR049885
FILTER - DIESEL PARTICLE
6 Speed Manual Trans M66 - AWD / From: EH000001 / To: EH999999 		$2,444.45 1
5H250 LR068414
FILTER - DIESEL PARTICLE
6 Speed Manual Trans-JLR M66 2WD / From: FH000001 		$2,255.45 1
5H250 LR068415
FILTER - DIESEL PARTICLE
9 Speed Auto AWD / From: FH000001 		$2,122.59 1
5H250 LR039642
FILTER - DIESEL PARTICLE
6 Speed Manual Trans-JLR M66 2WD / From: EH000001 / To: EH999999 		$3,345.26 1
5K286 LR034196
HEAT SHIELD - SENSOR
6 Speed Manual Trans-JLR M66 2WD / Pressure Sensor / From: CH631090 / To: DH999999 		$30.21 1
5K286 LR034196
HEAT SHIELD - SENSOR
Pressure Sensor / From: EH000001 		$30.21 1
5K291 LR024227
BRACKET - EXHAUST PIPE MOUNTING
Double, Front / To: GH123008 		$38.10 1
5K291 LR077874
BRACKET - EXHAUST PIPE MOUNTING
Double, Front / From: GH123009 		$24.95 1
9C062 LR133910
SENSOR 		$161.34 1
9F472 LR001370
SENSOR - EXHAUST GAS - OXYGEN
Exhaust Gas Oxygen 		$335.39 1
9J460A LR015455
SENSOR - EXHAUST GAS - TEMPERATURE
Exhaust Gas Temperature, Front 		$160.46 1
9J460B LR005499
SENSOR - EXHAUST GAS - TEMPERATURE
330MM, Exhaust Gas Temperature, Rear 		$152.14 1
13A506 YQR000050
CLIP - WIRING
IN STOCK 		$0.76 1
