View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR000639	BOLT	$0.63	To Order

Photo	Part No	Description	Price (each)	Stock
	LR002967	BOLT - CAMSHAFT POSITION SENSOR	$8.04	To Order

Photo	Part No	Description	Price (each)	Stock
	LR022304	COVER - CYLINDER HEAD FRONT	$341.33	To Order

Photo	Part No	Description	Price (each)	Stock
	LR009411	GASKET - CYL. HEAD FRONT COVER	$63.54	To Order

Photo	Part No	Description	Price (each)	Stock
	LR009412	GASKET - CYL. HEAD FRONT COVER	$49.19	To Order

Photo	Part No	Description	Price (each)	Stock
	LR003461	BOLT AND WASHER - HEX.HEAD	$0.62	To Order

Photo	Part No	Description	Price (each)	Stock
	LR016847	SENSOR - CAMSHAFT POSITION	$139.52	To Order

Photo	Part No	Description	Price (each)	Stock
	LR022513	BRACKET - ENGINE WIRING	$158.84	To Order

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	LR000639	BOLT	LR000639 BOLT M6 x 30MM	$0.63	9
HB2	LR002967	BOLT - CAMSHAFT POSITION SENSOR	LR002967 BOLT - CAMSHAFT POSITION SENSOR M5 X 16MM	$8.04	1
6N028	LR003461	BOLT AND WASHER - HEX.HEAD	LR003461 BOLT AND WASHER - HEX.HEAD With Washer	$0.62	2
12K073	LR016847	SENSOR - CAMSHAFT POSITION	LR016847 SENSOR - CAMSHAFT POSITION Camshaft Position Sensor	$139.52	1
14A163	LR022513	BRACKET - ENGINE WIRING	LR022513 BRACKET - ENGINE WIRING Wire Assy	$158.84	1
6020A	LR009411	GASKET - CYL. HEAD FRONT COVER	LR009411 GASKET - CYL. HEAD FRONT COVER Cover, Polygon Shape Type	$63.54	1
6020B	LR009412	GASKET - CYL. HEAD FRONT COVER	LR009412 GASKET - CYL. HEAD FRONT COVER Cover, Round Shape Type	$49.19	2
6582	LR022304	COVER - CYLINDER HEAD FRONT	LR022304 COVER - CYLINDER HEAD FRONT	$341.33	1

Haven't found what you're looking for?

View Cart / Checkout

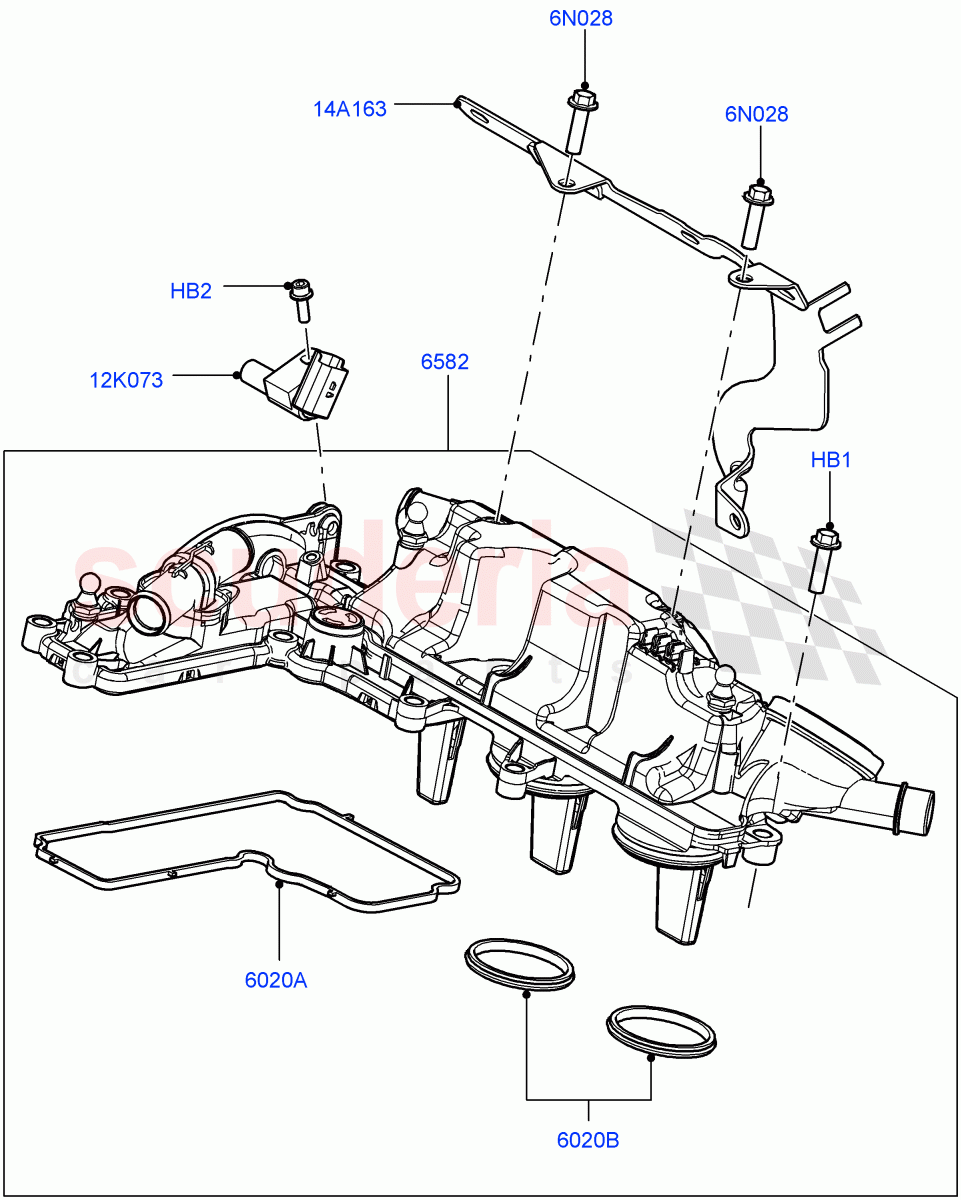

Cylinder Head Cover (2.2L Dohc Efi Tc Dw12, 2.2L Cr Di 16V Diesel)

Land Rover Range Rover Evoque (2012-2018) [2.2 Single Turbo Diesel]
