Name: Cylinder Block And Plugs (2.2L DOHC EFI TC DW12, 2.2L CR DI 16V Diesel)
Rating: 4.2 (1 reviews)

Cylinder Block And Plugs (2.2L DOHC EFI TC DW12, 2.2L CR DI 16V Diesel) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.2 Single Turbo Diesel]

View All

Land Rover Range Rover Evoque (2012-2018) [2.2 Single Turbo Diesel] - Cylinder Block And Plugs (2.2L DOHC EFI TC DW12, 2.2L CR DI 16V Diesel)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR031735	BOLT	$2.63	To Order

Photo	Part No	Description	Price (each)	Stock
	LR022078	CYLINDER BLOCK	$10,934.74	To Order

Photo	Part No	Description	Price (each)	Stock
	LR019016	BOLT - BEARING CAP - HEX. HEAD	$4.66	To Order
	LR075647	BOLT - BEARING CAP - HEX. HEAD	$8.23	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000643	DOWEL - PIN	$7.66	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000671	PLUG - SLEEVE	$9.36	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000672	STUD	$2.73	To Order

Photo	Part No	Description	Price (each)	Stock
	LR004153	SEAL - CRANKSHAFT BEARING CAP	$7.08	To Order

Photo	Part No	Description	Price (each)	Stock
	LR009838	PLUG - BLANKING - THREADED	$7.48	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000661	PLUG - BLANKING	$3.93	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000662	PLUG - BLANKING	$3.93	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000646	DOWEL - BEARING CAP	$0.55	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000087	DOWEL - PIN	$1.55	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000644	RETAINER - CRANKSHAFT OIL SEAL	$169.91	To Order

Photo	Part No	Description	Price (each)	Stock
	LR002842	BOLT	$6.02	To Order

Photo	Part No	Description	Price (each)	Stock
	LR001298	VALVE - PISTON COOLING	$19.52	To Order

Photo	Part No	Description	Price (each)	Stock
	LR021649	SENSOR - CRANKSHAFT POSITION - CPS	$127.26	To Order
	LR056028	SENSOR - CRANKSHAFT POSITION - CPS	$134.97	To Order

Photo	Part No	Description	Price (each)	Stock
	LR002862	BOLT AND WASHER - HEX.HEAD	$8.37	To Order

Photo	Part No	Description	Price (each)	Stock
	LR002863	BOLT AND WASHER - HEX.HEAD	$8.37	To Order

View All

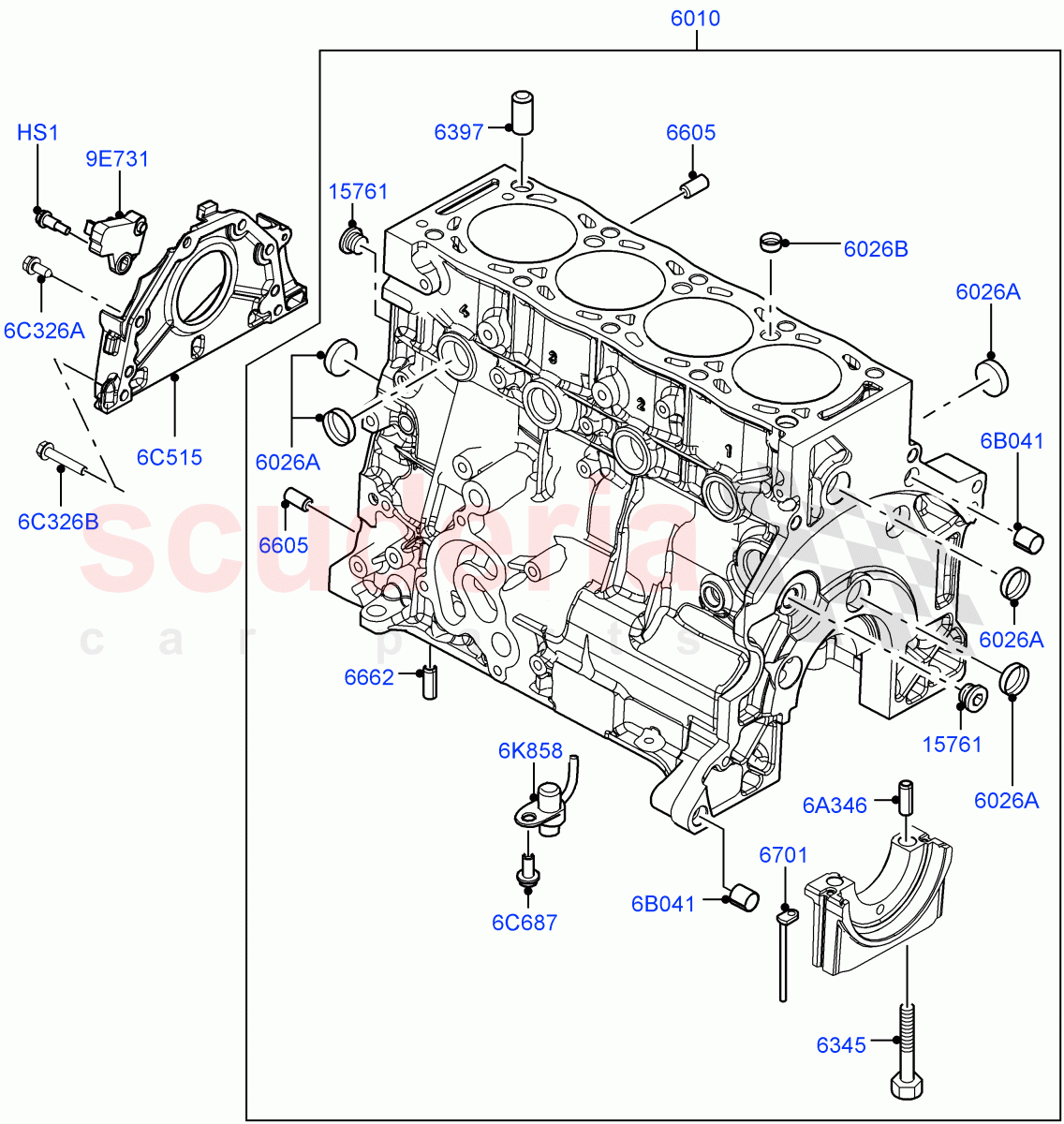

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HS1	LR031735	BOLT	LR031735 BOLT M6 X 25MM	$2.63	1
6A346	LR000646	DOWEL - BEARING CAP	LR000646 DOWEL - BEARING CAP	$0.55	2
6B041	LR000087	DOWEL - PIN	LR000087 DOWEL - PIN	$1.55	2
6C326A	LR002862	BOLT AND WASHER - HEX.HEAD	LR002862 BOLT AND WASHER - HEX.HEAD M7 x 20MM	$8.37	4
6C326B	LR002863	BOLT AND WASHER - HEX.HEAD	LR002863 BOLT AND WASHER - HEX.HEAD M7 x 20MM	$8.37	2
6C515	LR000644	RETAINER - CRANKSHAFT OIL SEAL	LR000644 RETAINER - CRANKSHAFT OIL SEAL Crankshaft Oil Seal	$169.91	1
6C687	LR002842	BOLT	LR002842 BOLT M6 X 16MM	$6.02	4
6K858	LR001298	VALVE - PISTON COOLING	LR001298 VALVE - PISTON COOLING	$19.52	4
9E731	LR021649	SENSOR - CRANKSHAFT POSITION - CPS	LR021649 SENSOR - CRANKSHAFT POSITION - CPS Sensor - Crankshaft Position - CPS, Tin Plated / To: DH999999	$127.26	1
9E731	LR056028	SENSOR - CRANKSHAFT POSITION - CPS	LR056028 SENSOR - CRANKSHAFT POSITION - CPS Sensor - Crankshaft Position - CPS, Tin Plated / From: EH000001	$134.97	1
6010	LR022078	CYLINDER BLOCK	LR022078 CYLINDER BLOCK	$10,934.74	1
6026A	LR000661	PLUG - BLANKING	LR000661 PLUG - BLANKING 27MM, Standard	$3.93	12
6026B	LR000662	PLUG - BLANKING	LR000662 PLUG - BLANKING	$3.93	3
6345	LR019016	BOLT - BEARING CAP - HEX. HEAD	LR019016 BOLT - BEARING CAP - HEX. HEAD To: CH630805	$4.66	10
6345	LR075647	BOLT - BEARING CAP - HEX. HEAD	LR075647 BOLT - BEARING CAP - HEX. HEAD From: CH630806	$8.23	10
6397	LR000643	DOWEL - PIN	LR000643 DOWEL - PIN	$7.66	2
6605	LR000671	PLUG - SLEEVE	LR000671 PLUG - SLEEVE Plug	$9.36	4
6662	LR000672	STUD	LR000672 STUD 4 X 15MM	$2.73	1
6701	LR004153	SEAL - CRANKSHAFT BEARING CAP	LR004153 SEAL - CRANKSHAFT BEARING CAP For Crankshaft Bearing Cap	$7.08	2
15761	LR009838	PLUG - BLANKING - THREADED	LR009838 PLUG - BLANKING - THREADED Threaded	$7.48	2

Cylinder Block And Plugs (2.2L Dohc Efi Tc Dw12, 2.2L Cr Di 16V Diesel)

Land Rover Range Rover Evoque (2012-2018) [2.2 Single Turbo Diesel]

Land Rover Range Rover Evoque (2012-2018) [2.2 Single Turbo Diesel] - Cylinder Block And Plugs (2.2L DOHC EFI TC DW12, 2.2L CR DI 16V Diesel)
