Pulleys And Drive Belts (2.2L CR DI 16V Diesel) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.2 Single Turbo Diesel]

View All

Land Rover Range Rover Evoque (2012-2018) [2.2 Single Turbo Diesel] - Pulleys And Drive Belts (2.2L CR DI 16V Diesel)

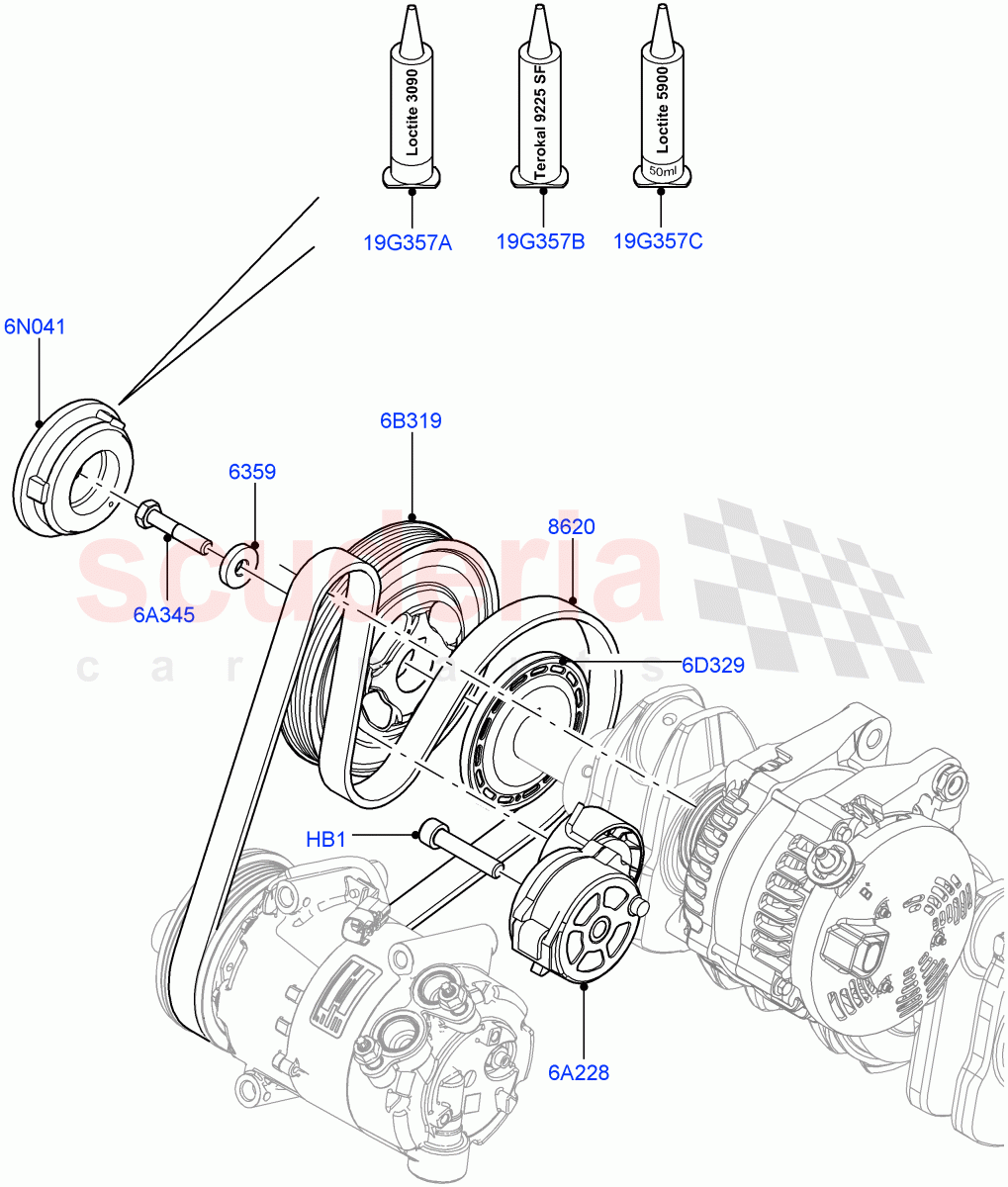

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR000067	BOLT - HEX.HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR013188	SPACER - WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR028881	BELT - ACCESSORY DRIVE	Enquire	To Order
	LR060071	BELT - ACCESSORY DRIVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR003651	PULLEY - TENSION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000645	BOLT - HEX.HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR022091	PULLEY - CRANKSHAFT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR022656	TRIGGER WHEEL - CAMSHAFT TIMING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR028875	INSULATOR - ENGINE COMPARTMENT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR033968	SEALANT - ADHESIVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR033969	SEALANT - ADHESIVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	STC50550	SEALER - ADHESIVE PAN/ENGINE	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	LR000067	BOLT - HEX.HEAD	LR000067 BOLT - HEX.HEAD M10 X 50MM, Torx	-	2	Enquire
6A228	LR003651	PULLEY - TENSION	LR003651 PULLEY - TENSION Drive Belt Dynamic Tensioner	-	1	Enquire
6A345	LR000645	BOLT - HEX.HEAD	LR000645 BOLT - HEX.HEAD M14 X 150MM, Pulley - Crankshaft	-	1	Enquire
6B319	LR022091	PULLEY - CRANKSHAFT	LR022091 PULLEY - CRANKSHAFT	-	1	Enquire
6D329	LR022656	TRIGGER WHEEL - CAMSHAFT TIMING	LR022656 TRIGGER WHEEL - CAMSHAFT TIMING CPS - Trigger Pulley	-	1	Enquire
6N041	LR028875	INSULATOR - ENGINE COMPARTMENT	LR028875 INSULATOR - ENGINE COMPARTMENT 2.2L CR DI 16V Diesel / Engine, NVH Bung - Crankshaft Vibration Damper	-	1	Enquire
19G357A	LR033968	SEALANT - ADHESIVE	LR033968 SEALANT - ADHESIVE 2.2L CR DI 16V Diesel / 10 G, Loctite 3090 Adhesive, NVH Bung - Crankshaft Vibration Damper	-	1	Enquire
19G357B	LR033969	SEALANT - ADHESIVE	LR033969 SEALANT - ADHESIVE 2.2L CR DI 16V Diesel / 50 ML, NVH Bung - Crankshaft Vibration Damper, Terokal-9225 SF Adhesive	-	1	Enquire
19G357C	STC50550	SEALER - ADHESIVE PAN/ENGINE	STC50550 SEALER - ADHESIVE PAN/ENGINE 50 ML, For Professional Use Only, Loctite 5900, NVH Bung - Crankshaft Vibration Damper	-	1	Enquire
6359	LR013188	SPACER - WASHER	LR013188 SPACER - WASHER	-	1	Enquire
8620	LR028881	BELT - ACCESSORY DRIVE	LR028881 BELT - ACCESSORY DRIVE To: EH946354	-	1	Enquire
8620	LR060071	BELT - ACCESSORY DRIVE	LR060071 BELT - ACCESSORY DRIVE From: EH946355	-	1	Enquire
