Name: Console - Floor (Internal Components) (Itatiaia (Brazil)) ((V) FROMGT000001)
Rating: 5.0 (1 reviews)

View All

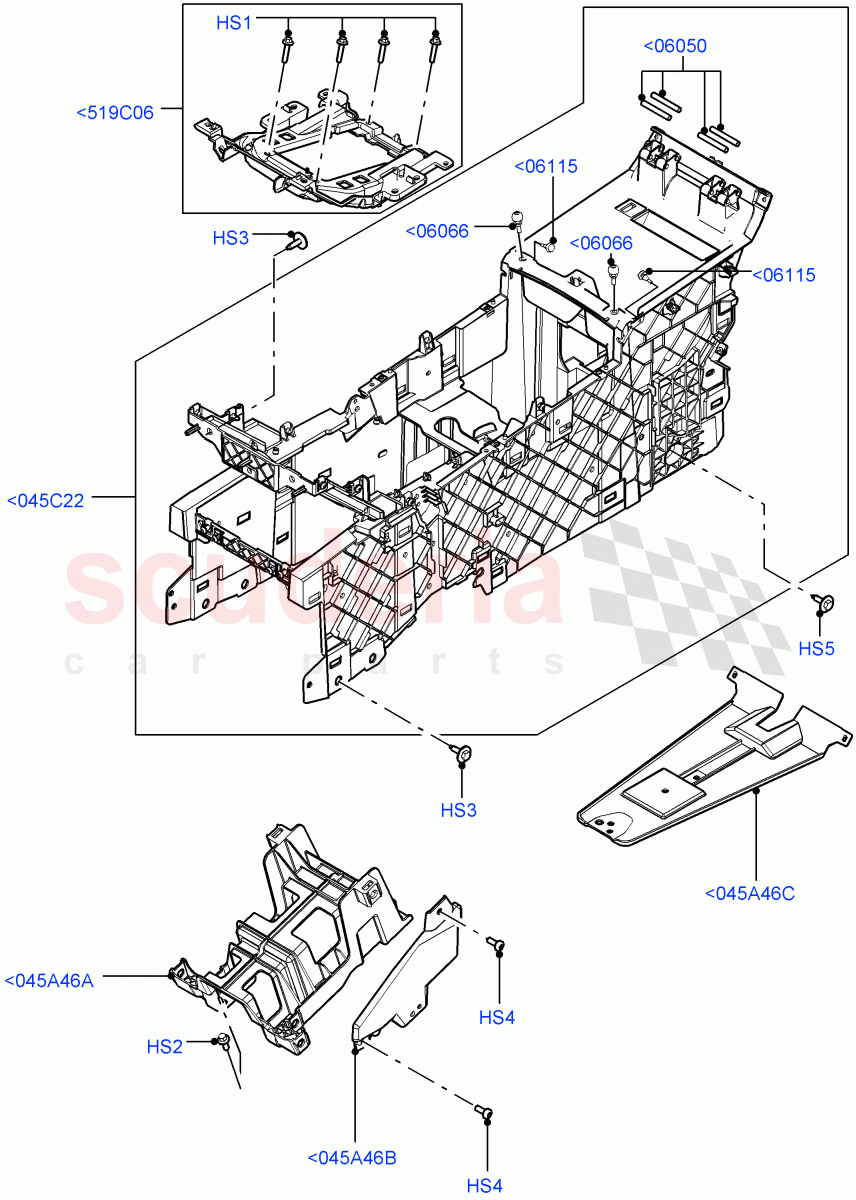

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR028883	SCREW	$1.16	To Order

Photo	Part No	Description	Price (each)	Stock
	FS106166	SCREW	$1.19	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR006025	BOLT	$1.32	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR027849	SCREW	$1.36	To Order

Photo	Part No	Description	Price (each)	Stock
	RYG500820	SCREW AND WASHER	$0.63	To Order

Photo	Part No	Description	Price (each)	Stock
	LR027191	HINGE - STOWAGE BOX	$4.08	To Order

Photo	Part No	Description	Price (each)	Stock
	LR027190	BUMP STOP - FLOOR CONSOLE	$7.90	To Order

Photo	Part No	Description	Price (each)	Stock
	LR032137	BUMPER - FLOOR CONSOLE	$7.19	To Order

Photo	Part No	Description	Price (each)	Stock
	LR071508	CONSOLE - CENTRE FLOOR	$475.36	To Order

Photo	Part No	Description	Price (each)	Stock
	LR071523	PANEL - CONSOLE - SUPPORT	$41.37	To Order

Photo	Part No	Description	Price (each)	Stock
	LR025860	BRACKET - CONSOLE	$443.29	To Order

Photo	Part No	Description	Price (each)	Stock
	LR025859	BRACKET - CONSOLE	$93.43	To Order

Photo	Part No	Description	Price (each)	Stock
	LR071507	BRACKET - STOWAGE MOUNTING	$125.17	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
<045A46A	LR025860	BRACKET - CONSOLE	LR025860 BRACKET - CONSOLE 9 Speed Auto AWD / From: GT000001	$443.29	1
<045A46B	LR025859	BRACKET - CONSOLE	LR025859 BRACKET - CONSOLE Rear End Console With Stowage / From: GT000001	$93.43	1
<045A46C	LR071507	BRACKET - STOWAGE MOUNTING	LR071507 BRACKET - STOWAGE MOUNTING Rear End Console With Stowage / From: GT000001	$125.17	1
<045C22	LR071508	CONSOLE - CENTRE FLOOR	LR071508 CONSOLE - CENTRE FLOOR From: GT000001	$475.36	1
<519C06	LR071523	PANEL - CONSOLE - SUPPORT	LR071523 PANEL - CONSOLE - SUPPORT 9 Speed Auto AWD / From: GT000001	$41.37	1
<06050	LR027191	HINGE - STOWAGE BOX	LR027191 HINGE - STOWAGE BOX Stowage Box / From: GT000001	$4.08	4
<06066	LR027190	BUMP STOP - FLOOR CONSOLE	LR027190 BUMP STOP - FLOOR CONSOLE Stowage Box / From: GT000001	$7.90	1
<06115	LR032137	BUMPER - FLOOR CONSOLE	LR032137 BUMPER - FLOOR CONSOLE Stowage Box / From: GT000001	$7.19	1
HS1	LR028883	SCREW	LR028883 SCREW 9 Speed Auto AWD / M5 x 25MM / From: GT000001	$1.16	1
HS2	FS106166	SCREW IN STOCK	FS106166 SCREW Hexagonal Head, M6 X 16MM / From: GT000001 IN STOCK	$1.19	4
HS3	LR006025	BOLT IN STOCK	LR006025 BOLT Bolt And Washer, M6 X 15 Hex / From: GT000001 IN STOCK	$1.32	4
HS4	LR027849	SCREW	LR027849 SCREW Bracket, M6 X 16MM / From: GT000001	$1.36	2
HS5	RYG500820	SCREW AND WASHER	RYG500820 SCREW AND WASHER Hexagonal Head, M6 X 16MM / From: GT000001	$0.63	2

Console - Floor (Internal Components) (Itatiaia (Brazil)) ((V) Fromgt000001)

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol GTDI]
