Heater Hoses (Changsu (China)) ((V) Fromeg000001)

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol GTDI]

Find Your Part

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol GTDI] - Heater Hoses (Changsu (China)) ((V) FROMEG000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR003009 CLIP $1.11 To Order
Photo Part No Description Price (each) Stock
FS106166 SCREW $1.19 IN STOCK
Photo Part No Description Price (each) Stock
LR094121 HOSE - OUTLET $62.13 To Order
Photo Part No Description Price (each) Stock
LR094120 HOSE - HEATER WATER $67.98 To Order
Photo Part No Description Price (each) Stock
LR084529 BRACKET - PUMP SUPPORT $31.44 To Order
Photo Part No Description Price (each) Stock
LR068931 HOSE - HEATER WATER Enquire To Order
Photo Part No Description Price (each) Stock
LR019277 HOSE - HEATER WATER $46.26 To Order
Photo Part No Description Price (each) Stock
LR004547 SEAL - HEATER $1.26 To Order
Photo Part No Description Price (each) Stock
LR064320 PUMP - WATER - FFH $179.41 To Order
Photo Part No Description Price (each) Stock
LR094347 PUMP - WATER - FFH $232.90 To Order
Photo Part No Description Price (each) Stock
LR094093 HOSE - COOLING SYSTEM $71.37 To Order
Photo Part No Description Price (each) Stock
LR094097 HOSE - HEATER WATER $69.28 To Order
View All

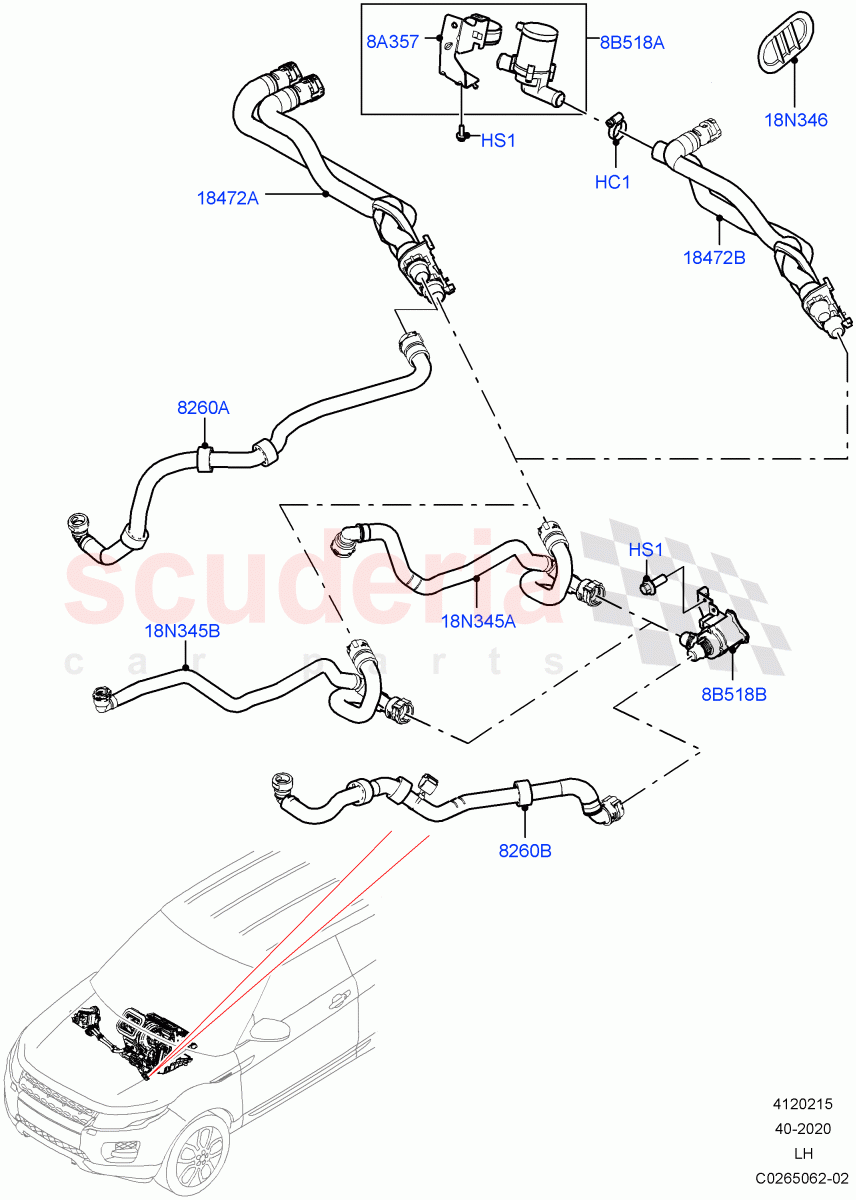

Heater Hoses (Changsu (China)) ((V) FROMEG000001) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol GTDI] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HC1 LR003009
CLIP
20 X 32 X 9MM, Worm Type / From: EG000001 		$1.11 2
HS1 FS106166
SCREW
Hexagonal Head, M6 X 16MM
IN STOCK 		$1.19 1
8A357 LR084529
BRACKET - PUMP SUPPORT
With Fuel Fired Heater 		$31.44 1
8B518A LR064320
PUMP - WATER - FFH
With Fuel Fired Heater / From: EG000001 		$179.41 1
8B518B LR094347
PUMP - WATER - FFH
Auxiliary Unit 		$232.90 1
18N345A LR094093
HOSE - COOLING SYSTEM
Active Tranmission Warming / Pump To Heater 		$71.37 1
18N345B LR094097
HOSE - HEATER WATER
Less Active Tranmission Warming / Pump To Heater 		$69.28 1
18N346 LR004547
SEAL - HEATER
With Ptc Heater / From: EG000001 		$1.26 1
8260A LR094121
HOSE - OUTLET 		$62.13 1
8260B LR094120
HOSE - HEATER WATER
Auxiliary Unit, Water Pump 		$67.98 1
18472A LR068931
HOSE - HEATER WATER
With Ptc Heater / From: EG000001 		- 1 Enquire
18472B LR019277
HOSE - HEATER WATER
With Fuel Fired Heater / From: EG000001 		$46.26 1
