Camera Equipment (Halewood (Uk)) ((V) Tofh999999)

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol GTDI]

Find Your Part

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol GTDI] - Camera Equipment (Halewood (UK)) ((V) TOFH999999)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FN106046 NUT - HEX. Enquire To Order
Photo Part No Description Price (each) Stock
LR025891 BRACKET - CAMERA & TV MODULE Enquire To Order
Photo Part No Description Price (each) Stock
LR033013 MODULE - CAMERA CONTROL Enquire To Order
LR041116 MODULE - CAMERA CONTROL Enquire To Order
LR041434 MODULE - CAMERA CONTROL Enquire To Order
...and 5 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR138086 KIT - REPAIR Enquire To Order
Photo Part No Description Price (each) Stock
LR028429 HOLDER - CAMERA Enquire To Order
LR028428 HOLDER - CAMERA Enquire To Order
LR048355 HOLDER - CAMERA Enquire To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR025912 CAMERA - PARKING Enquire To Order
LR052028 CAMERA - PARKING Enquire To Order
Photo Part No Description Price (each) Stock
LR025921 CAMERA - PARKING Enquire To Order
LR035051 CAMERA - PARKING Enquire To Order
LR040759 CAMERA - PARKING Enquire To Order
...and 9 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR028104 MOULDING - TAILGATE Enquire To Order
Photo Part No Description Price (each) Stock
LR028103 MOULDING - TAILGATE Enquire To Order
View All

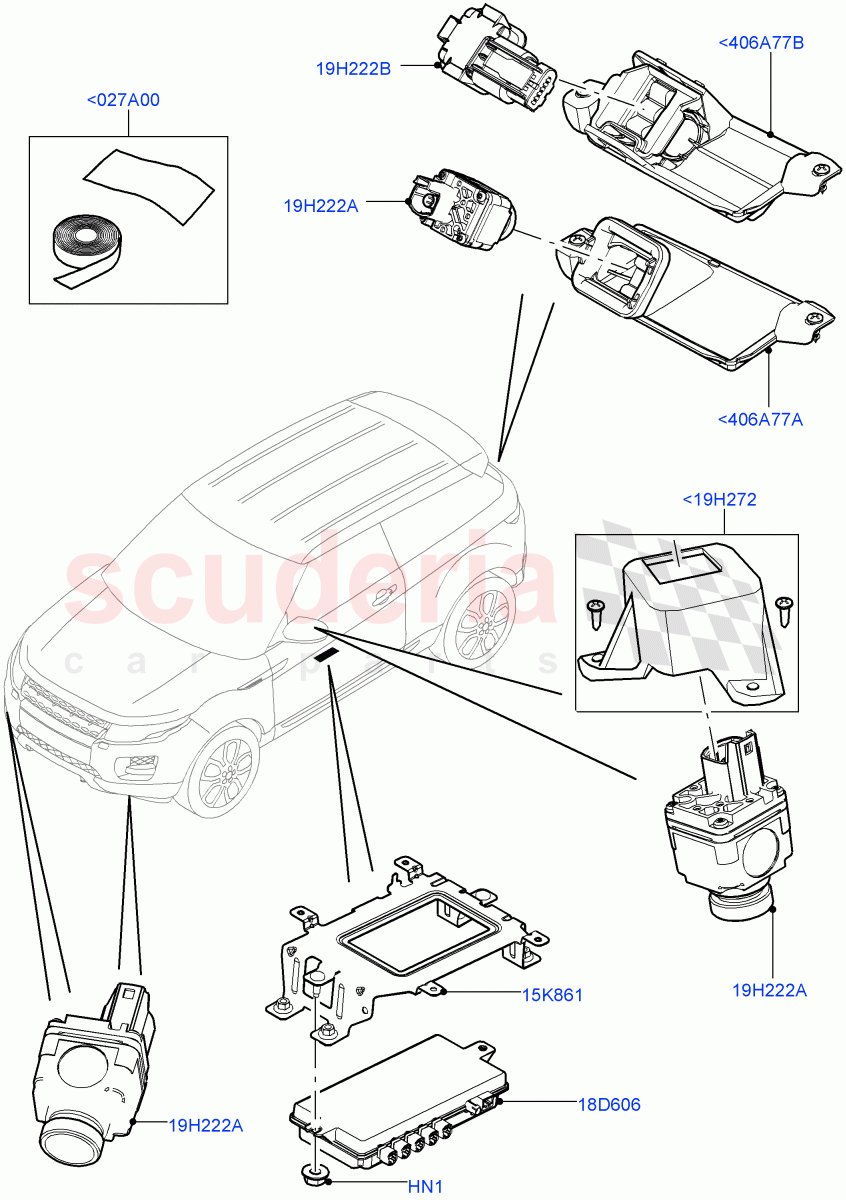

Camera Equipment (Halewood (UK)) ((V) TOFH999999) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol GTDI] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<19H272 LR028429
HOLDER - CAMERA
Surround Camera System / RH, Side View Mirror / To: DH999999 		- 1 Enquire
<19H272 LR028428
HOLDER - CAMERA
Surround Camera System / LH, Side View Mirror / To: DH999999 		- 1 Enquire
<19H272 LR048355
HOLDER - CAMERA
RHD, Surround Camera System / RH, Side View Mirror / From: EH000001 / To: FH999999 		- 1 Enquire
<19H272 LR048356
HOLDER - CAMERA
LHD, Surround Camera System / RH, Side View Mirror / From: EH000001 / To: FH999999 		- 1 Enquire
<19H272 LR048357
HOLDER - CAMERA
RHD, Surround Camera System / LH, Side View Mirror / From: EH000001 / To: FH999999 		- 1 Enquire
<19H272 LR048358
HOLDER - CAMERA
LHD, Surround Camera System / LH, Side View Mirror / From: EH000001 / To: FH999999 		- 1 Enquire
<027A00 LR138086
KIT - REPAIR
For Repair Details Please Refer To Topix, Rubber Strip And Mounting Tape 		- 1 Enquire
<406A77A LR028104
MOULDING - TAILGATE
Surround Camera System / Tailgate / To: FH999999 		- 1 Enquire
<406A77B LR028103
MOULDING - TAILGATE
Rear View Camera-Fixed / Tailgate / To: FH999999 		- 1 Enquire
HN1 FN106046
NUT - HEX.
Surround Camera System / Hexagonal Head, M6 		- 2 Enquire
15K861 LR025891
BRACKET - CAMERA & TV MODULE
Surround Camera System / Mounting Module 		- 1 Enquire
18D606 LR033013
MODULE - CAMERA CONTROL
Surround Camera System / To: CH676322 		- 1 Enquire
18D606 LR041116
MODULE - CAMERA CONTROL
Surround Camera System / From: CH676323 / To: CH999999 		- 1 Enquire
18D606 LR041434
MODULE - CAMERA CONTROL
Surround Camera System / From: DH000001 / To: DH706086 		- 1 Enquire
18D606 LR045105
MODULE - CAMERA CONTROL
Surround Camera System / From: DH706087 / To: DH723025 		- 1 Enquire
18D606 LR045538
MODULE - CAMERA CONTROL
Surround Camera System / From: DH723026 / To: DH799060 		- 1 Enquire
18D606 LR049297
MODULE - CAMERA CONTROL
Surround Camera System / From: DH799061 / To: DH999999 		- 1 Enquire
18D606 LR052057
MODULE - PARKING AID SYSTEM
Surround Camera System / From: EH000001 / To: FH975950 		- 1 Enquire
18D606 LR066380
MODULE - PARKING AID SYSTEM
Surround Camera System / From: FH975951 / To: FH999999 		- 1 Enquire
19H222A LR025912
CAMERA - PARKING
Surround Camera System / Located In Front Bumper, Side View Mirror, Tailgate / To: DH999999 		- 5 Enquire
19H222A LR052028
CAMERA - PARKING
Surround Camera System / IPMB SVS Camera (Surround Camera), Located In Front Bumper, Side View Mirror / From: EH000001 / To: FH999999 		- 3 Enquire
19H222B LR025921
CAMERA - PARKING
Rear View Camera-Fixed / Tailgate / To: CH642854 		- 1 Enquire
19H222B LR035051
CAMERA - PARKING
Rear View Camera-Fixed / Tailgate / From: CH642855 / To: CH678545 		- 1 Enquire
19H222B LR040759
CAMERA - PARKING
Rear View Camera-Fixed / Tailgate / From: CH678546 / To: CH691177 		- 1 Enquire
19H222B LR040760
CAMERA - PARKING
Rear View Camera-Fixed / Tailgate / From: DH000001 / To: DH822194 		- 1 Enquire
19H222B LR048420
CAMERA - PARKING
Rear View Camera-Fixed / Tailgate / From: CH691178 / To: CH701220 		- 1 Enquire
19H222B LR052998
CAMERA - PARKING
Rear View Camera-Fixed / Tailgate / From: DH822195 / To: DH830138 		- 1 Enquire
19H222B LR053108
CAMERA - PARKING
Rear View Camera-Fixed / Tailgate / From: DH830139 / To: EH871421 		- 1 Enquire
19H222B LR057355
CAMERA - PARKING
Rear View Camera-Fixed / Tailgate / From: CH701221 / To: CH999999 		- 1 Enquire
19H222B LR057356
Camera
Rear View Camera-Fixed / Tailgate / From: EH871422 / To: EH877553 		- 1 Enquire
19H222B LR057764
CAMERA - PARKING
Rear View Camera-Fixed / Tailgate / From: EH877554 / To: EH999999 		- 1 Enquire
19H222B LR052029
CAMERA - PARKING
Surround Camera System / IPMB SVS Camera (Surround Camera), Tailgate / From: EH000001 / To: FH999999 		- 1 Enquire
19H222B LR047397
CAMERA - PARKING
Rear View Camera-Fixed / Tailgate / From: FH000001 		- 1 Enquire
