Drive Shaft - Front Axle Drive (Itatiaia (Brazil)) ((V) Fromgt000001)

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol GTDI]

Find Your Part

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol GTDI] - Drive Shaft - Front Axle Drive (Itatiaia (Brazil)) ((V) FROMGT000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR001192 BOLT $0.80 To Order
LR001192 BOLT $0.80 To Order
Photo Part No Description Price (each) Stock
LR024762 BOLT $1.70 To Order
Photo Part No Description Price (each) Stock
BYH500040 NUT AND WASHER - HEX. $0.74 IN STOCK
Photo Part No Description Price (each) Stock
FX110046 NUT - HEX. $0.35 To Order
Photo Part No Description Price (each) Stock
FT110356 SCREW $2.31 To Order
Photo Part No Description Price (each) Stock
LR003773 STUD $3.36 To Order
Photo Part No Description Price (each) Stock
LR025067 JOINT AND STUB SHAFT $353.78 To Order
Photo Part No Description Price (each) Stock
LR061603 SHAFT - FRONT AXLE $1,048.19 To Order
LR071947 SHAFT - FRONT AXLE $731.09 To Order
Photo Part No Description Price (each) Stock
LR061554 SHAFT - FRONT AXLE $1,048.19 To Order
LR061604 SHAFT - FRONT AXLE $830.64 To Order
Photo Part No Description Price (each) Stock
LR105649 BRACKET - DRIVESHAFT $113.81 To Order
Photo Part No Description Price (each) Stock
LR027900 RETAINER - BEARING $5.67 To Order
Photo Part No Description Price (each) Stock
LR003158 RETAINER - SPECIAL $2.59 IN STOCK
Photo Part No Description Price (each) Stock
IYX500050 KIT - GREASE AND ORING $24.24 To Order
Photo Part No Description Price (each) Stock
LR005635 INSERT - TRANSAXLE SHIFT SHAFT $15.84 To Order
Photo Part No Description Price (each) Stock
LR025065 KIT - DRIVESHAFT BOOT $91.63 To Order
Photo Part No Description Price (each) Stock
LR025066 KIT - DRIVESHAFT BOOT $84.12 To Order
Photo Part No Description Price (each) Stock
LR097852 BRACKET - TRANSFER CASE $155.31 To Order
LR105296 BRACKET - TRANSFER CASE $158.83 To Order
Photo Part No Description Price (each) Stock
LR048530 BRACKET - TRANSFER CASE $45.36 To Order
View All

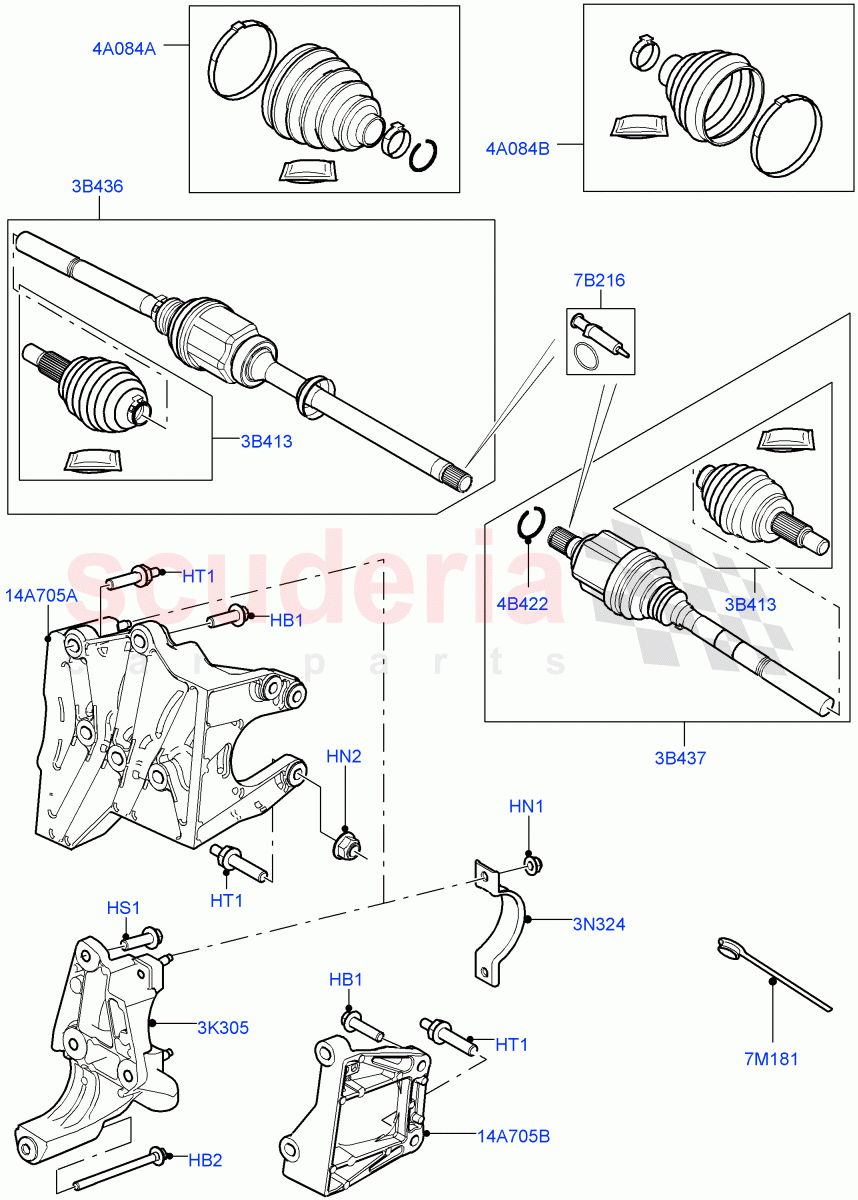

Drive Shaft - Front Axle Drive (Itatiaia (Brazil)) ((V) FROMGT000001) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol GTDI] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR001192
BOLT
2.0L 16V TIVCT T/C 240PS Petrol / Hexagonal Head, M10 x 40MM, PTU Bracket To Engine, PTU Bracket To PTU / From: GT000001 		$0.80 3
HB1 LR001192
BOLT
2.0L I4 DSL MID DOHC AJ200 / Hexagonal Head, M10 x 40MM, PTU Bracket To Engine, PTU Bracket To PTU / From: GT000001 		$0.80 8
HB2 LR024762
BOLT
2.0L 16V TIVCT T/C 240PS Petrol / Hexagonal Head, M8 X 109 / From: GT000001 		$1.70 1
HN1 BYH500040
NUT AND WASHER - HEX.
M8 / From: GT000001
IN STOCK 		$0.74 2
HN2 FX110046
NUT - HEX.
M10 / From: GT000001 		$0.35 1
HS1 FT110356
SCREW
2.0L 16V TIVCT T/C 240PS Petrol / Hexagonal Head, M10 x 35MM / From: GT000001 		$2.31 3
HT1 LR003773
STUD
2.0L 16V TIVCT T/C 240PS Petrol / M10 x 40MM, M8 X 16MM / From: GT000001 		$3.36 1
3B413 LR025067
JOINT AND STUB SHAFT
RH/LH / From: GT000001 		$353.78 2
3B436 LR061603
SHAFT - FRONT AXLE
2.0L 16V TIVCT T/C 240PS Petrol / RH / From: GT000001 		$1,048.19 1
3B436 LR071947
SHAFT - FRONT AXLE
2.0L I4 DSL MID DOHC AJ200 / RH / From: GT000001 		$731.09 1
3B437 LR061554
SHAFT - FRONT AXLE
2.0L 16V TIVCT T/C 240PS Petrol / LH / From: GT000001 		$1,048.19 1
3B437 LR061604
SHAFT - FRONT AXLE
2.0L I4 DSL MID DOHC AJ200 / LH / From: GT000001 		$830.64 1
3K305 LR105649
BRACKET - DRIVESHAFT
2.0L 16V TIVCT T/C 240PS Petrol / Driveshaft / From: GT000001 		$113.81 1
3N324 LR027900
RETAINER - BEARING
From: GT000001 		$5.67 1
4A084A LR025065
KIT - DRIVESHAFT BOOT
Outer / From: GT000001 		$91.63 2
4A084B LR025066
KIT - DRIVESHAFT BOOT
Inner / From: GT000001 		$84.12 2
4B422 LR003158
RETAINER - SPECIAL
From: GT000001
IN STOCK 		$2.59 2
7B216 IYX500050
KIT - GREASE AND ORING
9 Speed Auto AWD / Halfshaft Spline Grease - "O" Ring Not Required / From: GT000001 		$24.24 1
7M181 LR005635
INSERT - TRANSAXLE SHIFT SHAFT
From: GT000001 		$15.84 1
14A705A LR097852
BRACKET - TRANSFER CASE
2.0L I4 Mid DOHC AJ200 Petrol / Driveshaft And Power Transfer Unit / From: JT000001 		$155.31 1
14A705A LR105296
BRACKET - TRANSFER CASE
2.0L I4 DSL MID DOHC AJ200 / Driveshaft And Power Transfer Unit / From: GT000001 		$158.83 1
14A705B LR048530
BRACKET - TRANSFER CASE
2.0L 16V TIVCT T/C 240PS Petrol / Power Transfer Unit / From: GT000001 		$45.36 1
