Timing Gear (2.0L 16V TIVCT T/C 240PS Petrol, Itatiaia (Brazil)) ((V) FROMGT000001) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol GTDI]

View All

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol GTDI] - Timing Gear (2.0L 16V TIVCT T/C 240PS Petrol, Itatiaia (Brazil)) ((V) FROMGT000001)

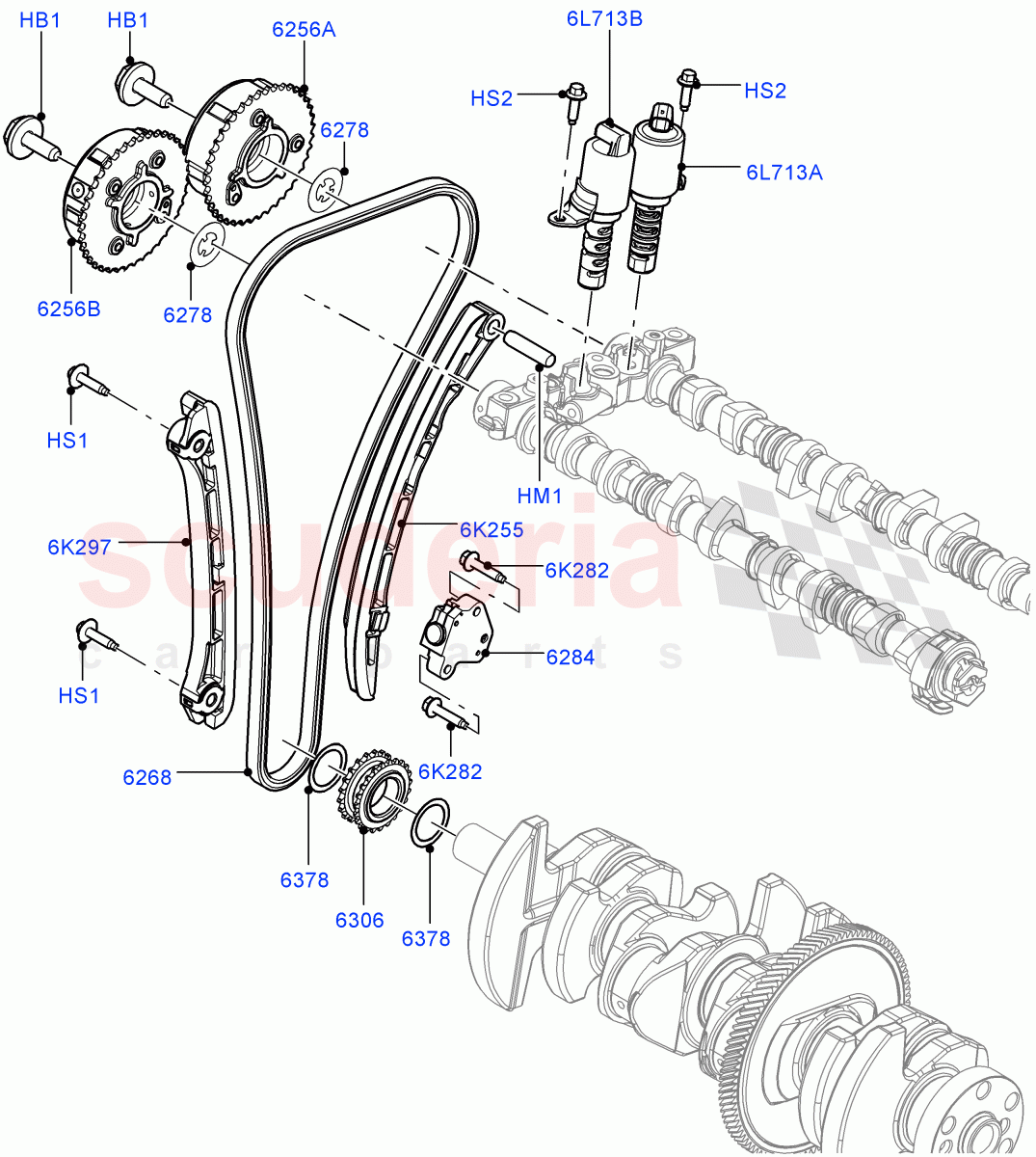

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR025016	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR025654	PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR025653	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYG500150	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR025263	CHAIN - TIMING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR025305	WASHER - CAMSHAFT SPROCKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR066543	TENSIONER - TIMING BELT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR079625	GEAR - CRANKSHAFT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR025011	WASHER - CRANKSHAFT DAMPER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR033733	SPROCKET - CAMSHAFT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR050849	SPROCKET - CAMSHAFT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR025632	ARM - TIMING CHAIN TENSIONER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR025008	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR025000	GUIDE - TIMING CHAIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR025652	SOLENOID - ENGINE VARIABLE TIMING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR024995	SOLENOID - ENGINE VARIABLE TIMING	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	LR025016	BOLT	LR025016 BOLT Sprocket - Drive / From: GT000001	-	2	Enquire
HM1	LR025654	PIN	LR025654 PIN Pin, Tensioner / From: GT000001	-	1	Enquire
HS1	LR025653	BOLT	LR025653 BOLT Chain Guide, M6 X 23MM / From: GT000001	-	1	Enquire
HS2	RYG500150	SCREW	RYG500150 SCREW M6 x 12MM / From: GT000001	-	1	Enquire
6K255	LR025632	ARM - TIMING CHAIN TENSIONER	LR025632 ARM - TIMING CHAIN TENSIONER From: GT000001	-	1	Enquire
6K282	LR025008	BOLT	LR025008 BOLT M6 X 1.0 X 30, Tensioner / From: GT000001	-	2	Enquire
6K297	LR025000	GUIDE - TIMING CHAIN	LR025000 GUIDE - TIMING CHAIN Main, Timing Chain / From: GT000001	-	1	Enquire
6L713A	LR025652	SOLENOID - ENGINE VARIABLE TIMING	LR025652 SOLENOID - ENGINE VARIABLE TIMING Exhaust / From: GT000001	-	1	Enquire
6L713B	LR024995	SOLENOID - ENGINE VARIABLE TIMING	LR024995 SOLENOID - ENGINE VARIABLE TIMING Intake / From: GT000001	-	1	Enquire
6256A	LR033733	SPROCKET - CAMSHAFT	LR033733 SPROCKET - CAMSHAFT Exhaust / From: GT000001	-	1	Enquire
6256B	LR050849	SPROCKET - CAMSHAFT	LR050849 SPROCKET - CAMSHAFT Intake / From: GT000001	-	1	Enquire
6268	LR025263	CHAIN - TIMING	LR025263 CHAIN - TIMING Timing Chain / From: GT000001	-	1	Enquire
6278	LR025305	WASHER - CAMSHAFT SPROCKET	LR025305 WASHER - CAMSHAFT SPROCKET From: GT000001	-	2	Enquire
6284	LR066543	TENSIONER - TIMING BELT	LR066543 TENSIONER - TIMING BELT From: GT000001	-	1	Enquire
6306	LR079625	GEAR - CRANKSHAFT	LR079625 GEAR - CRANKSHAFT Washers 6378 Not Required / From: GT000001	-	1	Enquire
6378	LR025011	WASHER - CRANKSHAFT DAMPER	LR025011 WASHER - CRANKSHAFT DAMPER From: GT000001	-	2	Enquire
