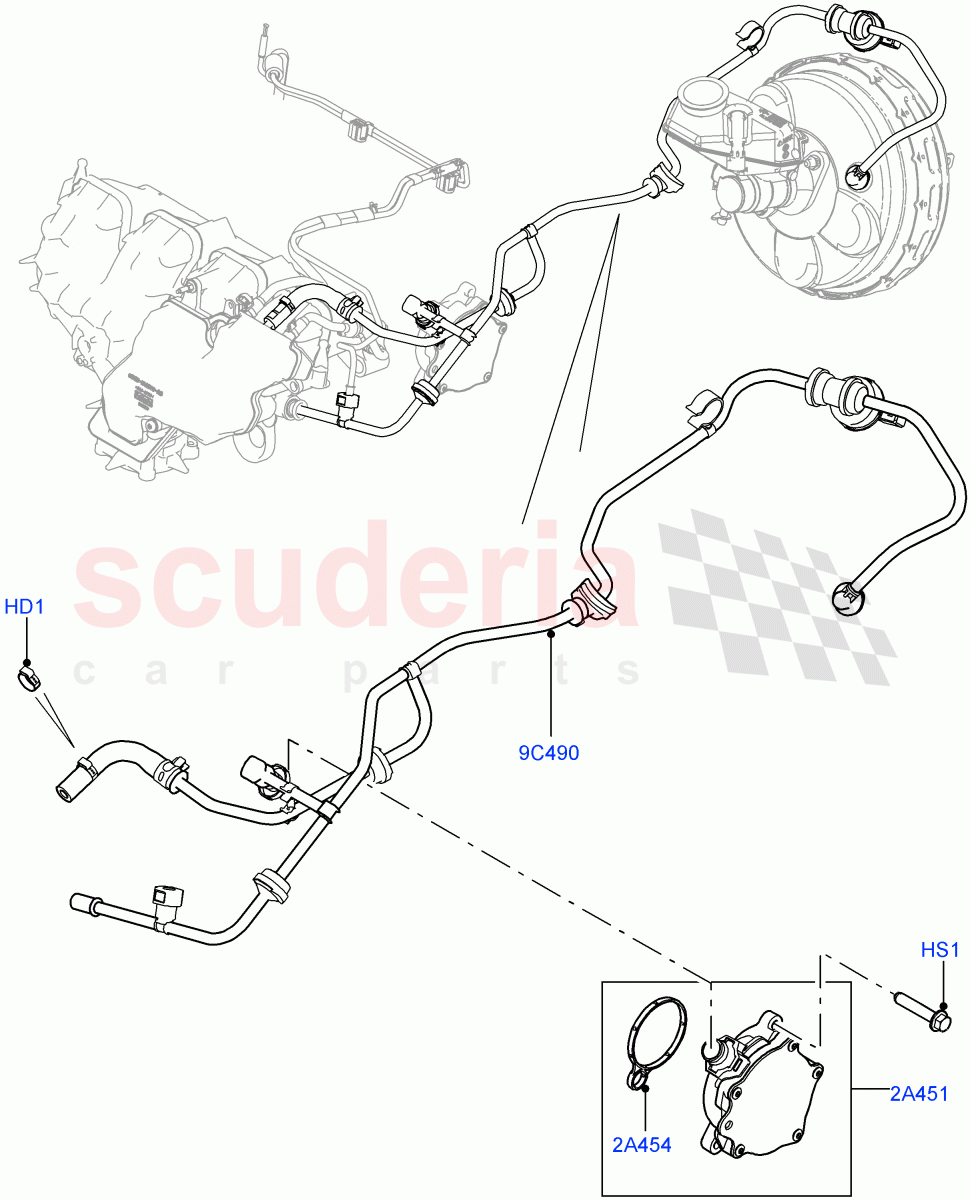

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR069001	CLAMP - HOSE	$5.34	To Order

Photo	Part No	Description	Price (each)	Stock
	4378449	SCREW	$2.11	To Order

Photo	Part No	Description	Price (each)	Stock
	LR047384	PUMP - VACUUM	$470.57	To Order

Photo	Part No	Description	Price (each)	Stock
	LR039593	SEAL - VACUUM PUMP	$32.71	To Order

...and 1 more part variants. See table on right for more details.

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HD1	LR069001	CLAMP - HOSE	LR069001 CLAMP - HOSE To Vacuum Hose	$5.34	1
HS1	4378449	SCREW	4378449 SCREW Hex Head, M6 x 25MM, To Vacuum Pump / From: EH000001	$2.11	3
2A451	LR047384	PUMP - VACUUM	LR047384 PUMP - VACUUM From: EH000001	$470.57	1
2A454	LR039593	SEAL - VACUUM PUMP	LR039593 SEAL - VACUUM PUMP To Vacuum Pump / From: EH000001	$32.71	1
9C490	LR175603	MANIFOLD - VACUUM SUPPLY	LR175603 MANIFOLD - VACUUM SUPPLY From: EH000001 / To: FH972084	$392.90	1
9C490	LR061607	MANIFOLD - VACUUM SUPPLY	LR061607 MANIFOLD - VACUUM SUPPLY From: FH972085 / To: FH991890	$93.22	1
9C490	LR072595	MANIFOLD - VACUUM SUPPLY	LR072595 MANIFOLD - VACUUM SUPPLY From: FH991891 / To: FH999999	$407.42	1
9C490	LR072602	TUBE - VACUUM	LR072602 TUBE - VACUUM From: GH000001	$154.80	1
