Crankshaft/Pistons And Bearings (2.0L 16V TIVCT T/C 240PS Petrol, Changsu (China)) ((V) FROMEG000001) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol GTDI]

View All

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol GTDI] - Crankshaft/Pistons And Bearings (2.0L 16V TIVCT T/C 240PS Petrol, Changsu (China)) ((V)...

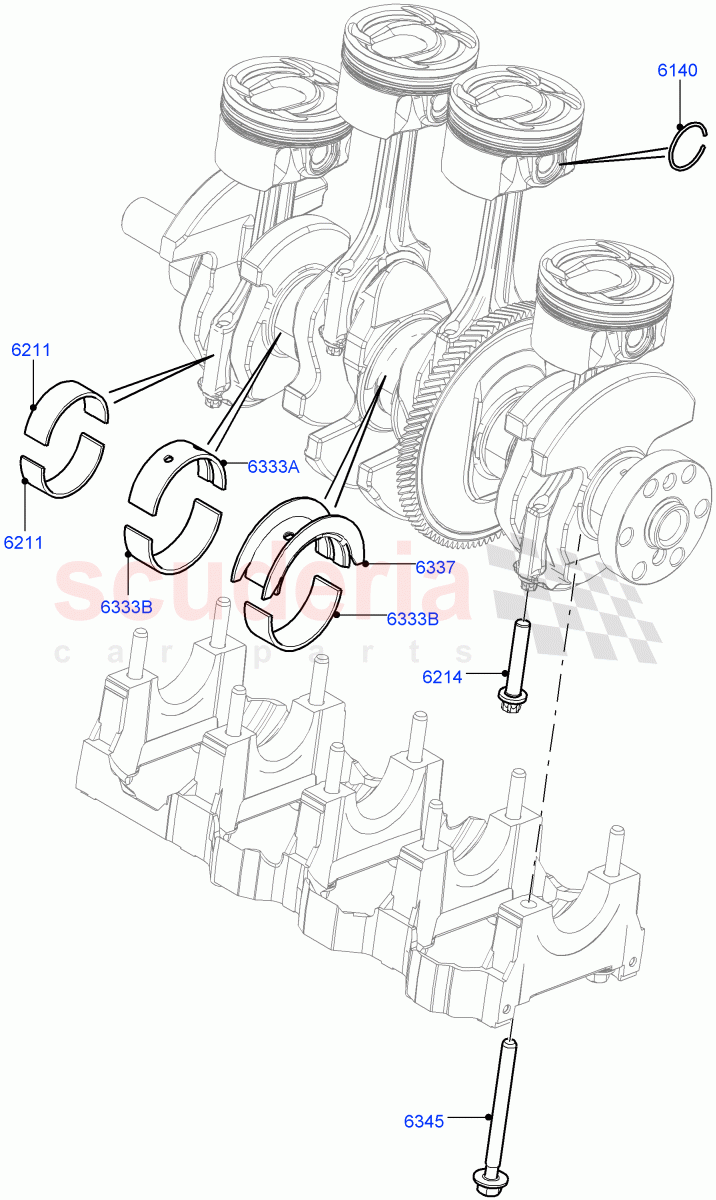

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR024980	RETAINER - PISTON PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR051455	BEARING - CONNECTING ROD	Enquire	To Order
	LR051456	BEARING - CONNECTING ROD	Enquire	To Order
	LR051459	BEARING - CONNECTING ROD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR028862	BOLT - CONNECTING ROD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR025037	BEARING - CRANKSHAFT MAIN THRUST	Enquire	To Order
	LR025038	BEARING - CRANKSHAFT MAIN THRUST	Enquire	To Order
	LR025039	BEARING - CRANKSHAFT MAIN THRUST	Enquire	To Order

...and 11 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR024985	BOLT - BEARING CAP - HEX. HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR053419	BEARING - CRANKSHAFT MAIN	Enquire	To Order
	LR053418	BEARING - CRANKSHAFT MAIN	Enquire	To Order
	LR053420	BEARING - CRANKSHAFT MAIN	Enquire	To Order

...and 4 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR057282	BEARING - CRANKSHAFT MAIN	Enquire	To Order
	LR057283	BEARING - CRANKSHAFT MAIN	Enquire	To Order
	LR057284	BEARING - CRANKSHAFT MAIN	Enquire	To Order

...and 4 more part variants. See table on right for more details.

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
6140	LR024980	RETAINER - PISTON PIN	LR024980 RETAINER - PISTON PIN From: EG000001	-	8	Enquire
6211	LR051455	BEARING - CONNECTING ROD	LR051455 BEARING - CONNECTING ROD Green / From: EG000001	-	-	Enquire
6211	LR051456	BEARING - CONNECTING ROD	LR051456 BEARING - CONNECTING ROD Blue / From: EG000001	-	-	Enquire
6211	LR051459	BEARING - CONNECTING ROD	LR051459 BEARING - CONNECTING ROD Red / From: EG000001	-	-	Enquire
6214	LR028862	BOLT - CONNECTING ROD	LR028862 BOLT - CONNECTING ROD Connecting Rod, M9 X 1.0 X 40 / From: EG000001	-	8	Enquire
6333A	LR053419	BEARING - CRANKSHAFT MAIN	LR053419 BEARING - CRANKSHAFT MAIN Blue / From: EG000001	-	-	Enquire
6333A	LR053418	BEARING - CRANKSHAFT MAIN	LR053418 BEARING - CRANKSHAFT MAIN Green / From: EG000001	-	-	Enquire
6333A	LR053420	BEARING - CRANKSHAFT MAIN	LR053420 BEARING - CRANKSHAFT MAIN Red / From: EG000001	-	-	Enquire
6333A	LR053421	BEARING - CRANKSHAFT MAIN	LR053421 BEARING - CRANKSHAFT MAIN Brown / Brown / From: EG000001	-	-	Enquire
6333A	LR053422	BEARING - CRANKSHAFT MAIN	LR053422 BEARING - CRANKSHAFT MAIN Yellow / From: EG000001	-	-	Enquire
6333A	LR053423	BEARING - CRANKSHAFT MAIN	LR053423 BEARING - CRANKSHAFT MAIN Black / From: EG000001	-	-	Enquire
6333A	LR053424	BEARING - CRANKSHAFT MAIN	LR053424 BEARING - CRANKSHAFT MAIN Blue / Green / From: EG000001	-	-	Enquire
6333B	LR057282	BEARING - CRANKSHAFT MAIN	LR057282 BEARING - CRANKSHAFT MAIN Green / From: EG000001	-	-	Enquire
6333B	LR057283	BEARING - CRANKSHAFT MAIN	LR057283 BEARING - CRANKSHAFT MAIN Blue / From: EG000001	-	-	Enquire
6333B	LR057284	BEARING - CRANKSHAFT MAIN	LR057284 BEARING - CRANKSHAFT MAIN Red / From: EG000001	-	-	Enquire
6333B	LR057285	BEARING - CRANKSHAFT MAIN	LR057285 BEARING - CRANKSHAFT MAIN Brown / Brown / From: EG000001	-	-	Enquire
6333B	LR057286	BEARING - CRANKSHAFT MAIN	LR057286 BEARING - CRANKSHAFT MAIN Yellow / From: EG000001	-	-	Enquire
6333B	LR057287	BEARING - CRANKSHAFT MAIN	LR057287 BEARING - CRANKSHAFT MAIN Black / From: EG000001	-	-	Enquire
6333B	LR057288	BEARING - CRANKSHAFT MAIN	LR057288 BEARING - CRANKSHAFT MAIN Blue / Green / From: EG000001	-	-	Enquire
6337	LR025037	BEARING - CRANKSHAFT MAIN THRUST	LR025037 BEARING - CRANKSHAFT MAIN THRUST Green / From: EG000001	-	1	Enquire
6337	LR025038	BEARING - CRANKSHAFT MAIN THRUST	LR025038 BEARING - CRANKSHAFT MAIN THRUST Blue / From: EG000001	-	1	Enquire
6337	LR025039	BEARING - CRANKSHAFT MAIN THRUST	LR025039 BEARING - CRANKSHAFT MAIN THRUST Red / From: EG000001	-	1	Enquire
6337	LR025040	BEARING - CRANKSHAFT MAIN THRUST	LR025040 BEARING - CRANKSHAFT MAIN THRUST Brown / Brown / From: EG000001	-	1	Enquire
6337	LR025041	BEARING - CRANKSHAFT MAIN THRUST	LR025041 BEARING - CRANKSHAFT MAIN THRUST Yellow / From: EG000001	-	1	Enquire
6337	LR025042	BEARING - CRANKSHAFT MAIN THRUST	LR025042 BEARING - CRANKSHAFT MAIN THRUST Black / From: EG000001	-	1	Enquire
6337	LR025043	BEARING - CRANKSHAFT MAIN THRUST	LR025043 BEARING - CRANKSHAFT MAIN THRUST Blue / Green / From: EG000001	-	1	Enquire
6337	LR045195	BEARING - CRANKSHAFT MAIN THRUST	LR045195 BEARING - CRANKSHAFT MAIN THRUST Alternative Part, Green / From: EG000001	-	1	Enquire
6337	LR045196	BEARING - CRANKSHAFT MAIN THRUST	LR045196 BEARING - CRANKSHAFT MAIN THRUST Alternative Part, Blue / From: EG000001	-	1	Enquire
6337	LR045197	BEARING - CRANKSHAFT MAIN THRUST	LR045197 BEARING - CRANKSHAFT MAIN THRUST Alternative Part, Red / From: EG000001	-	1	Enquire
6337	LR045198	BEARING - CRANKSHAFT MAIN THRUST	LR045198 BEARING - CRANKSHAFT MAIN THRUST Alternative Part, Brown / Brown / From: EG000001	-	1	Enquire
6337	LR045199	BEARING - CRANKSHAFT MAIN THRUST	LR045199 BEARING - CRANKSHAFT MAIN THRUST Alternative Part, Yellow / From: EG000001	-	1	Enquire
6337	LR045200	BEARING - CRANKSHAFT MAIN THRUST	LR045200 BEARING - CRANKSHAFT MAIN THRUST Alternative Part, Black / From: EG000001	-	1	Enquire
6337	LR045201	BEARING - CRANKSHAFT MAIN THRUST	LR045201 BEARING - CRANKSHAFT MAIN THRUST Alternative Part, Blue / Green / From: EG000001	-	1	Enquire
6345	LR024985	BOLT - BEARING CAP - HEX. HEAD	LR024985 BOLT - BEARING CAP - HEX. HEAD M10 X 1.25 X 106 / From: EG000001	-	10	Enquire
