Airbag System (Halewood (Uk))

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol AJ200P]

Find Your Part

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol AJ200P] - Airbag System (Halewood (UK))

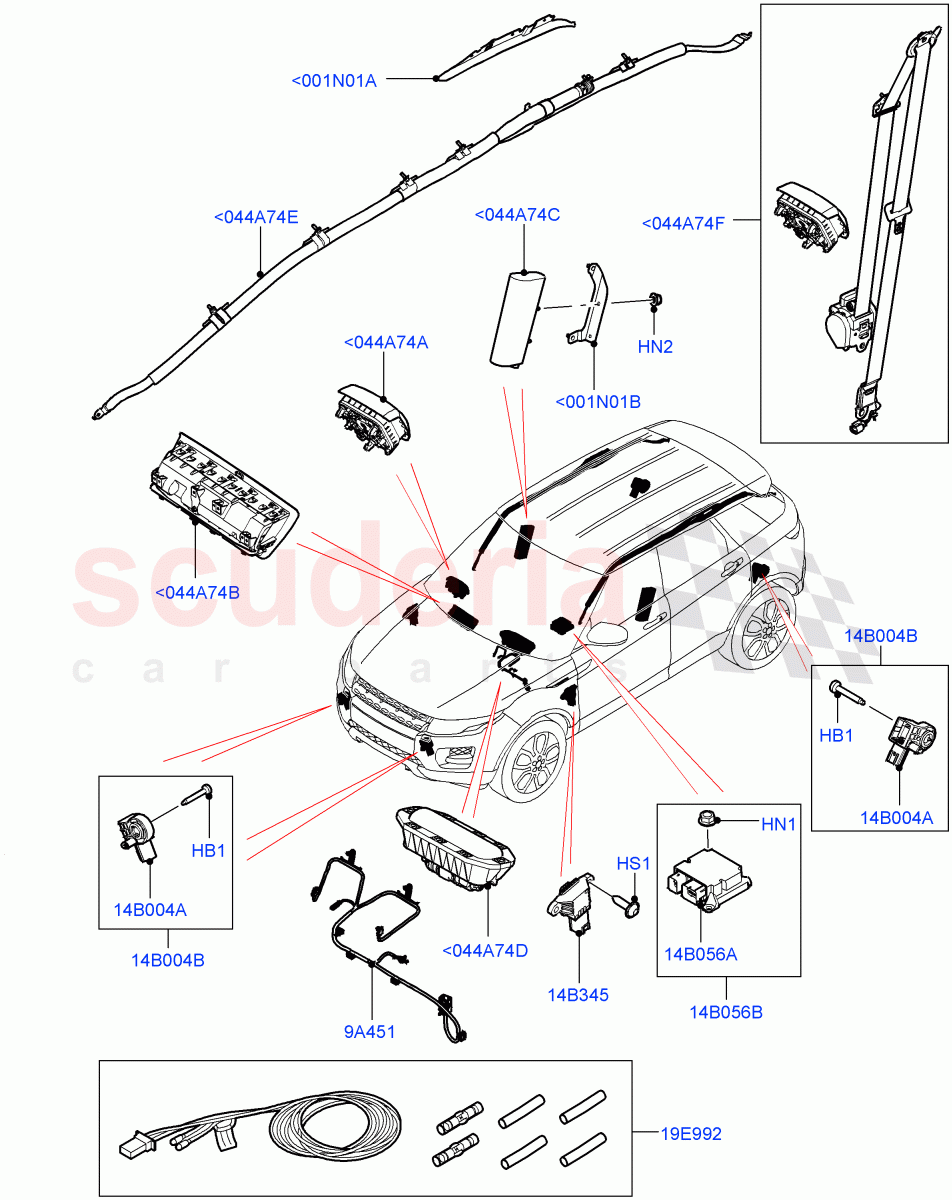

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
YYP500140 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
LR031341 NUT - HEX. Enquire To Order
Photo Part No Description Price (each) Stock
HYH500160 NUT - HEX. Enquire To Order
Photo Part No Description Price (each) Stock
VYP500060 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR028391 WIRING - AIR BAG Enquire To Order
LR028392 WIRING - AIR BAG Enquire To Order
Photo Part No Description Price (each) Stock
LR028860 SENSOR - SIDE AIR BAG Enquire To Order
Photo Part No Description Price (each) Stock
LR110730 KIT - RESTRAINT CIRCUIT REPAIR Enquire To Order
Photo Part No Description Price (each) Stock
LR085161 SENSOR - AIR BAG Enquire To Order
Photo Part No Description Price (each) Stock
LR032046 SENSOR - AIR BAG Enquire To Order
Photo Part No Description Price (each) Stock
LR028871 MONITOR - AIRBAG DIAGNOSTIC MODULE Enquire To Order
Photo Part No Description Price (each) Stock
LR032045 MONITOR - AIRBAG DIAGNOSTIC MODULE Enquire To Order
LR072410 MONITOR - AIRBAG DIAGNOSTIC MODULE Enquire To Order
LR067254 MONITOR - AIRBAG DIAGNOSTIC MODULE Enquire To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR026025 BRACKET - AIR BAG Enquire To Order
LR026026 BRACKET - AIR BAG Enquire To Order
Photo Part No Description Price (each) Stock
LR026023 BRACKET - AIR BAG Enquire To Order
LR026024 BRACKET - AIR BAG Enquire To Order
Photo Part No Description Price (each) Stock
LR026014 AIR BAG - STEERING WHEEL Enquire To Order
LR026015 AIR BAG - STEERING WHEEL Enquire To Order
LR039092 AIR BAG - STEERING WHEEL Enquire To Order
...and 22 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR026031 AIR BAG - KNEE Enquire To Order
LR026032 AIR BAG - KNEE Enquire To Order
LR026033 AIR BAG - KNEE Enquire To Order
...and 4 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR026019 SIDE AIR BAG Enquire To Order
LR026021 SIDE AIR BAG Enquire To Order
LR026022 SIDE AIR BAG Enquire To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR026016 AIR BAG - PASSENGER Enquire To Order
LR091702 AIR BAG - PASSENGER Enquire To Order
Photo Part No Description Price (each) Stock
LR026027 AIR BAG - CURTAIN Enquire To Order
LR026028 AIR BAG - CURTAIN Enquire To Order
LR026029 AIR BAG - CURTAIN Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR114010 KIT - AIRBAG AND SEAT BELT Enquire To Order
LR114047 KIT - AIRBAG AND SEAT BELT Enquire To Order
LR114055 KIT - AIRBAG AND SEAT BELT Enquire To Order
...and 5 more part variants. See table on right for more details.
View All
Airbag System (Halewood (UK)) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol AJ200P] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<001N01A LR026025
BRACKET - AIR BAG
5 Door / RH, To Side Air Curtain 		- 1 Enquire
<001N01A LR026026
BRACKET - AIR BAG
5 Door / LH, To Side Air Curtain 		- 1 Enquire
<001N01B LR026023
BRACKET - AIR BAG
Seat - Premium / RH, Seat Back 		- 1 Enquire
<001N01B LR026024
BRACKET - AIR BAG
Seat - Premium / LH, Seat Back 		- 1 Enquire
<044A74A LR026014
AIR BAG - STEERING WHEEL
2.0L 16V TIVCT T/C 240PS Petrol / Driver, Ebony Black / To: CH643513 		- 1 Enquire
<044A74A LR026015
AIR BAG - STEERING WHEEL
2.2L CR DI 16V Diesel / Driver, Ebony Black / To: CH643513 		- 1 Enquire
<044A74A LR039092
AIR BAG - STEERING WHEEL
2.0L 16V TIVCT T/C 240PS Petrol / Driver, Ebony Black / From: CH643514 / To: DH999999 		- 1 Enquire
<044A74A LR039093
AIR BAG - STEERING WHEEL
2.2L CR DI 16V Diesel / Driver, Ebony Black / From: CH643514 / To: DH999999 		- 1 Enquire
<044A74A LR056446
AIR BAG - STEERING WHEEL
2.0L 16V TIVCT T/C Gen2 Petrol / Driver, Ebony Black / From: EH000001 / To: EH896399 		- 1 Enquire
<044A74A LR056449
AIR BAG - STEERING WHEEL
2.2L CR DI 16V Diesel / Driver, Ebony Black / From: EH000001 / To: EH896399 		- 1 Enquire
<044A74A LR065513
AIR BAG - STEERING WHEEL
2.0L 16V TIVCT T/C 240PS Petrol / Driver, Ebony Black / From: EH896400 / To: FH018599 		- 1 Enquire
<044A74A LR071371
AIR BAG - STEERING WHEEL
2.0L 16V TIVCT T/C Gen2 Petrol, 3 Door / Driver, Ebony Black, When Ordering LR112250 For NAS Market Please Order Also LR072753 / From: FH018600 / To: HH225445 		- 1 Enquire
<044A74A LR065514
AIR BAG - STEERING WHEEL
2.2L CR DI 16V Diesel / Driver, Ebony Black / From: EH896400 / To: FH018599 		- 1 Enquire
<044A74A LR071372
AIR BAG - STEERING WHEEL
2.2L CR DI 16V Diesel / Driver, Ebony Black, When Ordering LR112251 For NAS Market Please Order Also LR072753 / From: FH018600 / To: HH223284 		- 1 Enquire
<044A74A LR071372
AIR BAG - STEERING WHEEL
2.0L I4 DSL MID DOHC AJ200, 3 Door, 9 Speed Auto AWD / Driver, Ebony Black, When Ordering LR112251 For NAS Market Please Order Also LR072753 / From: GH000001 / To: HH226050 		- 1 Enquire
<044A74A LR076878
AIR BAG - STEERING WHEEL
2.0L I4 DSL MID DOHC AJ200, 3 Door, 6 Speed Manual Trans-JLR M66 2WD / Driver, Ebony Black, When Ordering LR112252 For NAS Market Please Order Also LR072753 / From: GH000001 / To: HH219077 		- 1 Enquire
<044A74A LR104232
AIR BAG - STEERING WHEEL
2.0L 16V TIVCT T/C Gen2 Petrol, 3 Door / Driver, Ebony Black / From: HH227955 / To: HH999999 		- 1 Enquire
<044A74A LR104232
AIR BAG - STEERING WHEEL
2.0L I4 Mid DOHC AJ200 Petrol, 5 Door / Driver, Ebony Black / From: JH000001 		- 1 Enquire
<044A74A LR104234
AIR BAG - STEERING WHEEL
2.0L I4 DSL MID DOHC AJ200, 5 Door, 9 Speed Auto AWD / Driver, Ebony Black / From: HH227955 		- 1 Enquire
<044A74A LR104234
AIR BAG - STEERING WHEEL
2.2L CR DI 16V Diesel / Driver, Ebony Black / From: HH225446 		- 1 Enquire
<044A74A LR104234
AIR BAG - STEERING WHEEL
2.0L I4 DSL HIGH DOHC AJ200, 5 Door / Driver, Ebony Black / From: JH000001 		- 1 Enquire
<044A74A LR104235
AIR BAG - STEERING WHEEL
2 Door Convertible, 2.0L 16V TIVCT T/C Gen2 Petrol / Driver, Ebony Black / From: HH225446 / To: HH999999 		- 1 Enquire
<044A74A LR104235
AIR BAG - STEERING WHEEL
2 Door Convertible, 2.0L I4 Mid DOHC AJ200 Petrol / Driver, Ebony Black / From: JH000001 		- 1 Enquire
<044A74A LR104235
AIR BAG - STEERING WHEEL
2.0L I4 DSL MID DOHC AJ200, 5 Door, 6 Speed Manual Trans M66 - AWD / Driver, Ebony Black / From: HH226553 		- 1 Enquire
<044A74A LR104235
AIR BAG - STEERING WHEEL
2 Door Convertible, 2.0L I4 DSL MID DOHC AJ200, 9 Speed Auto AWD / Driver, Ebony Black / From: HH225446 		- 1 Enquire
<044A74A LR112250
AIR BAG - STEERING WHEEL
2.0L 16V TIVCT T/C 240PS Petrol / Driver, Ebony Black, When Ordering LR112250 For NAS Market Please Order Also LR072753 / From: HH225446 / To: HH227954 		- 1 Enquire
<044A74A LR112252
AIR BAG - STEERING WHEEL
2 Door Convertible, 2.0L I4 DSL MID DOHC AJ200, 9 Speed Auto AWD, With Occupant Sensor / Driver, Ebony Black / From: HH219078 / To: HH226552 		- 1 Enquire
<044A74A LR112251
AIR BAG - STEERING WHEEL
2.2L CR DI 16V Diesel, With Occupant Sensor / Driver, Ebony Black / From: HH223285 / To: HH225445 		- 1 Enquire
<044A74A LR112251
AIR BAG - STEERING WHEEL
2.0L I4 DSL MID DOHC AJ200, 5 Door, 9 Speed Auto AWD, With Occupant Sensor / Driver, Ebony Black / From: HH226051 / To: HH227954 		- 1 Enquire
<044A74B LR026031
AIR BAG - KNEE
I/P Facia Contrast - Lunar / Driver, Knee Protection 		- 1 Enquire
<044A74B LR026032
AIR BAG - KNEE
I/P Facia Contrast - Cirrus/Lunar / Driver, Knee Protection 		- 1 Enquire
<044A74B LR026033
AIR BAG - KNEE
I/P Facia Contrast-Espresso/Ivory / Driver, Knee Protection 		- 1 Enquire
<044A74B LR026034
AIR BAG - KNEE
I/P Facia Contrast - Ebony Black / Driver, Knee Protection 		- 1 Enquire
<044A74B LR026035
AIR BAG - KNEE
I/P Facia Contrast-Espresso/Almond / Driver, Knee Protection 		- 1 Enquire
<044A74B LR026033
AIR BAG - KNEE
I/P Facia Cntrast-DarkCherry/Ivory / Driver, Knee Protection / From: CH000001 		- 1 Enquire
<044A74B LR026033
AIR BAG - KNEE
I/P Facia Contrast - Lunar/Ivory / Driver, Knee Protection / From: DH000001 		- 1 Enquire
<044A74C LR026019
SIDE AIR BAG
3 Door, Seat - Standard / RH, Seat Back 		- 1 Enquire
<044A74C LR026021
SIDE AIR BAG
3 Door, Seat - Standard / LH, Seat Back 		- 1 Enquire
<044A74C LR026022
SIDE AIR BAG
5 Door, Seat - Premium / LH, Seat Back 		- 1 Enquire
<044A74C LR026020
SIDE AIR BAG
5 Door, Seat - Premium / RH, Seat Back 		- 1 Enquire
<044A74C LR074899
SIDE AIR BAG
2 Door Convertible / RH / From: GH000001 		- 1 Enquire
<044A74C LR074900
SIDE AIR BAG
2 Door Convertible / LH / From: GH000001 		- 1 Enquire
<044A74D LR026016
AIR BAG - PASSENGER
Passenger / To: HH170288 		- 1 Enquire
<044A74D LR091702
AIR BAG - PASSENGER
Passenger / From: HH170289 		- 1 Enquire
<044A74E LR026027
AIR BAG - CURTAIN
3 Door / RH, Air Curtain 		- 1 Enquire
<044A74E LR026028
AIR BAG - CURTAIN
5 Door / RH, Air Curtain 		- 1 Enquire
<044A74E LR026029
AIR BAG - CURTAIN
3 Door / LH, Air Curtain 		- 1 Enquire
<044A74E LR026030
AIR BAG - CURTAIN
5 Door / LH, Air Curtain 		- 1 Enquire
<044A74F LR114010
KIT - AIRBAG AND SEAT BELT
2.0L 16V TIVCT T/C Gen2 Petrol, 5 Door, Seatbelt Lock Retraction-Automatic, Sensor - Occupant Classification / Driver, Ebony Black, Kit - Air Bag And Seat Belt / To: HH227954 		- 1 Enquire
<044A74F LR114047
KIT - AIRBAG AND SEAT BELT
2.0L 16V TIVCT T/C 240PS Petrol, 3 Door, Seatbelt Lock Retraction-Automatic, Sensor - Occupant Classification / Driver, Ebony Black, Kit - Air Bag And Seat Belt / From: HH225446 		- 1 Enquire
<044A74F LR114055
KIT - AIRBAG AND SEAT BELT
2.0L I4 DSL MID DOHC AJ200, 5 Door, Seatbelt Lock Retraction-Automatic, Sensor - Occupant Classification / Driver, Ebony Black, Kit - Air Bag And Seat Belt / From: HH225446 		- 1 Enquire
<044A74F LR114056
KIT - AIRBAG AND SEAT BELT
2.0L I4 DSL MID DOHC AJ200, 3 Door, Seatbelt Lock Retraction-Automatic, Sensor - Occupant Classification / Driver, Ebony Black, Kit - Air Bag And Seat Belt / From: HH225446 		- 1 Enquire
<044A74F LR114049
MODULE - AIR BAG
2 Door Convertible, 2.0L 16V TIVCT T/C 240PS Petrol, Seatbelt Lock Retraction-Automatic, Sensor - Occupant Classification / Driver, Ebony Black, Kit - Air Bag And Seat Belt / From: HH237364 		- 1 Enquire
<044A74F LR114060
KIT - AIRBAG AND SEAT BELT
2.0L I4 DSL MID DOHC AJ200, 5 Door, 6 Speed Manual Trans M66 - AWD, Seatbelt Lock Retraction-Automatic, Sensor - Occupant Classification / Driver, Ebony Black, Kit - Air Bag And Seat Belt / From: HH226553 		- 1 Enquire
<044A74F LR114062
KIT - AIRBAG AND SEAT BELT
2.0L I4 DSL MID DOHC AJ200, 3 Door, 6 Speed Manual Trans M66 - AWD, Seatbelt Lock Retraction-Automatic, Sensor - Occupant Classification / Driver, Ebony Black, Kit - Air Bag And Seat Belt / From: HH226553 		- 1 Enquire
<044A74F LR114057
KIT - AIRBAG AND SEAT BELT
2 Door Convertible, 2.0L I4 DSL MID DOHC AJ200, Seatbelt Lock Retraction-Automatic, Sensor - Occupant Classification / Driver, Kit - Air Bag And Seat Belt / From: HH226553 		- 1 Enquire
HB1 YYP500140
BOLT
Fixings Cannot Be Reused, M6 x 35MM, Torx 		- 4 Enquire
HN1 LR031341
NUT - HEX.
Fixings Cannot Be Reused, HEX Flange, Hexagonal Head, M6 		- 3 Enquire
HN2 HYH500160
NUT - HEX.
Seat - Premium / M6, Seat Back 		- 2 Enquire
HS1 VYP500060
SCREW
4.8 X 16MM, Fixings Cannot Be Reused, Torx 		- 4 Enquire
9A451 LR028391
WIRING - AIR BAG
LHD / Passenger Side 		- 1 Enquire
9A451 LR028392
WIRING - AIR BAG
RHD / Passenger Side 		- 1 Enquire
14B004A LR085161
SENSOR - AIR BAG
Front And Rear, RH/LH 		- 4 Enquire
14B004B LR032046
SENSOR - AIR BAG
Front And Rear, RH/LH 		- 4 Enquire
14B056A LR028871
MONITOR - AIRBAG DIAGNOSTIC MODULE
To: DH999999 		- 1 Enquire
14B056B LR032045
MONITOR - AIRBAG DIAGNOSTIC MODULE
To: DH999999 		- 1 Enquire
14B056B LR072410
MONITOR - AIRBAG DIAGNOSTIC MODULE
From: EH946861 / To: FH999999 		- 1 Enquire
14B056B LR067254
MONITOR - AIRBAG DIAGNOSTIC MODULE
From: EH000001 / To: EH946860 		- 1 Enquire
14B056B LR077205
MONITOR - AIRBAG DIAGNOSTIC MODULE
From: GH000001 / To: JH282278 		- 1 Enquire
14B056B LR162955
MONITOR - AIRBAG DIAGNOSTIC MODULE
From: JH282279 		- 1 Enquire
14B345 LR028860
SENSOR - SIDE AIR BAG
RH/LH, Side 		- 2 Enquire
19E992 LR110730
KIT - RESTRAINT CIRCUIT REPAIR
From: JH000001 		- 1 Enquire
